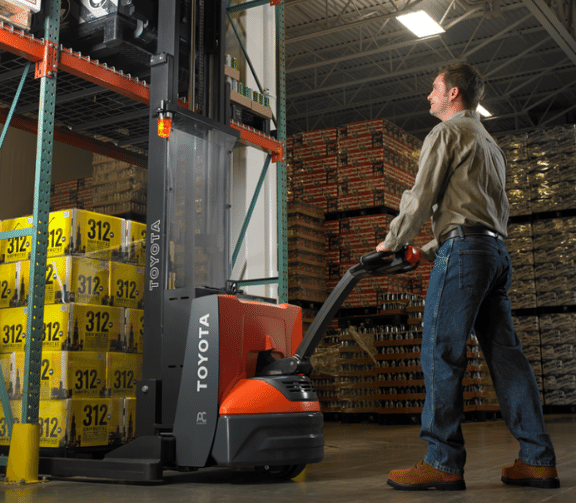

Toyota Counter-Balanced Stacker Application 2

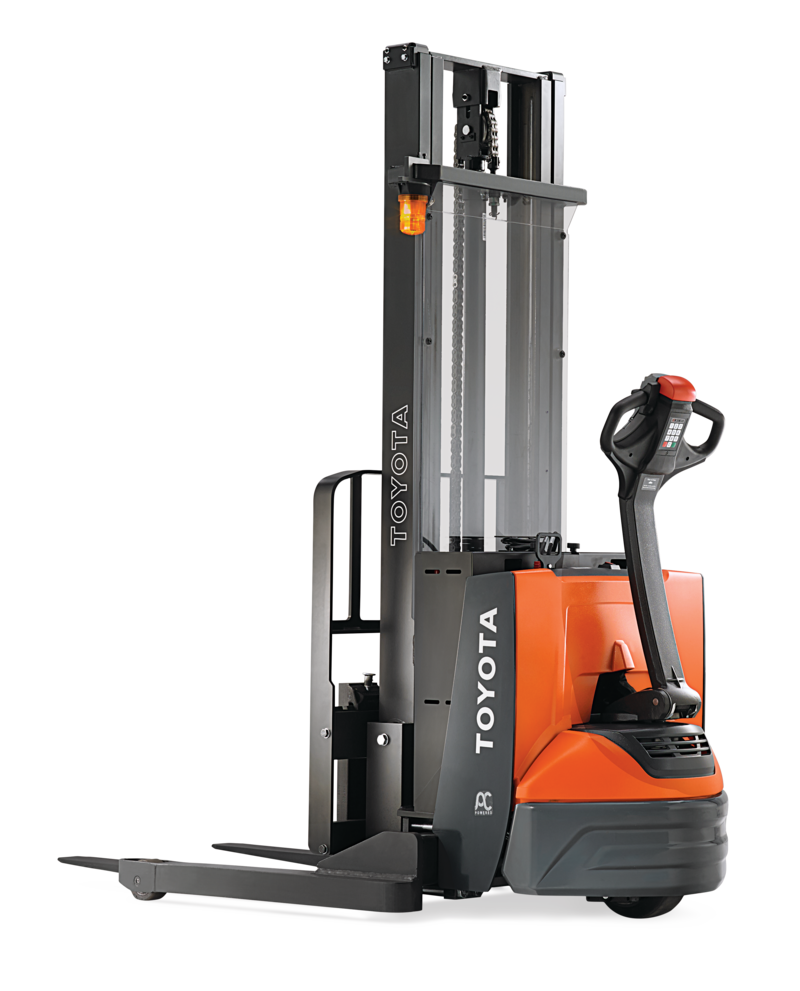

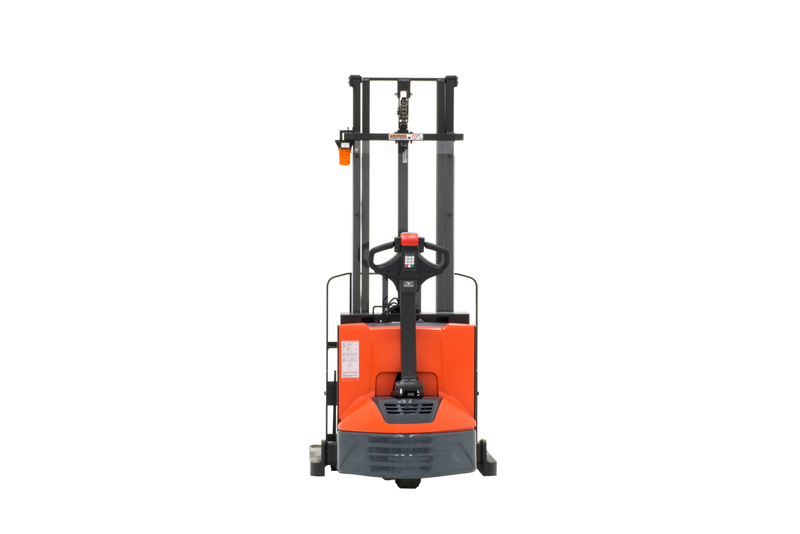

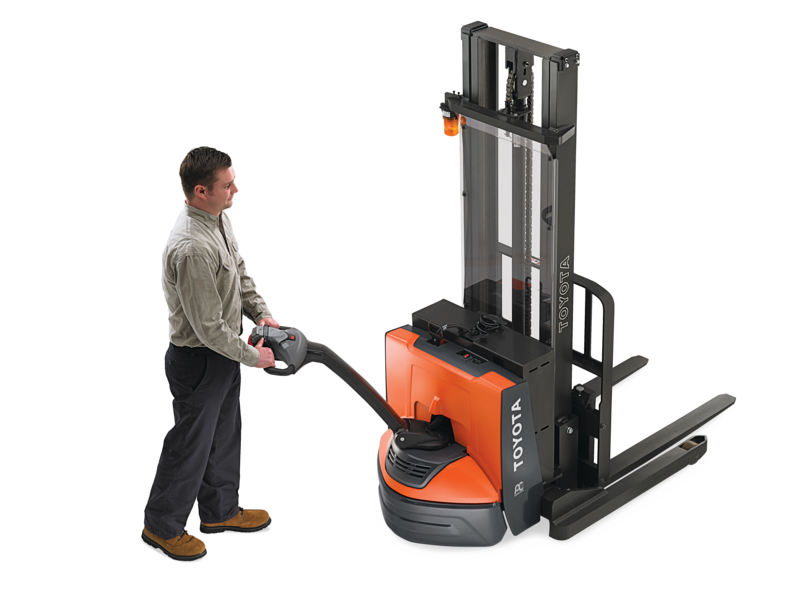

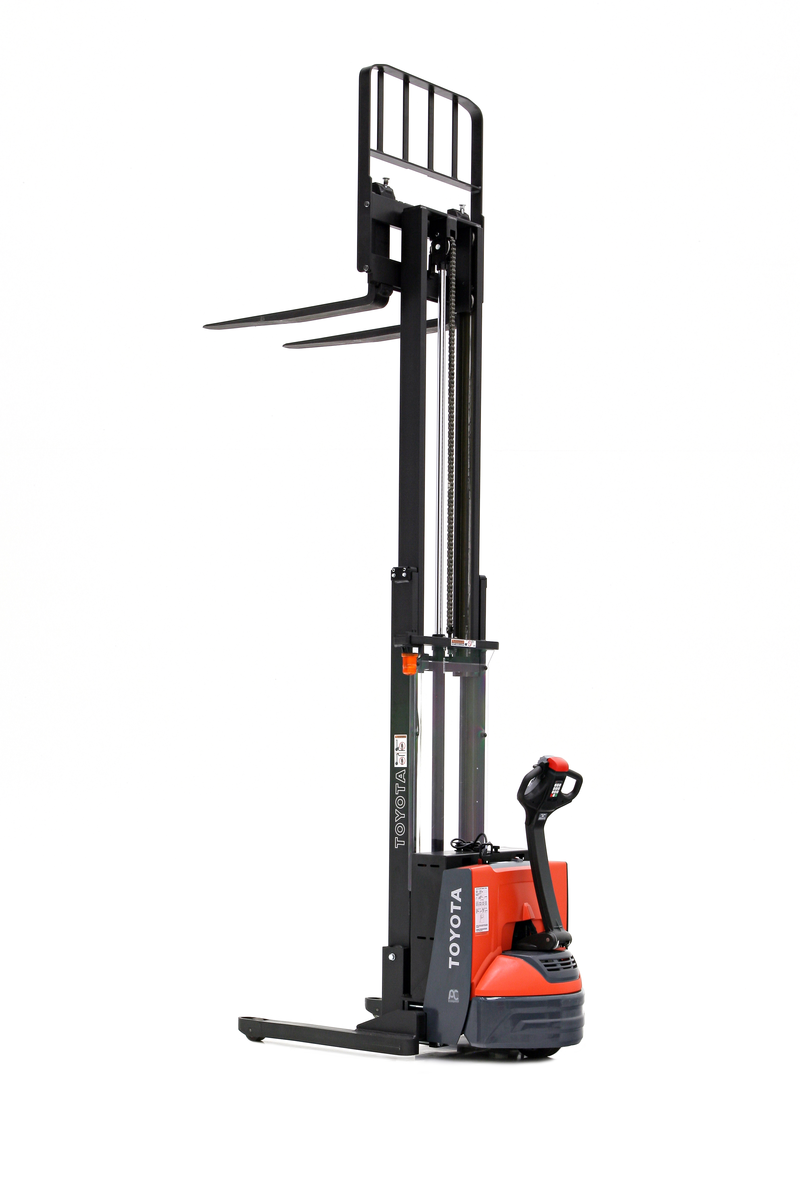

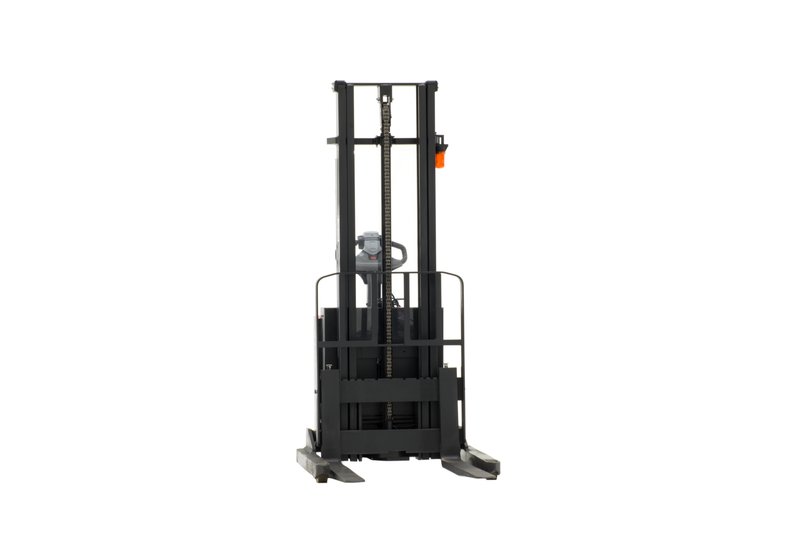

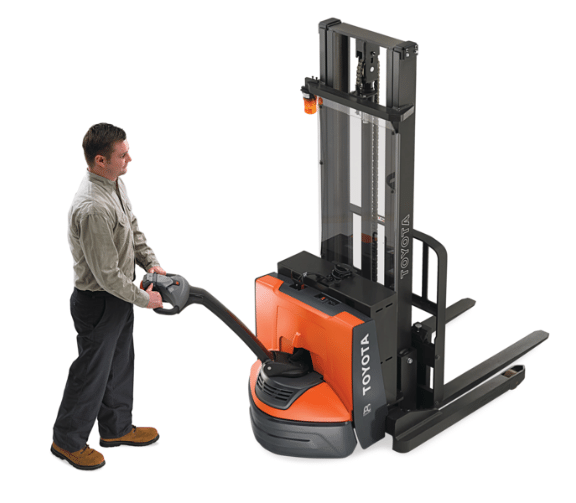

Toyota Walkie Stacker

2,000 – 2,500 lb. Capacity
IP65-Rated Electrical System
Smart Lift/Lower System
AC Drive Motor
Electronic Brake Release
Maintenance-Free Battery Option
No Tools Required Cover
Cold Storage to -20°F Option

Documents

Product Documents

Product Videos

Financing Information

Product Description

Designed to meet the needs of direct-to-store delivery applications, Toyota’s smoothest walkie stacker yet makes light-cycle, light-duty material handling easier and more efficient, even in the tightest spaces. Your workload demands a durable, innovative, reliable forklift design. The Toyota Walkie Stacker delivers.

An IP65-rated electrical system and improved handle head castings keep dust and debris out. Water, too, including low pressure streams from all directions. Handle heads are sealed and weather tested. And the battery is enclosed in a steel battery case with thicker hinge points. Result? A walkie stacker that works as hard as you.

Model Numbers: 8BWS10 | 8BWS13

Equipment Details

Forklift Type	Electric Pallet Jacks & Stackers
Brand	Toyota
Capacity	2,500 lbs., 2,000 lbs.
Condition	New
Fuel Type	Electric/Battery, 24 Volt

Optional on-board charging system for quick, easy recharging
Auto-off feature shuts down truck when idle for a period of time to conserve battery life
Excellent low-speed torque with turtle torque control
Increased bumper clearance makes floor transitions and dock plates easier to clear
Steel battery case with improved durability including thicker hinge points
Wire harness routing to protect wiring elements

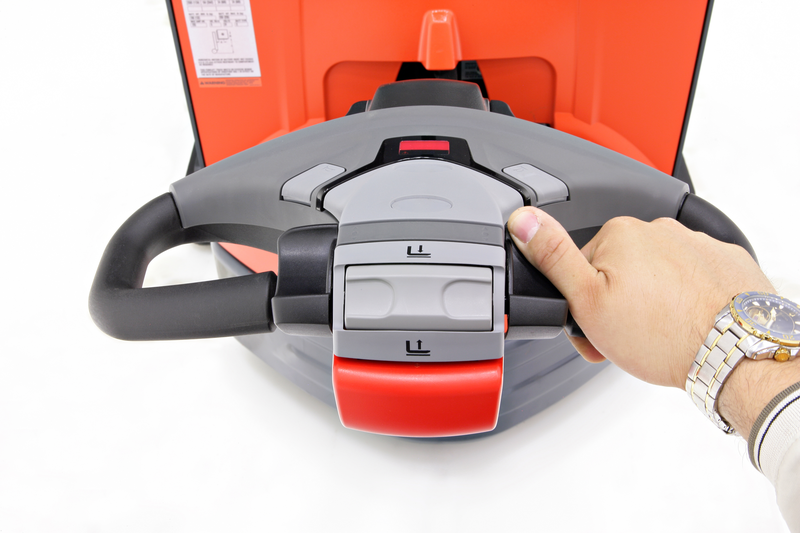

Multifunction control handle with ergonomically angled handgrips
Fingertip control of all functions
Directional thumb controls
Programmable neutral speed reduction
Direction reverse switch on control handle
Turtle torque control
Spring-loaded control handle
“Pinwheel” capability for right-angle stacking
Electric disc brake
Emergency power disconnect
Battery disconnect handle
Electronic brake release jumper

24-Volt electrical system
AC drive motor with thermal protection & current limiting
Class “F” motor insulation
Transistor drive control system
Controller Area Network (CAN-bus) communication
Regenerative braking
Contactor-less drive controls
Electronic touchpad, keyless entry system with password protection
Programmable performance for up to 10 operators
Electronic raise and lower controls in operator handle
Programmable auto-off system
Error indicator with self-diagnostics
Fault code memory with hour meter reading
Hour meter indicator
Programmable service indicator
Battery discharge indicator with lift interrupt
Anti-rollback system
Fused control and power circuits
IP65-rated electrical system

Poly drive tire, 10”-diameter width
Polyurethane load wheels, 4” diameter x 3” width
Battery compartment 27.3” x 7.8” open height
SB-175 connector (red)
High-strength service cover with pen/pencil storage tray
Tool-free cover removal
Electric horn

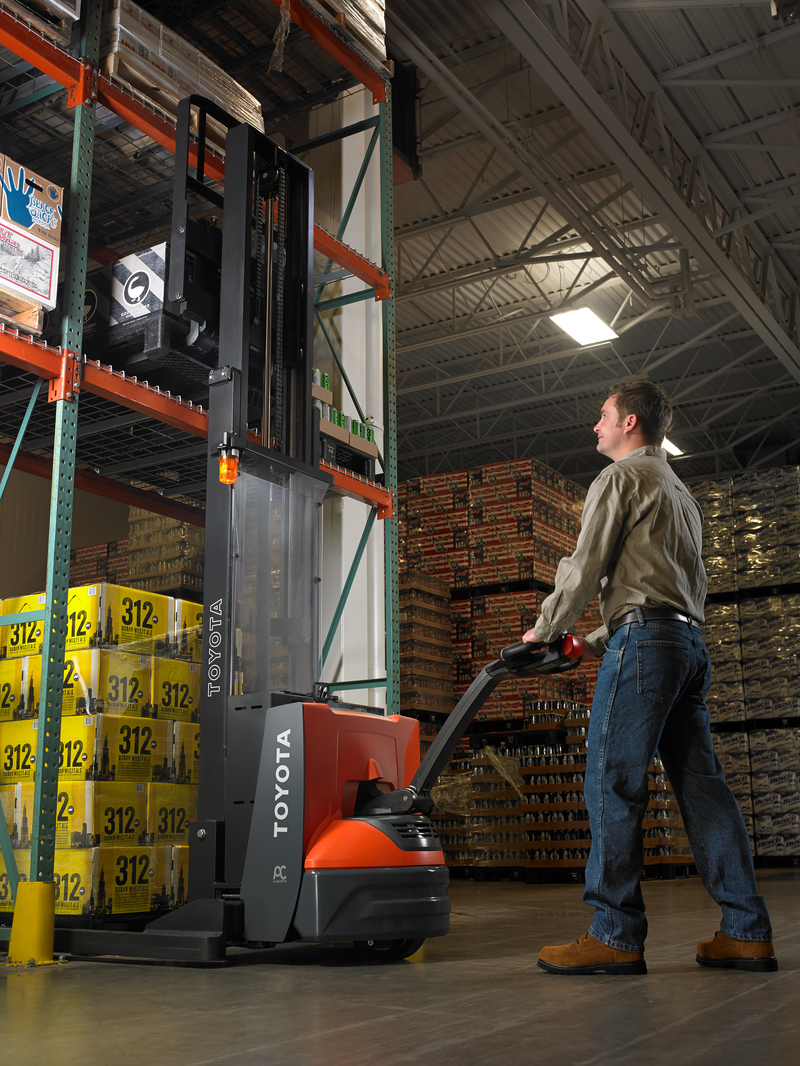

General Warehousing
Retail

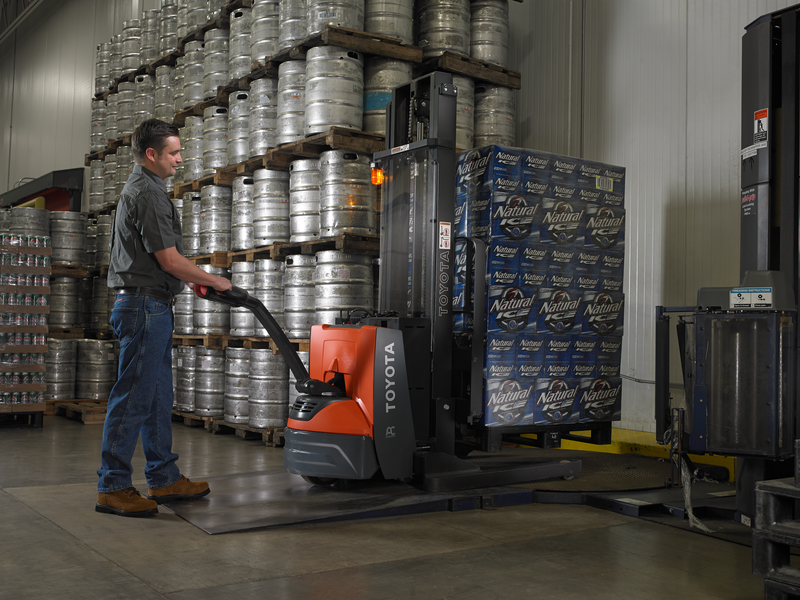

Beverage
Cold Storage
Distribution
Food Storage
