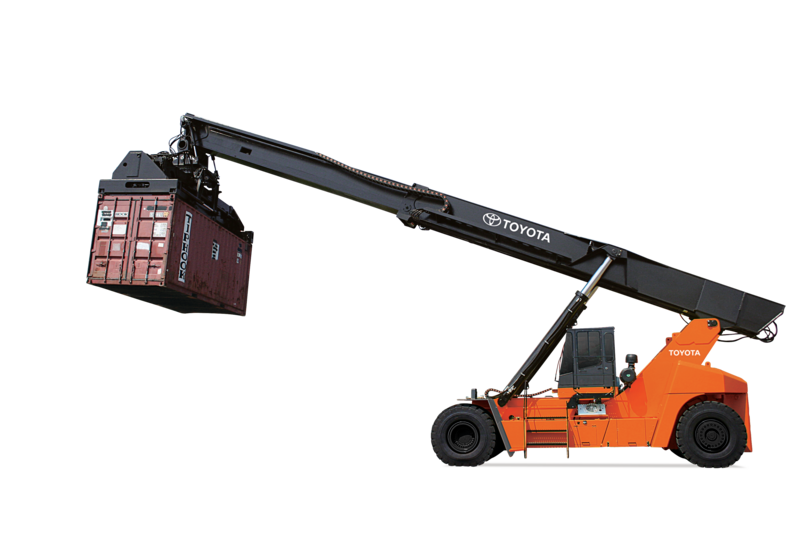

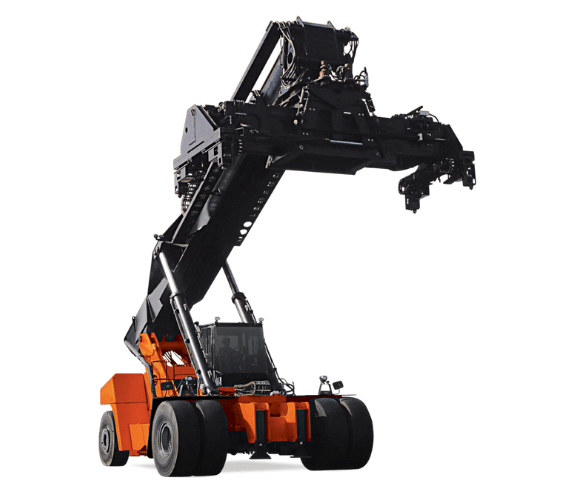

Toyota Reach Stacker Container Handler

Up to 99,000 lbs. (50 Ton) Capacity
CUMMINS 6-Cylinder Diesel Engine
Stacks Up To 5 High
Reach Depth of 3 Rows

Documents

Product Documents

Product Videos

Financing Information

Forklift Information

Product Description

The Toyota Reach Stacker Container Handler can handle a diverse range of heavy-lift applications, from loading and unloading trailers to transporting wind turbine components. It also offers front stabilizers for second and third rail operations. As well as twistlock, pin-style and trailer attachments.

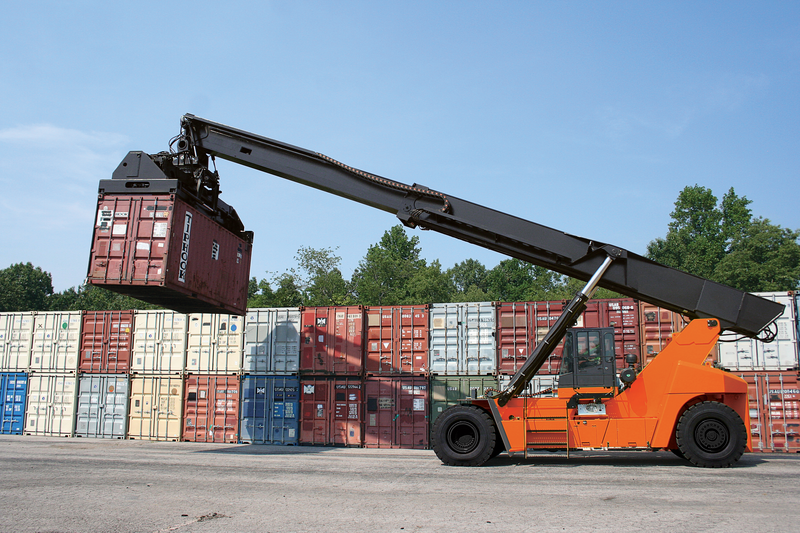

Stack up to 5 containers high and reach 3 rows deep with the Toyota reach stacker container handler. It’s standard damage prevention system utilize ultrasonic sensors to decrease container damage and increase attachment longevity. Plus, shacklepoints on the container handler mean it can be used as a crane for additional applications.

Equipment Details

Forklift Type	Internal Combustion – Pneumatic Tire
Brand	Toyota
Capacity	30,000 lbs., 34,000 lbs., 38,500 lbs., 44,000 lbs., 47,000 lbs., 60,000 lbs., 72,600 lbs., 77,000 lbs., 85,000 lbs., 90,000 lbs., 99,000 lbs.
Condition	New
Fuel Type	Diesel

High stacking capacity of up to five 9’6” containers, with stacking depth up to 3 rows
Inclination & optical distance sensors locate precise position of containers for safety interlocks
Double acting cylinder for smooth, precise control
Standard damage prevention system utilizes ultrasonic sensors to decrease container damage and increase attachment longevity
Shackle points allow usage of reach stacker as a crane, providing more versatility for additional applications

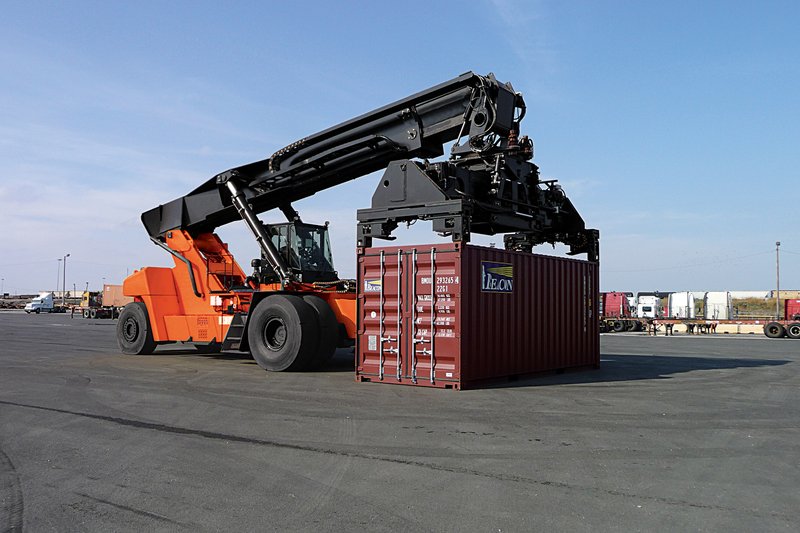

4-point top pick loaded container attachment with automatic locking vertical twistlocks; extends/retracts to handle 8-foot ISO containers from a 20- to 53-feet long
Automatic pendulum-floating twistlocks with override function and integral carriage with +/- 30 inch side shift; +/- 5° hydraulic tilt
Bolted gland nut-style ram with heavy-duty seals prevents oil leakage onto walking surfaces; bleed lines are designed to return any excess oil back to the tank

LED front headlights (2)
LED rear worklights (2)
LED spread lights (4)
LED forward-facing fender-mounted worklights (2)
Stairway lighting
Strobe light
Forward & reverse travel alarms

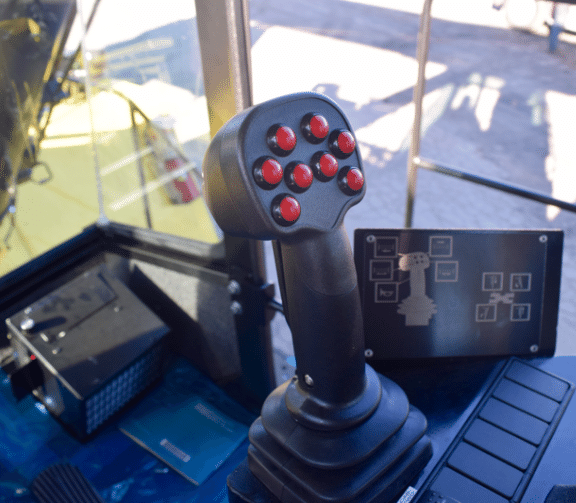

Single multifunction joystick control handle
Key off headlights
Sideview mirrors (right & left sides)
Front indicator lights (2)
Rear combination lights (2)

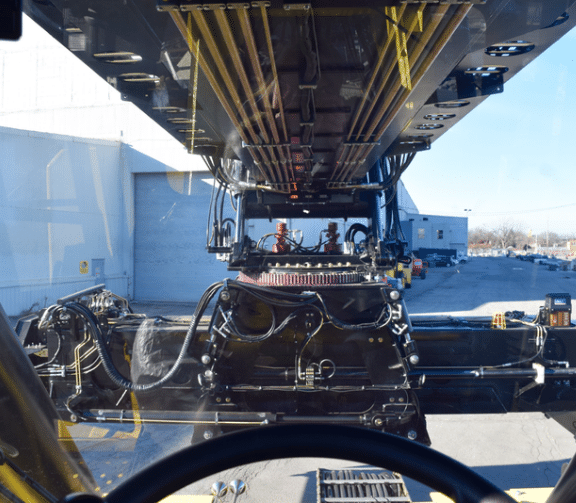

Dashless cab design for improved visibility
Front & rear windshield washer/wiper
Top-mounted windshield wiper
Cabin doors with sliding windows
Individually controlled front/rear wipers

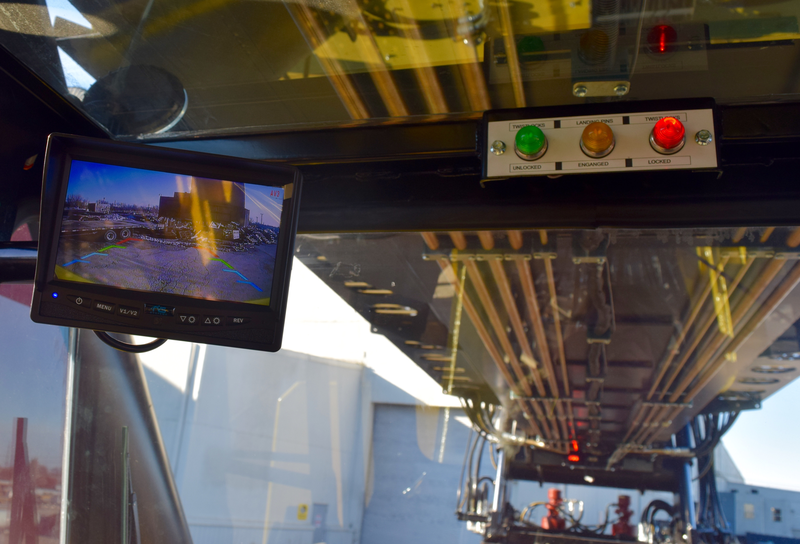

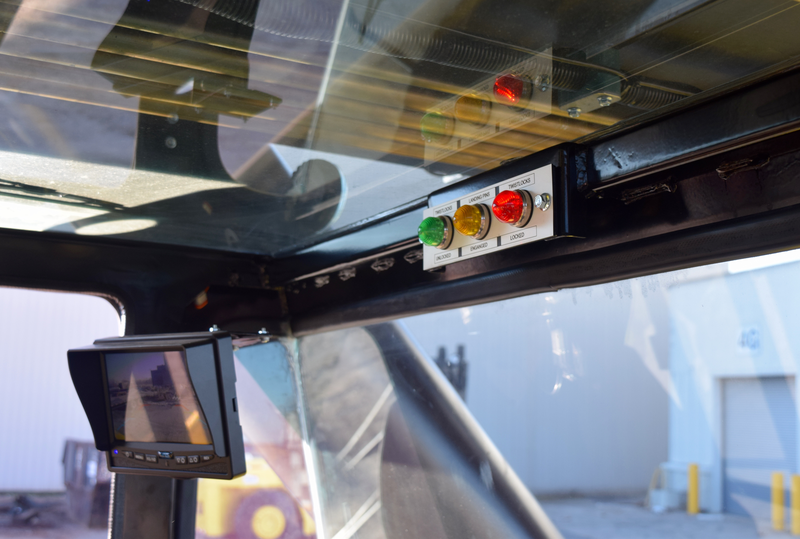

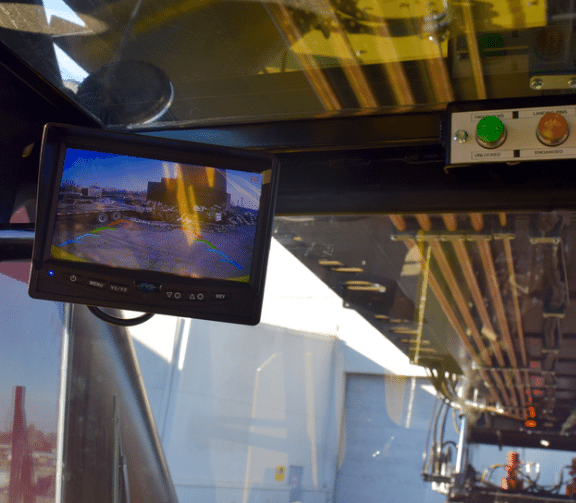

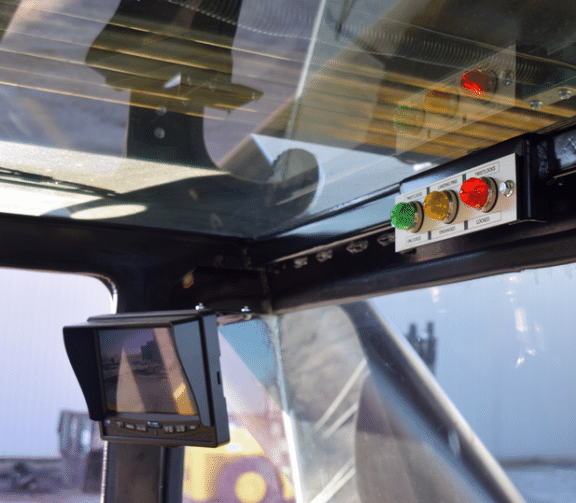

LED twistlock indicator lights inside cab
Tilt steering column
Left-hand directional shift lever
Adjustable air-ride seat with retractable seatbelts and adjustable armrests
Lockable doors with greaseable hinges
Cab heater & defroster tinted glass to minimize glare
Four turn lock-to-lock steering wheel
Emergency E-Stop in operator compartment
Dome light
Hydraulically powered traversing cab

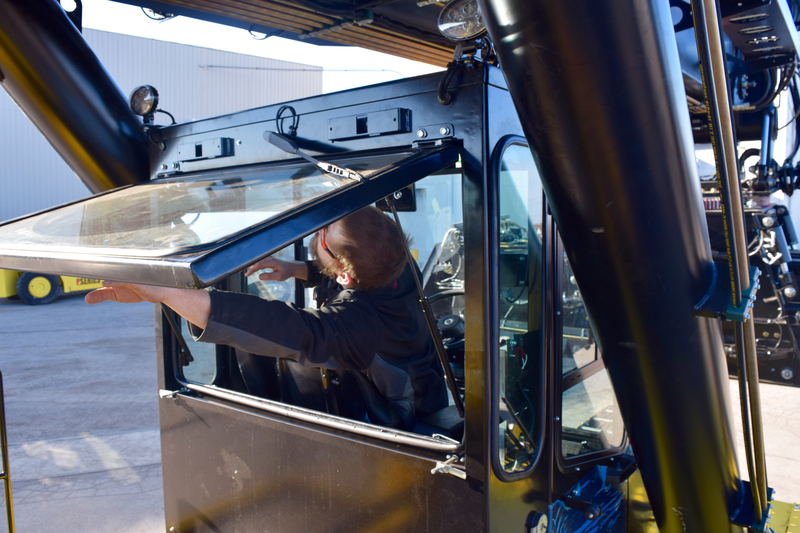

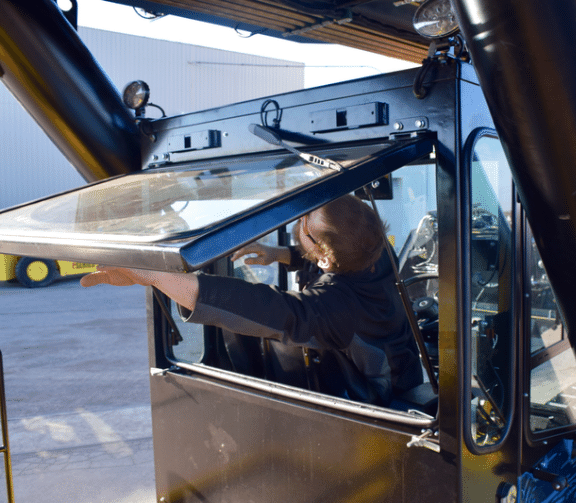

Rear window escape hatch

CUMMINS® 10.8 liter, 6-cylinder Tier 3 diesel engine

– Common rail electronic fuel injection system
– Turbocharged & intercooled

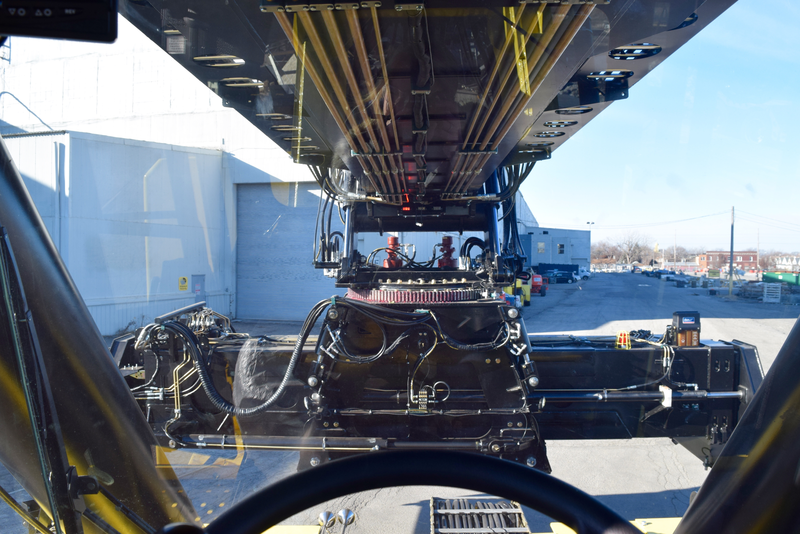

Pivoting attachment with 4 ISO twistlocks

– Extendable/retractable to 20’ & 40’ foot pick points
– Automatic locking pendular floating twistlocks for handling 20’ to 53’ ISO containers
– Large LED twislock engagement indicator lights
– Interlock safety system to ensure proper locking
– 31.5” of side shift each way
– Mechanical pile slope (+/- 5.0°)

High-load composite side thrust bearings
Boom-mounted twistlock indicator light
Warning light

– Battery charge
– Low engine oil pressure
– High transmission oil temperature
– Park & service brake
– Low fuel level
– Water in fuel
– High engine water temperature
– Clogged air filter
– Hydraulic transmission filter

Dana model 36000 transmission with 4 forward & 4 reverse speeds
4-spool main control valve (lift, tilt, extend, rotate)
Charge air cooler with integral side by side radiator & transmission coolers
Independent brake & brake/declutch pedals
2-stage high-strength steel telescoping boom
Load-sensing, hydrostatic-powered steering
Upswept exhaust
Integrated multifunction display – includes:

– Hour meter display
– Fuel gauge
– Low fuel warning light
– Engine oil pressure gauge
– Battery charge warning light
– Water temperature gauge
– Transmission temperature gauge
– Transmission, air & hydraulic filter indicator
– Oil pressure indicator
– Service indicator
– Engine water temperature indicator
– Tachometer
– Speedometer
– Overload warning system

Electronic engine diagnostics with fault code history
Easy-access filters
Hydraulic multi-gauge
Externally serviceable brakes
Bolt-on tanks, counterweights, cab super-structure & stairways (removable)
External attachment spreader cylinders
Powertrain access panels with quick-release latches

Electric horn
Asbestos-free components
Neutral safety switch
Integrated overhead guard
Operator restraint system seat
Operator Presence Sensing System (OPSS)

Force-cooled wet disc brakes
Planetary drive axle rated for durability in high-capacity, off-road applications
AxleTech® planetary drive axle rated for durability in high-capacity, off road applications
Heavy-duty, welded steer axle
Rigidly constructed welded frame
Engine protection system
High-capacity cooling system
Open core radiator with fan shroud motor & alternator
Two industrial 8D 12V batteries
Two-stage heavy-duty air cleaner
12-Volt electrical system with 12V starter motor & alternator
“Brake Saver” system prevents travel when parking brake is applied
