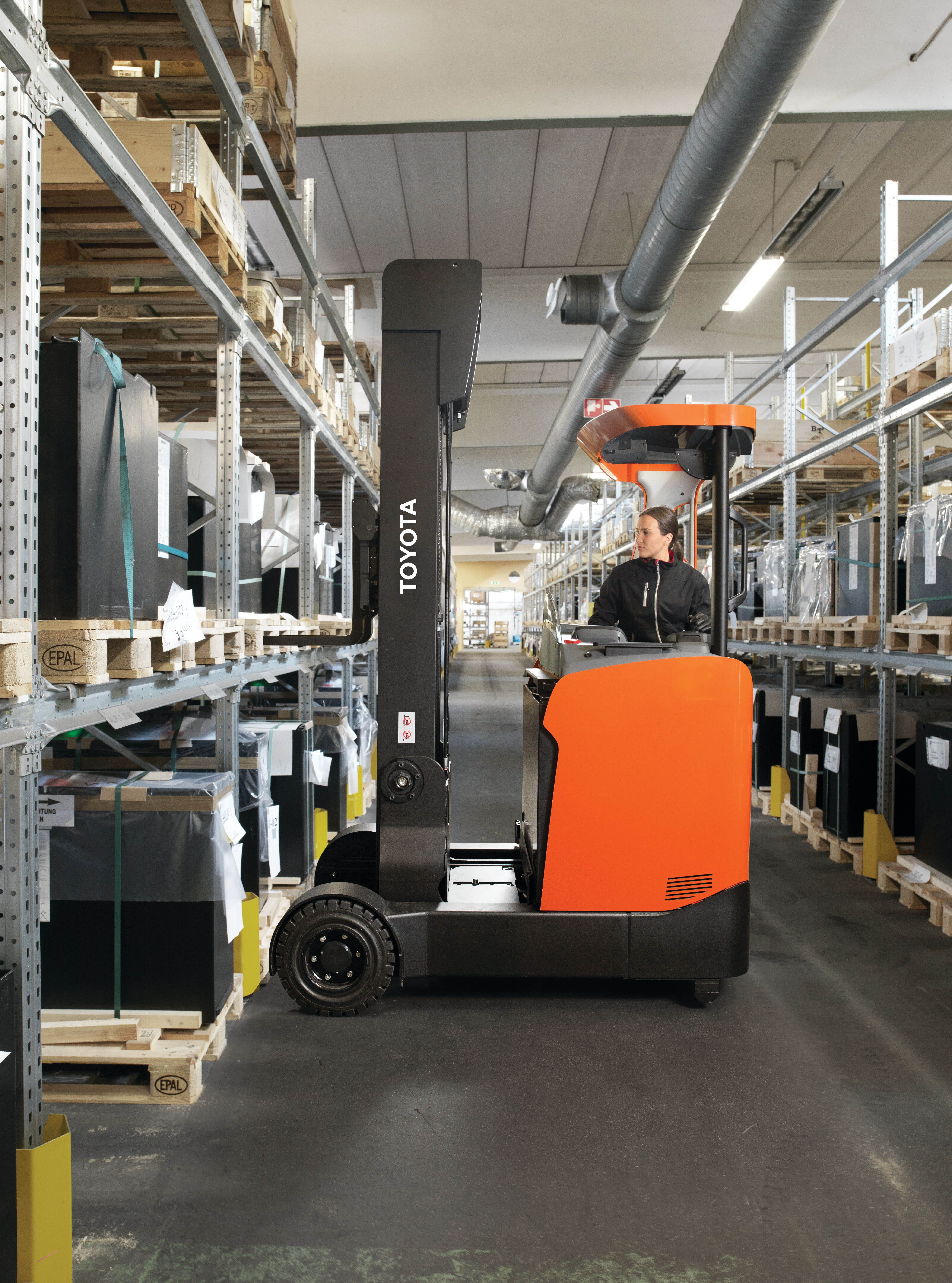

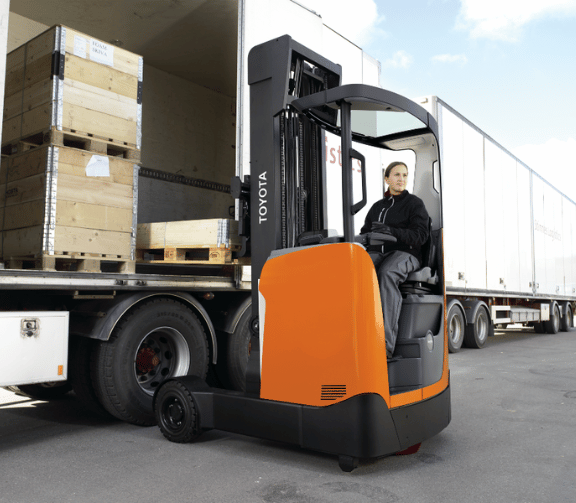

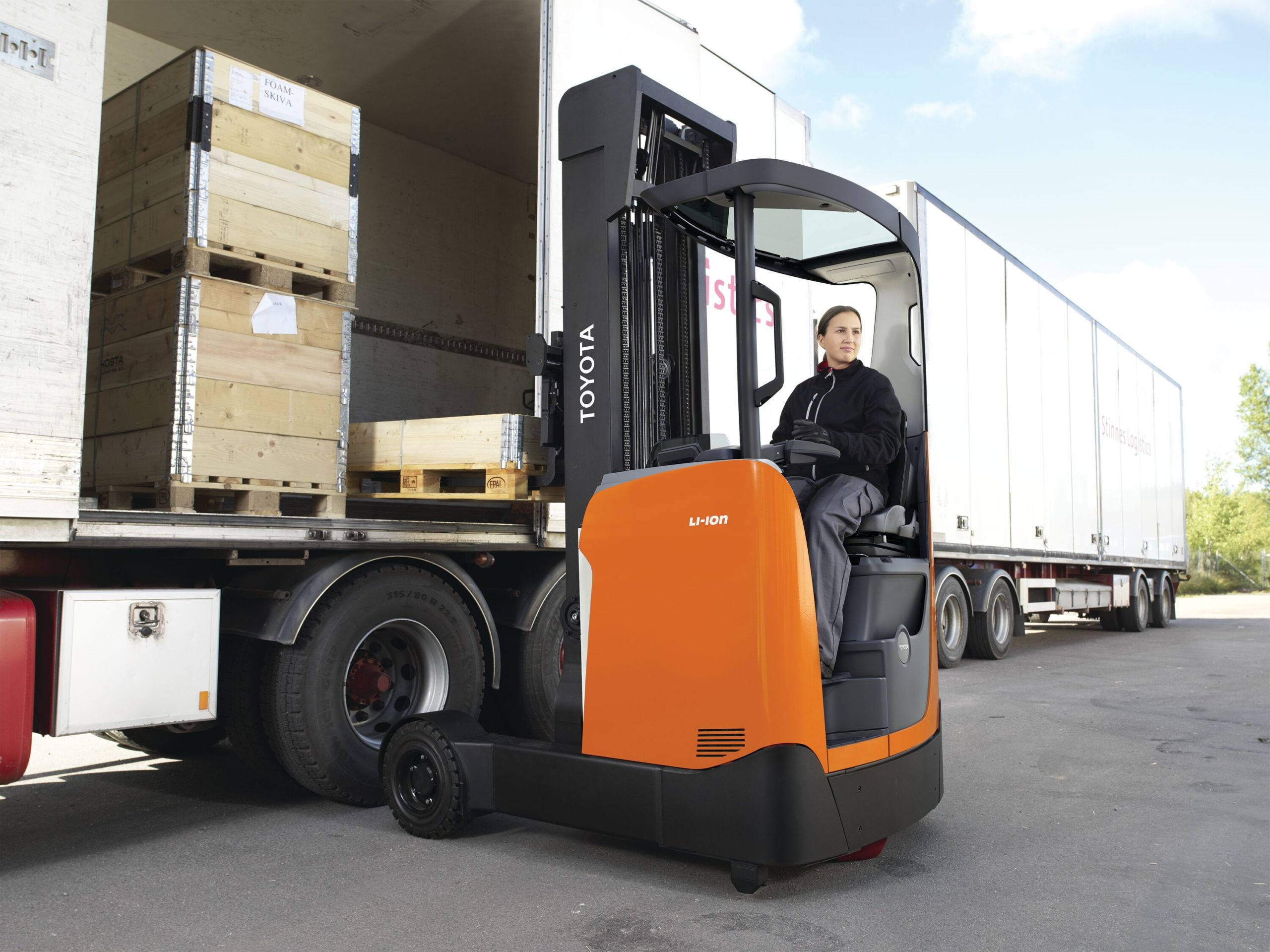

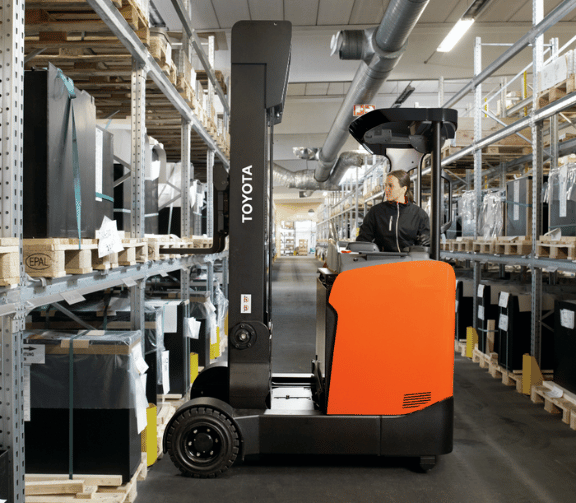

Moving Mast Reach Truck Indoor-Outdoor Application 2

Moving Mast Reach Truck Indoor-Outdoor Application

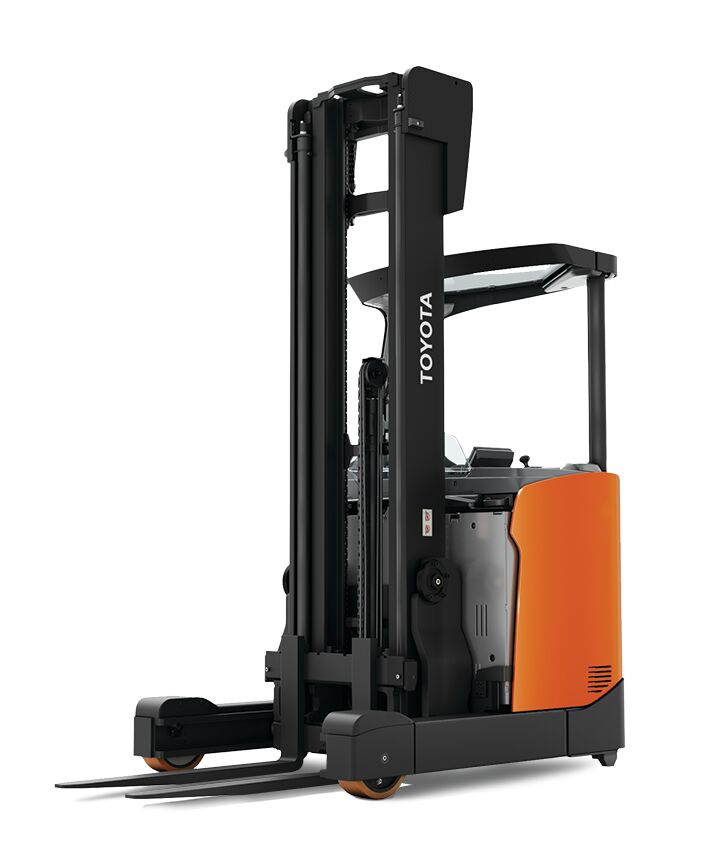

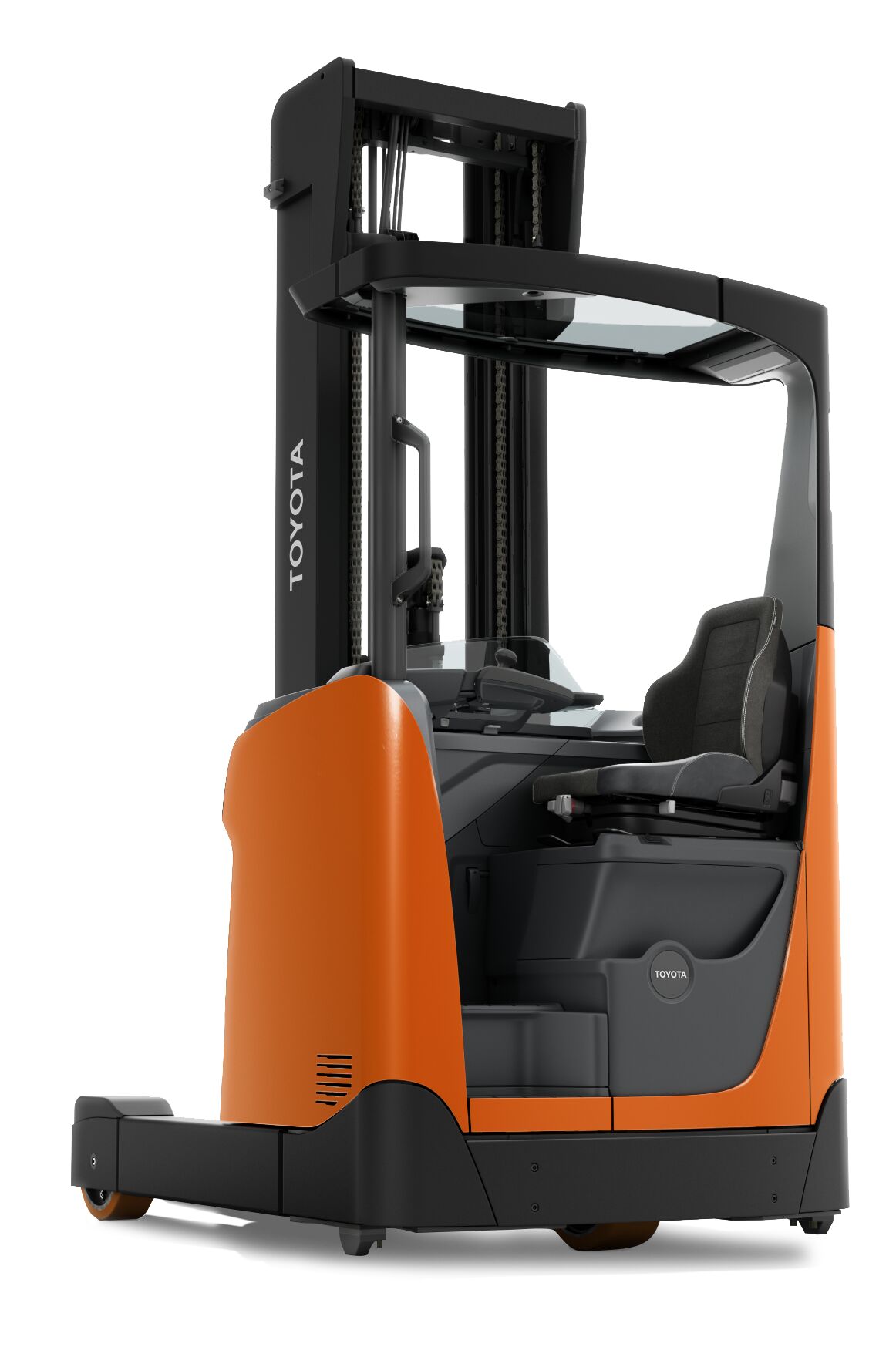

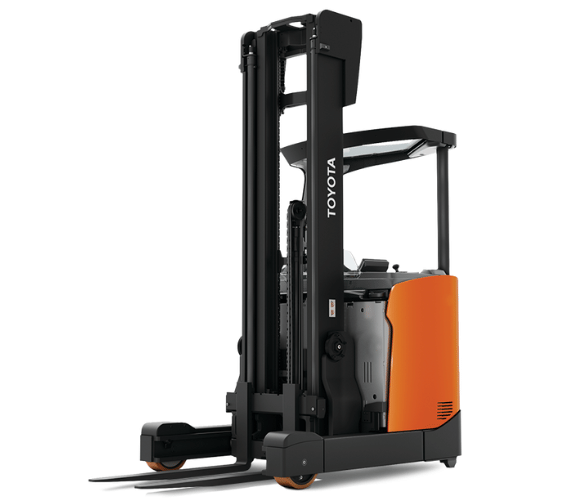

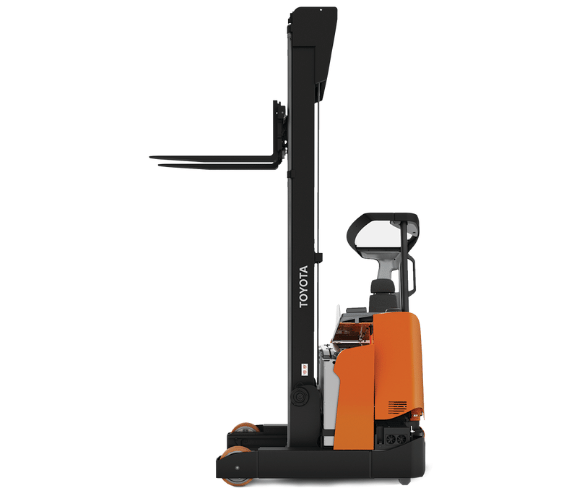

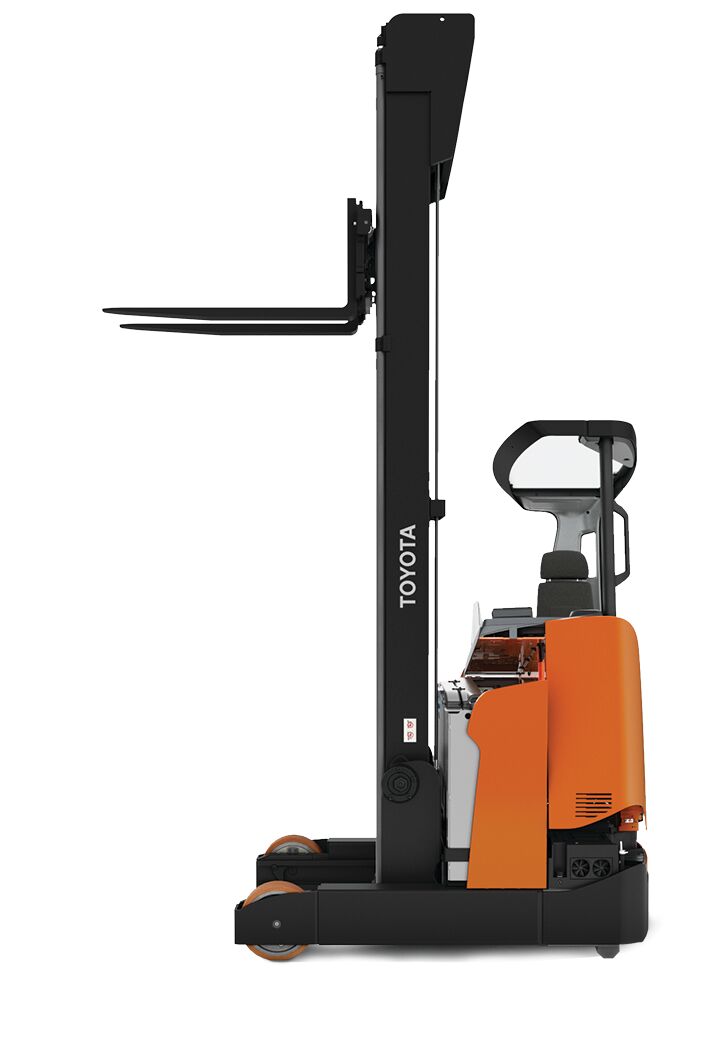

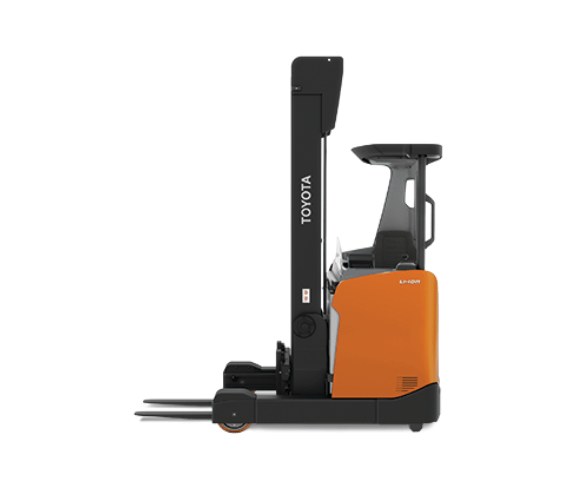

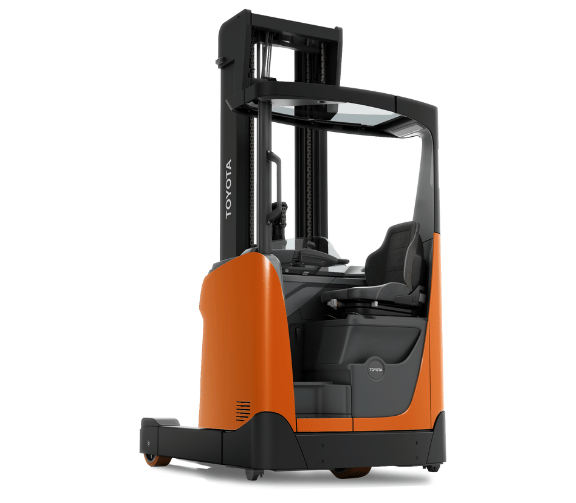

Toyota Moving Mast Reach Truck

Up to 5,500 lb. Capacity
Up to 512” Lift Height
Indoor and Outdoor Models
Tilting Operator Compartment (Indoor Only)
Interactive Touchscreen Display
Transitional Lift Control
360-degree or 180-degree Steering
Cold Storage Cab Option

Documents

Product Documents

Product Videos

The Toyota Forklift Story

Financing Information

Forklift Information

Product Description

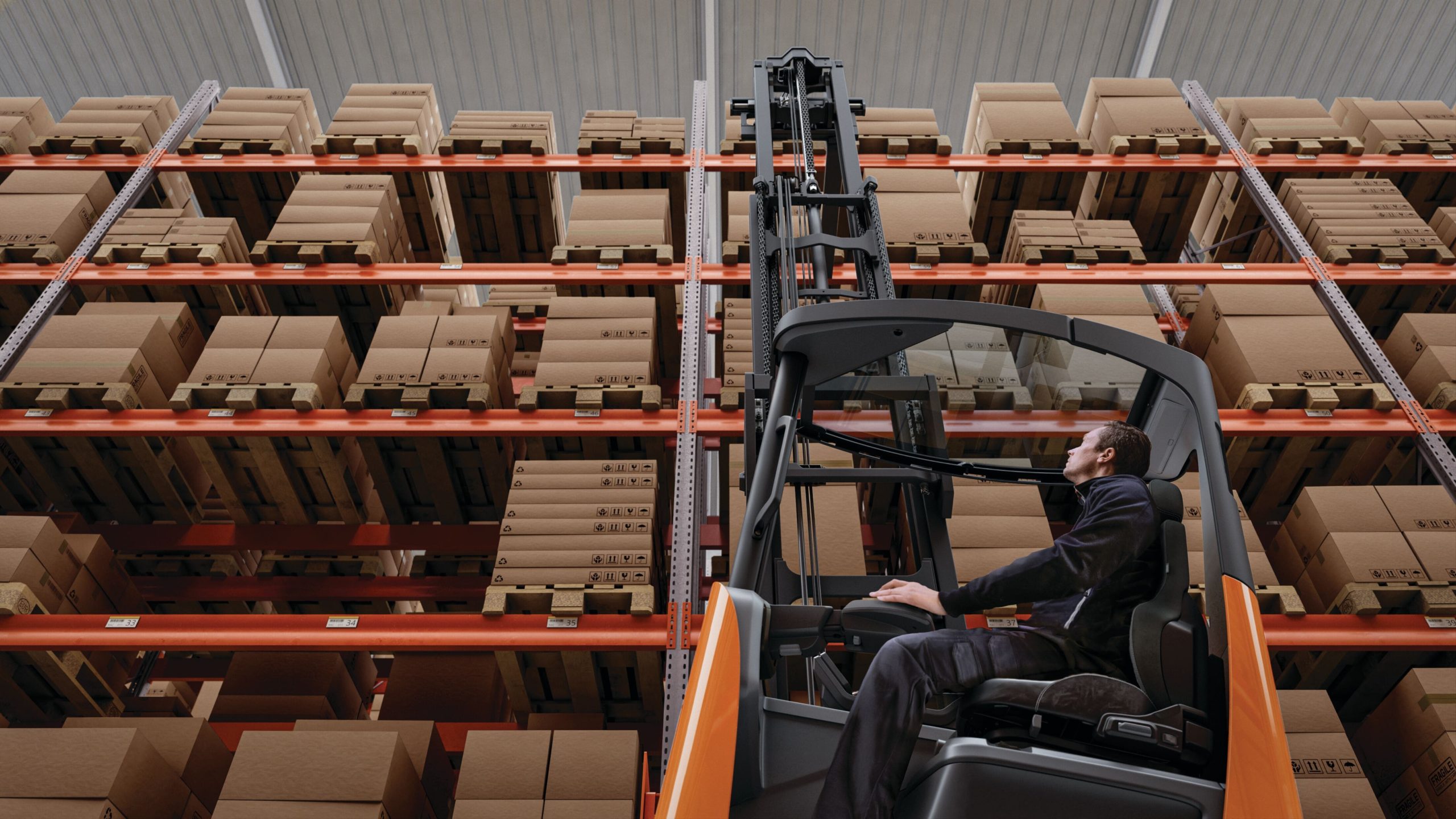

With a max lift height of 512 inches, Toyota’s Moving Mast Reach Truck offers clear and precise control for fast and smooth handling shift after shift. With a unique optional tilting cab system, your operators not only have a clear view of their load, which can reduce the risk of neck and shoulder straining at high-level applications, but it allows for faster and more accurate fork positioning. With the trend of warehouses continuing to build upward due to space constraints, the Moving Mast Reach Truck is designed to deliver the perfect fit for your operation’s needs.

Equipment Details

Forklift Type	Reach Trucks
Brand	Toyota
Capacity	3,500 lbs., 3,000 lbs., 3,900 lbs., 4,400 lbs., 5,500 lbs.
Condition	New
Fuel Type	Electric/Battery, 48 Volt

Selectable 360-degree or 180-degree electronic power steering
Wide-view 3-stage mast (FSV)
View-through carriage
35.4 in. to 51.2 in. base leg openings (ID) (indoor model)

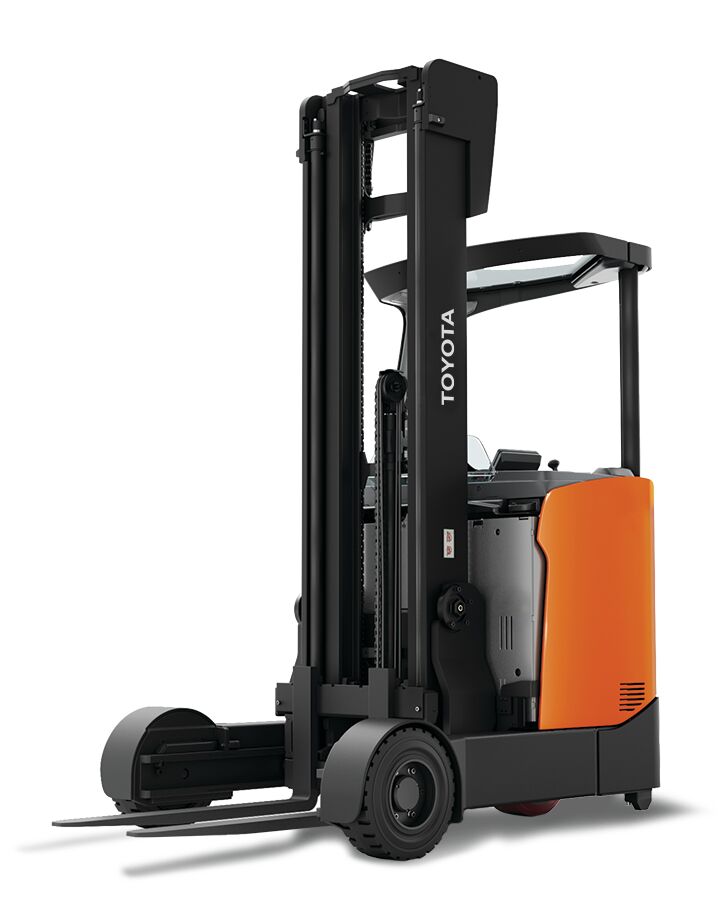

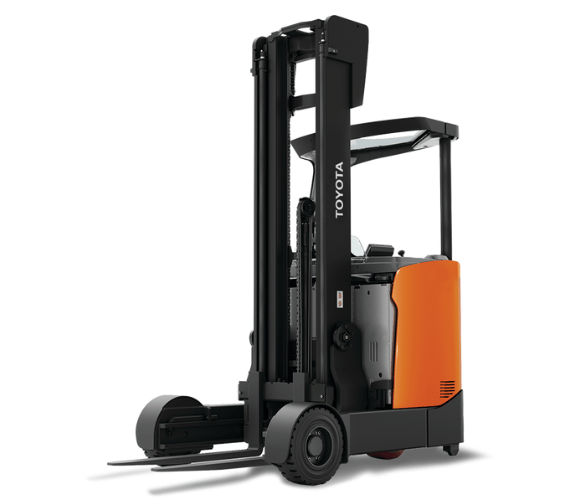

35.4 in. base leg opening (ID) (outdoor model)
Polyurethane drive tire (11.8 in. dia. x 4.2 in.) (indoor model)
Polyurethane load wheels (13.8 in. x 5.5 in.) (indoor model)
Rubber pneumatic-shaped drive tire (17.9 in. dia. x 6.3 in.) (outdoor model)
Rubber pneumatic-shaped load wheels (17.9 in. dia. x 6.3 in.) (outdoor model)
Regenerative braking
39.4 in. load backrest extension
ITA Class II hook-type carriage (31 in. wide)
Forks: 1.57 in. x 4 in. x 45.28 in.
Proportional plugging
Transitional lift control
Steering direction indicator

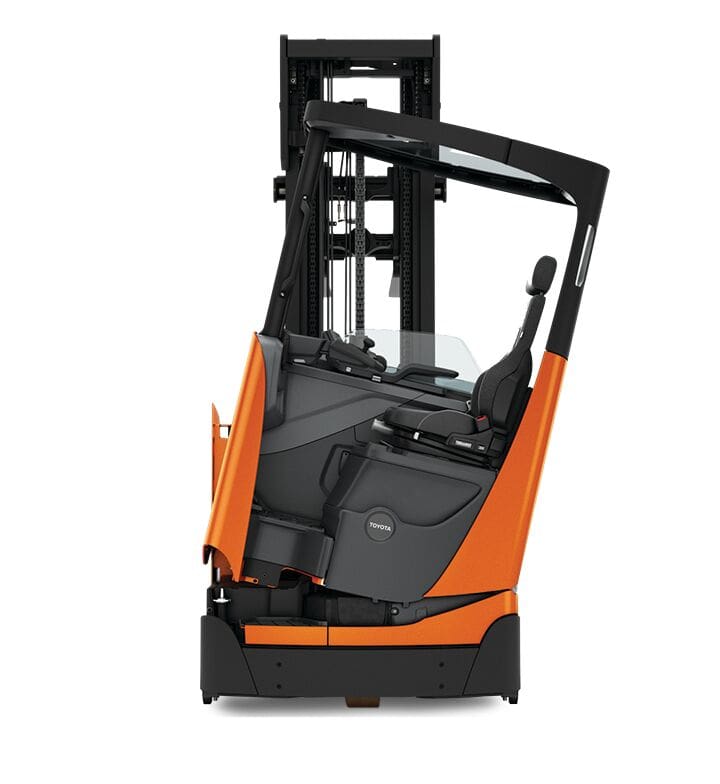

Automatic tilting operator compartment (indoor model)
Seated operator compartment
Manually adjustable height floor
Adjustable armrest with fingertip controls
High visibility overhead guard
Adjustable steering wheel

48 volt electrical system
AC powered drive system
AC hydraulic system
Variable speed lift and lowering
Electric power steering
Current controlled proportional valve
Lowering flow limiter
Lift system relief valve
Optimized cornering control
Optimized reach control
Interactive digital display panel

Multifunctional hour meter
Time & date display
Programmable travel and acceleration speeds
Lift/lower speeds
Fault code memory

Battery extraction by mast
Euro-style battery connector
Battery discharge indicator with lift interrupt
Self diagnostics
Built-in analyzer
Over temperature indicator with protection on drive & lift motor
Electric disc brake
Emergency power shut-down
Electric horn
Operator pin code access
Enclosed battery compartment:

10.8 in. X 47.7 in. X 30.9 in. (indoor model)
13.7 in. X 47.7 in. X 30.9 in. (indoor and outdoor models)
16.5 in. X 47.7 in. X 30.9 in. (indoor model)
19.3 in. X 47.7 in. X 30.9 in. (indoor model)

Cold storage
Factory
Food storage
General warehousing
Distribution
Food processing
General manufacturing
Retail
