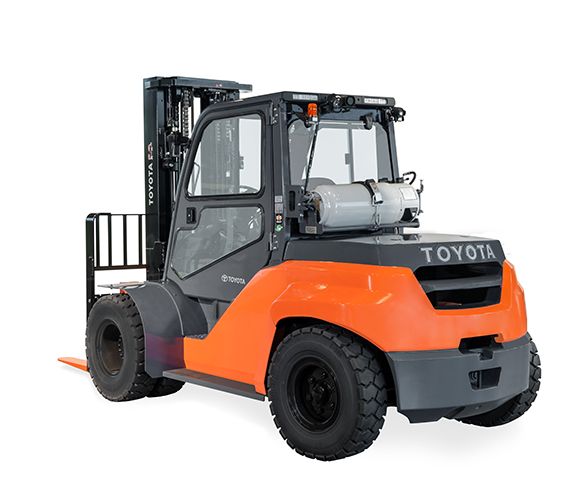

Large IC Pneumatic_50-8FG60U_LP_Studio_7

Toyota Large IC Pneumatic Forklift Studio 1

Large IC Pneumatic_50-8FG60U_LP_Studio_5

Toyota Large IC Pneumatic Forklift Studio 2

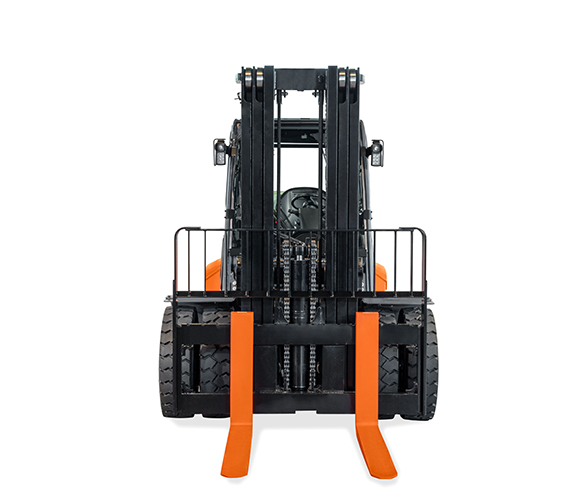

Large IC Pneumatic_50-8FG60U_LP_Studio_1

Toyota Large IC Pneumatic Forklift Studio 3

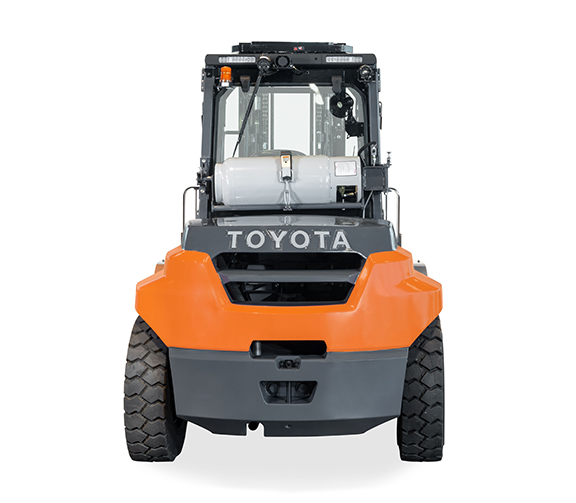

Large IC Pneumatic_50-8FG60U_LP_Studio_10

Toyota Large IC Pneumatic Forklift Studio 4

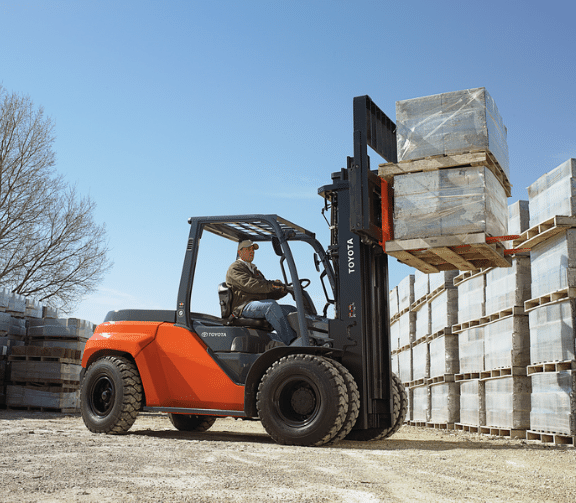

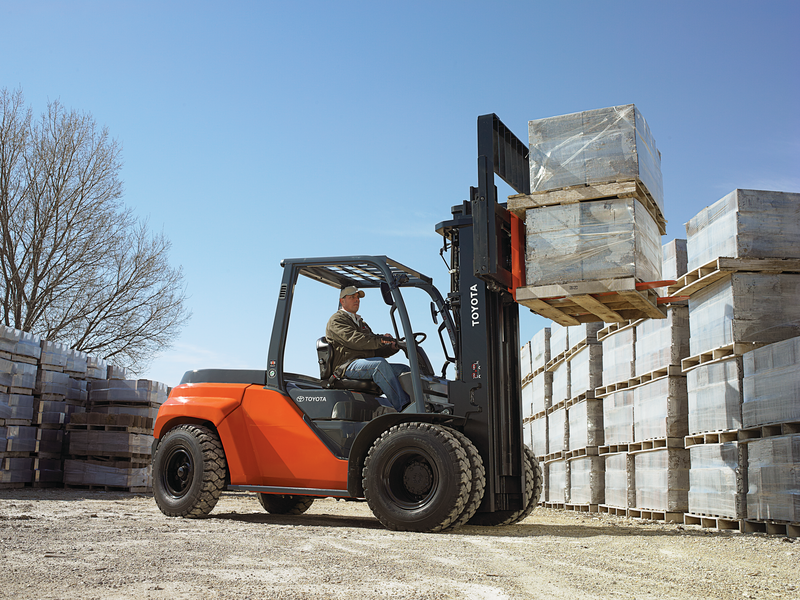

Toyota Large IC Pneumatic Forklift Application 1

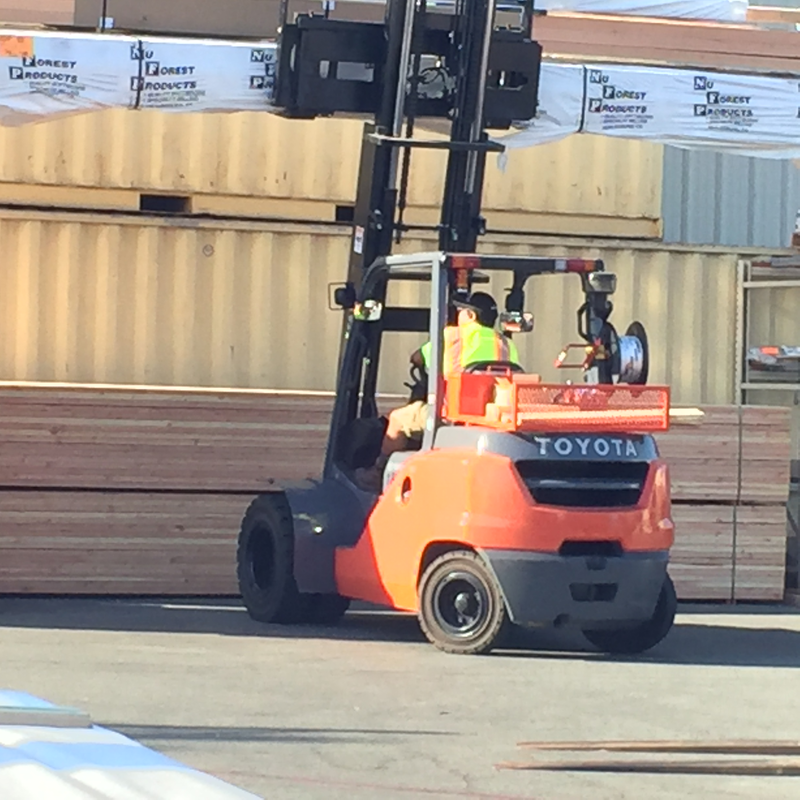

Toyota Large IC Pneumatic Forklift Application 2

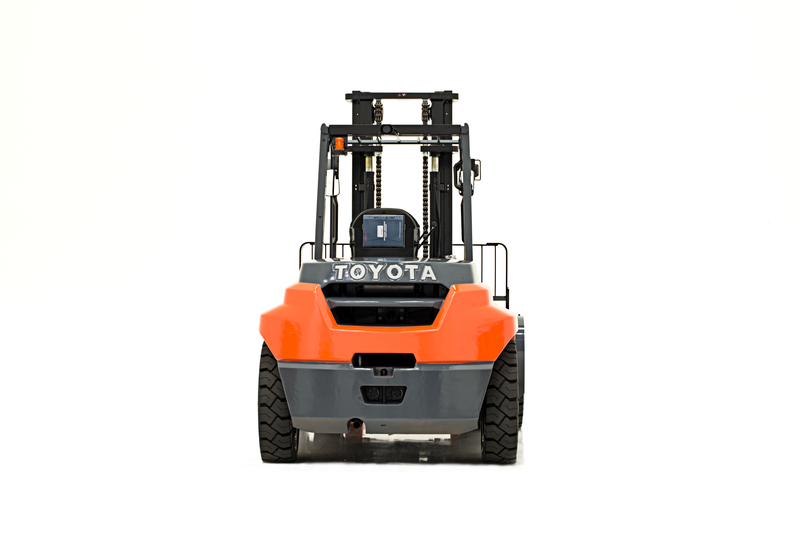

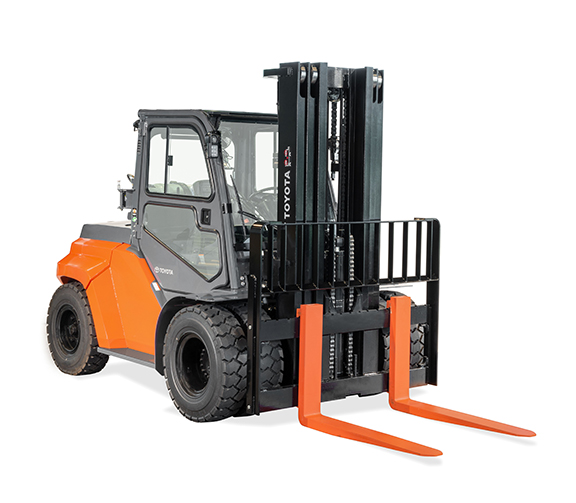

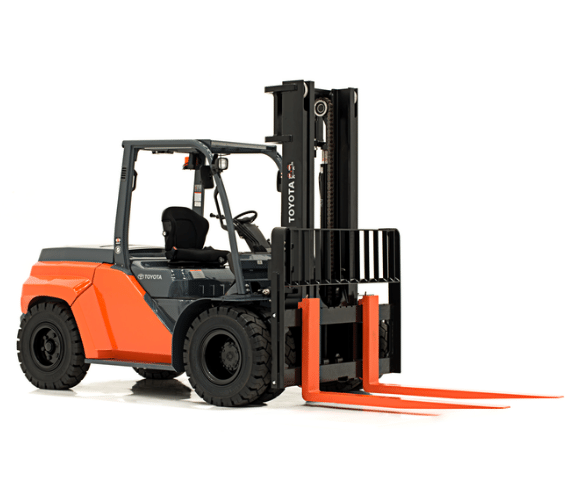

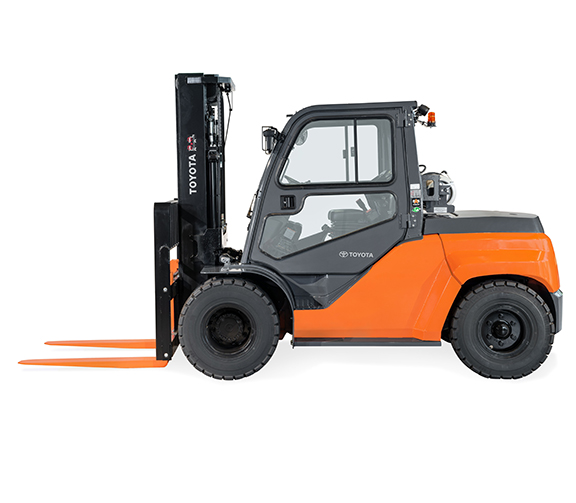

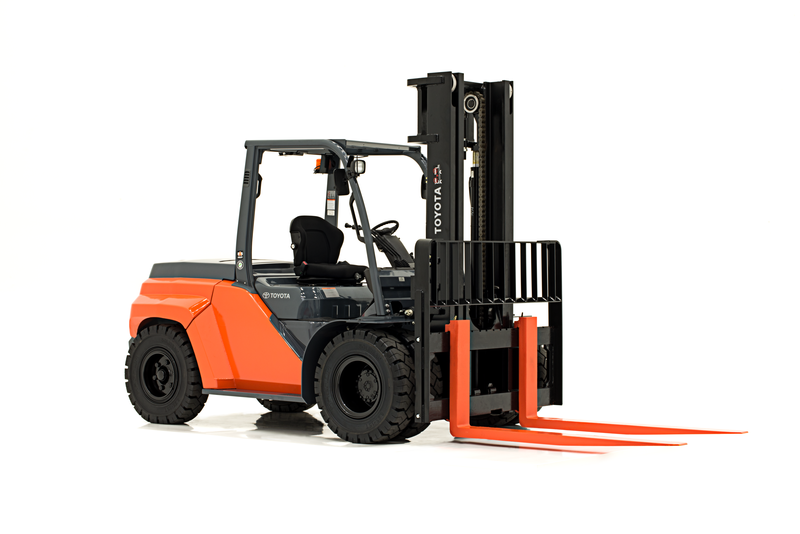

Toyota Large IC Pneumatic Forklift

13,500 – 17,500 lb. Capacity
LCD Multi-Function Display
20% More Fuel Efficient (LP)
30% More Fuel Efficient (Diesel)
System of Active Stability (SAS)
Force-Cooled Wet Disc Brakes

Documents

Product Documents

Product Videos

Product Options

Financing Information

Forklift Information

Product Description

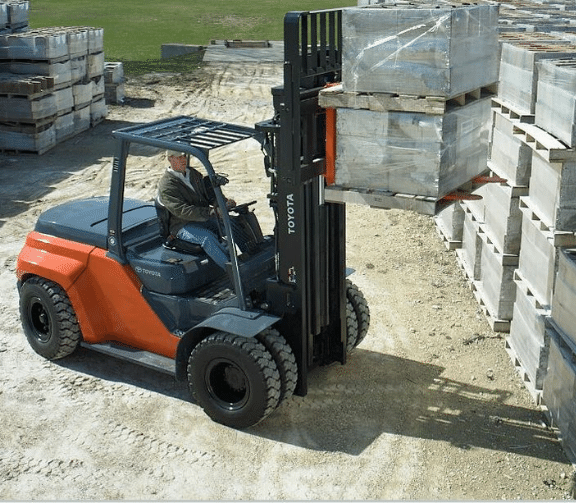

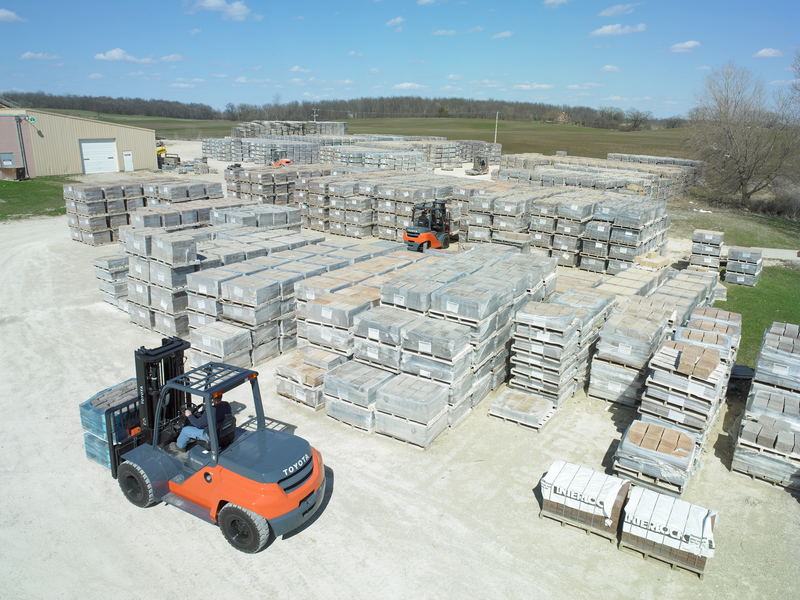

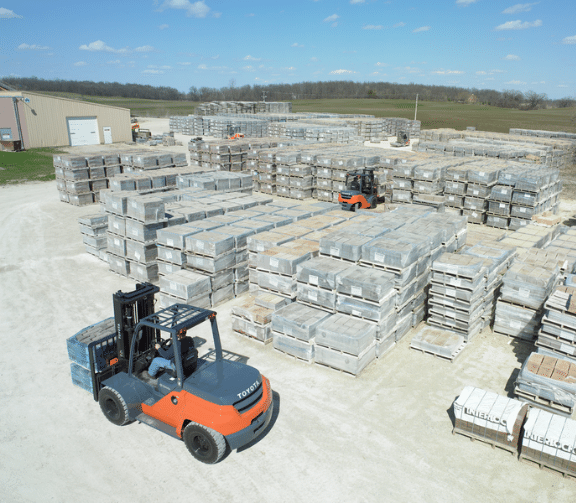

Built to handle heavy loads and tough outdoor terrain, the rugged Toyota Large IC Pneumatic forklift thrives on construction sites, in lumberyards, at brick and stone distribution centers, and in heavy manufacturing. Durable and efficient, it’s ready for gravel, dirt, rough pavement—or no pavement at all.

But just because it’s built for rough conditions doesn’t mean you have to sacrifice comfort. You’ll tackle heavy loads and challenging terrain from the comfort of a 4-way adjustable full-suspension seat and a non-cinching seat belt, giving you both support and safety.

Model Numbers: 8FG60U | 8FD60U | 8FG70U | 8FD70U | 8FG80U | 8FD80U

Equipment Details

Forklift Type	Internal Combustion – Pneumatic Tire
Brand	Toyota
Capacity	13,500 lbs., 15,500 lbs., 17,500 lbs.
Condition	New
Fuel Type	Diesel, LPG

System of Active Stability (SAS) unique to Toyota forklifts, helps prevent tip-overs
Active Mast Control (AMC) responds automatically to enhance stability of loads handled at high lift heights
Forward title angle control and rear tilt speed control act automatically in uncertain situations to protect operator, and reduce product and forklift damage
One-way automatic fork leveling levels forks parallel to the ground from back tilt position with the push of a button
Two-way automatic fork leveling on mini-lever and joystick control options, levels forks from back tilt and forward tilt positions
Control Area Network (CAN-BUS) communication technology for quicker, more reliable control of truck functions with fewer components
Reinforced load backrest extension with recessed fasteners reduces potential for product damage

Dash-mounted instrument display
11.8”-diameter, two-spoke steering wheel
Load-sensing power steering
12”-long dual operator assist grips
Cowl-mounted hydraulic control levers with rubber boot covers
Low, wide entry steps
Dash-integrated amenity tray & oversized cup holder
Vinyl 4-way adjustable full-suspension seat
Non-cinching seatbelt

EPA/CARB-certified engine
Toyota 4-cylinder, 3.7 liter, OHV gasoline engine (1FS)
Toyota 4-cylinder, 3.0 liter, DOHC Tier 4 Final (Diesel Oxidation Catalyst) diesel engine (1KD)
Electronic fuel injection (gasoline only)
Distributorless ignition system (1FS)
UL “G” gasoline engine
UL “D” diesel engine
Automatic fork leveling feature
Integrated monitoring system – includes:

Digital hour meter display
Engine coolant temperature gauge
Fuel gauge (except LPG-only models)
Check engine light
Sedimentor warning light (diesel only)
Glow indicator light (diesel only)
Engine oil pressure warning light
Battery charge warning light
OPSS activation light

Limited free-lift 2-stage mast (V)
Adjustable headlights with guards
Double-action parking brake (hand)
Alternator with built-in regulator

Gas model = 60A
Diesel model = 80A

Automatic transmission with oil cooler
Full-floating powertrain
Hydraulic valve lifters
Integrated headlight & turn signal lever
Electric shift control
Speed control (technician programmable)
Engine protection system

Easy-access no tools required floorboard
Engine hood assist damper with lock device
Air cleaner discharge valve
Easy-lift engine hood with wide 75° opening
Easy access to common service items, such as filters & dipsticks

Systems of Active Stability™ (SAS)
Operator Presence Sensing System (OPSS)
Bolt-on overhead guard
Key lowering interlock
Electric horn
Neutral start safety switch
Asbestos-free components
Orange forks

Control Area Network (CAN-bus) communication
Fully stamped steel side panels
Full-floating front axle
Moisture-resistant electric connectors
High cooling capacity radiator with fan shroud
Tilt cylinder boots
Low-maintenance battery
Large-capacity engine-cooling fan
8” cyclone air cleaner
Plate-iron front fenders
Anti-restart ignition key switch
Stamped steel engine hood
Radiator screen
External hydraulic oil cooler
