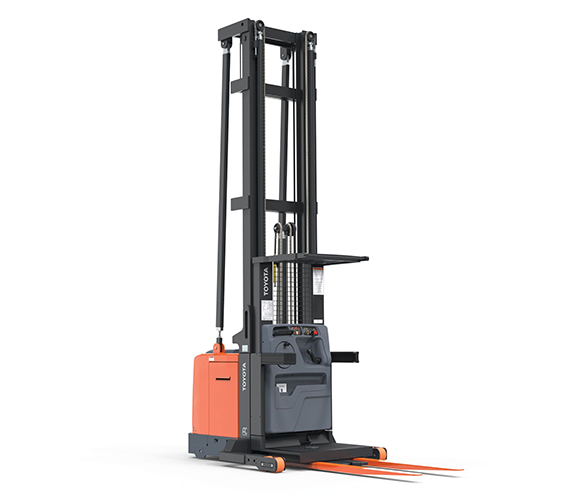

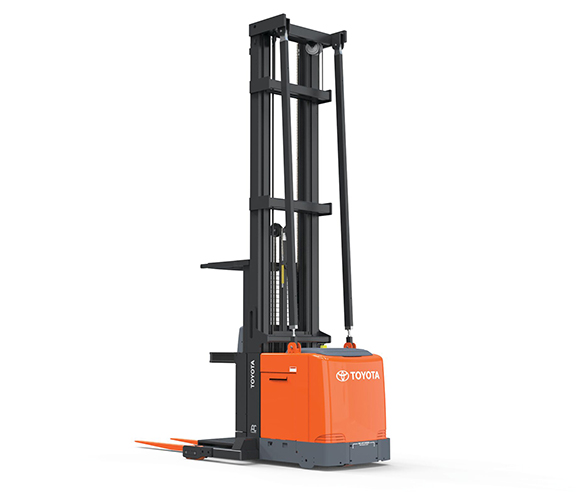

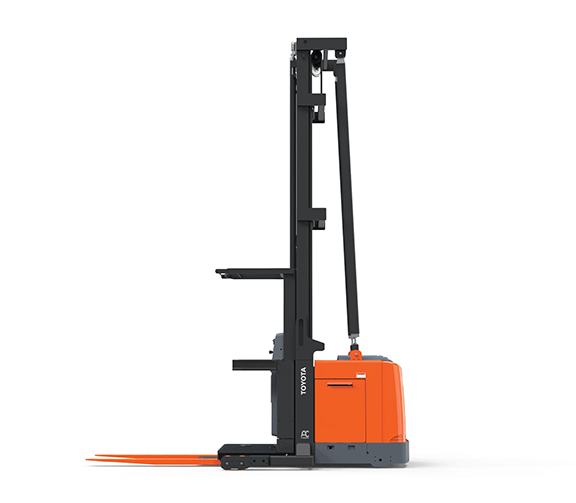

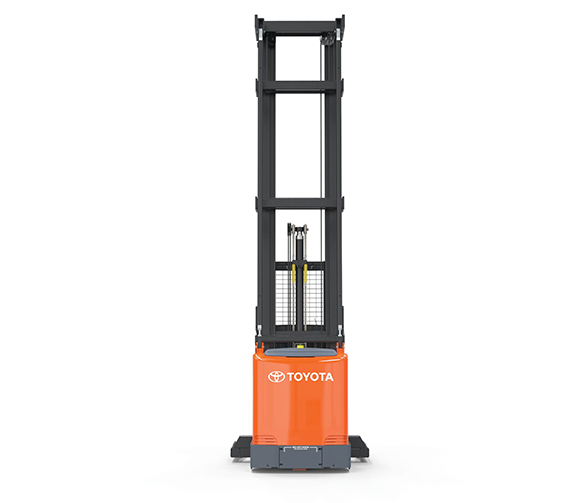

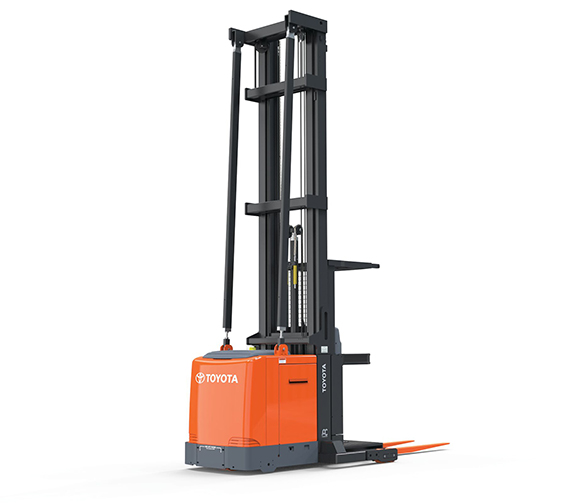

Toyota High-Capacity Order Picker

3,000 lb. Lifting Capacity
Lift Height up to 456 in.
AC Drive and Lift Motors
36V Electrical System
56-60 in. Baselegs

Documents

Product Documents

Product Videos

Financing Information

Forklift Information

Product Description

The Toyota High-Capacity Order Picker reaches new heights with an impressive lift capacity of up to 456 inches, delivering a 17% increase in reach height. This extended range enables you to access an additional rack level, maximizing your storage capacity and boosting operational efficiency.

With a robust 3,000 lb. lifting capacity, this order picker maneuvers smoothly through narrow aisles, making it ideal for warehouses and distribution centers. Optional Lift Logic Technology provides real-time monitoring of lift height and travel speed, enhancing both safety and productivity for your team.

Model Numbers: 8BPUH15390H | 8BPUH15390C | 8BPUH15456

Equipment Details

Forklift Type	Order Pickers
Brand	Toyota
Capacity	3,000 lbs.
Condition	New
Fuel Type	Electric/Battery, 36 Volt

Service Made Easy

A lightweight, impact-resistant cover allows easy access to components like the drive tire, hydraulic filter, and fuse box, making routine repairs quick and efficient.

Operator-Centric Design

Features electronic disc brakes that seal out debris, keeping them cool and reducing wear for more uptime. Safety features like a wire mesh mast guard, full body harness, and energy-absorbing tether enhance security and productivity.

Built for Durability

With customizable lift/lower controls and regenerative braking, Toyota’s High-Capacity Order Picker offers the control and flexibility needed for confident, efficient material handling.

Electronic power steering
39″ wide operator platform
Full width operator tether bar
Low 7.75″ step height
Work material storage compartments
Clipboard
Automatic return to center drive wheel upon start-up
Drive wheel direction indicator
Bubble cushioned floor mat
Spring platform suspension system
Anti-rattle mast
Cushioned mast stops
Cushioned mast staging

24 Volt or 36 Volt electrical system
Independent lift, drive, and steer motors
AC drive motor
AC lift motor
DC series wound lift motor
Regenerative braking
Multi-function control handle
Fully variable lift/lower controls
Programmable performance
Hydraulic mast lowering deceleration
UL “E” rating

4 function hour meter
- Key on
- Deadman pedal
- Hydraulic
- Distance travelled
No tools high-impact service access covers
On-board diagnostics
Battery compartment rollers
Emergency manual lowering valve
Battery discharge indicator w/lift interrupt

Orange forks
Operator Presence Sensing System (OPSS) via flush mounted pedal
Full body harness and energy absorbing tether
Spring-applied/electric release parking brake

General Manufacturing
Retail
General Warehousing
Food Storage
Distribution
