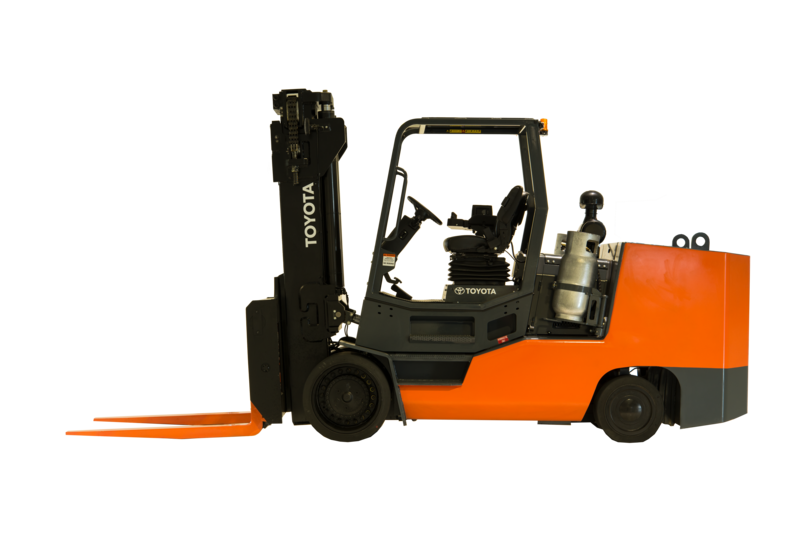

Toyota High-Capacity Large IC Cushion Forklift Studio 1

Toyota High-Capacity Large IC Cushion Forklift Studio 2

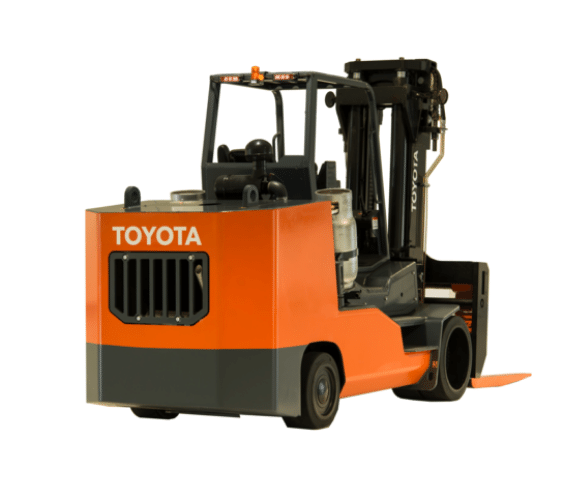

Toyota High-Capacity Large IC Cushion Forklift Studio 3

Toyota High-Capacity Large IC Cushion Forklift Application 1

Toyota High-Capacity Large IC Cushion Forklift Application 2

Toyota High-Capacity Large IC Cushion Forklift Application 3

Toyota High-Capacity Large IC Cushion Forklift Application 4

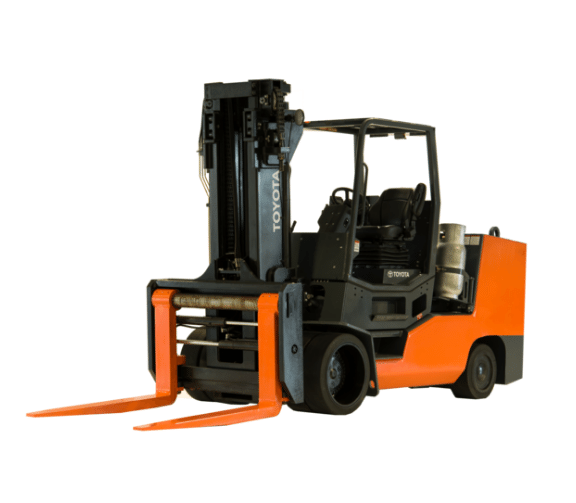

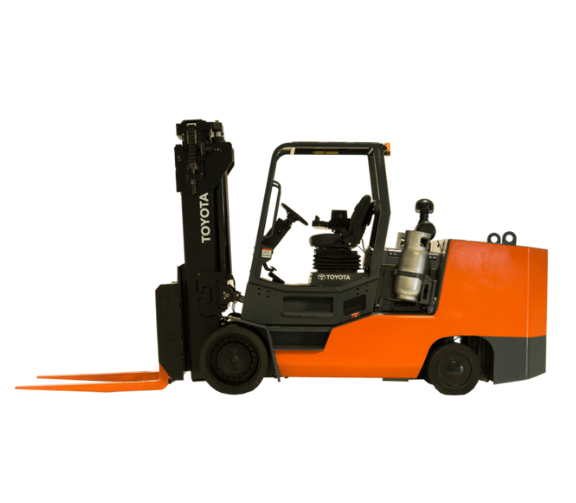

Toyota High-Capacity Large IC Cushion Forklift

25,000 – 100,000 lb. Capacity
Load-Sensing Hydraulic System
Dana Model 32000 Transmission
Standard 5.7L V8 LP Engine
Heavy Duty Planetary Drive Axle
Loaded Center of 24″, 30″, or 36″

Documents

Product Documents

Product Videos

Financing Information

Forklift Information

Product Description

Toyota’s impressive THD power is now indoors. Think automotive and forging. Huge paper rolls. Steel and raw materials. All demand the reliable power that Toyota provides. With a V8 engine and rugged design, the Toyota High-Capacity Large IC Cushion forklift can handle anything you throw at it.

Toyota demands the best for its customers. The U.S.-built High Capacity Large IC Cushion is engineered from the ground up as a complete product. One with better components and well-thought-out integrated systems that work together to deliver intuitive, dependable performance day after day.

Equipment Details

Forklift Type	Internal Combustion – Cushion Tire
Brand	Toyota
Capacity	25,000 lbs., 30,000 lbs., 35,000 lbs., 40,000 lbs., 45,000 lbs., 50,000 lbs., 55,000 lbs.
Condition	New
Fuel Type	LPG

U.S. parts and components sourcing means faster service and lower lead times
Dana 32000 transmission with 3 forward and 3 reverse speeds
Heavy duty planetary drive axle for maximum durability
Standard fingertip hydraulic controls for operator convenience
Easy service access thanks to hydraulic multi-gauge and easy-access panels and filters
Digital instrument display gives fuel, engine, transmission, battery, service, and temperature information
High visibility provided to operators by two-stage wide-view mast
Engine management system regulates performance and protects engine

Mast mounted LED Headlights (2)
LED rear combination lights (2)

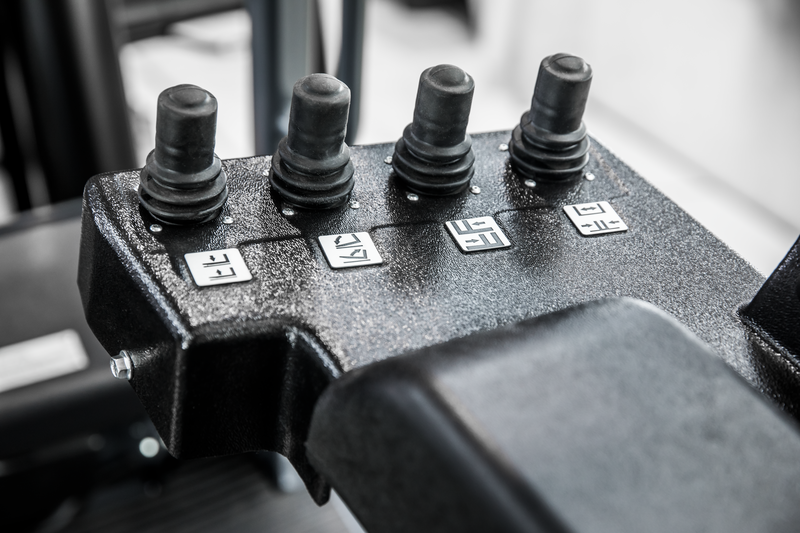

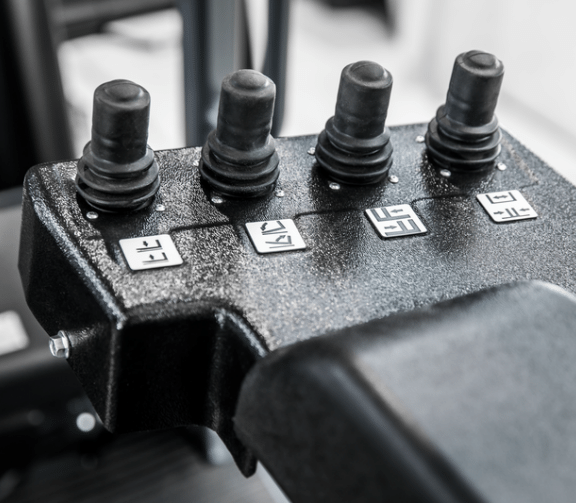

Finger-tip hydraulic controls

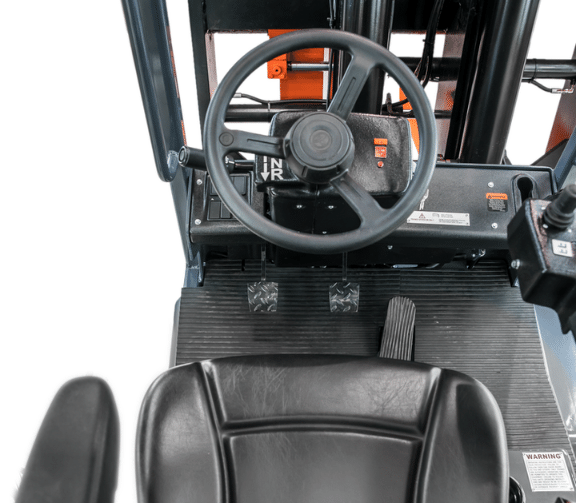

Tilt steering column
Left-hand shift lever
Long operator assist grips

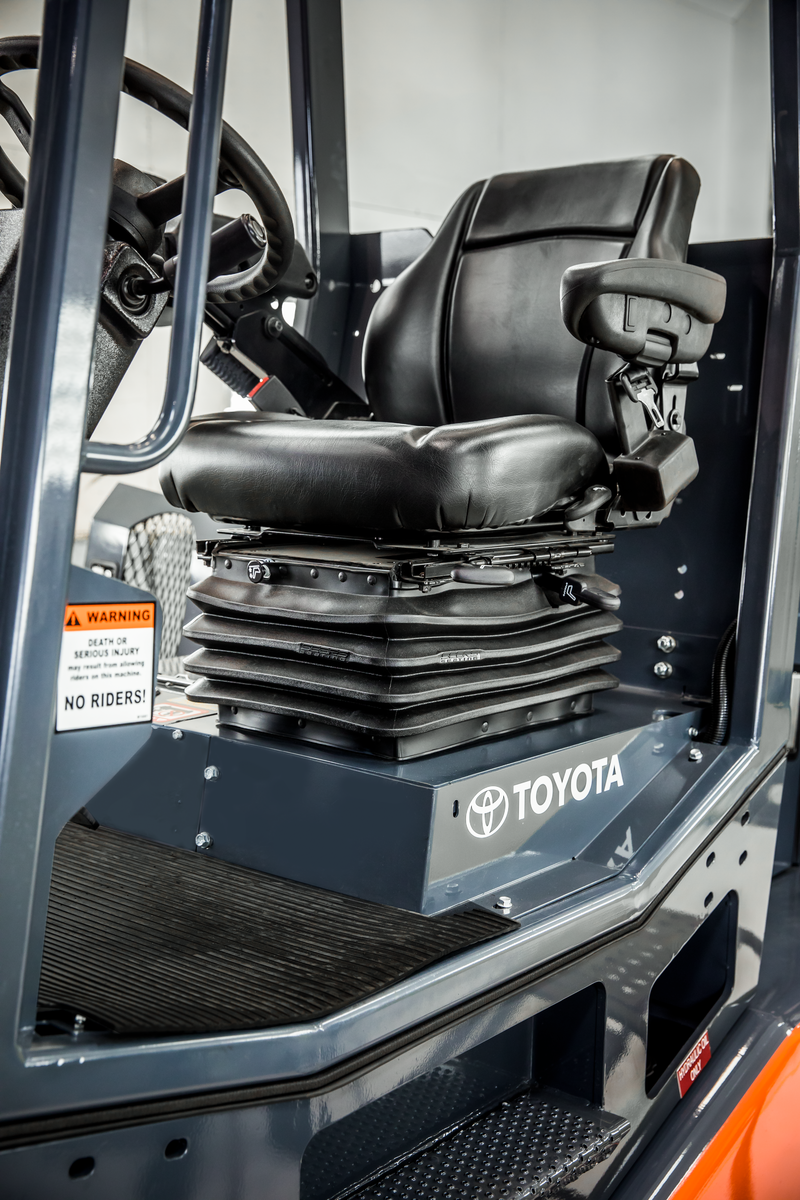

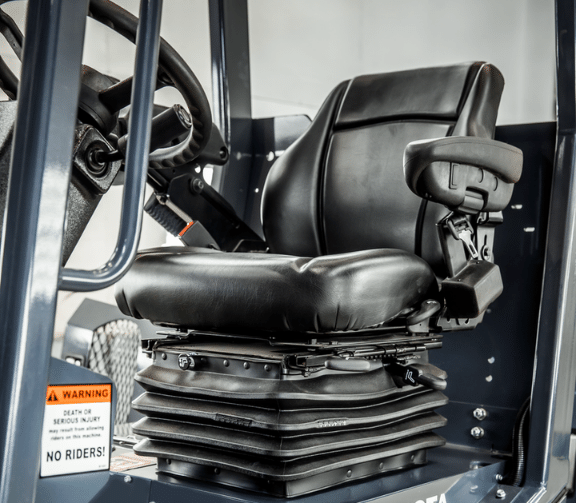

Vinyl adjustable semi-suspension seat
Hand-actuated disc-type parking brake
Low-height non-skid steps
Padded floor mat

PSI 5.7L V8 engine (LP)
Dana model 32000 transmission

-3FWD/3REV speed automatic
-True inching system
-Integral cooling pump (dedicated)
-Remote mounted filter
-12 plate modulation

2-function hydraulic control valve (lift/tilt)
Independent brake & inching pedals
Full hydraulic power steering
Warning light for parking brake (Release)
Lift and lashing points

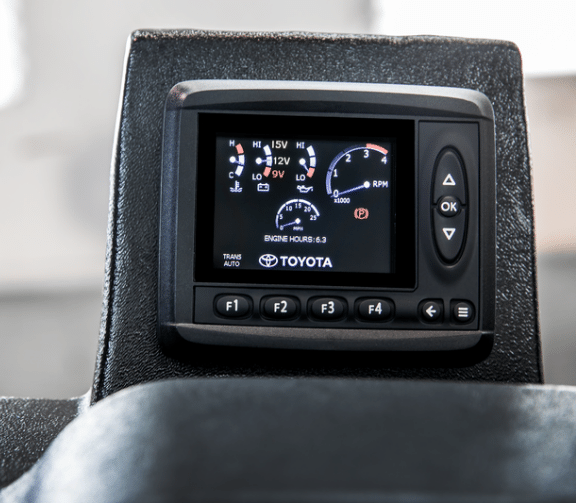

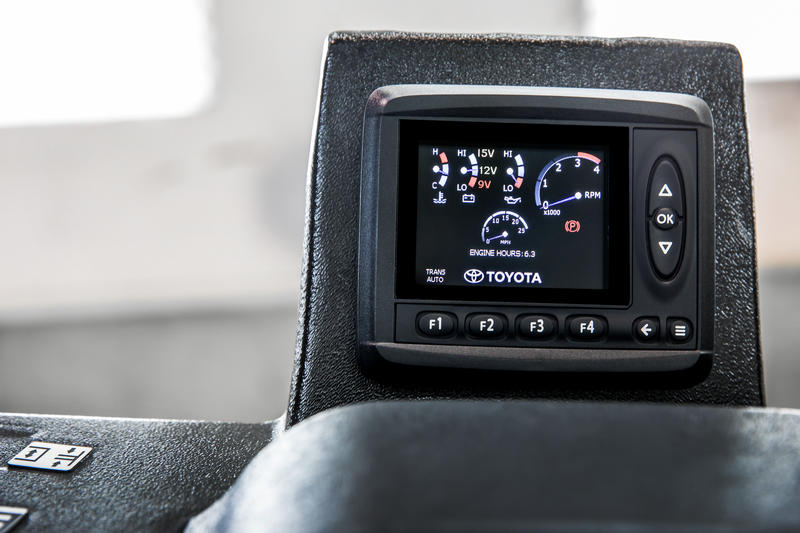

Illuminated digital instrument display

-Hydraulic filter plugged warning
-Air filter plugged warning
-Transmission filter plugged warning
-Check engine light
-Low fuel level indicator
-Parking brake indicator
-High engine temperature indicator
-Low engine pressure indicator
-High transmission temperature indicator
-Engine over-speed indicator
-Low battery indicator
-Service meter warning

Easy-access service panels
Hydraulic pump, hoses, tubes, and wiring harness are accessible and easy to inspect
Hydraulic multi-gauge
Chrome-plated rods (lift, tilt and steer cylinders) for easy seal replacement
Parker pumps, valves and seals
O-ring face seal fittings on the entire hydraulic system
Electrical box located inside the cab
Color coded wires enclosed with split-tubing wire-loom wrap
Anti-restart ignition switch
Fully sealed headlights and auxiliary lights
Low chassis side plate allows easy access to the drive train

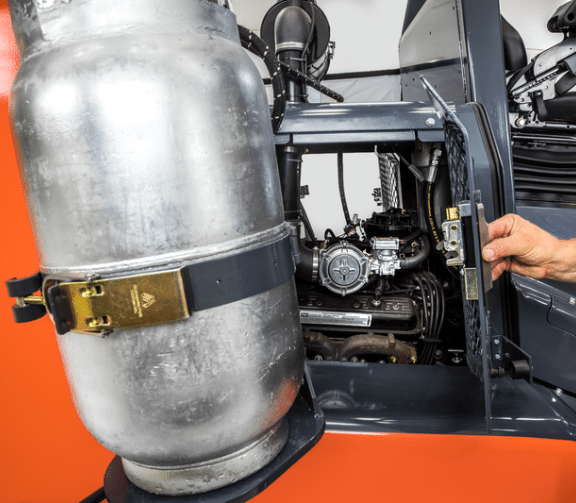

Swing-out LP tank brackets (2)

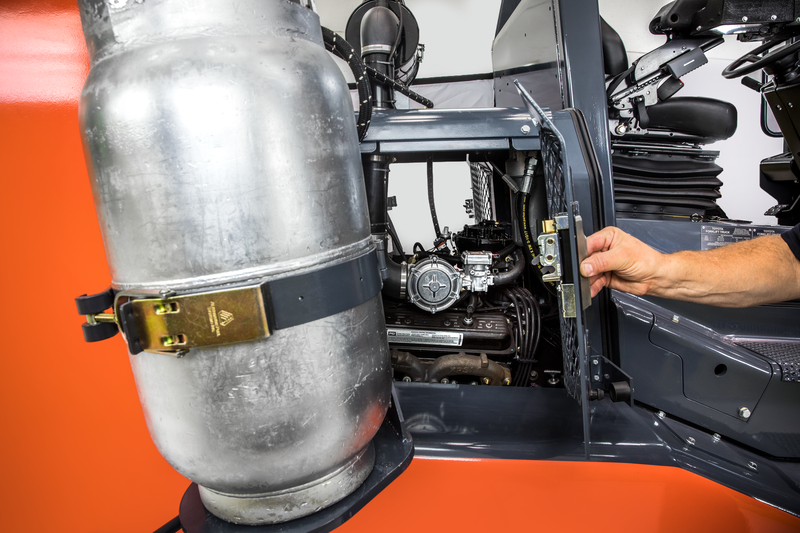

Hinged side doors provide excellent access to engine compartment

Electrical horn
Asbestos free components
Neutral safety switch
Integrated overhead guard
Operator Restraint System seat
Orange forks
Operator Presence Sensing System (OPSS)

Large drum-type brakes
Heavy duty planetary drive axle rated for durability in high-capacity applications
Rigidly constructed, welded frame
Built-in engine protection system
High-Capacity cooling system
Bolted open core radiator
Heavy-duty mast rails
Lift cylinders secured behind mast rails
Lubricated and sealed main rollers
Impact resistant main/side thrust rollers
Greaseable mast pivots
Heavy-duty isolated anti-vibration bolt-in drive line mounts
Mast pivots constructed with wear-resistant steel bushings and hardened steel pins
2 stage wide visible mast (V)
2 stage mast w/ free lift (FV)(45K to 55K models)
Dual action bolt-on steer cylinder protected by heavy steel support beams
Sealed tapered roller bearings
Heavy steel frame cross supports
Two-part rust-inhibiting polyurethane base coat and two-part polyurethane top coat for corrosion protection
Rubber-mounted cab, isolated from the frame to reduce noise and vibration
High-visibility carriage with integral side thrust rollers
High-impact greaseable composite trunnions
Hook-type forks

General Manufacturing
Retail
General Warehousing
Paper

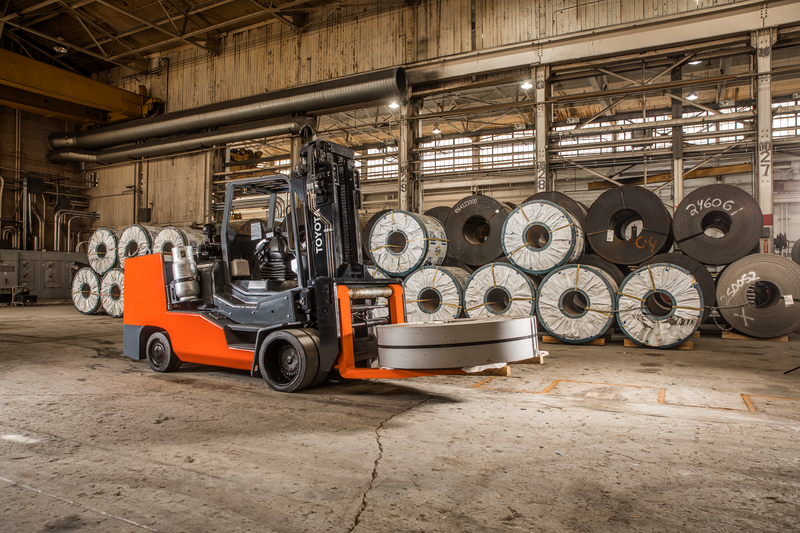

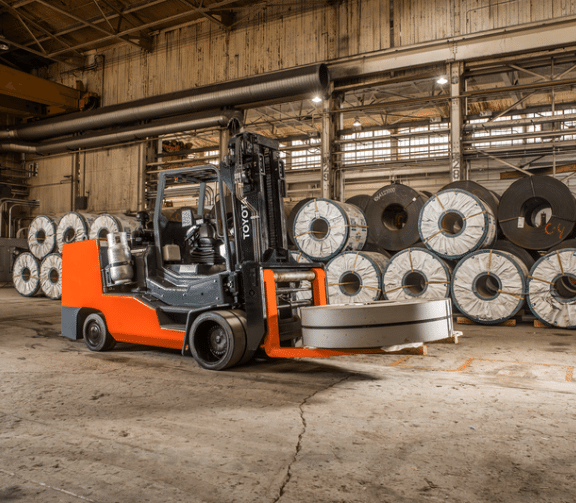

Steel/Metal
