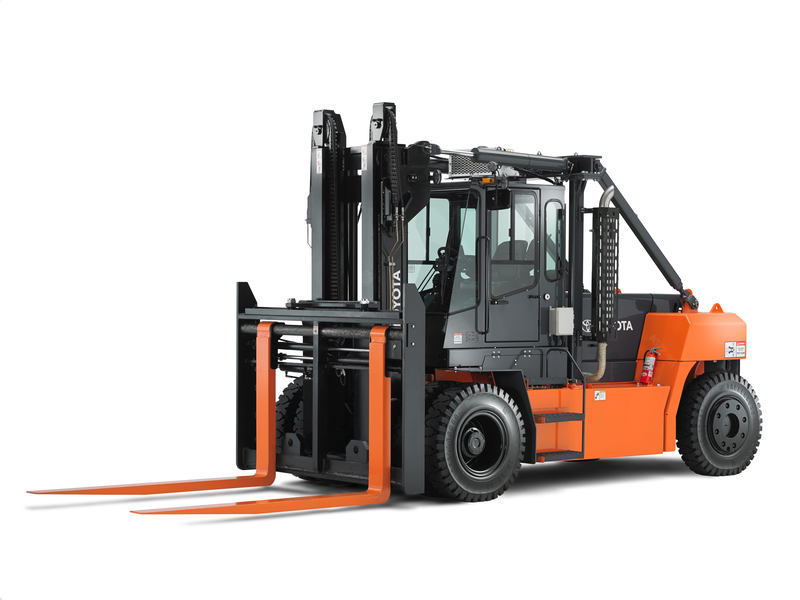

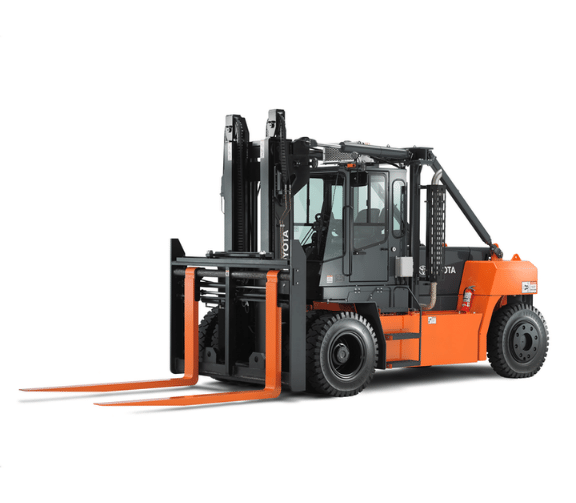

Toyota High-Capacity IC Pneumatic THD Forklift Studio 1

Toyota High-Capacity IC Pneumatic THD Forklift Studio 4

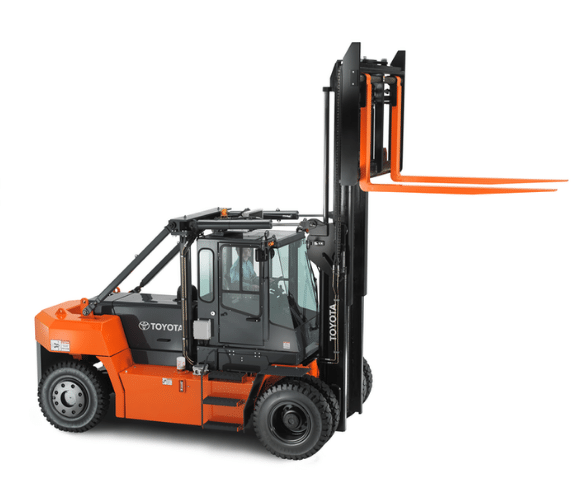

Toyota High-Capacity IC Pneumatic THD Forklift Studio 3

Toyota High-Capacity IC Pneumatic THD Forklift Studio 5

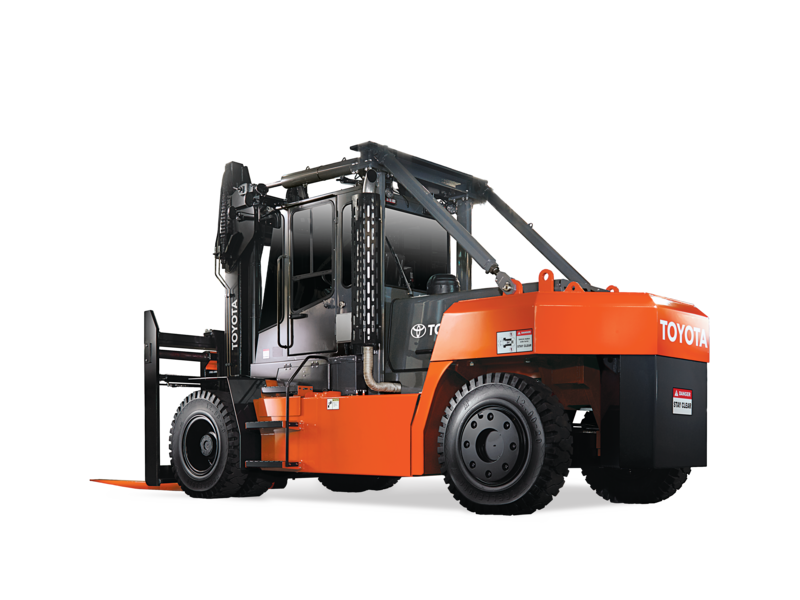

Toyota High-Capacity IC Pneumatic THD Forklift Studio 2

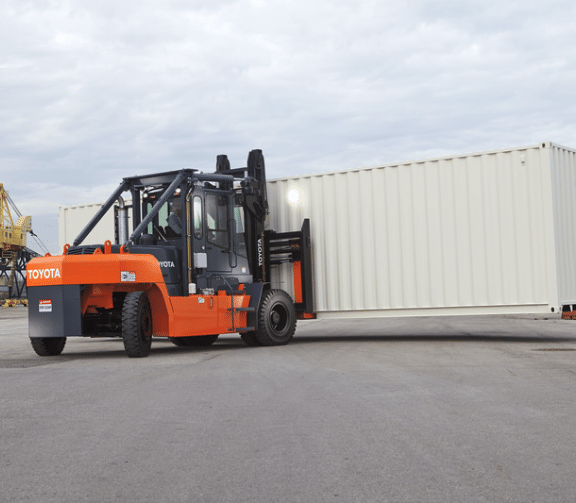

Toyota High-Capacity IC Pneumatic THD Forklift Application 1

Toyota High-Capacity IC Pneumatic THD Forklift Application 2

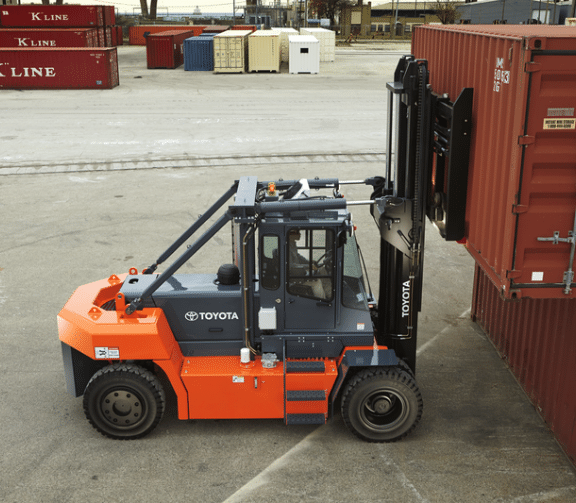

Toyota High-Capacity IC Pneumatic THD Forklift Application 3

Toyota High-Capacity IC Pneumatic THD Forklift Application 4

Toyota High-Capacity IC Pneumatic THD Forklift

30,000 – 125,000 lb. Capacity
Operator Presence Sensing System (OPSS)
EPA/CARB-Certified Diesel Engine – 6-Cylinder
Enclosed Operator Cabin
Engine Monitoring System
Load Center of 24″, 36″, and 48″

Documents

Product Documents

Product Videos

Product Options

Financing Information

Forklift Information

Product Description

Toyota’s biggest forklift is your best weapon for the most demanding jobs. With a 6-cylinder CUMMINS® diesel engine, Dana transmission and a lift capacity up to 125,000 pounds, the rugged Toyota High-Capacity IC Pneumatic forklift can handle almost any heavy load, even in the most challenging conditions. Ready? The THD is. Let’s get to work.

All that brawn comes with plenty of brains. A vehicle management system with on-board diagnostics shares useful information and timely alerts on an electronic, full-color, LCD armrest display. Standard fingertip controls provide smooth material handling and variable speed control of all functions.

Model Numbers: THD3000-24 | THD3300-24 | THD3300S-24 | THD3600-24 | THD3600S-24 | THD3600-36 | THD3600S-36 | THD3600-48 | THD4000-48 | THD4500-48 | THD4500S-48 | THD5000-48 | THD5200-48 | THD5500-48 | THD6000-48 | THD6500-48 | THD7000-48 | THD7200-48 | THD8000-48 | THD8000S-48 | THD9250-48 | THD9250S-48 | THD10000-48 | THD11000-48 | THD12000-48 | THD12500-48

Equipment Details

Forklift Type	Internal Combustion – Pneumatic Tire
Brand	Toyota
Capacity	30,000 lbs., 33,000 lbs., 36,000 lbs., 40,000 lbs., 45,000 lbs., 50,000 lbs., 52,000 lbs., 55,000 lbs., 60,000 lbs., 65,000 lbs., 70,000 lbs., 72,000 lbs., 80,000 lbs., 92,500 lbs., 100,000 lbs., 110,000 lbs., 120,000 lbs., 125,000 lbs.
Condition	New
Fuel Type	Diesel

Axletech® heavy-duty front axle for maximum durability
Dana transmission with three forward and three reverse speeds
Standard fingertip controls to accommodate operator preference
Cummins® QSB 6.7-liter, 6-cylinder, EPA/CARB-certified diesel engine to power the heaviest applications while meeting increasingly tough emission standards
Heavy-duty steer axle thick steel plate construction designed for rugged applications
Factory built to order featuring modular construction – including the mast – for greater durability and easier servicing

Strobe light
Back up alarm
LED headlights (2)
Rear worklights (2)
Fingertip hydraulic controls
Rearview mirrors (right & left sides)
Turn signal lights
Front & rear combination light
Dashless cab design for improved visibility
Fingertip hydraulic controls
Tilt steering column left-hand shift lever
Long operator assist grips
Insulated floor, cab walls & doors

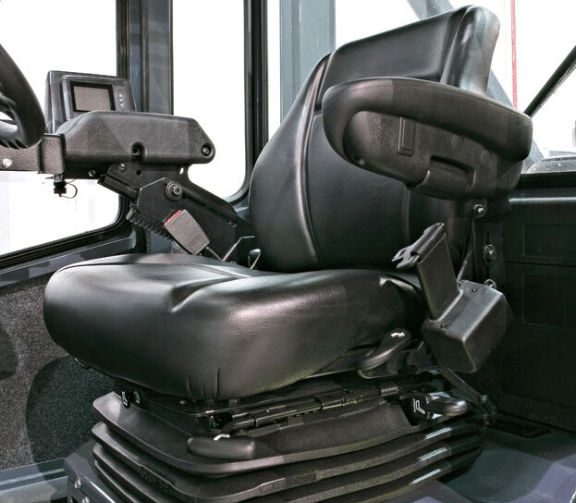

Adjustable air-ride seat with retractable seat belts
Lockable doors with greaseable hinges
Cab heater & operator fan
Spring-apply/hydraulic release parking brake
Individually control front/rear wipers
Tinted glass to minimize glare

CUMMINS® 6.7-liter, 6-cylinder Tier 3 diesel engine

-Common rail electronic fuel injection system
-Turbocharged and intercooled

Dana model 3200 transmission
2-function hydraulic control valve (lift & tilt)
Independent brake and inching pedals
Full hydraulic power steering
Warning light for parking brake (release)
Upswept exhaust
Integrated multifunction display includes:

-Hour meter display
-Fuel gauge
-Low fuel warning light
-Engine oil pressure gauge
-Battery charge warning light
-Water temperature gauge
-Transmission temperature gauge
-Transmission, air & hydraulic filter indicator
-Parking brake indicator
-Oil pressure indicator
-Service indicator
-Engine water temperature indicator
-Tachometer
-Speedometer

Electronic engine diagnostics with fault code history
All-wheel rotatable tires
Easy-access filters
Easy-lift hoods, panels & doors
Hydraulic multi-gauge
Externally serviceable brakes

Electric horn
Asbestos-free components
Neutral safety switch
Integrated overhead guard
Operator Restraint System seat
Orange forks
Operator Presence Sensing System (OPSS)

Force-cooled wet disc brakes
AxleTech® planetary drive axle rated for durability in high-capacity, off-road applications
Rigidly constructed welded frame
Engine protection system
High-capacity cooling system
Open-core radiator with fan shroud
Welded nested mast rails
Pin-type forks
12-Volt electrical system with two 12-Vole batteries
2-stage heavy-duty air cleaner wide visible 2-stage mast (V)

General Manufacturing
Lumber

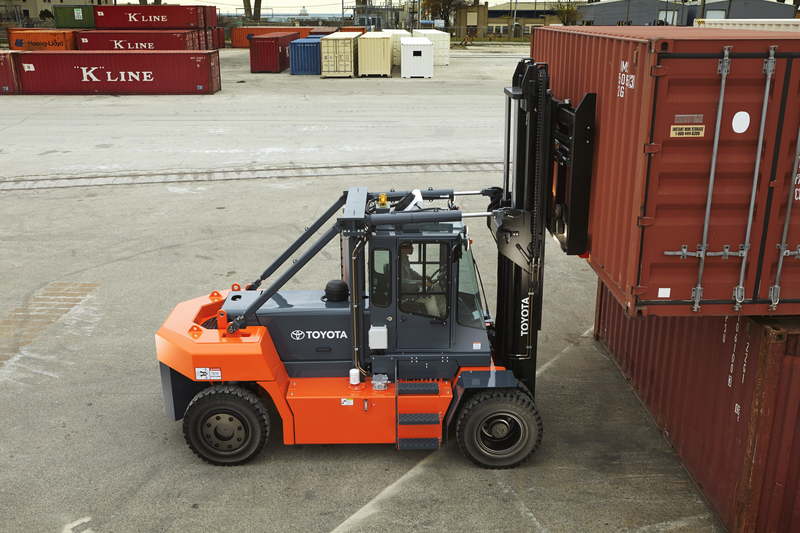

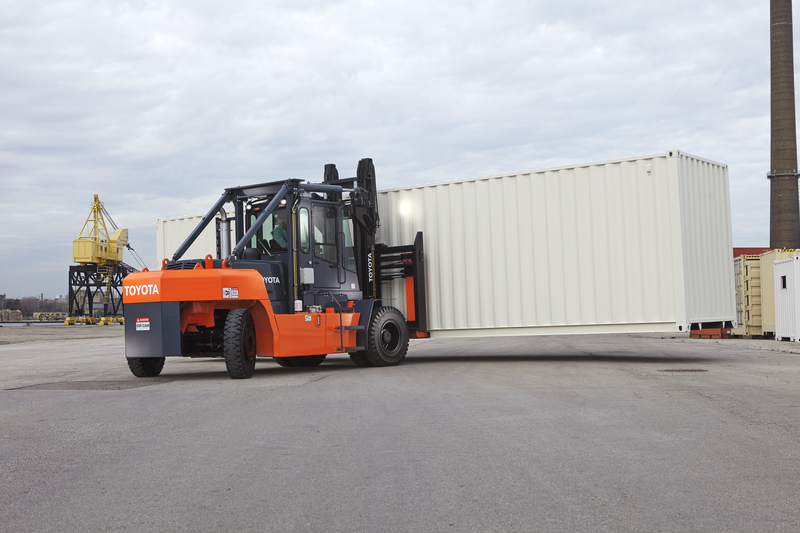

Intermodal Port
Oil/Gas

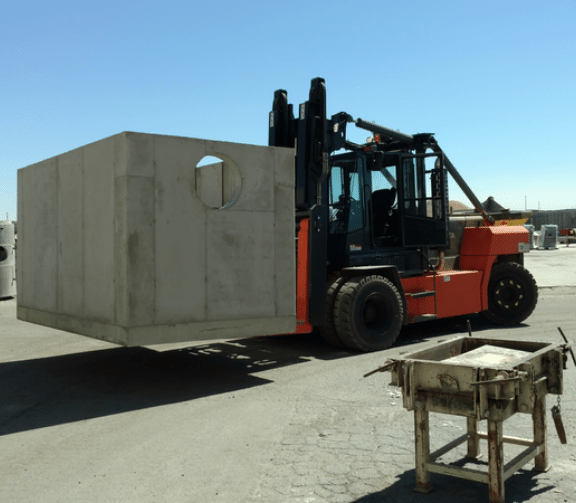

Concrete
