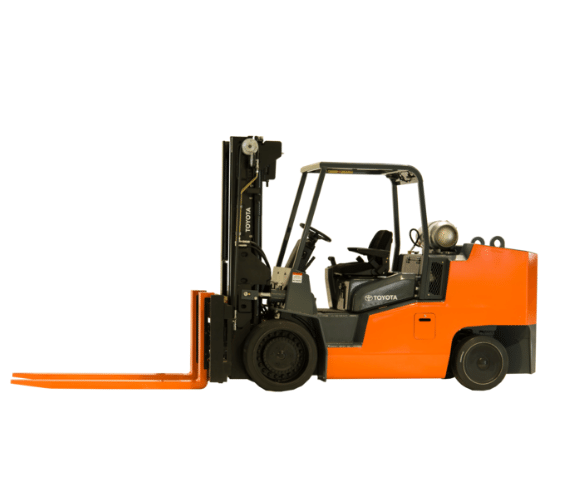

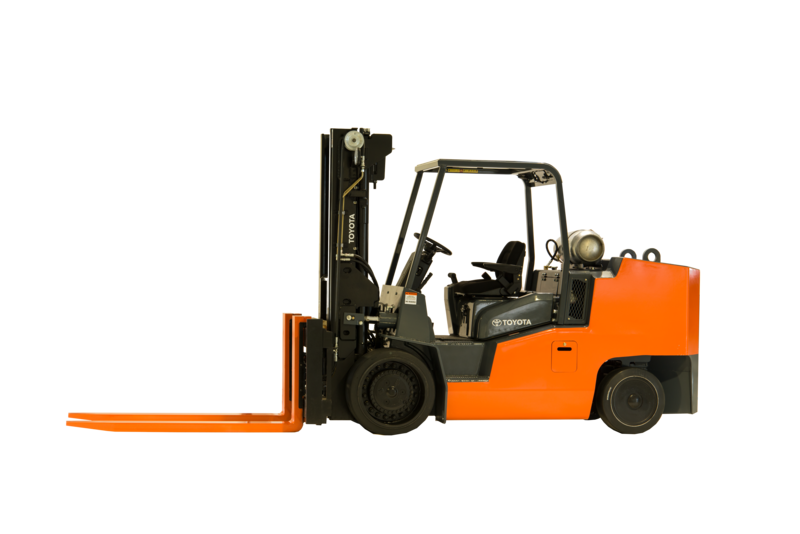

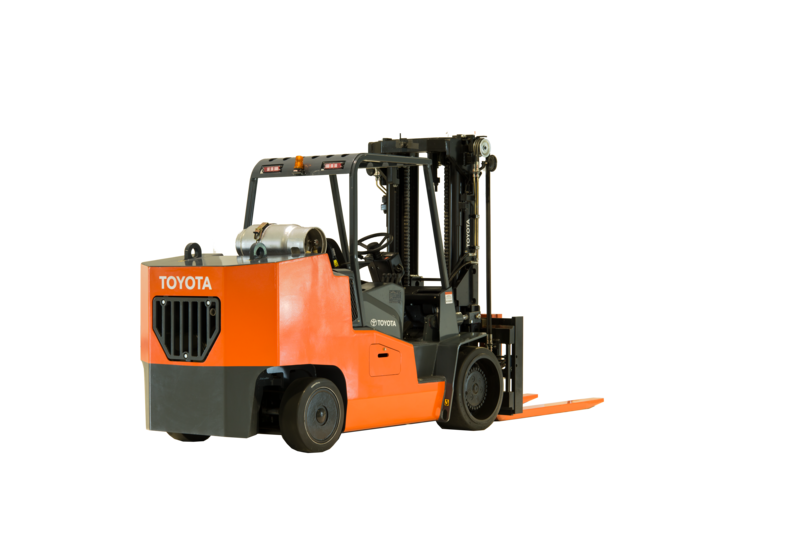

Toyota High-Capacity IC Cushion Forklift Studio 1

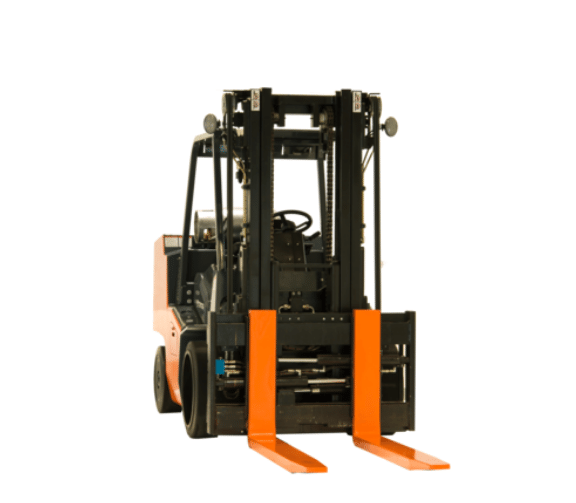

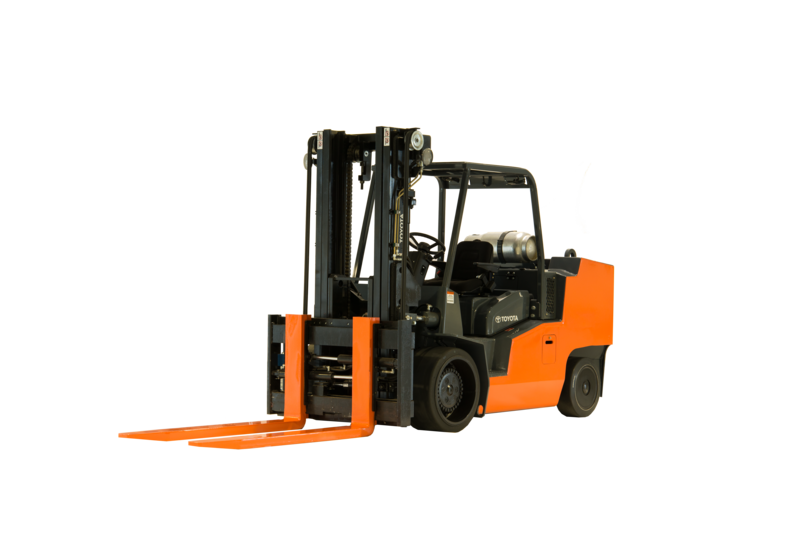

Toyota High-Capacity IC Cushion Forklift Studio 2

Toyota High-Capacity IC Cushion Forklift Studio 3

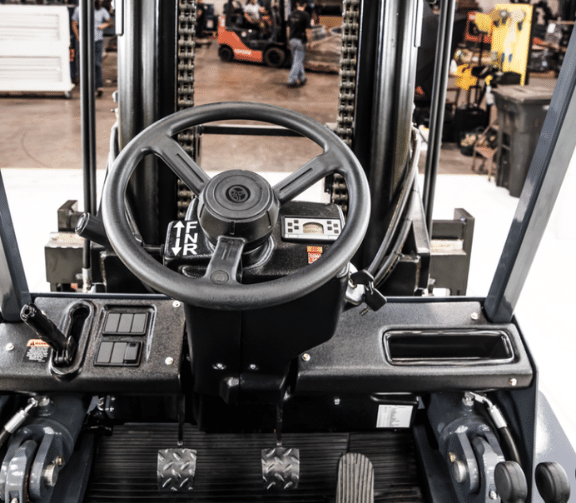

Toyota High-Capacity IC Cushion Forklift Application 1

Toyota High-Capacity IC Cushion Forklift Application 2

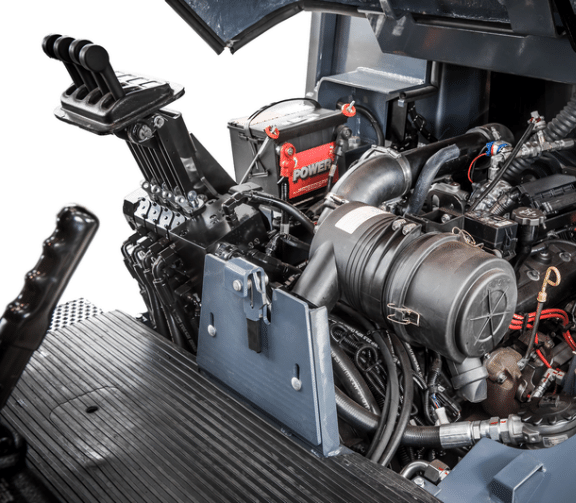

Toyota High-Capacity IC Cushion Forklift Application 3

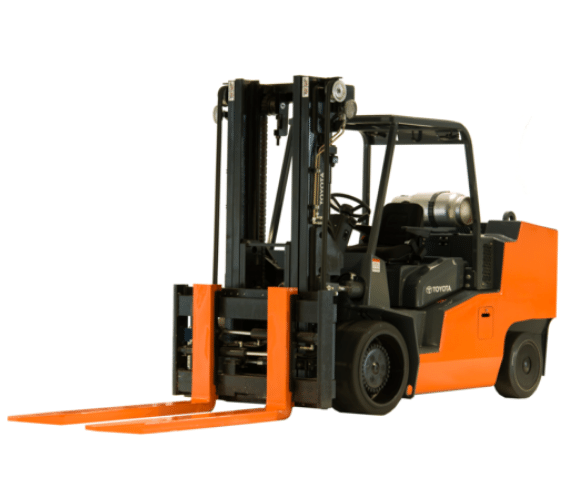

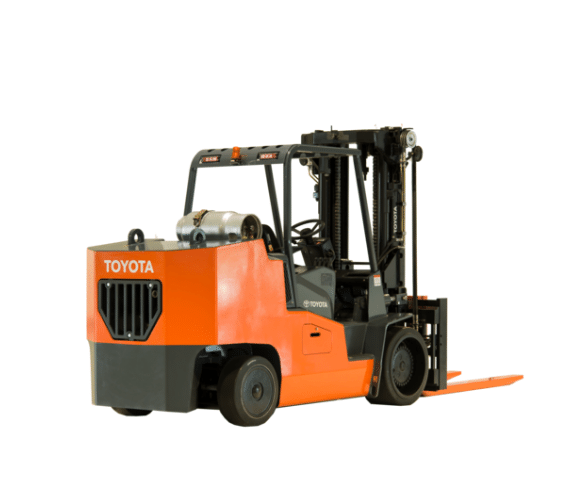

Toyota High-Capacity IC Cushion Forklift

18,000 – 22,000 lb. Capacity
Standard 4.3L V6 LP Engine
Load-Sensing Hydraulic System
3-Speed Dana 12000 Transmission
Loaded Center of 24″ or 36″

Documents

Product Documents

Product Videos

Financing Information

Forklift Information

Product Description

Prepare to have your expectations blown away. Power, durability, and all the high standards of the Toyota heavy duty line of forklifts. Add the compact maneuverability for indoor operations, and the Toyota High-Capacity IC Cushion forklift will stand up to any challenges you throw at it.

This indoor workhorse is built to last from the overhead guard all the way to the durable two-coat rust inhibiting paint. That strength comes with plenty of support. An engine management system protects your forklift and keeps delivering the same high-performance work you expect.

Model Numbers: THDC1800-24 | THDC2200-24 | THDC2200B-24 | THDC1800-36

Equipment Details

Forklift Type	Internal Combustion – Cushion Tire
Brand	Toyota
Capacity	18,000 lbs., 22,000 lbs.
Condition	New
Fuel Type	LPG

U.S. parts and components sourcing means faster service and lower lead times
Dana 12000 transmission with 3 forward and 3 reverse speeds
Heavy duty planetary drive axle for maximum durability
Standard hood-mounted hydraulic controls for operator convenience
Easy service access thanks to hydraulic multi-gauge and easy-access panels and filters
Digital instrument display gives fuel, engine, transmission, battery, service, and temperature information
High visibility provided to operators by two-stage wide-view mast
Engine management system regulates performance and protects engine
Load sensing hydraulic system delivers power you depend on when you need it

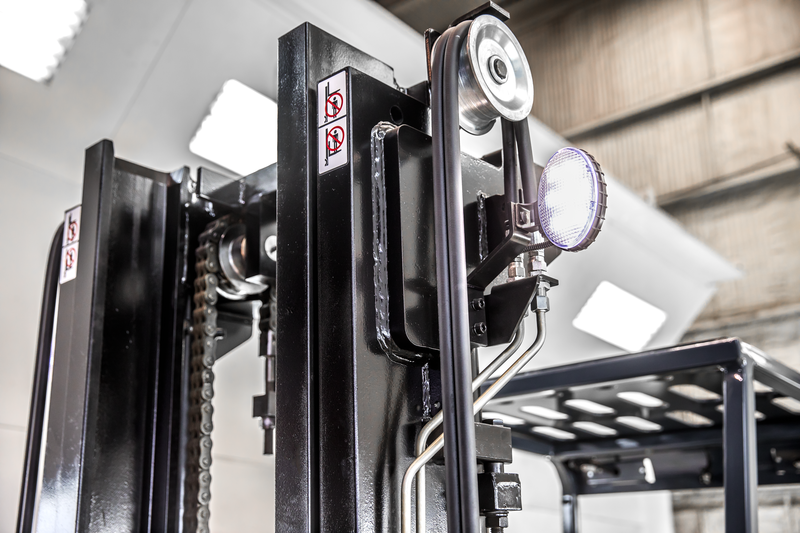

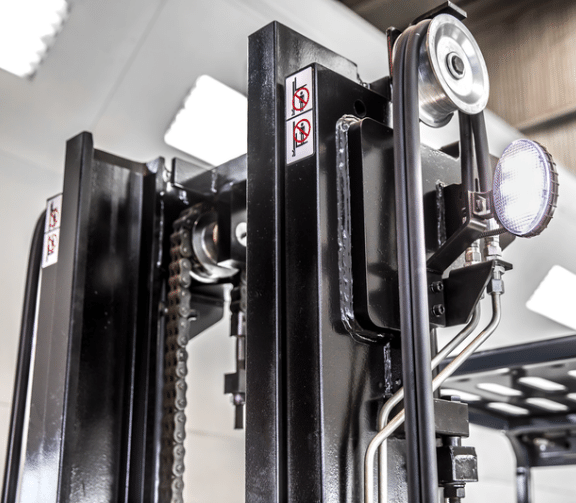

Mast mounted LED Headlights (2)
LED rear combination lights (2)

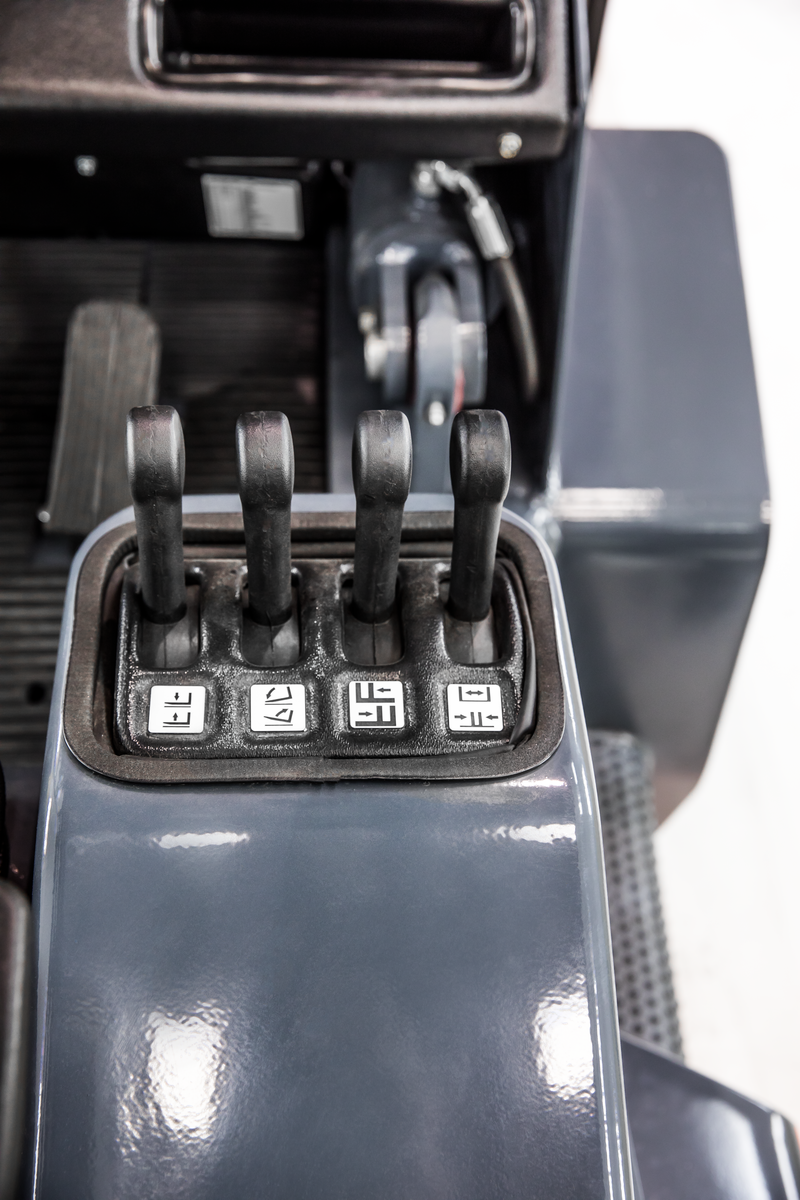

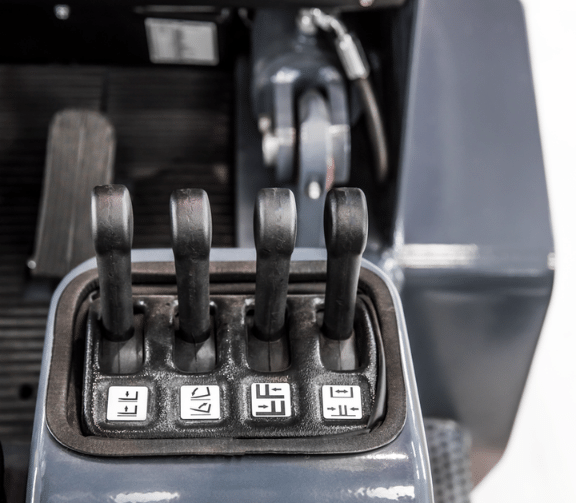

Hood-mounted hydraulic controls

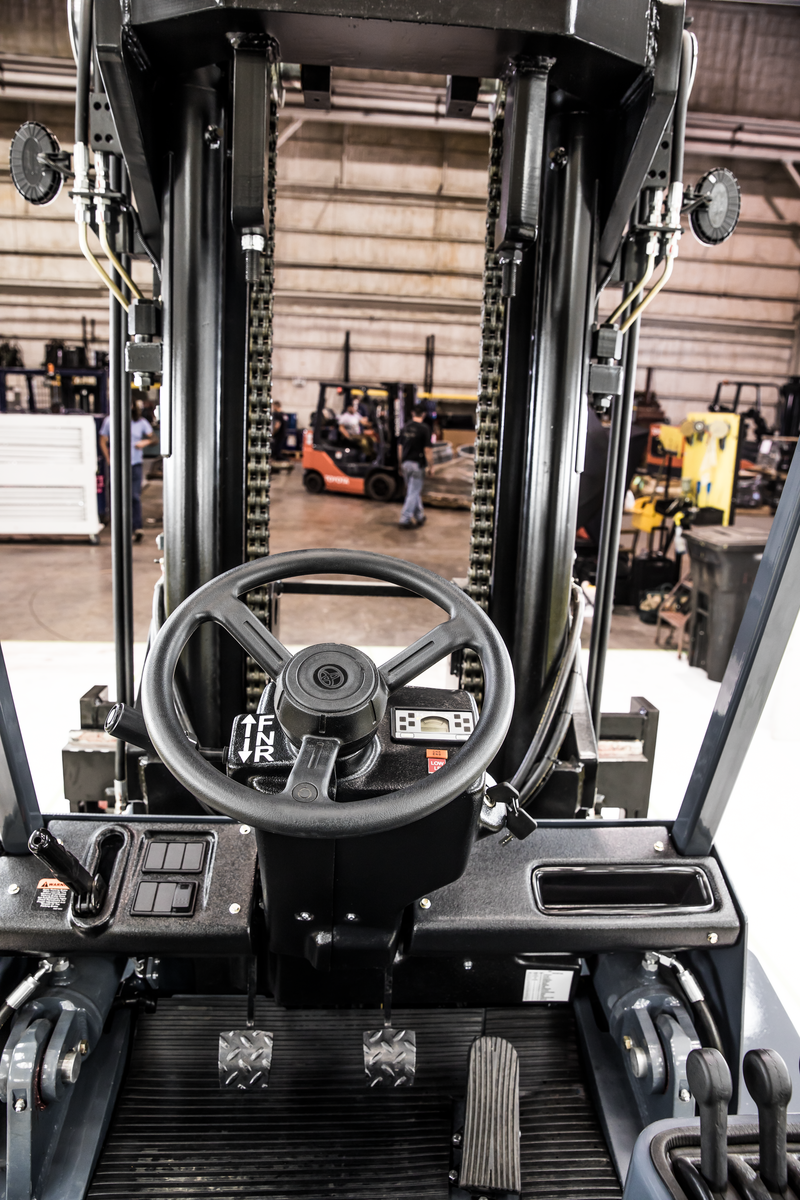

Tilt steering column
75 turn lock-to-lock steering wheel
Left-hand shift lever
Hood-mounted clipboard
Vinyl adjustable semi-suspension seat
Hand-actuated disc-type parking brake
Low-height non-skid steps
Cup holder

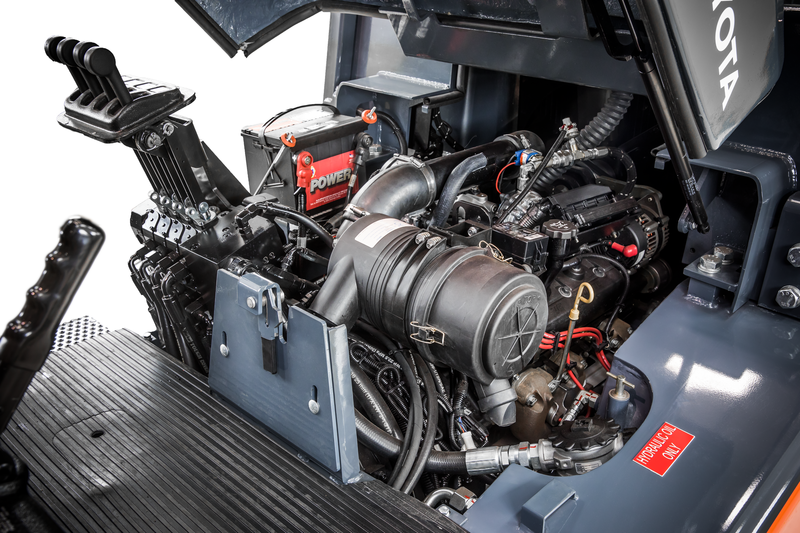

PSI 4.3L V6 engine (LP)
Dana model 12000 transmission

-3FWD/3REV speed automatic

2-function hydraulic control valve (lift/tilt)
Independent brake & inching pedals
Full hydraulic power steering
Independent brake & declutch pedals
Load-sensing “on-demand” hydraulic system
Warning light for parking brake (Release)
Lift and lashing points
Engine management system

-Regulates fuel delivery
-Governs speed
-Controls ignition
-Regulates fuel delivery
-Overheat protection
-Maintains RPM during hydraulic functions

Illuminated digital instrument display

-Fuel gauge
-Engine pressure gauge
-Transmission temperature
-Battery charge warning light
-Service meter warning
-Engine temperature gauge

Easy-access filters
Hydraulic multi-gauge
Easy-access service panels (left, right, and floorboard)
Flip-up hood
Wires enclosed in split tube wire loom wrap
Sealed weatherpack connectors
Fully sealed headlights and auxiliary lights
Low chassis side plate allows easy access to the drive train

Electrical horn
Asbestos free components
Neutral safety switch
Bolt-on overhead guard
Operator Restraint System seat
Orange forks
Spring-applied/hydraulic release parking brake
Operator Presence Sensing System (OPSS)

Large drum-type brakes
Heavy duty planetary drive axle rated for durability in high-capacity applications
Rigidly constructed, welded frame
Built-in engine protection system
Heavy-duty extruded and rolled mast rails
Class V ITA carriage with six roller support
12 volt electrical system
2 stage wide visible mast (V)
Hook-type forks

General Manufacturing
Retail
General Warehousing
Paper
Factory
Distribution
Steel/Metal
