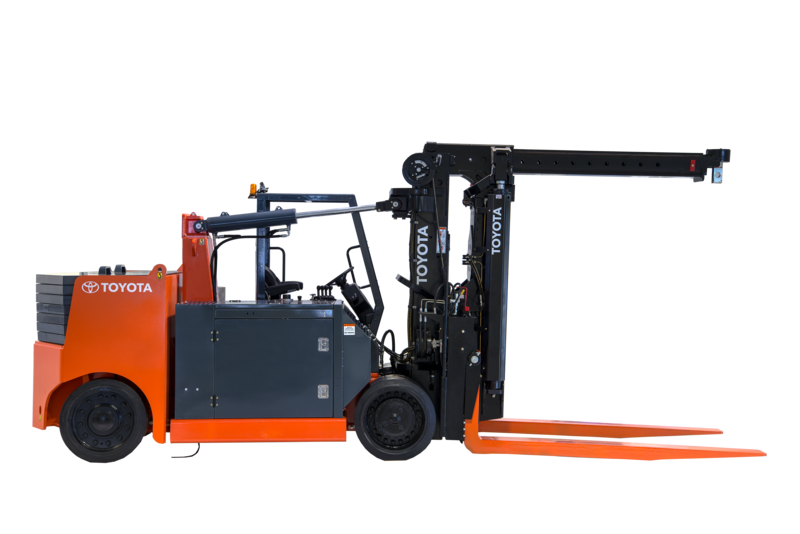

Toyota High-Capacity Adjustable Wheelbase Forklift

Toyota High-Capacity Adjustable Wheelbase Forklift Studio 4

Toyota High-Capacity Adjustable Wheelbase Forklift Studio 1

Toyota High-Capacity Adjustable Wheelbase Forklift Studio 2

Toyota High-Capacity Adjustable Wheelbase Forklift Studio 3

Toyota High-Capacity Adjustable Wheelbase Forklift Application 1

Toyota High-Capacity Adjustable Wheelbase Forklift Application 2

Toyota High-Capacity Adjustable Wheelbase Forklift Application 3

Toyota High-Capacity Adjustable Wheelbase Forklift Application 4

Toyota High-Capacity Adjustable Wheelbase Forklift Application 5

Toyota High-Capacity Adjustable Wheelbase Forklift

15,000 – 80,000 lb. Capacity
2-Speed Hydrostatic Transmission
Extendable Counterweight
7″ Touch Screen Multi-Function Display
Optional Remote Control
Operator Presence Sensing System (OPSS)

Documents

Product Documents

Product Videos

Financing Information

Forklift Information

Product Description

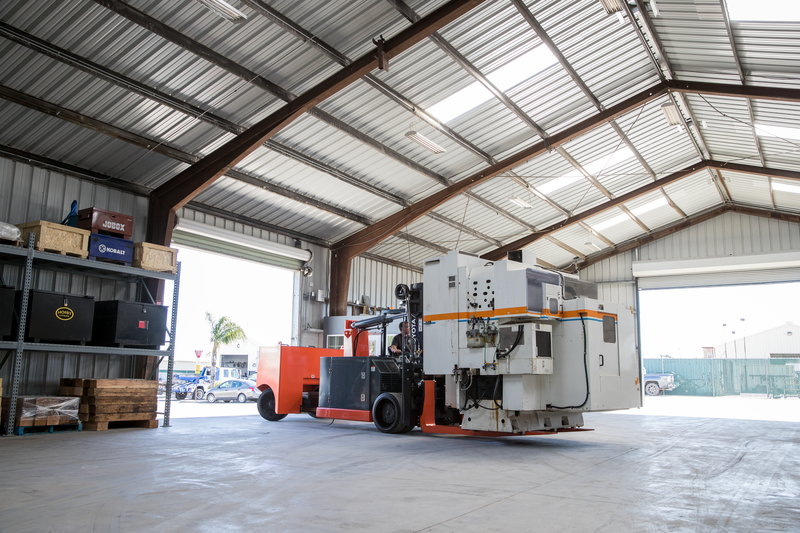

Horizontally extendable counterweights, hydraulic boom attachments, and an optional remote control make the Toyota High-Capacity Adjustable Wheelbase forklifts some of the most versatile forklifts in the industry, perfectly suited for rigging and machinery moving industries.

The ingenuity doesn’t stop there. Thanks to quick connect/disconnect hydraulics, our unique Quick-Change Fork System allows you to switch between forks and boom attachment in a matter of minutes with no tools required. Toyota’s High-Capacity Adjustable Wheelbase models are designed to not only provide the performance you need but the ability to fine tune it based on the specific needs of your operation.

Model Numbers: THDA15/25 | THDA 25/35 | THDA40/60 | THDA60/80

Equipment Details

Forklift Type	Internal Combustion – Cushion Tire
Brand	Toyota
Capacity	15,000 lbs., 25,000 lbs., 35,000 lbs., 40,000 lbs., 60,000 lbs., 80,000 lbs.
Condition	New
Fuel Type	Duel Fuel, Gas & LPG

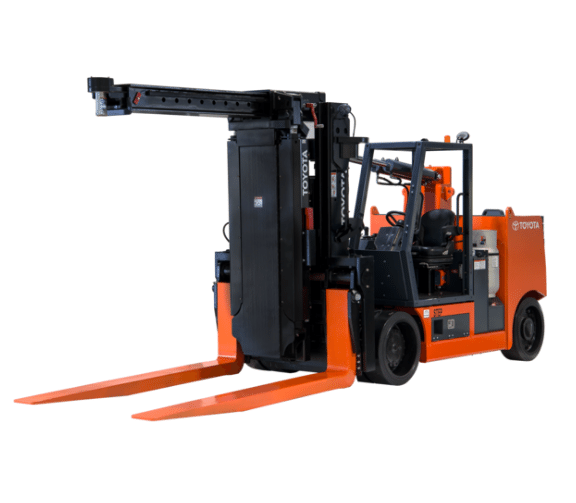

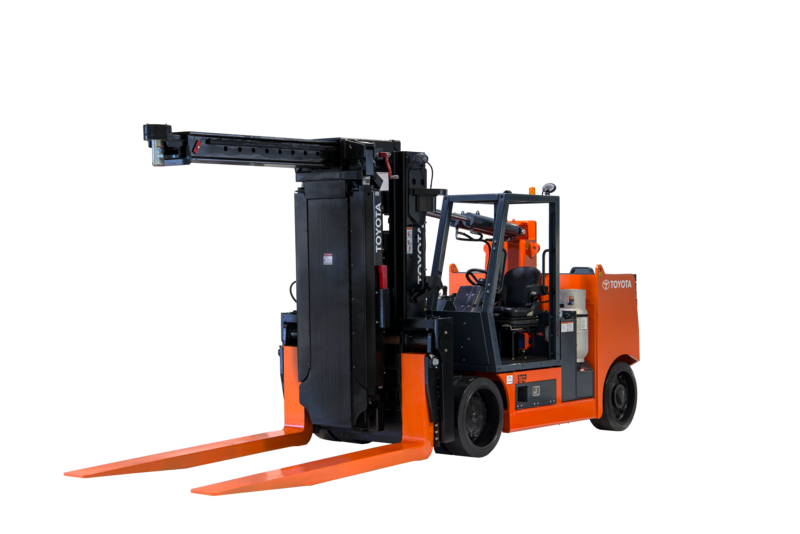

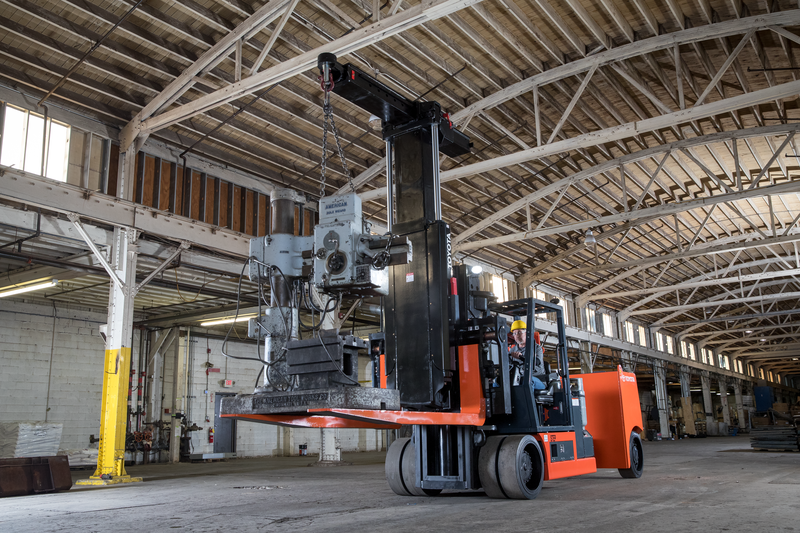

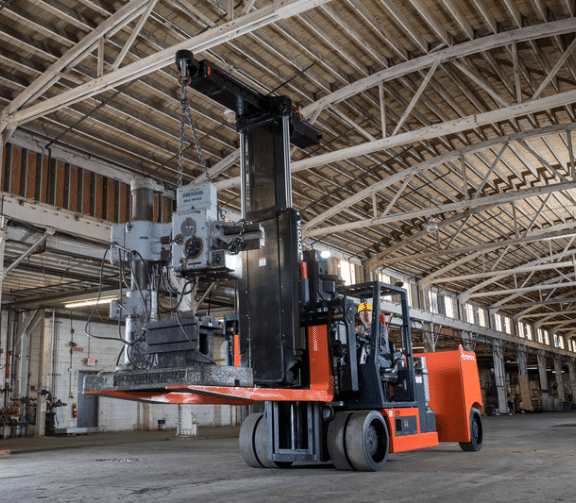

Standard hydraulically powered, multi-stage telescoping boom handles the most unwieldy, awkwardly sized loads with ease
Compact, nimble design for superior maneuverability in confined spaces
Quick-change fork system allows you to switch between forks and boom attachment in a matter of minutes with no tools required

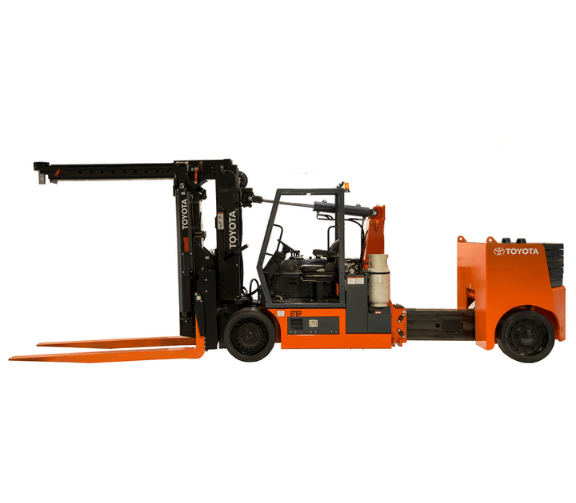

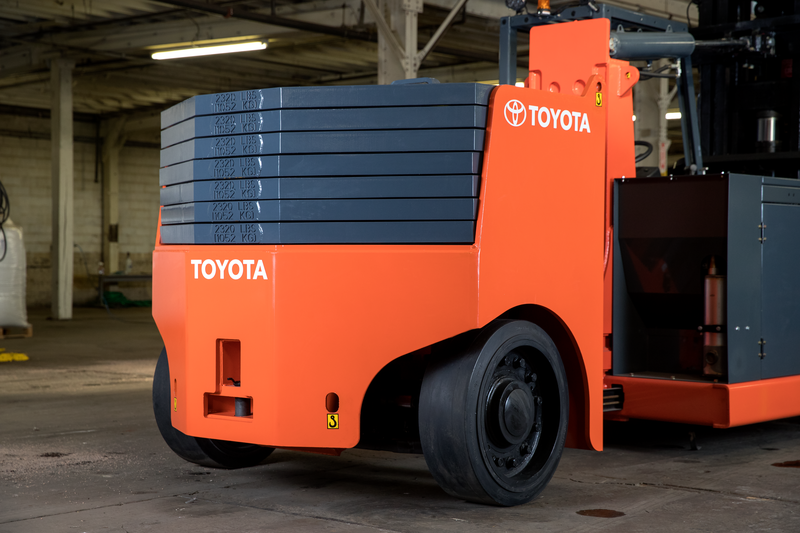

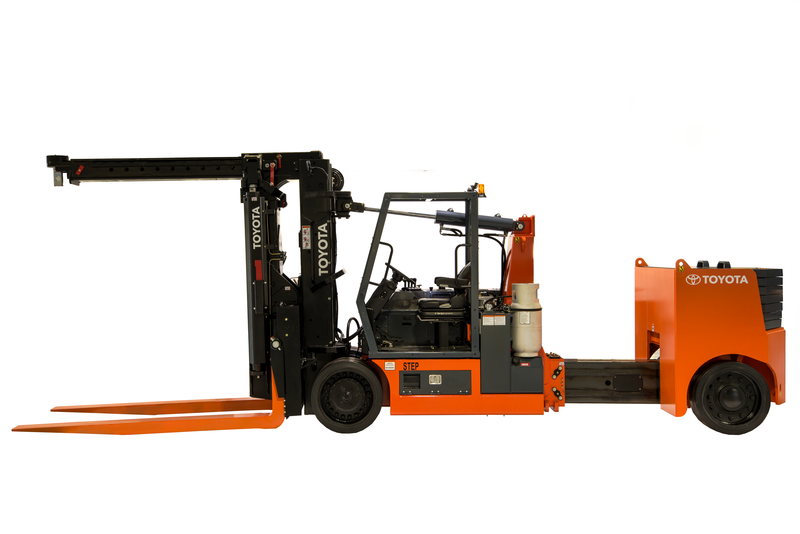

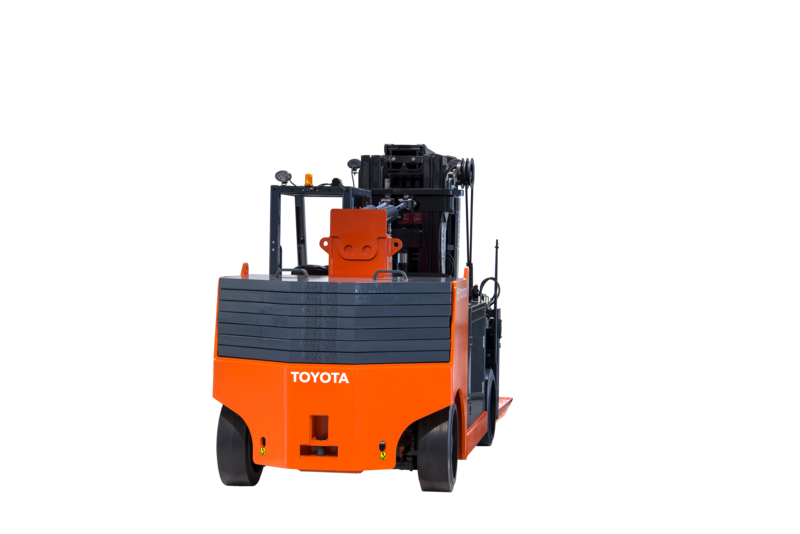

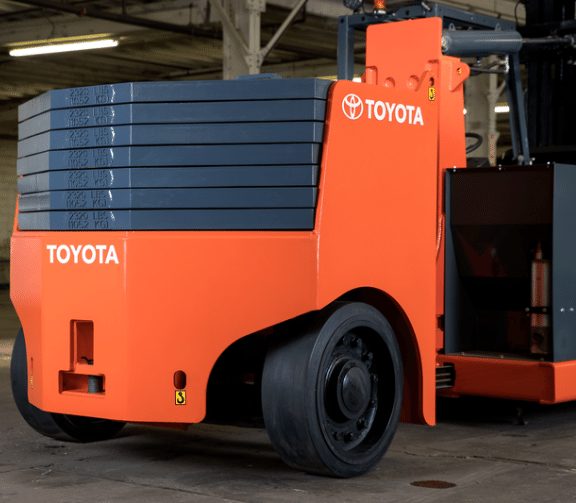

Horizontally adjustable counterweight extends out at the push of a button to improve the forklift’s maximum lifting capacity
Dual fuel capable industrial engines let you use LP and gasoline
2-speed hydrostatic transmission with both a high-gear and a low-gear setting to control performance
Remote control option to control all forklift functions from an intuitive and easy-to-use handheld device

Left-hand operator/seat position
Rubber-mounted cab isolated from the frame to reduce noise and vibration
Low-height, non-skid steps
Adjustable semi-suspension seat
Soft-touch hydraulic levers
Tilt steering column
Hydraulic weight scale
Large dual operator assist grips

PSI 3.0L 4-cylinder engine (LP/Gas)1
PSI 4.3L V6 engine (LP/Gas)2
2-Speed hydrostatic transmission
Hydraulic machinery boom & stand3
2-function hydraulic control valve (lift/tilt)
Full hydraulic power steering
Heavy-duty alternator with built-in regulator
Inboard muffler

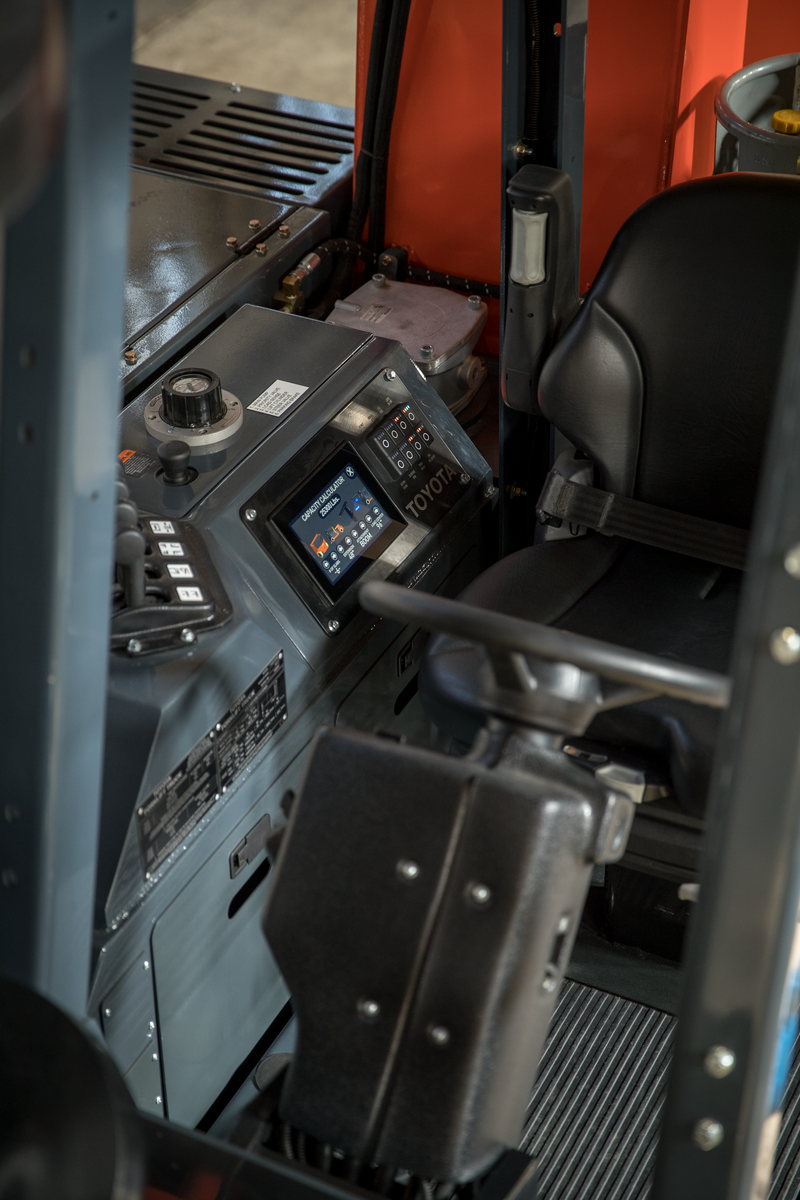

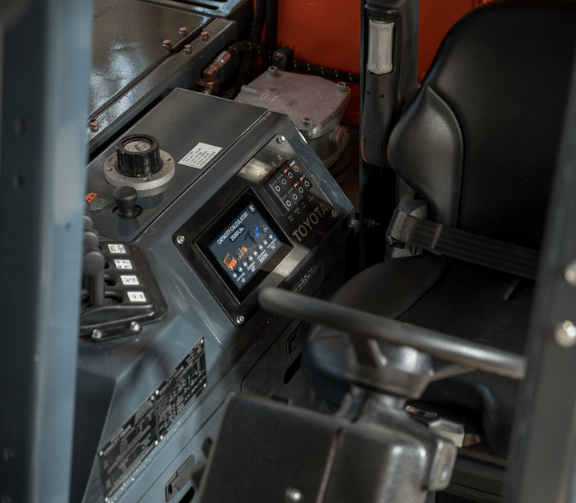

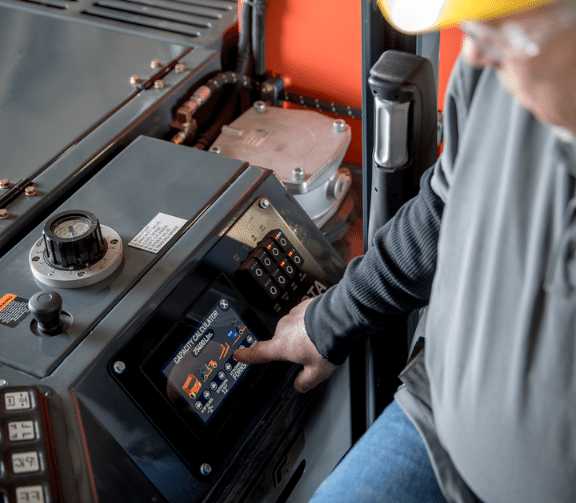

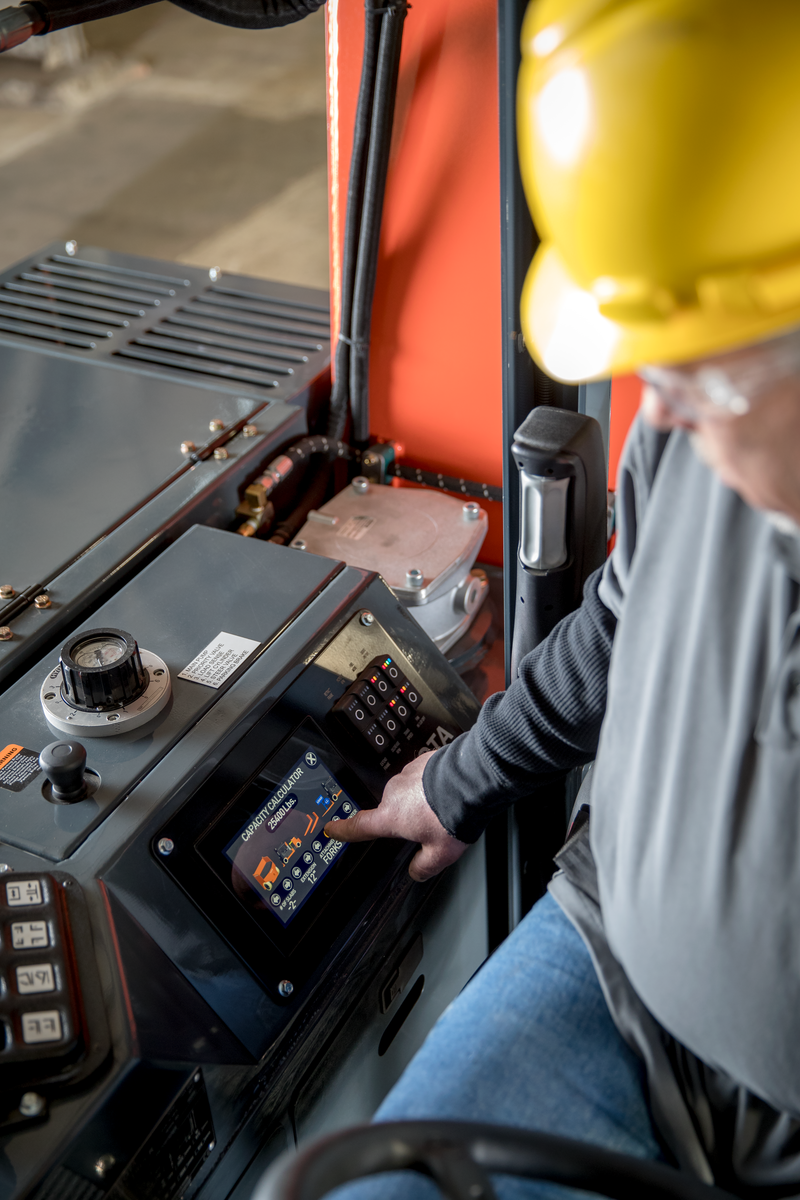

7” touch-screen multi-function display

– Fuel gauge
– Hour meter
– Speedometer
– Tachometer
– Water temperature gauge
– Estimated capacity calculator
– Engine oil pressure
– Parking brake indicator
– Estimated load weight indicator
– Service and operator manuals
– Pre-operation checklist (upon request)4
– Fuse/relay diagnostics

Quick-Change Fork System for quick connect/disconnect of forks and boom
Engine fault code diagnostic capability
Externally mounted charge pump and integral filter allow for easy maintenance
O-ring face seal fittings
Easy-access oil filter and drain
Large clean-out covers on top of hydraulic tank and convenient drain plug on the bottom
Electric radiator fan with automated reversing feature
Hydraulic multi-gauge
Wires enclosed in split tube wire loom wrap
Sealed weatherpack connectors
Easy-access steer axle lubrication points
Hinged panels and hoods supported by gas shocks to reach entire drivetrain, hydraulics, and filters

Electrical horn
Asbestos-free components
Bolt-on overhead guard
Operator Restraint System seat
Spring-applied/hydraulic release parking brake
Orange forks
Operator Presence Sensing System (OPSS)

Impact-resistant main and side thrust rollers to reduce friction
Greaseable mast pivots constructed with wear-resistant bronze bushings and hardened steel pins
Chrome-plated cylinder rods
Built-in engine protection system
Heavy-duty isolated anti-vibration bolt-in drive line mounts
Tilt-lock counterbalance valve to prevent mast drift
12 volt electrical system
Heavy duty planetary drive rated for durability in high-capacity applications
Double reduction gearing for increased torque
Precision ground, heat-treated gears
Thick top plate on welded beam steer axle provides added strength
Dual-action bolt-on cylinder protected by heavy steel support beams
High-impact composite trunnions
Tapered roller bearings
Two-part rust-inhibiting polyurethane base coat and two-part polyurethane top coat for corrosion protection
Powder-coated components
