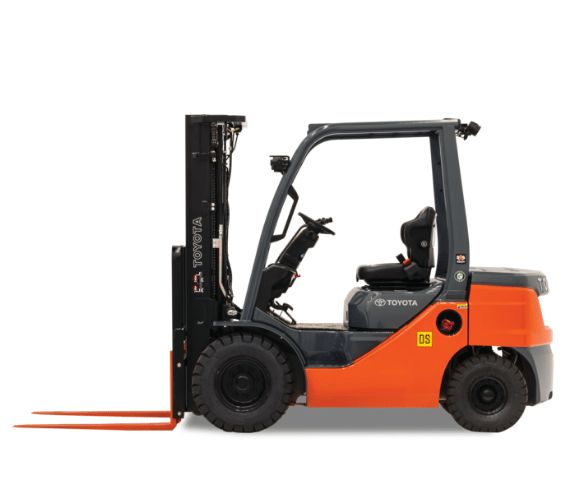

Toyota Core IC Pneumatic Forklift Studio 1

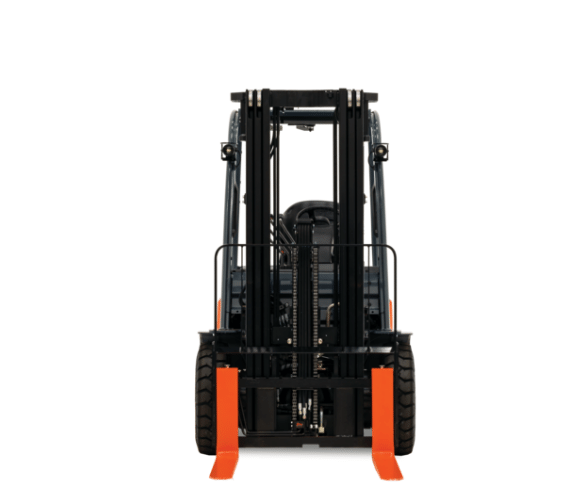

Toyota Core IC Pneumatic Forklift Studio 2

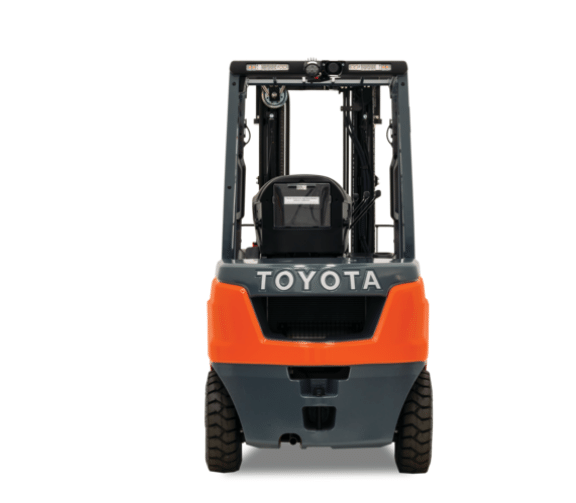

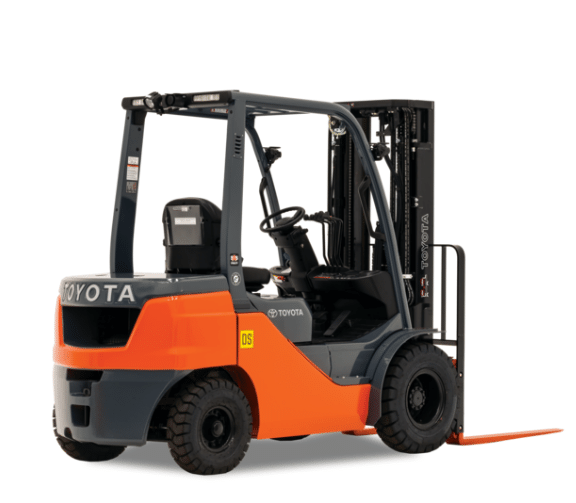

Toyota Core IC Pneumatic Forklift Studio 3

Toyota Core IC Pneumatic Forklift Studio 4

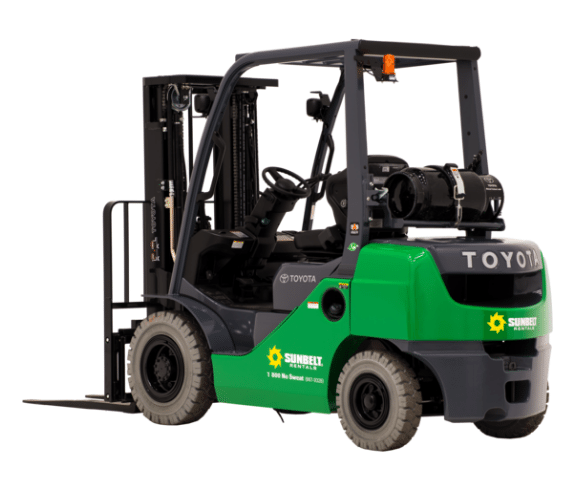

Toyota Core IC Pneumatic Forklift Studio 5

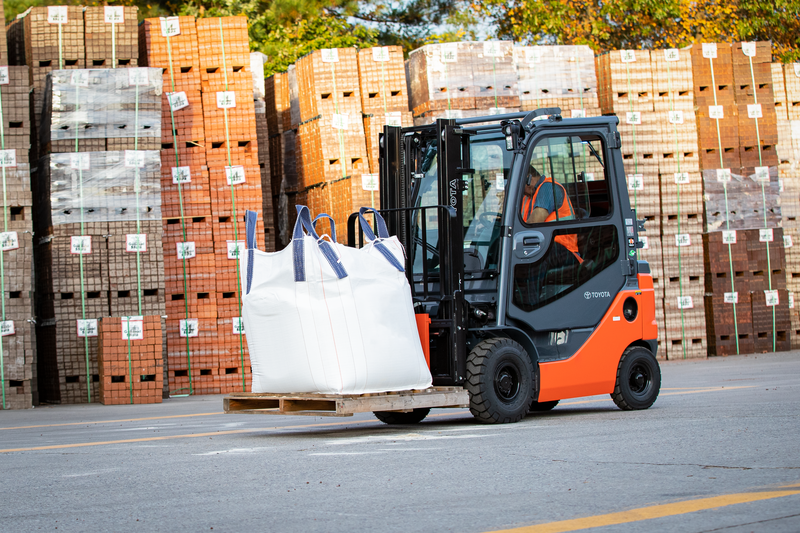

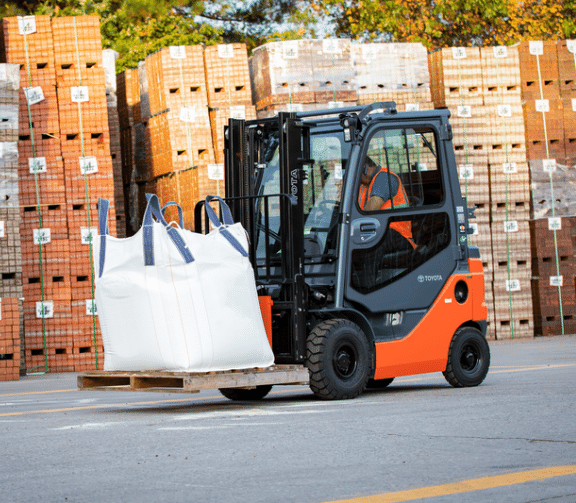

Toyota Core IC Pneumatic Forklift Application 1

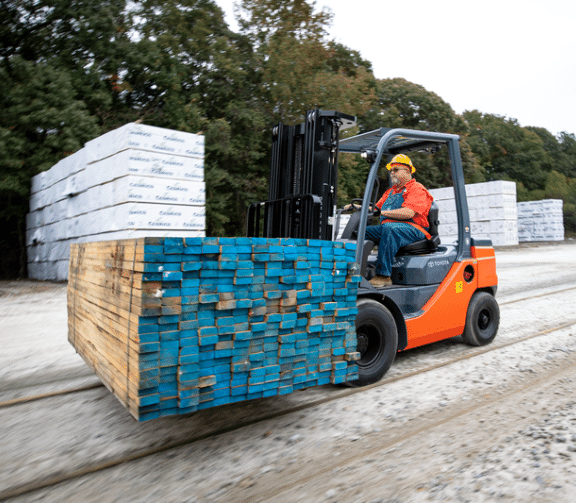

Toyota Core IC Pneumatic Forklift Application 2

Toyota Core IC Pneumatic Forklift

3,000 – 6,500 lb. Capacity
System of Active Stability (SAS)
10.3 – 11.8 mph Travel Speed with Full Load
Industry’s Top-Selling Forklift

Documents

Product Documents

Product Videos

Product Options

Competitive Analysis

Financing Information

Forklift Information

Product Description

Take on the most demanding jobs — tough outdoor applications very much included. With the Toyota Core IC Pneumatic forklift, the stability and power are in your hands. And underfoot, where high-performance pneumatic tires provide a reassuringly strong grip on uneven surfaces and rough terrain. Get ready to get stuff done.

More power for big loads. More durability for heavy, harsh conditions. More grip for rough, uneven surfaces. More material-handling prowess to knock off every item on your outdoor to-do list. Whatever the challenge, the Core IC Pneumatic is up for it.

Model Numbers: 8FGU15 | 8FDU15 | 8FGU18 | 8FDU18 | 8FGU20 | 8FDU20 | 8FGU25 | 8FDU25 | 8FGU30 | 8FDU30 | 8FGU32 | 8FDU32

Equipment Details

Forklift Type	Internal Combustion – Pneumatic Tire
Brand	Toyota
Capacity	3,500 lbs., 3,000 lbs., 4,000 lbs., 5,000 lbs., 6,500 lbs., 6,000 lbs.
Condition	New
Fuel Type	Diesel, LPG

System of Active Stability (SAS) unique to Toyota forklifts, helps prevent tip-overs
Active Mast Control (AMC) responds automatically to enhance stability of loads handled at high lift heights
Forward title angle control and rear tilt speed control act automatically in uncertain situations to protect operator, and reduce product and forklift damage
One-way automatic fork leveling levels forks parallel to the ground from back tilt position with the push of a button
Two-way automatic fork leveling on mini-lever and joystick control options, levels forks from back tilt and forward tilt positions
Control Area Network (CAN-BUS) communication technology for quicker, more reliable control of truck functions with fewer components

Dash-mounted instrument display
11.8”-diameter, two-spoke steering wheel
Load-sensing hydrostatic power steering
Heavy-duty non-slip rubber floor mat
12”-long dual operator assist grips
Cowl-mounted hydraulic control levers with rubber boot covers
Low, wide entry steps
Low-profile front cowl
Non-cinching seatbelt
Dash-integrated amenity tray & oversized cup holder
Vinyl 4-way adjustable full-suspension seat
Slim profile, tilt steering column

EPA/CARB-certified engine
Toyota 4-cylinder, 2.2 liter, OHV gasoline engine (4Y-ECS)
Toyota 3-cylinder, 1.8 liter, Tier 4 Final diesel engine (1ZS)
Electronic fuel injection (gasoline only)
UL “G” gasoline engine
UL “D” diesel engine
One-way automatic fork leveling
Independent brake & inching pedals
Integrated monitoring system – includes:
- Digital hour meter display
- Engine coolant temperature gauge
- Fuel gauge (gasoline only)
- Check engine light
- Sedimentor warning light (diesel only)
- Glow indicator light (diesel only)
- Engine oil pressure warning light
- Battery charge warning light
- OPSS activation light
- SAS/OPSS warning light
Limited free-lift 2-stage mast (V)
Adjustable headlights with guards
Foot-activated parking brake
Alternator with built-in regulator
Transistorized ignition assembly
Automatic transmission with oil cooler
Full-floating powertrain
Hydraulic valve lifters
Integrated headlight & turn signal lever
Electric shift control
Speed control (technician programmable)

Easy-access no tools required floorboard
Engine hood assist damper with lock device
Air cleaner discharge valve
Externally mounted hydraulic oil return filter
Dash-mounted brake fluid level check
Easy-lift engine hood with wide 75° opening

Operator Presence Sensing System (OPSS)
Bolt-on overhead guard
Key lowering interlock
Electric horn
Neutral start safety switch
Asbestos-free components

Fully stamped steel side panels
Moisture-resistant electric connectors
High cooling capacity radiator with fan shroud
Tilt cylinder boots
Low-maintenance battery
Large-capacity engine-cooling fan
7” cyclone air cleaner with high positioned external air intake
Plate-iron front fenders
Anti-restart ignition key switch
Stamped steel engine hood
Fully sealed air intake system
Self-adjusting brakes

General Manufacturing
Brick, Block, & Pipe
General Warehousing
Lumber
Retail
Distribution
Paper
