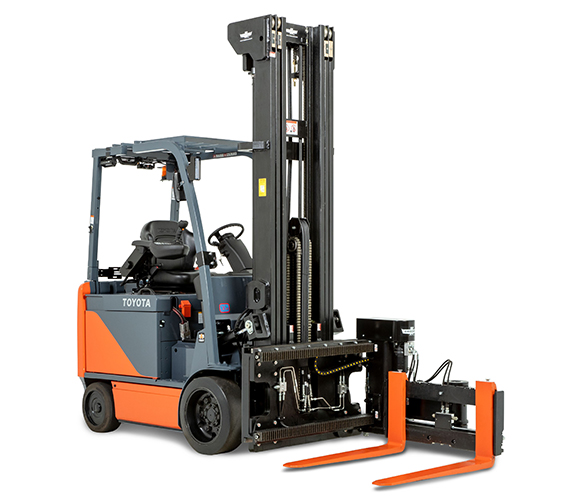

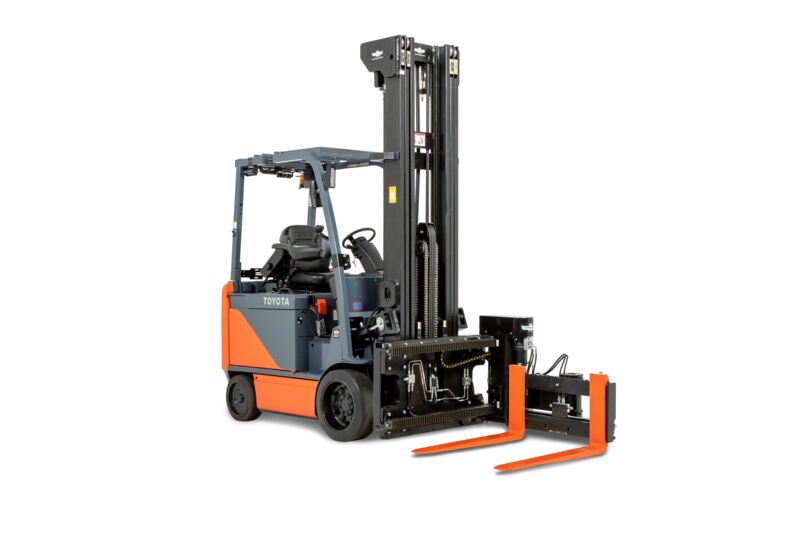

Core Electric_Turret Truck Model_Studio_2

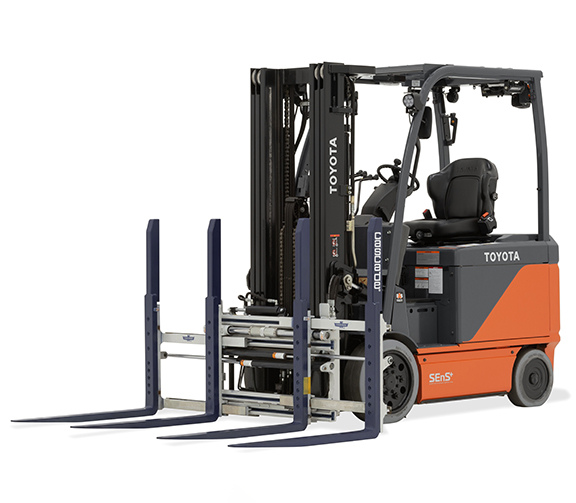

Core Electric_8FBC25U_Cascade Attachment_Forks Deployed_Studio_2

Toyota Core Electric Forklift Application 1

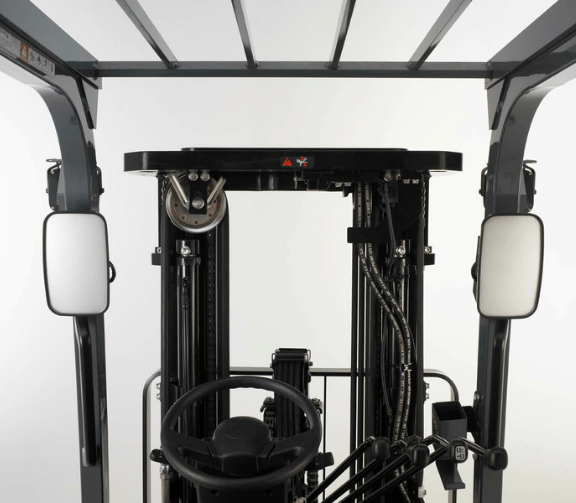

Toyota Core Electric Forklift Application 2

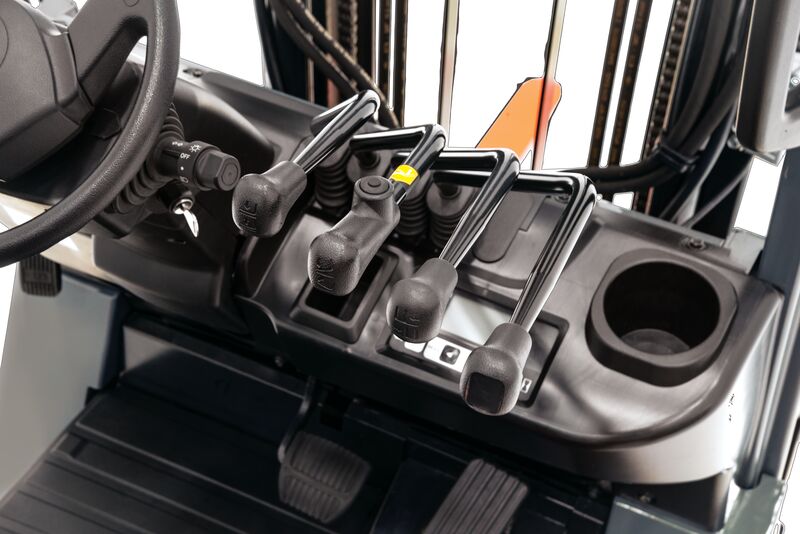

Core Electric Forklift_8FBC15U_Close-Up_11

Core Electric Forklift_8FBC15U_Close-Up_14

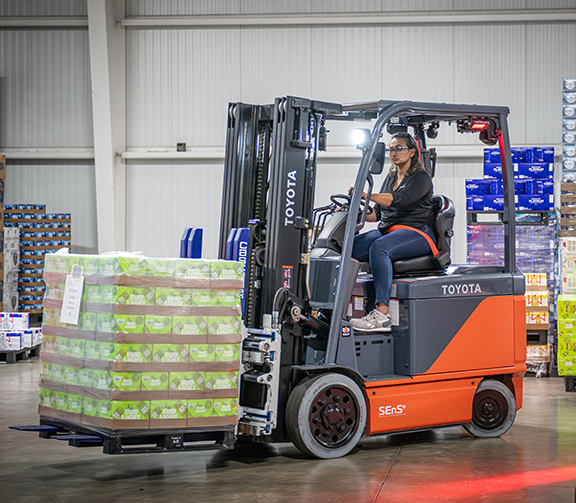

Core Electric_8FBC25U_Beverage_Application_1

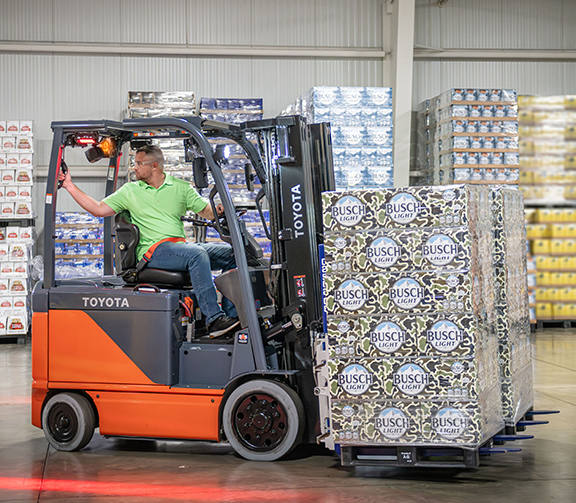

Core Electric_8FBC25U_Beverage_Application_4

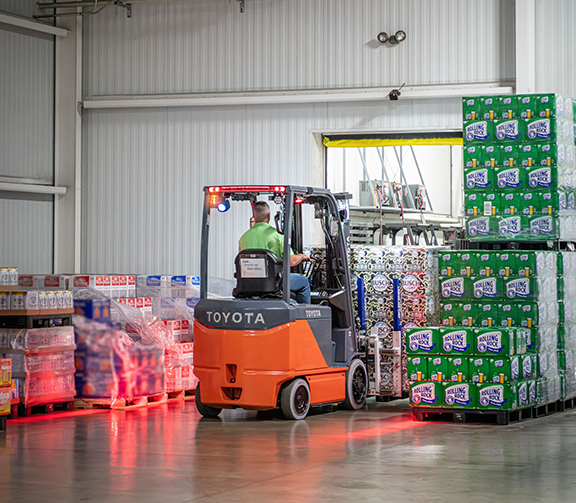

Core Electric_8FBC25U_Beverage_Application_5

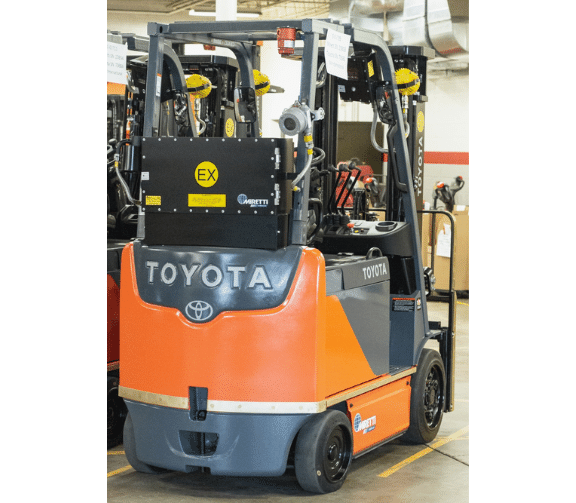

Toyota Core Electric Forklift Application 7

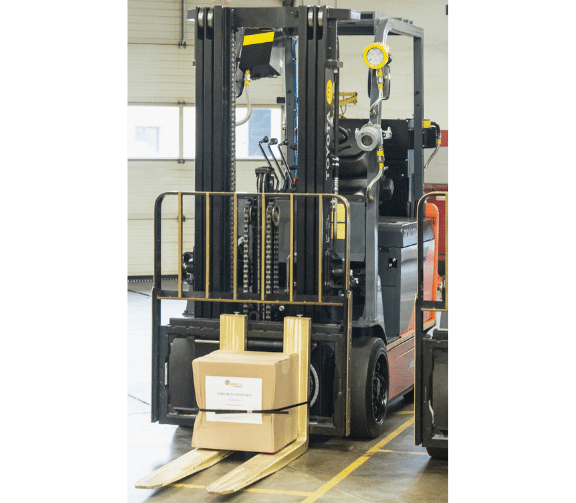

Toyota Core Electric Forklift Application 8

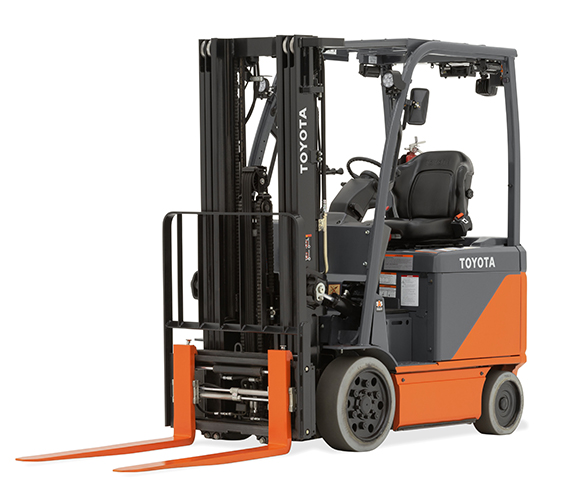

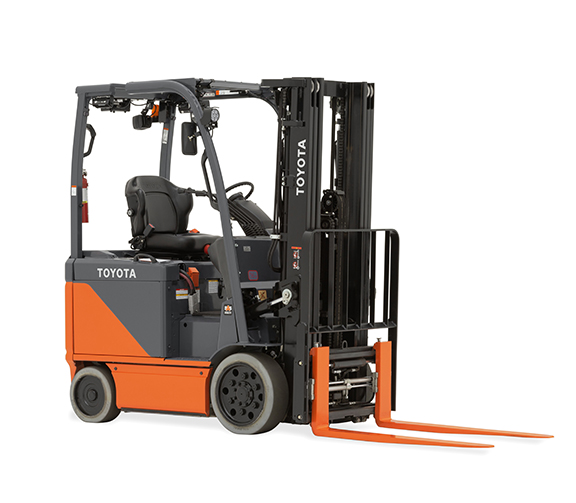

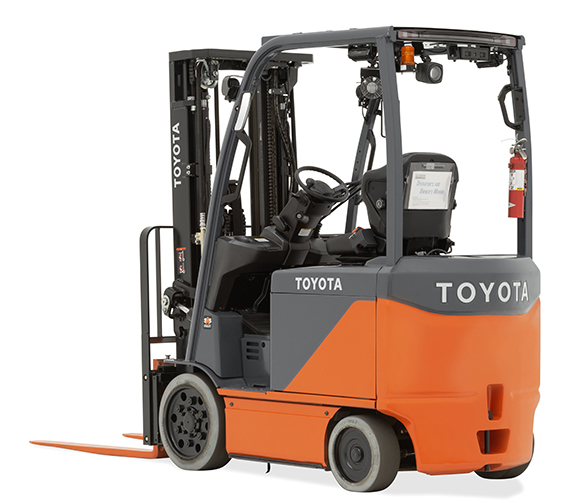

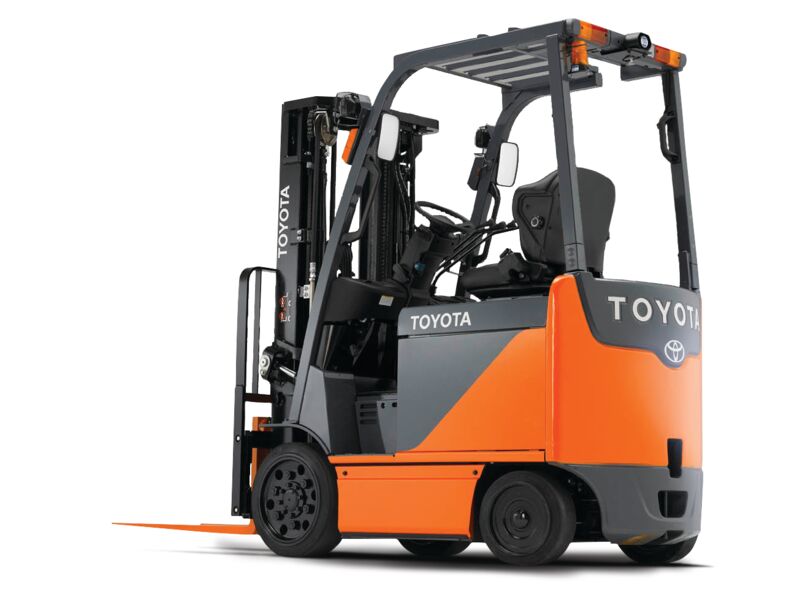

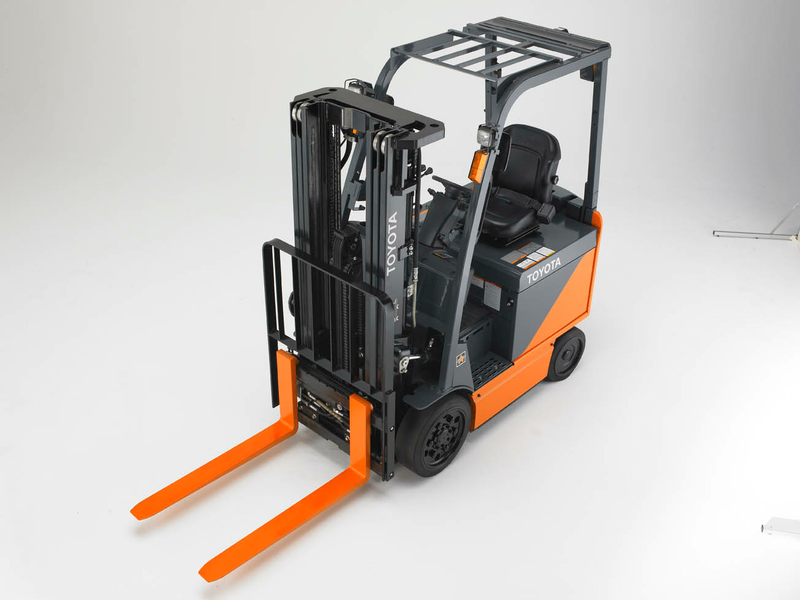

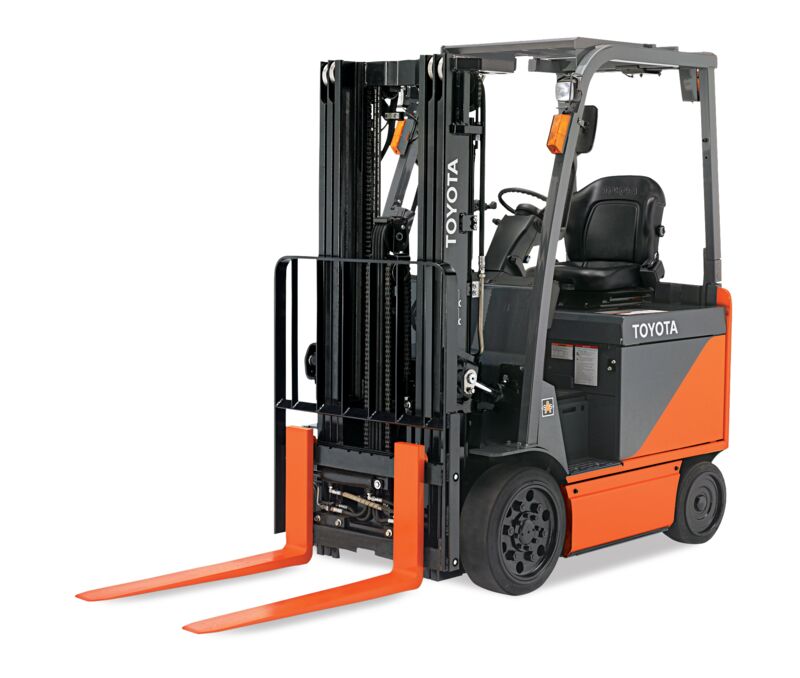

Toyota Core Electric Forklift

3,000 – 6,500 lb. Capacity
AC Drive and Pump Motors
No-Tools-Required Floorboard
On-Demand Power Steering
System of Active Stability (SAS)

Documents

Product Documents

Product Video

Product Options

Competitive Analysis

Financing Information

Forklift Information

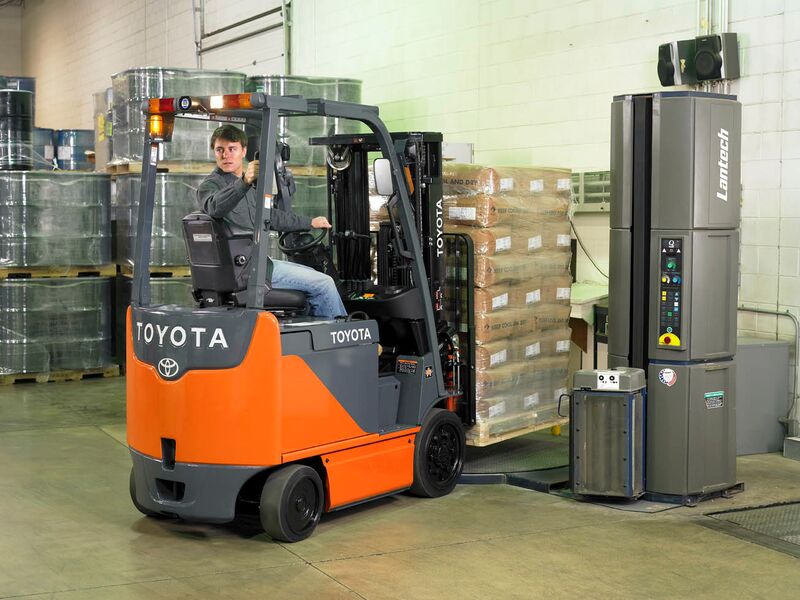

It’s big on small space productivity. Carrying up to 6500 pounds. Lifting as high as 23 feet. Unloading more pallets at once in confined aisles. Clean, quiet AC power reduces emission worries, making the Core Electric a top choice for sensitive food and beverage applications, plus many other inside jobs. When the going gets tight, it gets going.

Clean AC power. It’s quietly efficient and environmentally friendly. Plus it gives you access to applications often unsuitable for IC forklifts. And with up to 21 percent faster travel speeds, up to 85 feet per minute lift speed and three forms of energy regeneration — including regenerative brakes — you won’t have to pay a performance penalty for that access.

Equipment Details

Forklift Type	Electric Motor Riders
Brand	Toyota
Condition	New
Capacity	3,500 lbs., 3,000 lbs., 4,000 lbs., 5,000 lbs., 5,500 lbs., 6,500 lbs., 6,000 lbs.
Fuel Type	Electric/Battery, 36 Volt, Electric/Battery, 48 Volt

System of Active Stability (SAS), unique to Toyota forklifts, helps prevent tip-overs
Active Mast Control (AMC) responds automatically to enhance stability of loads handled at high lift heights
Forward title angle control and rear tilt speed control act automatically in uncertain situations to protect operator, and reduce product and forklift damage
One-way automatic fork leveling levels forks parallel to the ground from back tilt position with the push of a button
Two-way automatic fork leveling on mini-lever and joystick control options, levels forks from back tilt and forward tilt positions
Regenerative braking improves overall efficiency and prolongs brake component life
Programmable performance parameters are customizable via digital display to fit a variety of job applications and operator skill levels
Redesigned Powertrain with enhanced performance and increased run times
MyInsights Telematics comes with every 4-wheel truck to enable the truck to utilize this powerful tool
Synchronized Steering allows for the steering wheel and tires to always be in sync
Automatic Parking Brake applies once the truck comes to a complete stop and the operator leaves the seat
4.3” Color Multi-Function Display with load meter, selectable indoor and outdoor back lighting, and enhanced features for easier readability
Premium Full Suspension Seat with orange seat belt is now standard, providing the best comfort in the industry
LED Front Headlights projector type matching the 8FBE and 8FGU models

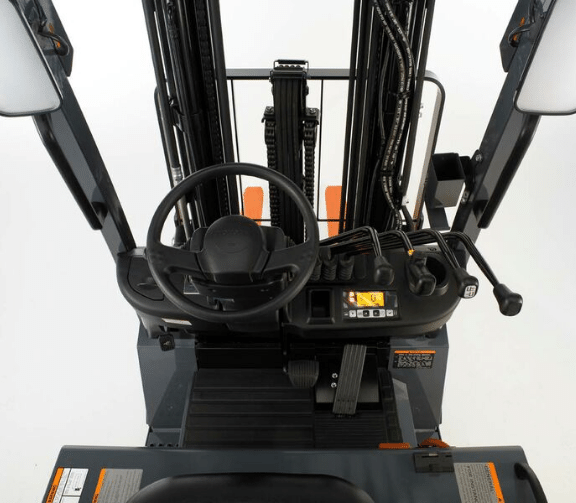

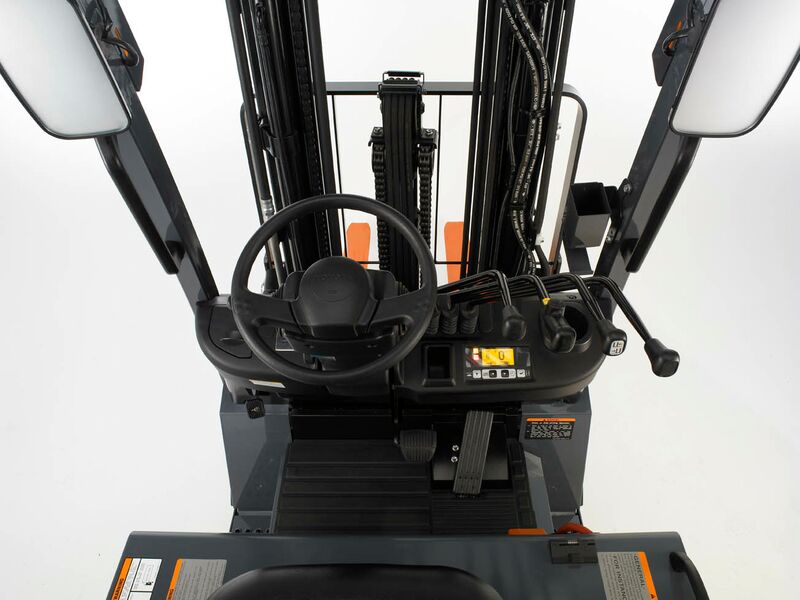

Strategically configured instrument display
Hydrostatic (On Demand) power steering
Dual operator assist grips
SAS automatic fork-leveling control
Electric directional shift control
Memory-tilt steering column
11.8”-diameter two-spoke steering wheel

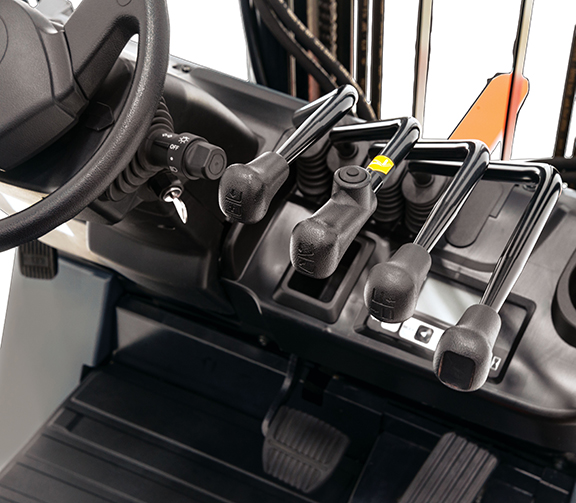

Cowl-mounted hydraulic controls
Heavy-duty non-slip floor mat
Dash-integrated pen/pencil holder
Hood-integrated clipboard
Dash-mounted cup holder
Premium Full Suspension Seat

AC drive system (MOSFET Transistor)
AC hydraulic lift system (MOSFET Transistor)
UL-approved model type “E”
Three forms of energy regeneration

– Coast control
– Plug braking
– Foot braking

Digital (LCV) multifunction display

– Time & date
– Speedometer
– Multifunction hour meter
– Battery capacity indicator
– Overdischarge warning light (lift interrupt)
– Low-speed-setting switch
– Direction indicator
– Mast tilt indicator
– Maximum speed limiter
– Built-in analyzer
– Self-diagnostics
– Power select function (S.P.H.)
– 3-way hydraulic control valve
– Auto shut-off (programmable after 15 minutes)
– Travel power control

SEnS+ Smart Environment Sensor Plus (K81A)
Slope Assist (E09D)
USB Charger (L45A)
Toyota-branded Lithium-ion Battery (D02B)

AC drive motor (no brushes or commutator)
AC hydraulic motor (no brushes or commutator)
Easy-access hydraulic motor
Bolt-on overhead guard

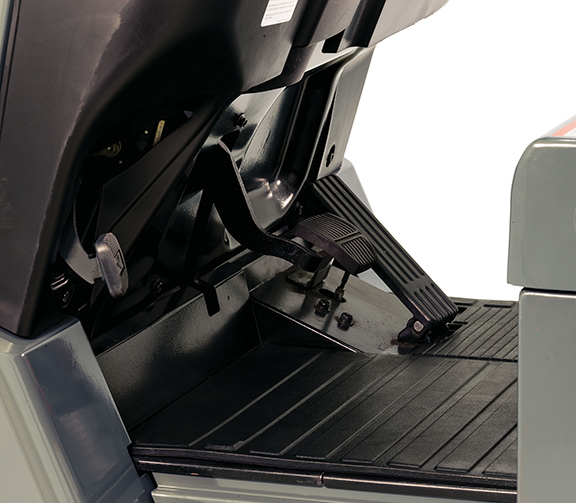

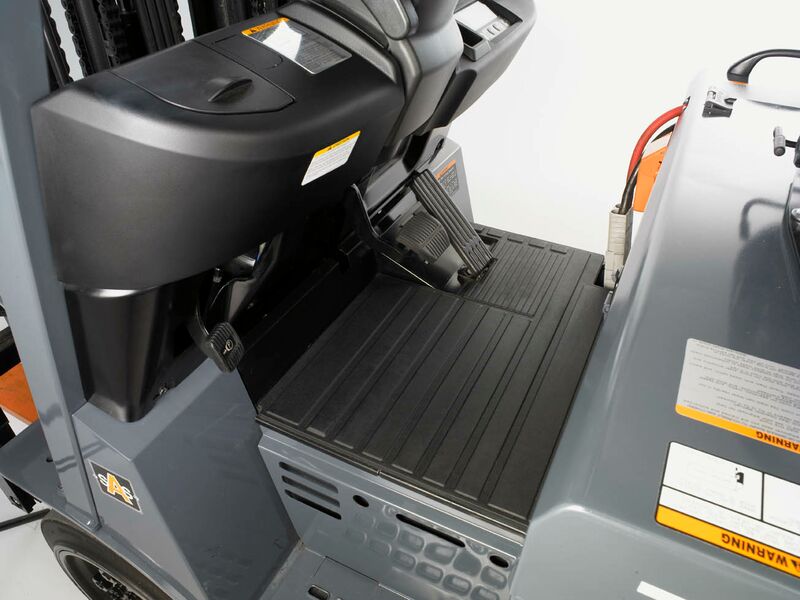

Easy-access no tools required floorboard
Battery compartment hood assist dampers
Planned maintenance indicator
Easy-access controller
CAN-bus controller wiring

System of Active Stability (SAS)
Operator Presence Sensing System (OPSS)
Key lowering interlock
Asbestos-free brakes
Double-action, foot-activated parking brake
Electric horn
Manual return to neutral

Wide-view 2 stage mast (V)
Punched plate entry/exit step
48” load backrest extension with angled tie bar

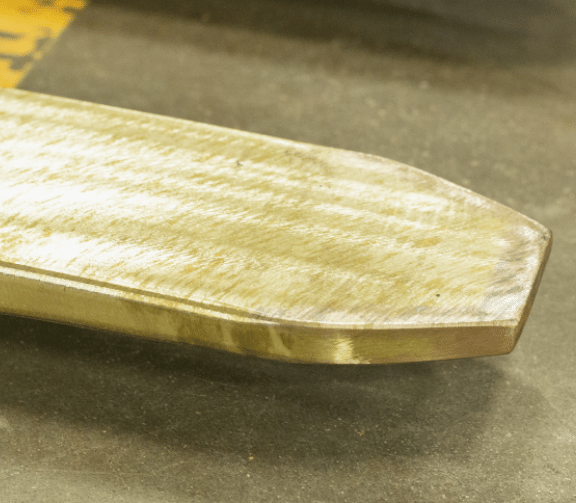

Tapered forks
Smooth or treaded cushion tires
Wide-view carriage bars
Drawbar pin
Tie-down hooks
Adjustable front headlights
ORS vinyl non-suspension seat
ORS 4-way adjustable full-suspension seat
Retractable seatbelt
85° wide-opening battery hood
Overhead guard
SB 350 battery connector (gray)
26.8” battery compartment (3,000-3,500 lbs)
27.4” battery compartment (4,000-5,500 lbs)
30.5” battery compartment (4,000-5,500 lbs)
34.3” battery compartment (6,000-6,500 lbs)
