You are here: Home / Equipment / Aerial Lifts / Snorkel SR9244 Rough Terrain Telehandler

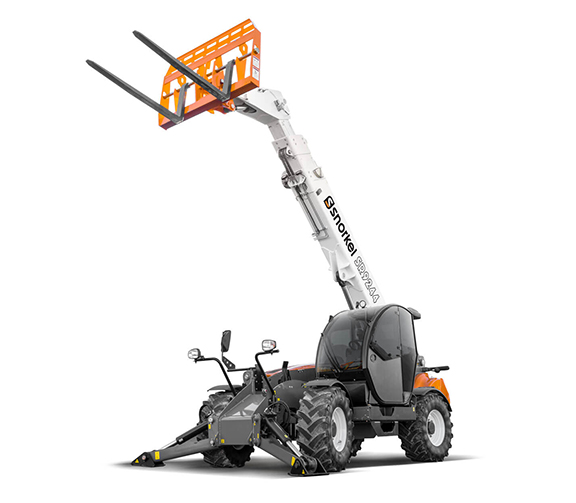

SR9244 Studio
Snorkel SR9244 Rough Terrain Telehandler - Image 2

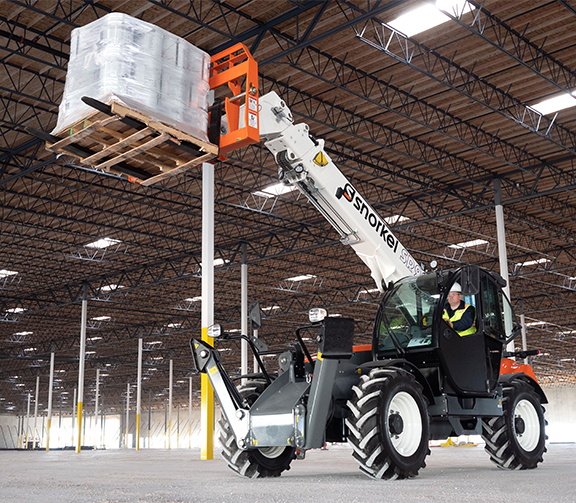

Snorkel SR9244 - Application 3

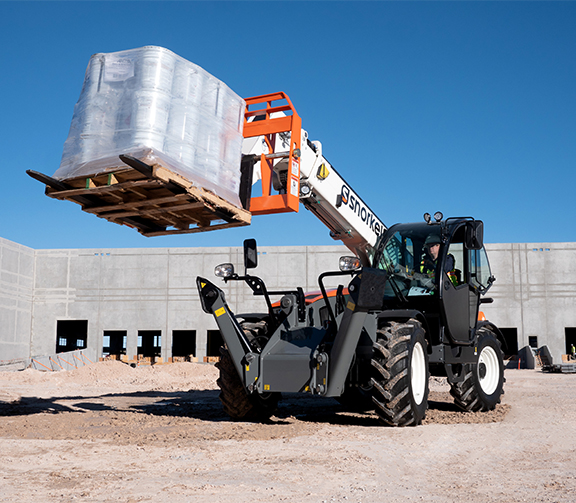

Snorkel SR9244 - Application 2

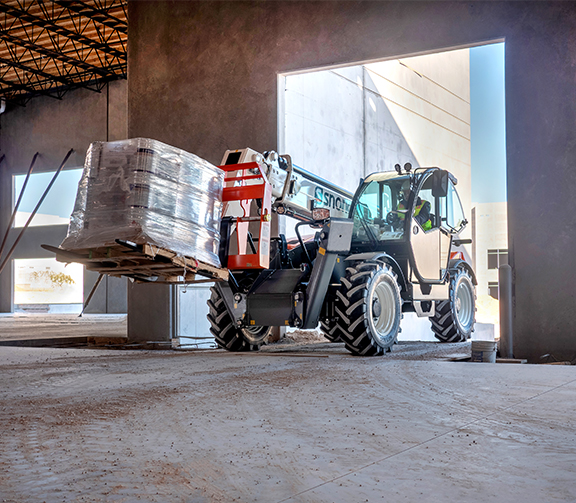

Snorkel SR9244 - Application

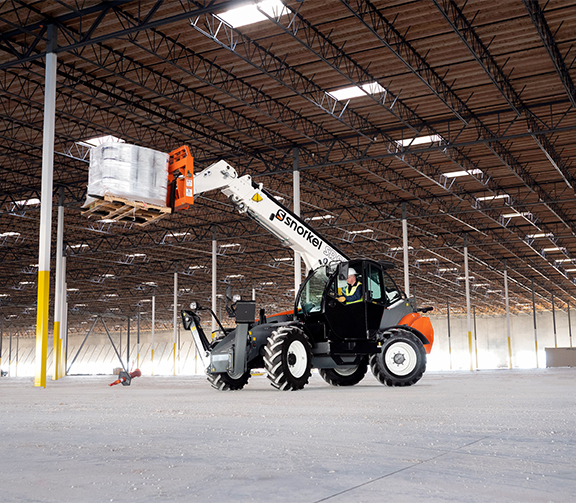

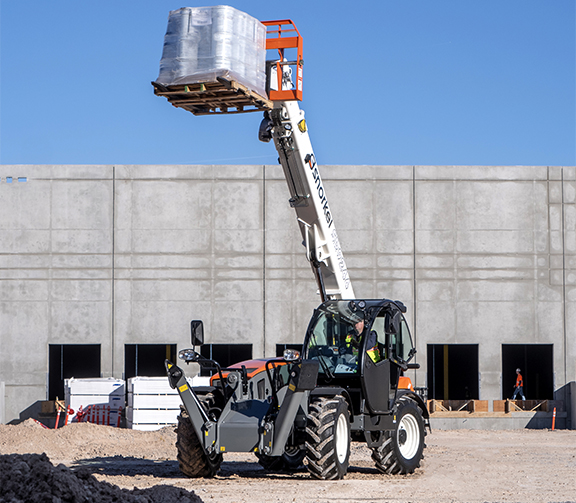

Snorkel SR9244 Application 5
Snorkel SR9244 Rough Terrain Telehandler - Image 7

Snorkel SR9244 Rough Terrain Telehandler

  • 44 ft. 5 in. Lift Height
  • 9,260 lbs. Lift Capacity
  • 31 ft 2 in. Forward Reach
  • 24,581 lbs. Machine Weight
Request a Quote

Documents

Product Documents

The Snorkel SR9244 rough terrain telehandler is built for powerful performance and durability on demanding job sites. Equipped with robust 4-wheel drive, crab steering, and standard outriggers, it offers exceptional stability and maneuverability in rough terrain. Rugged and reliable, the SR9244/SR1442 is the perfect solution for heavy-duty construction applications, delivering strength, precision, and efficiency where it’s needed most.

Model Number: SR9244

Additional Information

Brand

Snorkel
Condition

New
Power

Engine
Working Height

40 – 49 ft.
MEWP Type

Telehandler
  • Full-time 4-wheel drive for superior traction on rough terrain
  • Power-assisted steering for easy maneuverability
  • Proportional joystick controls for precise operation
  • Simple to operate and maintain for increased efficiency
  • Full-time 4-wheel drive
  • Power-assisted steering
  • Proportional joystick controls
  • Backup alarm for job site safety
  • Axle-mounted outriggers for increased stability
  • PEB electrical boom socket for easy attachment integration
  • Constant front hydraulic flow
  • USA block heater plug for cold weather operation
  • B-class carriage adapter
  • Hydraulic attachment quick disconnect for fast tool changes
  • LED work lights (2) for improved visibility
  • Amber beacon for safety awareness
  • 2-year parts & labor, 5-year structural warranty
  • ANSI compliant for workplace safety
  • Power source: Deutz TCD 3.6L Tier 4 Final diesel engine (100 hp)
  • Special paint colors
  • Multiple carriage, tire, and fork tine options
  • Additional attachment choices for customized applications
  • Proportional joystick controls for smooth and precise handling
  • Power-assisted steering for operator ease
  • Comfortable operator environment with accessible controls
  • Backup alarm for increased job site awareness
  • Axle-mounted outriggers for stability on uneven surfaces
  • LED work lights and amber beacon for improved visibility
  • ANSI compliant for safe operation
  • Max lift capacity: 9,260 lbs
  • Max lift height: 44 ft 4 in
  • Max forward reach: 31 ft 2 in
  • Max drive speed: 18 mph
  • Raise/lower time: 13/9.5 sec
  • Frame leveling capability: 11°
  • Hydraulic flow: 32 gal per minute
  • Hydraulic pressure: 3,336 psi
  • Fuel capacity: 31.7 gal
  • Hydraulic oil capacity: 39.5 gal
  • Outside turning radius: 13 ft 8 in
  • Tires: 405/70-24
  • Hydraulic attachment quick disconnect for faster servicing
  • Block heater plug for cold weather reliability
  • Durable construction to minimize maintenance requirements
  • Construction
  • Material handling
  • Warehousing
  • Infrastructure development
