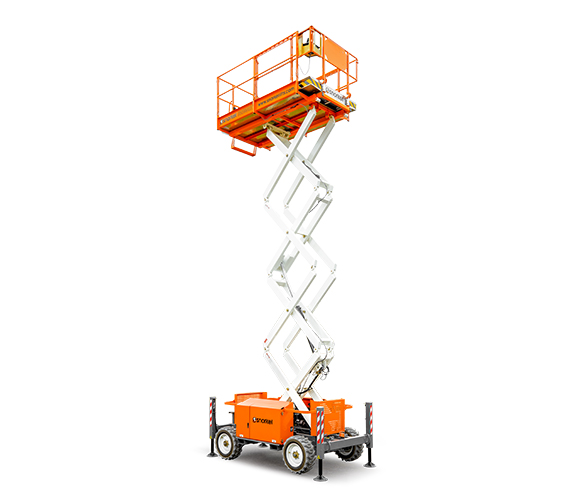

S2755RT - Studio

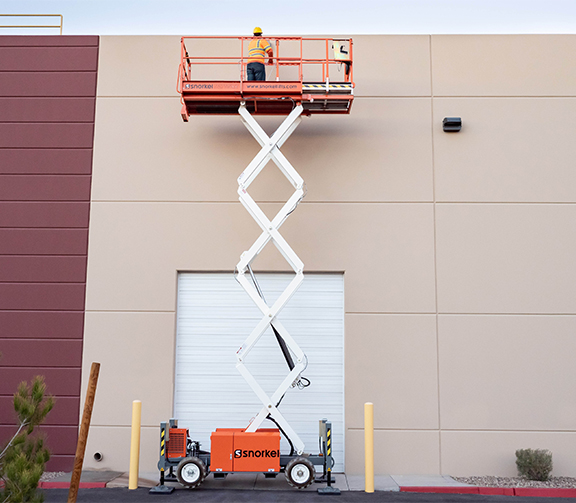

Snorkel S2755RT

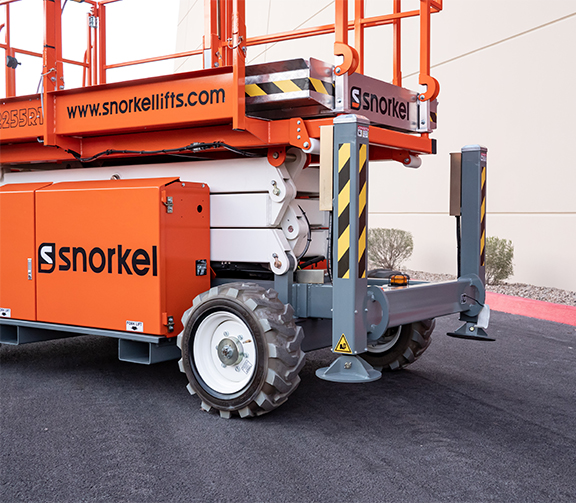

Narrow width (2)

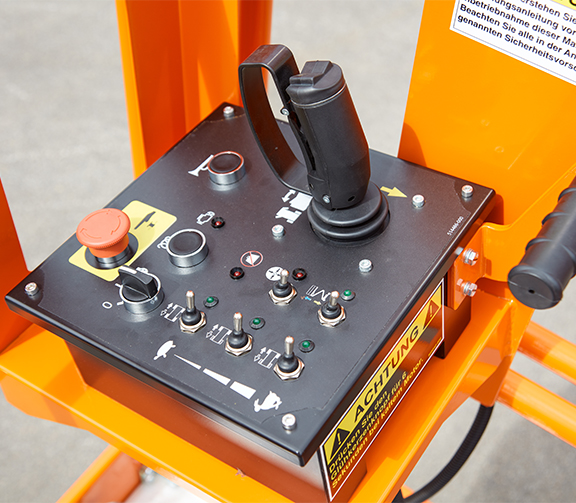

Upper controls (1)

Snorkel S2755RT IC Scissor Lift

  • 27 ft. 1 in. Platform Height
  • 660 lbs. Capacity
  • 4 ft 7 in. x 8 ft 9 in. Platform size (stowed)
  • 4 ft 7 in. x 12 ft 8 in. Platform size (extended)
  • 6,062 lbs. Machine Weight
Request a Quote

Documents

Product Documents

The Snorkel S2755RT narrow rough terrain scissor lift is engineered for exceptional performance in confined outdoor spaces. Powered by a reliable diesel engine, it navigates rough terrain with ease, ensuring productivity in challenging environments. Standard hydraulic outriggers provide automatic leveling on uneven ground for added stability. Its ultra-compact dimensions and lightweight design allow for easy towing by a car or commercial vehicle, making the S2755RT a highly portable and efficient solution for various job sites.

Model Number: S2755RT

Additional Information

Brand

Snorkel
Condition

New
Power

Engine
Working Height

30 – 39 ft.
MEWP Type

Scissor Lift
  • Compact and narrow design for working in confined spaces
  • Excellent rough terrain performance with 4-wheel drive
  • Easy to operate with proportional controls
  • Roll-out deck extension for increased reach
  • Ideal for outdoor applications in challenging environments
  • 4-wheel drive for superior traction
  • 4 hydraulic stabilizers with automatic leveling
  • Roll-out deck extension for additional workspace
  • Proportional joystick controls for smooth operation
  • Non-marking foam-filled tires for various terrains
  • Power line to platform for easy access to power tools
  • Drive motion alarm for increased job site awareness
  • Descent alarm for safety during lowering
  • Oscillating axle for enhanced stability on uneven ground
  • Manual lowering valve for emergency descent
  • Flashing amber light for better visibility
  • Dual lanyard attachment points for fall protection
  • Hour meter for usage tracking and maintenance
  • 2-year parts & labor, 5-year structural warranty
  • ANSI compliant for safe operation
  • Special paint colors
  • Nylon spreader pads (set of 4) for added stability
  • Environmental hydraulic oil
  • Cold weather package (block heater & battery warm-up) for extreme conditions
  • Proportional joystick controls for intuitive and precise handling
  • Roll-out deck extension for expanded workspace
  • Compact and narrow footprint for improved maneuverability
  • Drive motion and descent alarms for increased safety
  • Dual lanyard attachment points for operator fall protection
  • Oscillating axle for better stability on rough terrain
  • ANSI compliant design for secure operation
  • Max working height: 33 ft 2 in
  • Max platform height: 27 ft 2 in
  • Platform size (stowed): 4 ft 9 in x 8 ft 9 in
  • Platform size (extended): 4 ft 9 in x 12 ft 8 in
  • Platform capacity: 925 lbs
  • Max drive height: 20 ft 4 in
  • Max wind speed: 28 mph
  • Max drive speed (stowed): 3.2 mph
  • Max drive speed (elevated): 0.4 mph
  • Raise/lower time: 26/30 seconds
  • Gradeability: 35%
  • Max stabilizer leveling (front to rear): 6°
  • Max stabilizer leveling (side to side): 10°
  • Inside turning radius: 8 ft 2 in
  • Outside turning radius: 15 ft 7 in
  • Entry/exit angle: 20°
  • Manual lowering valve for emergency operation
  • Hour meter for maintenance tracking
  • Durable components reduce service requirements
  • Construction
  • Facilities maintenance
  • Warehousing
  • Utilities
