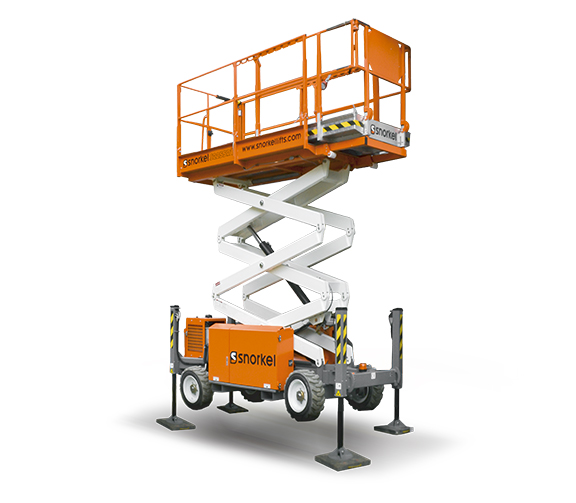

S2255RT - Studio

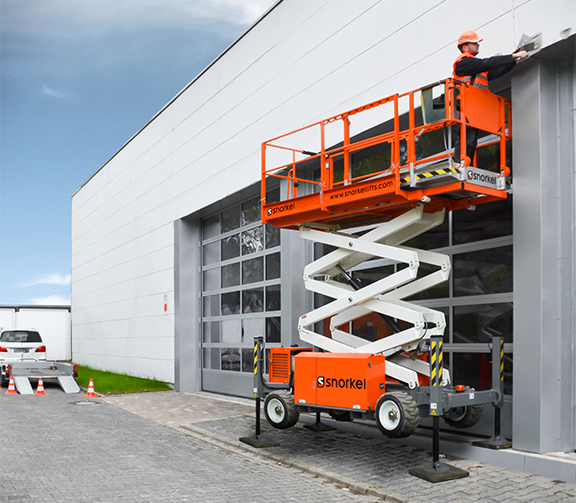

Snorkel S2255RT Application 2

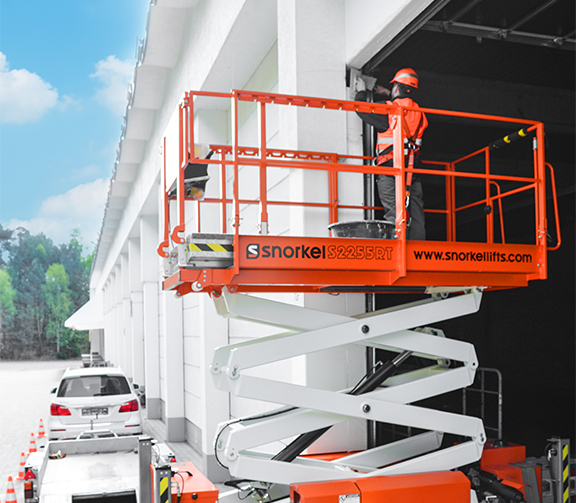

Snorkel S2255RT Application 4

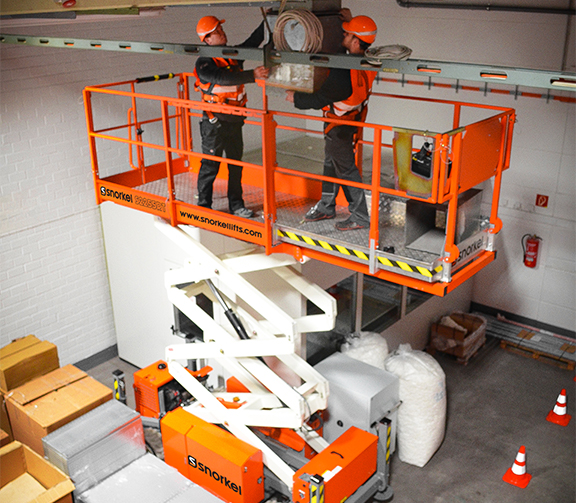

Snorkel S2255RT Application 3

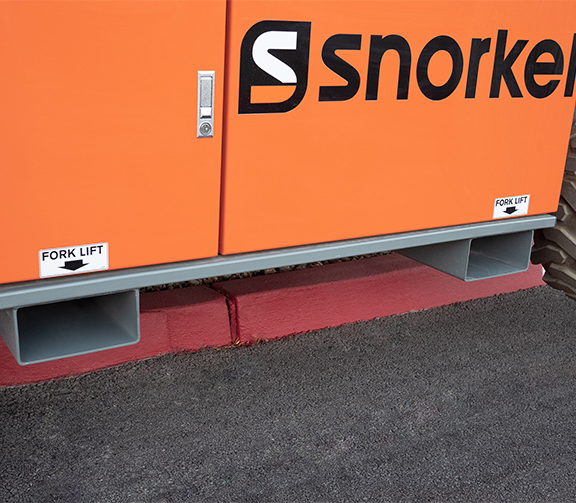

Forklift pockets

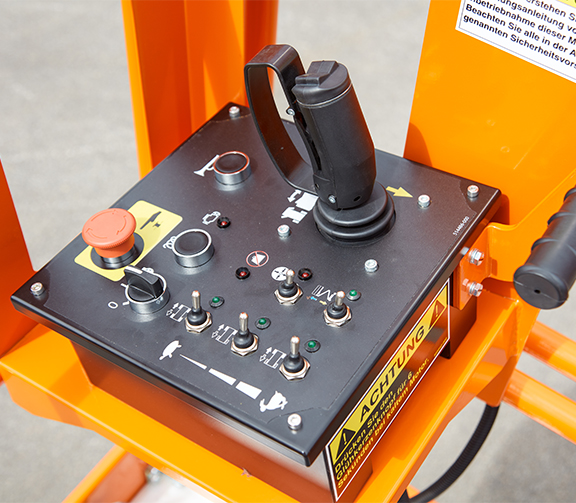

Upper controls (1)

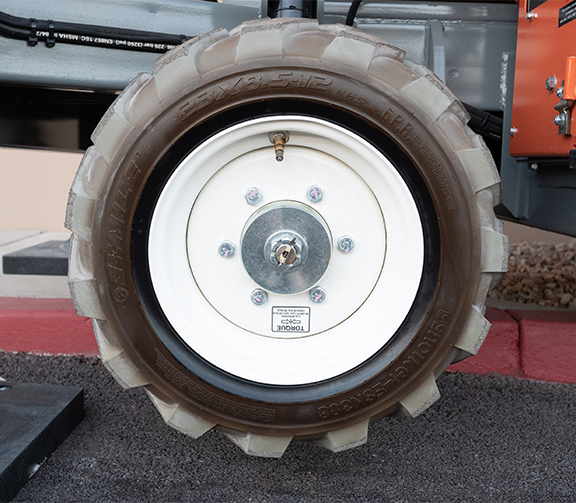

Non-marking tires

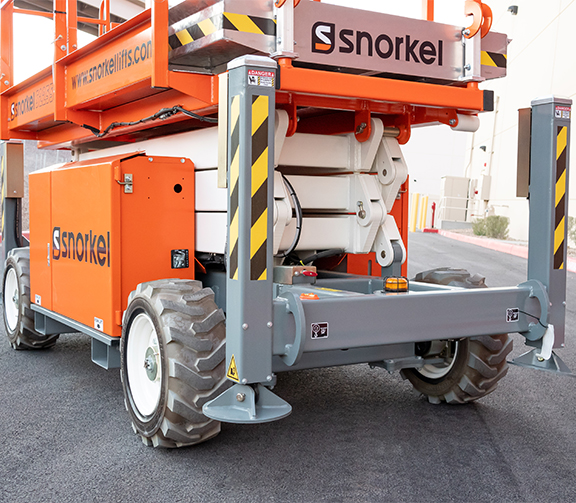

Narrow width

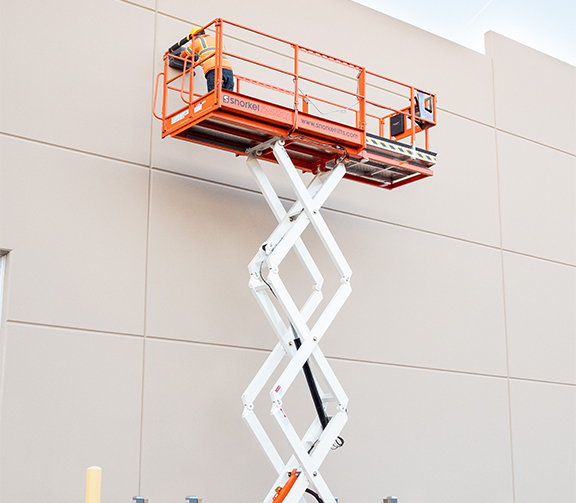

Snorkel S2255RT Application 1

Snorkel S2255RT IC Scissor Lift

  • 21 ft. 10 in. Platform Height
  • 925 lbs. Capacity
  • 4 ft 7 in. x 8 ft 9 in. Platform size (stowed)
  • 4 ft 7 in. x 12 ft 8 in. Platform size (extended)
  • 5,313 lbs. Machine Weight
Request a Quote

Documents

Product Documents

The Snorkel S2255RT narrow rough terrain scissor lift delivers outstanding off-road performance with a powerful diesel engine. Its ultra-narrow width and lightweight design allow for easy transport on a tandem trailer, making it highly portable and efficient for a variety of job sites. Built for versatility, the S2255RT provides reliable access in challenging terrain while maintaining easy maneuverability in confined spaces.

Model Number: S2255RT

Additional Information

Brand

Snorkel
Condition

New
Power

Engine
Working Height

20 – 29 ft.
MEWP Type

Scissor Lift
  • Compact and narrow design for operation in confined spaces
  • Excellent rough terrain performance with 4-wheel drive
  • Easy to operate with proportional controls
  • Roll-out deck extension for increased reach
  • Ideal for outdoor work in challenging environments
  • 4-wheel drive for superior traction
  • 4 hydraulic stabilizers with automatic leveling
  • Roll-out deck extension for added workspace
  • Proportional joystick controls for smooth operation
  • Non-marking foam-filled tires for versatile terrain handling
  • Power line to platform for convenient access to power tools
  • Drive motion alarm for enhanced job site awareness
  • Descent alarm for safety during lowering
  • Oscillating axle for stability on uneven surfaces
  • Manual lowering valve for emergency descent
  • Flashing amber light for increased visibility
  • Dual lanyard attachment points for fall protection
  • Hour meter for tracking usage and maintenance
  • 2-year parts & labor, 5-year structural warranty
  • ANSI compliant for secure operation
  • Special paint colors for branding or job site requirements
  • Nylon spreader pads (set of 4) for enhanced stability
  • Environmental hydraulic oil for eco-friendly operations
  • Cold weather package (block heater & battery warm-up) for extreme environments
  • Proportional joystick controls for precise and intuitive handling
  • Roll-out deck extension for increased platform space
  • Compact and narrow footprint for working in tight areas
  • Drive motion and descent alarms for job site safety
  • Dual lanyard attachment points for operator fall protection
  • Oscillating axle for improved stability on uneven ground
  • ANSI compliant design for secure operation
  • Max working height: 27 ft 10 in
  • Max platform height: 21 ft 10 in
  • Platform size (stowed): 4 ft 7 in x 8 ft 9 in
  • Platform size (extended): 4 ft 7 in x 12 ft 8 in
  • Platform capacity: 925 lbs
  • Max drive height: 20 ft 4 in
  • Max wind speed: 28 mph
  • Max drive speed (stowed): 3.2 mph
  • Max drive speed (elevated): 0.4 mph
  • Raise/lower time: 26/30 seconds
  • Gradeability: 35%
  • Max stabilizer leveling (front to rear): 6°
  • Max stabilizer leveling (side to side): 10°
  • Inside turning radius: 8 ft 2 in
  • Outside turning radius: 15 ft 7 in
  • Entry/exit angle: 20°
  • Manual lowering valve for emergency operation
  • Hour meter for easy maintenance tracking
  • Durable components reduce service requirements
  • Construction
  • Facilities maintenance
  • Warehousing
  • Utilities
