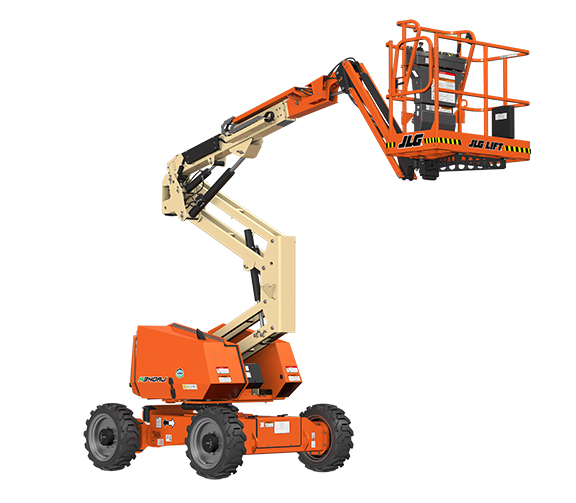

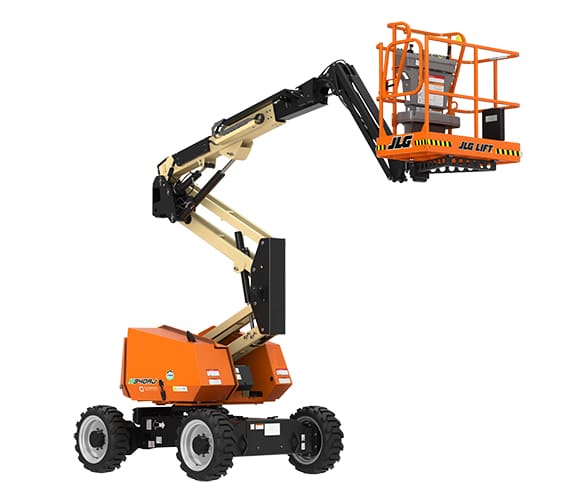

H340AJ Extended Front RF New

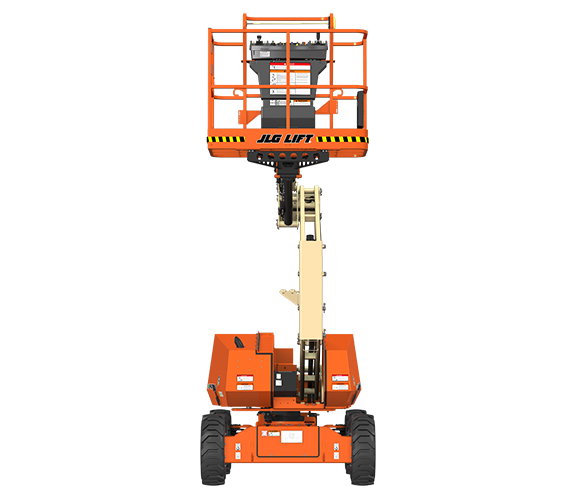

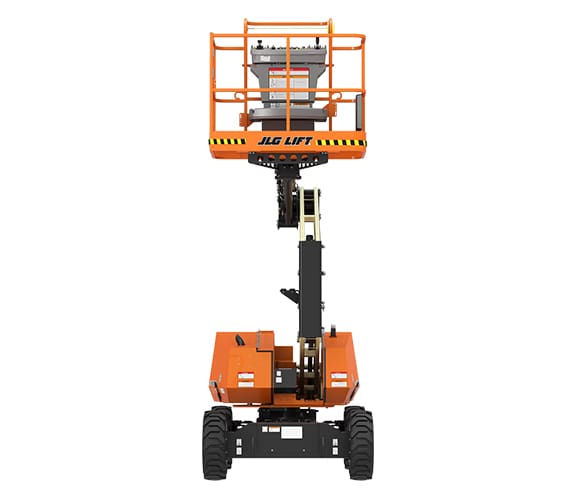

H340AJ Extended Front New

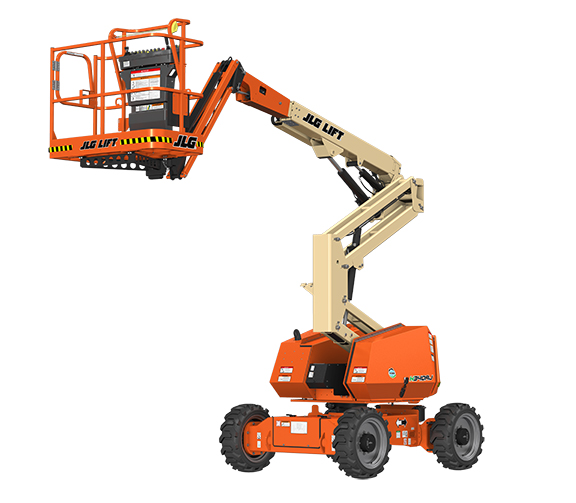

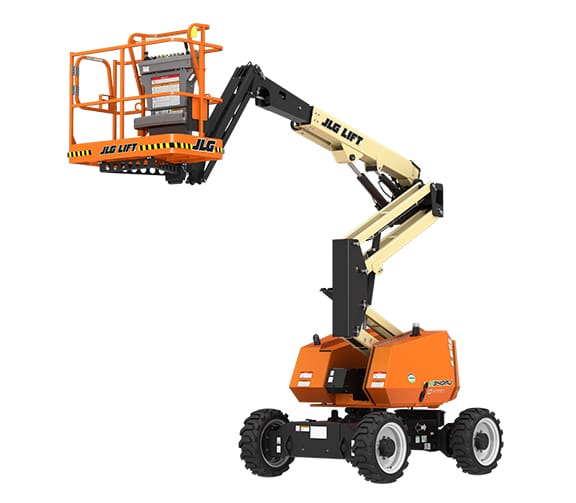

H340AJ Extended Front LF New

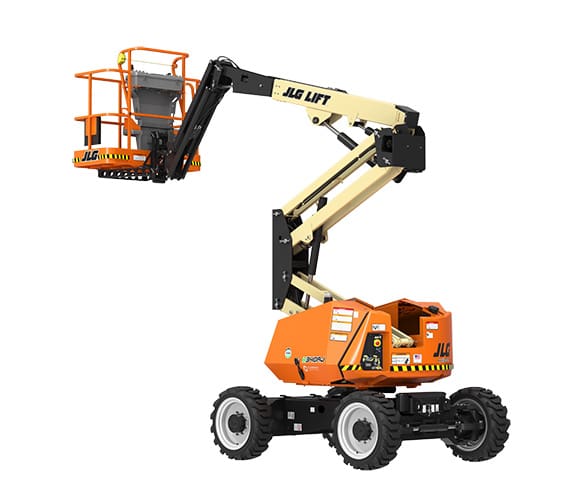

H340AJ Extended Rear LF New

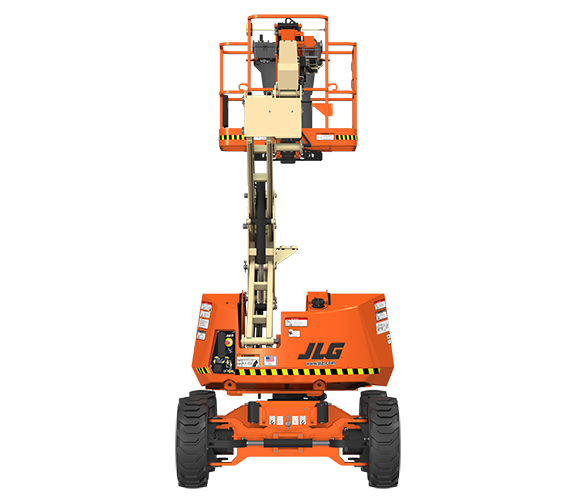

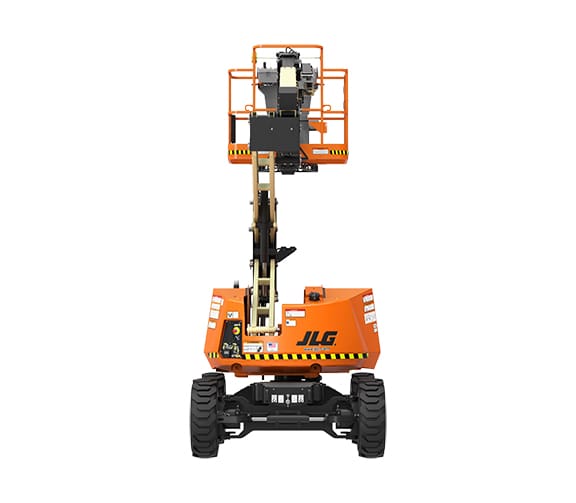

H340AJ Extended Rear New

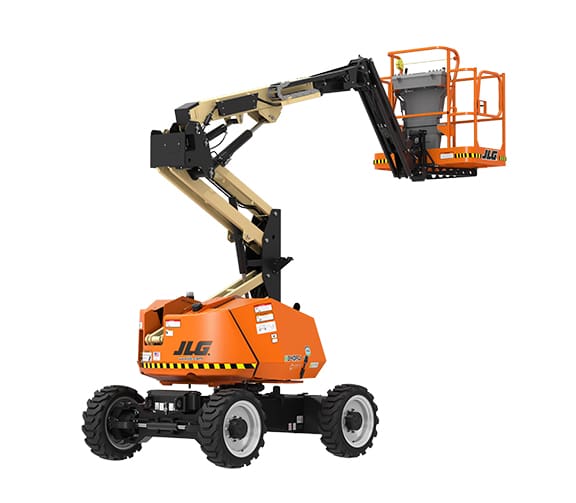

H340AJ Extended Rear RF New

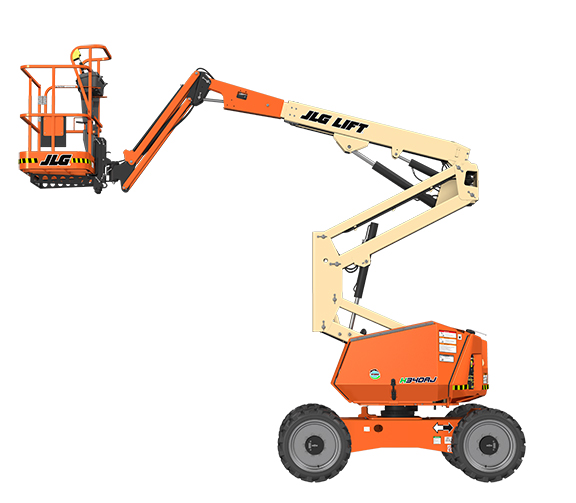

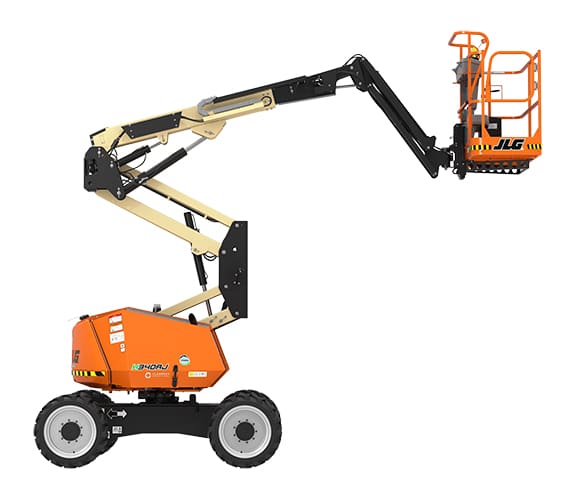

H340AJ Extended Side LF New

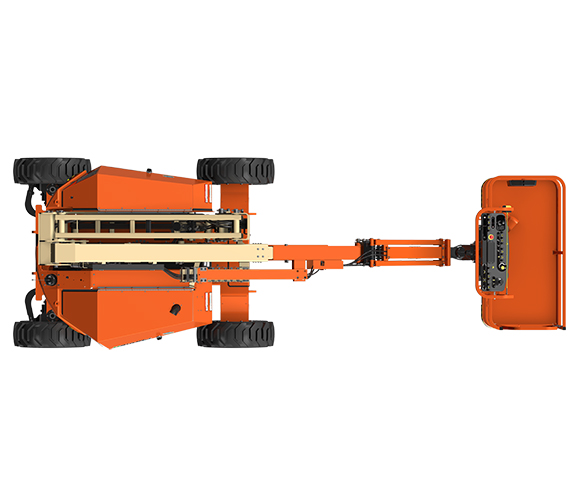

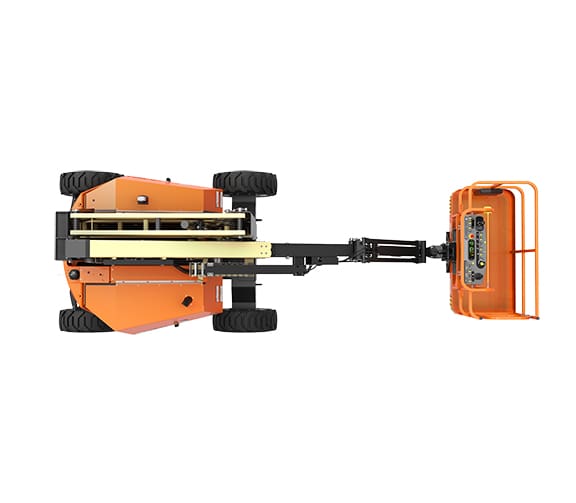

H340AJ Top New

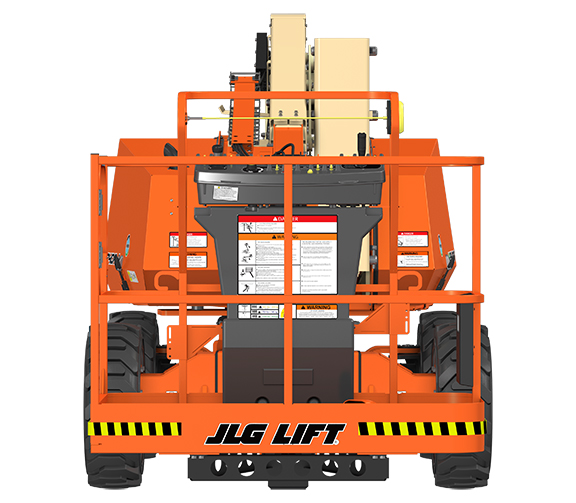

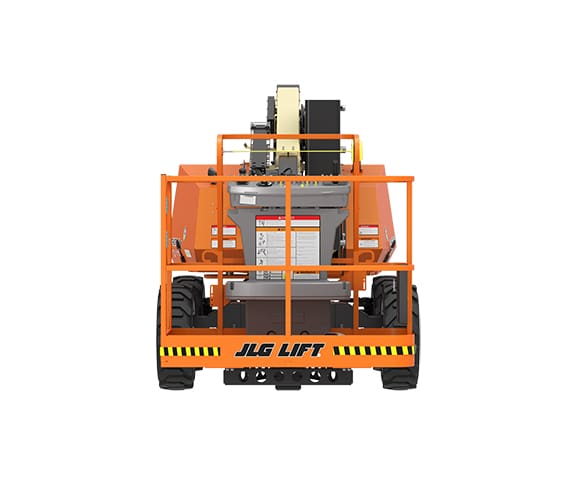

H340AJ Retracted Front New

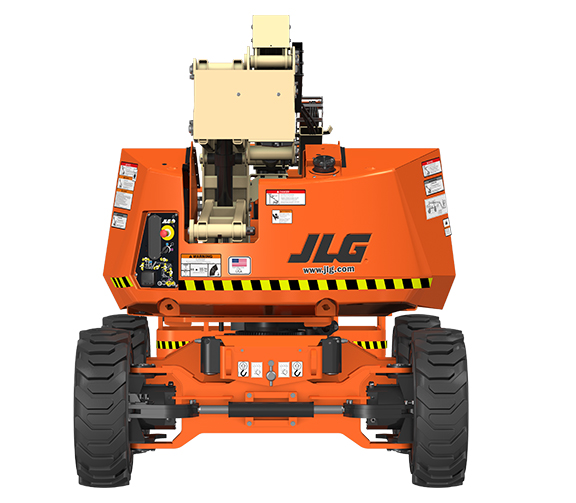

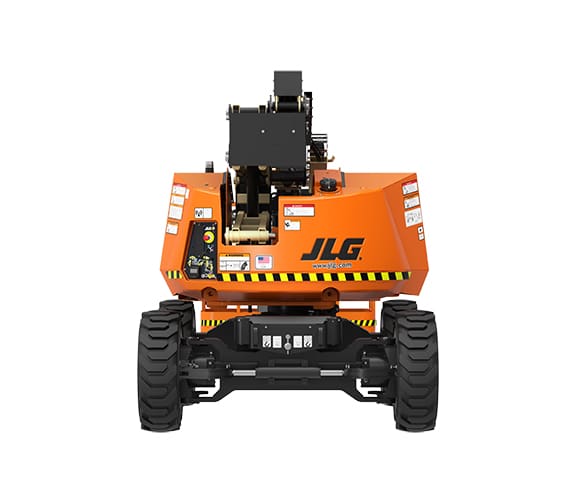

H340AJ Retracted Rear New

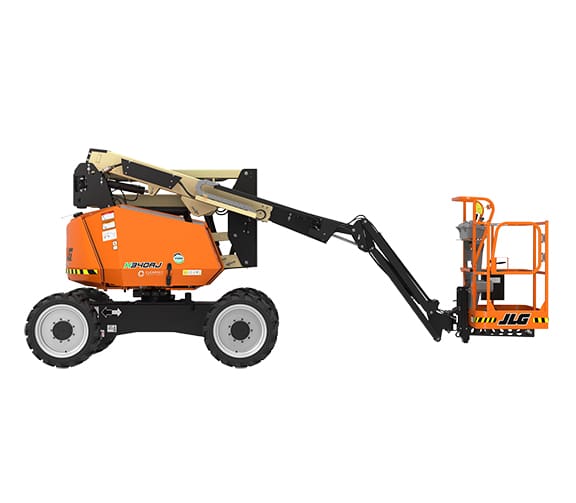

H340AJ Retracted Side RF New

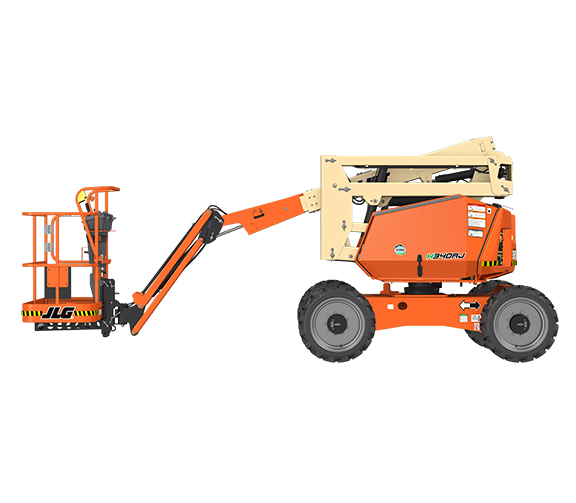

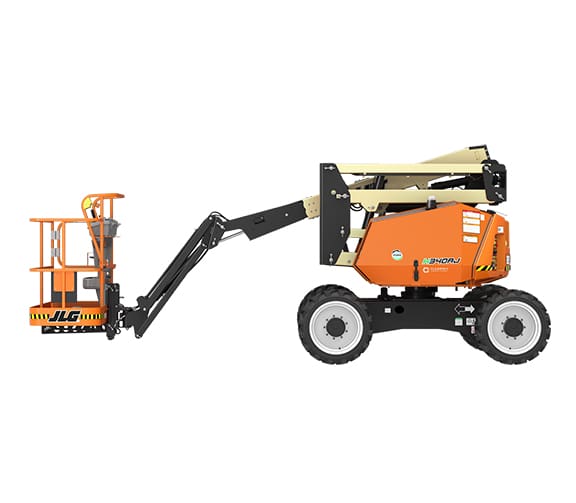

H340AJ Retracted Side LF New

JLG H340AJ Hybrid Articulating Boom Lift

  • 33-ft. 10.5-in. Platform Height
  • 19-ft. 11-in. Horizontal Outreach
  • 500-lb. Platform Capacity
  • 45% Gradeability
  • Hybrid Power System with 4 Independent Electric-Drive Motors, Tier 4 Final Diesel-Powered Generator, and 8 x 12V 100 Amp-Hour AGM Batteries
Request a Quote

Documents

Product Documents

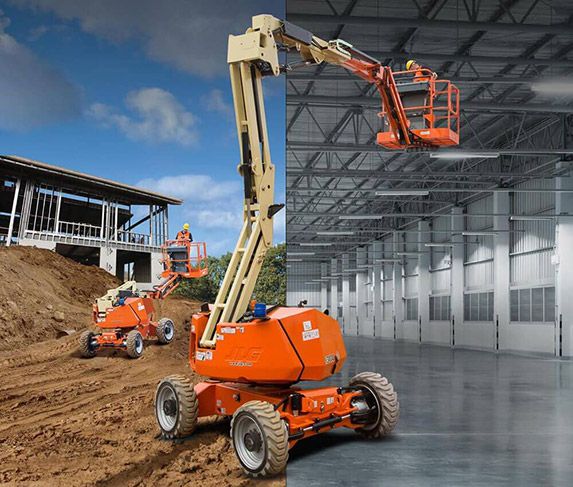

The JLG H340AJ is a hybrid articulating boom lift built for crews that need real jobsite performance without giving up flexibility. Its four independent electric-drive motors, Tier 4 Final diesel-powered generator, and AGM battery system give you the ability to work indoors or outdoors while cutting fuel use, noise, emissions, and maintenance.

With 33-ft. 10.5-in. platform height, 19-ft. 11-in. horizontal outreach, and a 500-lb. platform capacity, it gives operators the reach and working room needed for everyday access work. The articulating jib and hydraulic platform rotation also make it easier to get into tight or awkward positions without constant repositioning.

Model Number: H340AJ

Additional Information

Brand

JLG
Condition

New
MEWP Type

Boom Lift, Articulated
Power

Bi-Energy
MEWP Lift Height

26 – 40ft
MEWP Capacity

Up to 500 lbs
  • Combines diesel-strength terrainability with hybrid efficiency for indoor and outdoor jobsite flexibility.
  • Helps reduce fuel use, emissions, noise, and maintenance compared with a diesel-only machine.
  • Four independent electric-drive motors support strong jobsite performance on uneven terrain.
  • Compact articulating design helps operators reach up, over, and into tighter access areas.
  • 4-ft articulating jib
  • 180-degree hydraulic platform rotator
  • 355-degree non-continuous swing
  • 500-lb platform capacity
  • Oscillating axle
  • Proportional controls
  • 110V-AC receptacle in platform
  • 12V DC auxiliary power
  • Rapid replaceable platform with self-closing gate
  • SkyGuard SkyLine
  • ClearSky Smart Fleet hardware
  • Swing-out engine tray
  • USB-A and USB-C charger
  • Cold Weather Package
  • Hostile Environment Kit
  • Hot Weather Package
  • Light packages
  • 1/2-in air line to platform
  • 110V 1200W inverter
  • Platform mesh to mid or top rail
  • Drop-bar and swing-gate platform configurations
  • Non-marking and foam-filled tire options
  • Aluminum or plastic platform choices
  • Articulating jib improves access in congested or hard-to-reach work areas.
  • 180-degree hydraulic platform rotation helps position operators more precisely at height.
  • Proportional controls support smoother operation and better control feel.
  • Self-closing gate, center storage tray, and onboard USB charging add everyday operator convenience.
  • Platform console machine status light panel keeps key machine information visible from the platform.
  • 4-degree tilt cut-out helps protect operation on uneven ground.
  • All motion alarm improves awareness when the machine is moving.
  • Rapid replaceable platform includes a self-closing gate.
  • SkyGuard SkyLine adds overhead protection support.
  • Platform status light panel provides alerts for system distress, low fuel, tilt, and foot switch status.
  • LED motion/amber beacon increases machine visibility on the jobsite.
  • 33-ft 10.5-in platform height
  • 19-ft 11-in horizontal outreach
  • 17-ft up-and-over clearance
  • 500-lb platform capacity
  • 45% gradeability
  • 3.7 mph drive speed when lowered
  • 355-degree non-continuous swing
  • Four independent electric-drive motors with a Tier 4 Final diesel-powered generator
  • Runs on 8 x 12V 100 amp-hour AGM batteries charged by the diesel generator
  • Hybrid design is built to reduce routine maintenance demand.
  • Swing-out engine tray improves service access.
  • Control ADE system supports machine diagnostics and system management.
  • ClearSky Smart Fleet hardware can help with fleet visibility and equipment oversight.
  • Gull-wing steel turntable hoods improve access to service areas.
