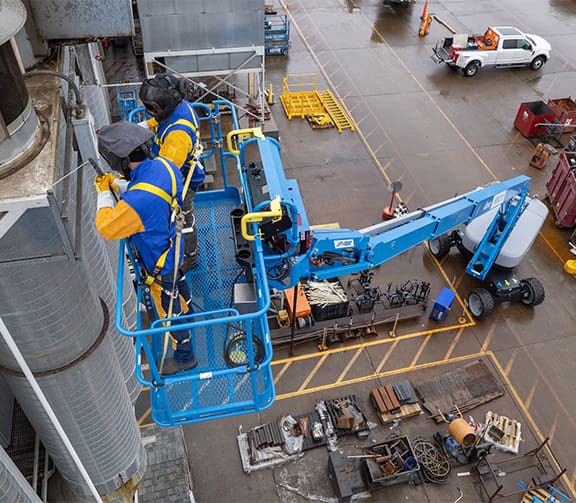

S-85XC-Elevated

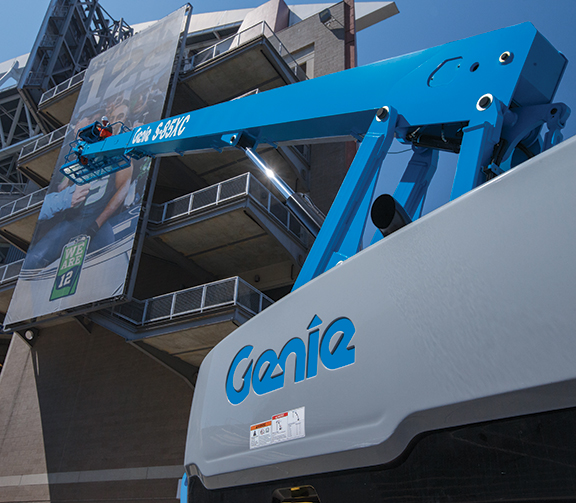

S-85XC-ground-view
S-85-XC-Azzura

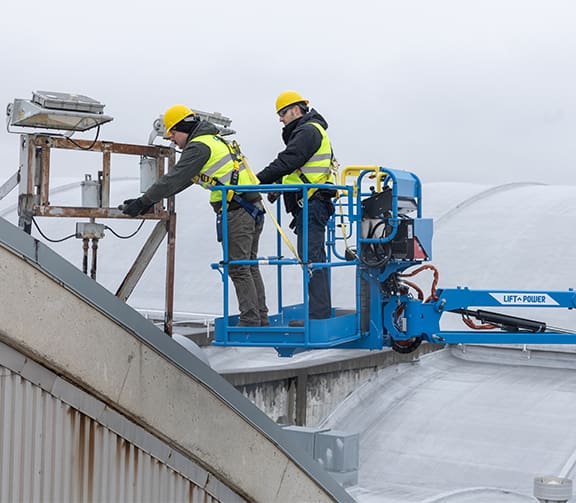

S-85XC-operators

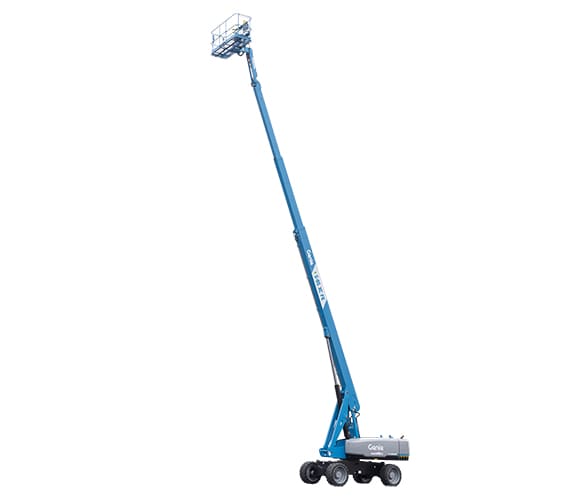

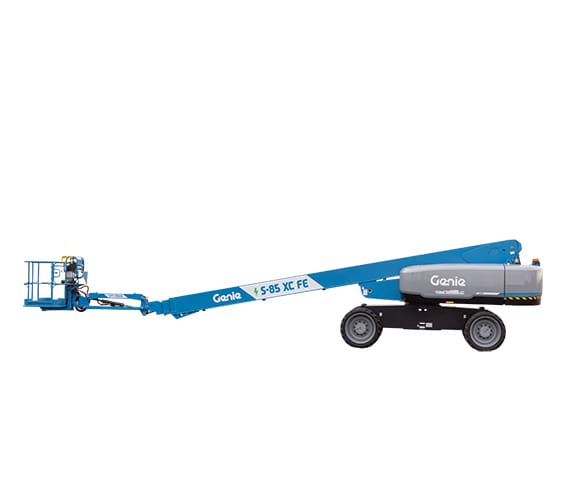

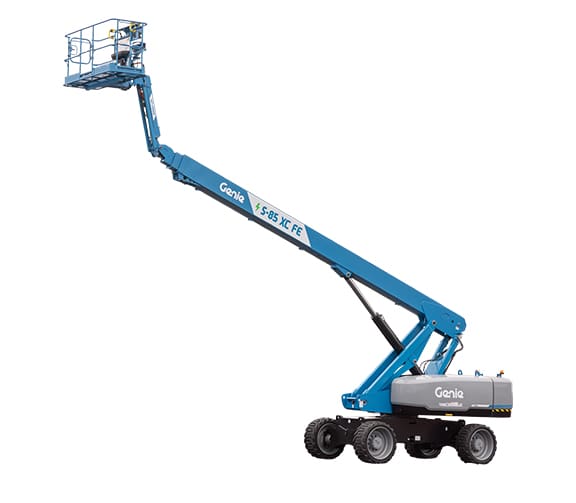

Genie S-85 Boom Lift

  • 91 ft. Max Working Height

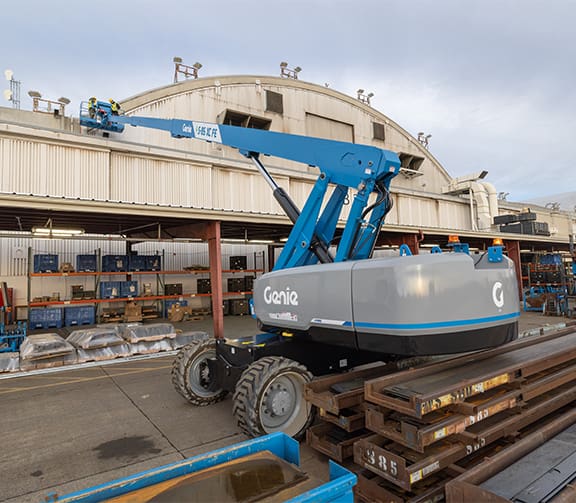

  • 74 ft. 6 in. Maximum Horizontal Reach
  • 8 ft. 8 in. Below Ground Reach
  • 600 lb Unrestricted, 1,000 lb Restricted Platform Capacity
  • 8 ft. 6 in. Machine Width
  • 40 ft. 7 in. Machine Length
Request a Quote

Documents

Product Documents

The Genie® S®-85 HF high float telescopic booms are built for heavy-lifting in sensitive areas like sand and turf. Designed to “float” on soft surfaces, they help protect delicate ground that might be damaged by the rough tread of standard tires.

The Genie® S®-85 XC model provides a dual lift capacity of 660 lb (300 kg) unrestricted and 1,000 lb (454 kg) restricted, allowing it to handle a wider range of heavy-lift tasks on construction and industrial sites. With the Genie Xtra Capacity™ (XC) feature, it can accommodate up to three people onboard, along with tools and materials.

Model Number: S-85 HF | S-85 XC

Additional Information

Brand

Genie
Condition

New
MEWP Type

Boom Lift, Telescopic
Working Height

90 – 99 ft.
Power

Engine

S-85 XC Advantages:

  • Maximum capacity with a robust jib design to handle increased loads
  • Load sense technology for accurate load weighing and zero-load field calibration
  • Chassis tilt sensor technology maximizes access to hard-to-reach work areas
  • Onboard diagnostics maximize serviceability
  • Option to add the new Genie Lift Power™ generator system

S-85 HF Advantages:

  • A virtual pivot primary boom that aligns the machine’s center of gravity for lower machine weight 38,000 lb
  • 4WD and positive traction drive maintains equal power to all drive wheels
  • 45% gradeability (stowed) for driving on slopes
  • 160˚ platform rotation and 360˚ continuous rotation turntable for quick, precision positioning

S-85 HF Standard Features:

  • 600lb/300kg unrestricted platform capacity
  • Wheel motors 2 speed

S-85 XC Standard Features:

  • 74 hp, 55 kW, Deutz TD2.9L, Turbo Diesel, T4f (TRAX and 80/85)
  • 660lb/300kg & 1000lb/454kg dual load capacity with automatic envelope control

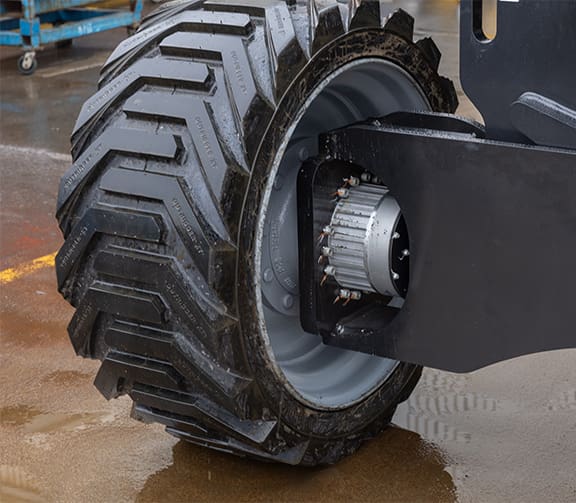

  • Rough terrain, foam-filled tires
  • Telematics-ready
  • Chassis tilt lift and drive function cut-out

HF and XC Standard Features:

  • Anti-restart engine protection
  • Auto engine fault shutdown
  • In cylinder glow plug (diesel only)
  • 8ft/2.44m tri-entry platform with side swing gate
  • Dual axis joystick steering
  • Drive enable system
  • Horn
  • Lift Guard Contact Alarm
  • Lift Tools Work Tray
  • Platform load sense system

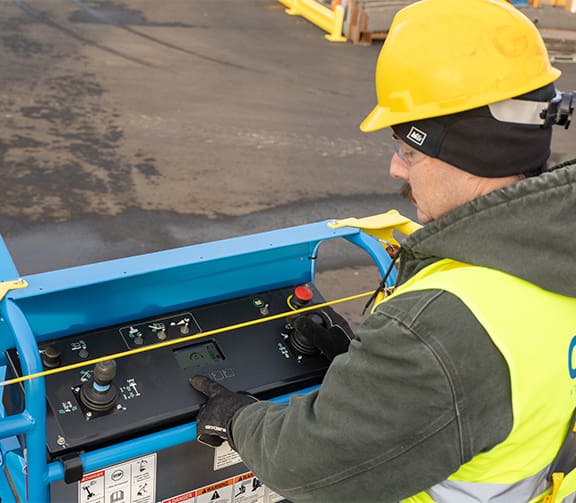

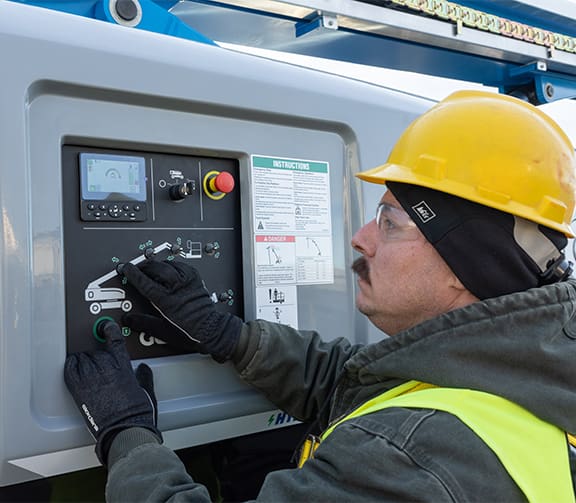

  • Proportional controls
  • Self-leveling platform
  • Lift Connect Telematics
  • Active oscillating axle
  • Alarm package: includes flashing beacon and travel alarm
  • Descent, tilt and motion alarm
  • Dual battery system
  • Hour meter
  • Hydraulic oil cooler
  • Tech Pro Link connector
  • 2 speed wheel motors

S-85 HF Popular Options:

  • 70 hp, 52 kW, GM Vortec 3.0L, Gas/LPG
  • 6ft/1.83m Aircraft protection platform with sliding mid-rail
  • 6ft/1.83m Aircraft protection platform with side swing gate
  • Lift Connect Telematics

S-85 XC Popular Options:

  • Rough terrain, foam-filled tires
  • Rough terrain, foam-filled, non-marking tires

Both HF and XC Popular Options:

  • Cold weather package
  • Diesel air intake pre-cleaner
  • Positive air shutdown system
  • Second battery
  • 6ft/1.83m dual-entry platform with side swing gate
  • Thumb rocker steering
  • Air line to platform
  • Control box covers
  • Lift Guard Full Mesh panels
  • Lift Guard Half Mesh panels
  • Light Package: drive and work lightss
  • Platform auxiliary top rail
  • Lift Power 3kW AC Generator, 110V/60Hz
  • Lift Power 3kW AC Generator, 220V/50Hz
  • Lift Power 12kW Welder Ready
  • Lift Connect with Access Manager upgrade
  • Biodegradable hydraulic oil
  • Cold weather hydraulic oil
  • Fire resistant hydraulic oil
  • High floatation, air-filled tires
  • Deluxe hostile environment kit
  • Hostile environment kit
  • LPG tank 33.5 lb
  • Tow package
