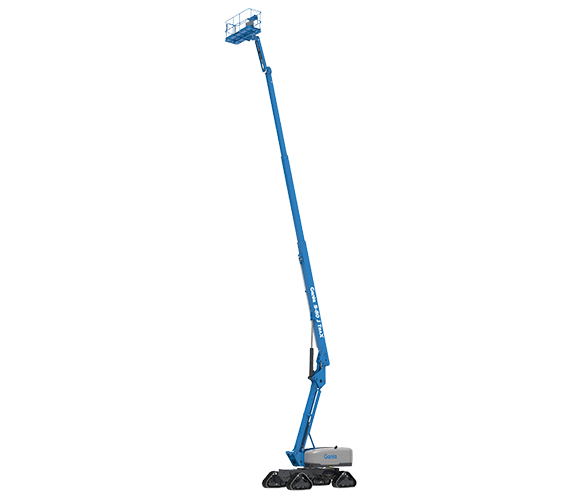

S-80-J-Trax

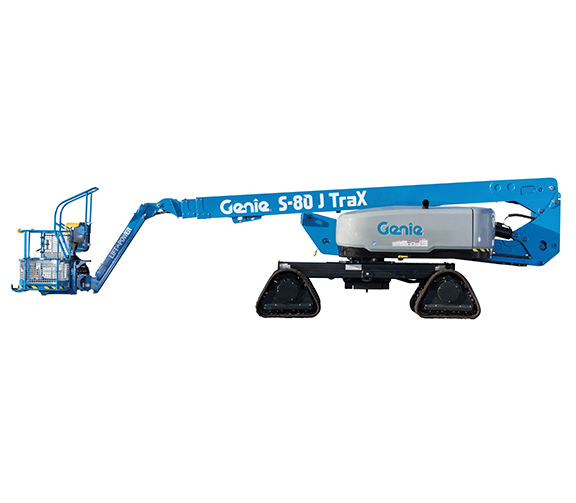

S-80-J-TraX-Cut-out-stowed

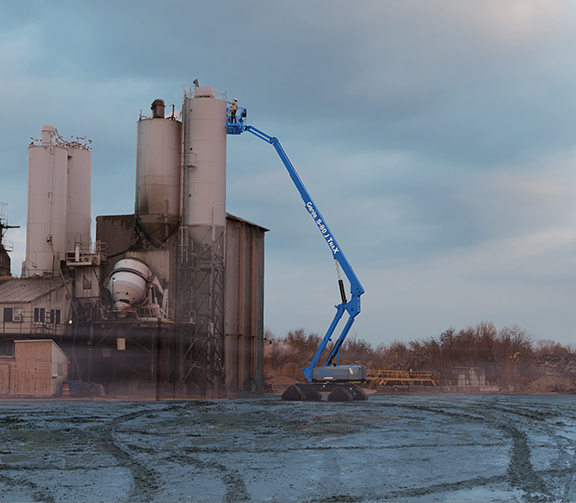

S-80-J-Trax-Sunset

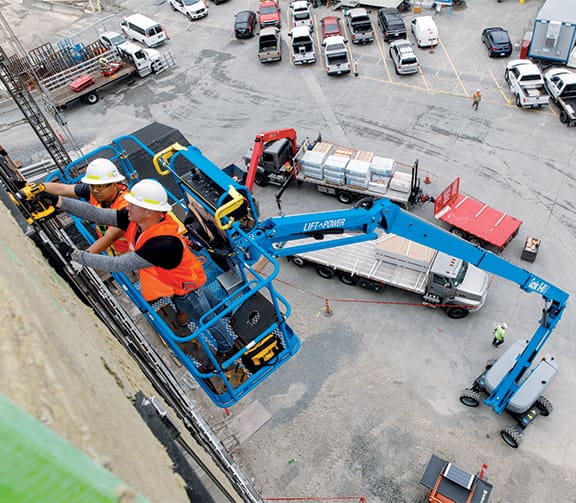

S-80J-building-work

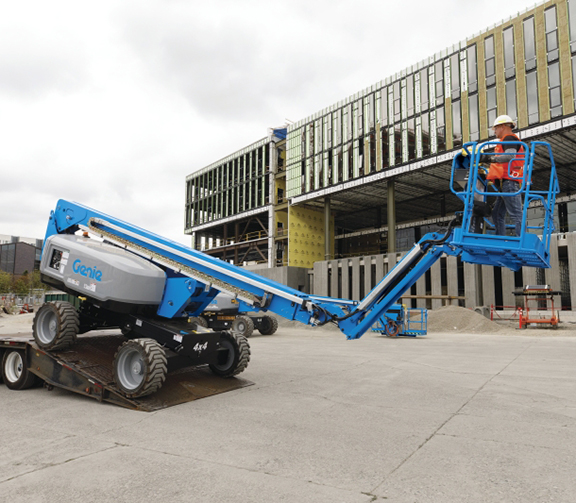

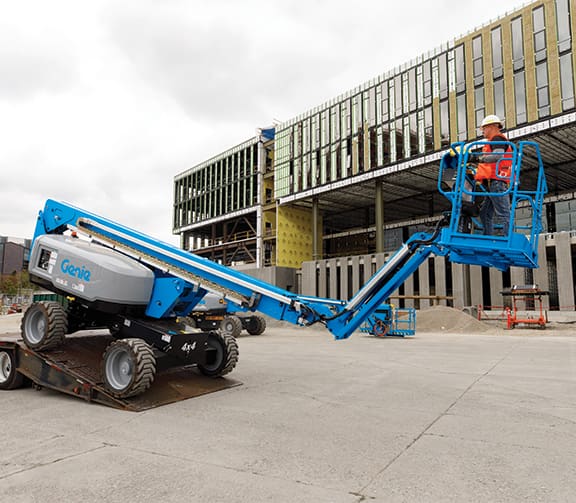

S-80J-Unload

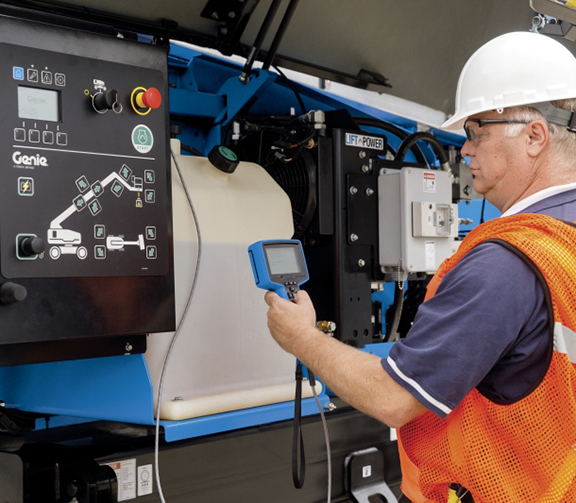

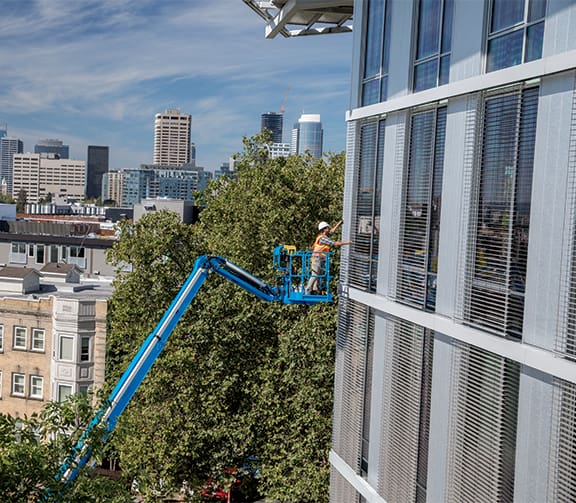

S-80J-operator

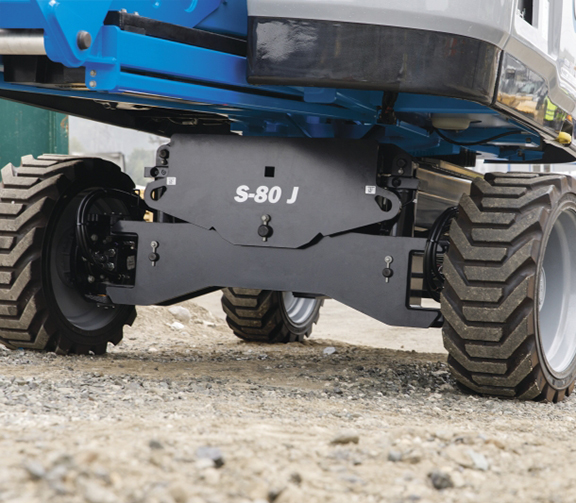

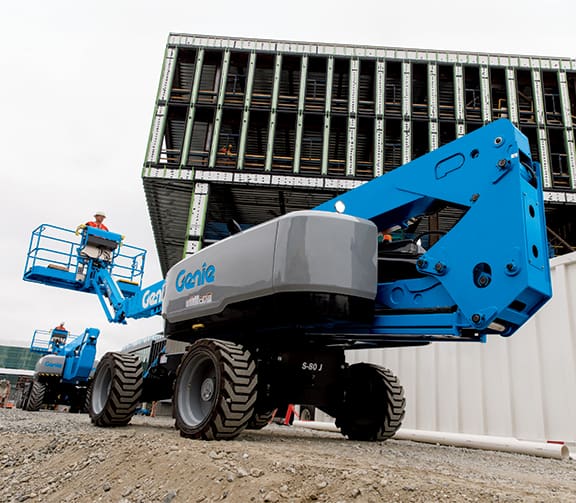

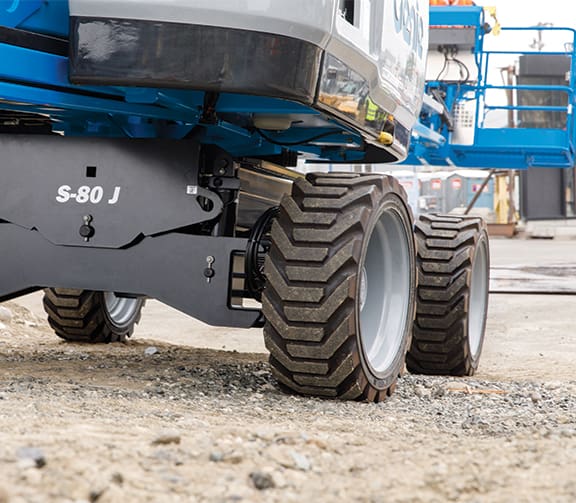

S-80J-tires

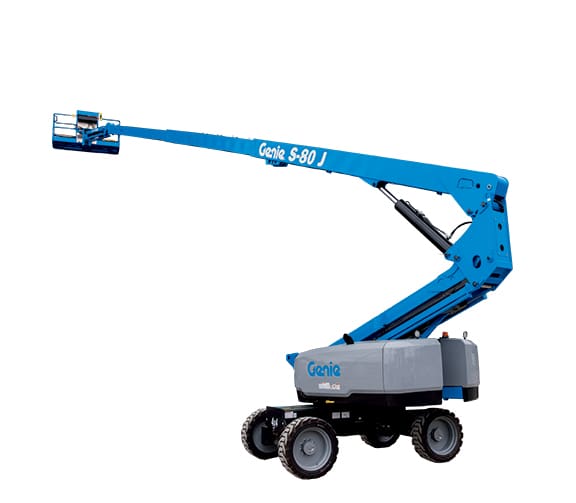

Genie S-80 Boom Lift

  • 86 ft. 5 in. Max Working Height
  • 54 ft. 9 in. Maximum Horizontal Reach
  • 660 Lbs. Platform Capacity
  • 8 ft. 4 in. Machine Width
  • 34 ft. 3 in. Machine Length
Request a Quote

Documents

Product Documents

The Genie® S®-80 J telescopic boom provides essential performance for working at height, with an industry-leading unrestricted platform capacity of 660 lb (300 kg), accommodating two occupants plus tools. To boost jobsite productivity, it is the first and only boom in the 80 ft (26 m) height category to offer a tracked option.

Model Number: S-80 J & S-80 J TraX

Additional Information

Brand

Genie
Condition

New
MEWP Type

Boom Lift, Telescopic
Working Height

80 – 89 ft.
Power

Engine

S-80 J Advantages:

  • Suited for use in general construction, maintenance, inspection and painting tasks
  • Leading unrestricted platform capacity of 660 lb (300 kg) with 6 ft (1.8 m) jib
  • 80-ft (24.4 m) platform height and 55 ft (16.8 m) horizontal reach for access at the top of the envelope
  • High-ground clearance helps clear rocks, curbs, trailer break-overs and other daily obstacles

S-80 J TraX Advantages:

  • Same features as above
  • Patented track design features 4 independent tracks, swiveling vertically up to 20° for a smooth drive on rough ground conditions
  • 30° steer angle for easy maneuvering

  • 49 hp, 36.5 kW, Kubota D1803, Turbo Diesel, T4f/Stage V
  • Anti-restart engine protection
  • Auto engine fault shutdown
  • In cylinder glow plug (diesel only)
  • 8ft/2.44m tri-entry platform with side swing gate
  • Drive enable system
  • Horn
  • Lift Guard Contact Alarm
  • Lift Tools Work Tray
  • Platform load sense system
  • Proportional controls
  • Self-leveling platform
  • Telematics-ready
  • Rough terrain, foam-filled tires
  • 2 speed wheel motors
  • Active oscillating axle
  • Alarm package: includes flashing beacon and travel alarm
  • Chassis tilt lift and drive function cut-out
  • Descent, tilt and motion alarm
  • Hour meter
  • Hydraulic oil cooler
  • Positive traction drive
  • Tech Pro Link connector

  • Cold weather package
  • Diesel air intake pre-cleaner
  • Positive air shutdown system
  • 6ft/1.83m dual-entry platform with side swing gate
  • Thumb rocker steering
  • Air line to platform
  • Control box covers
  • Lift Guard Full Mesh panels
  • Lift Guard Half Mesh panels
  • Light Package: drive and work lights
  • Platform auxiliary top rail
  • Lift Power 3kW AC Generator, 110V/60Hz
  • Lift Power 3kW AC Generator, 220V/50Hz
  • Lift Power 12kW Welder Ready AC Generator
  • Lift Connect Telematics
  • Lift Connect with Access Manager upgrade
  • Biodegradable hydraulic oil
  • Cold weather hydraulic oil
  • Fire resistant hydraulic oil
  • Rough terrain, foam-filled, non-marking tires
  • TraX track drive system
  • Deluxe hostile environment kit
  • Hostile environment kit
