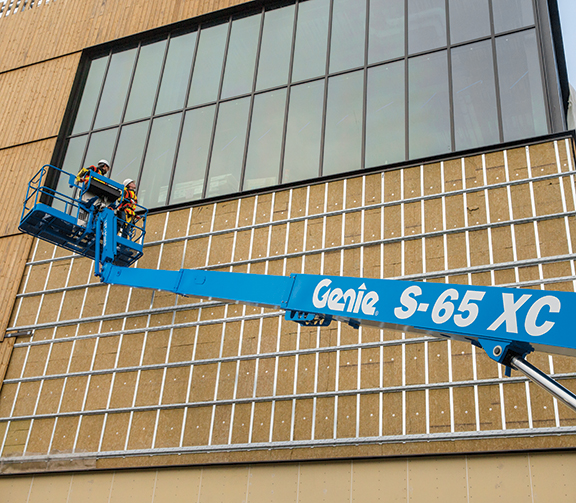

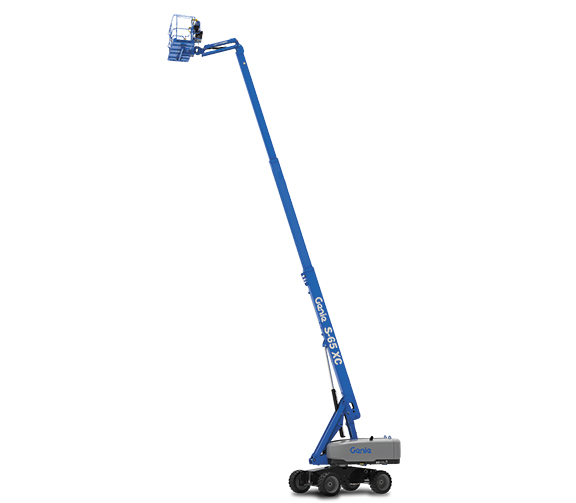

S65-XC

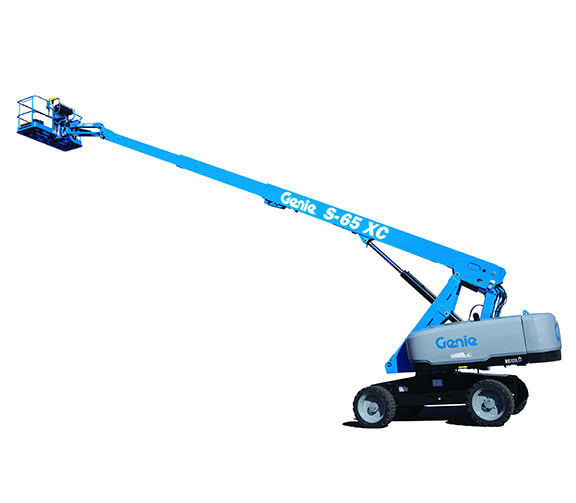

S-65-XC-Coaster

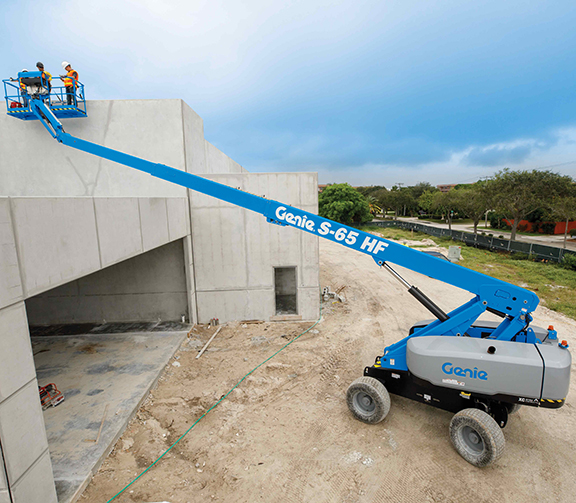

S-65 HF
S-65-HF-Worksite

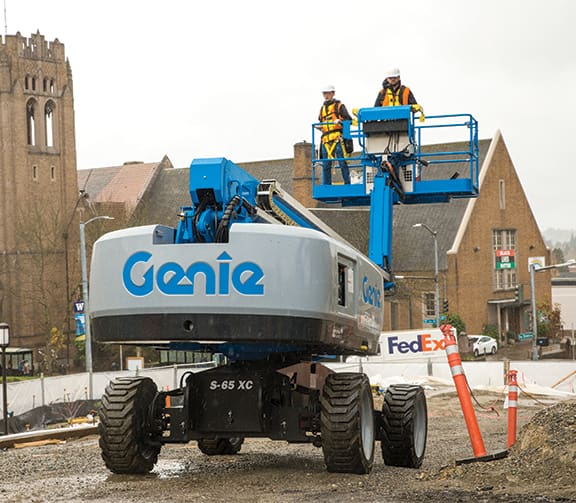

S-65-XC-Elevated

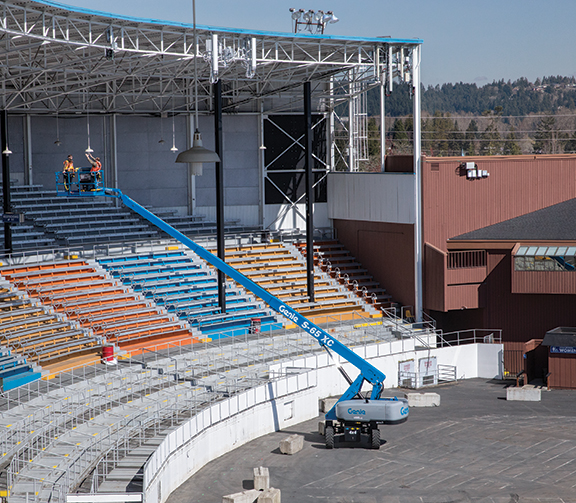

S-65-XC-18-Stadium

Genie S-65 Boom Lift

  • 71 ft. Max Working Height

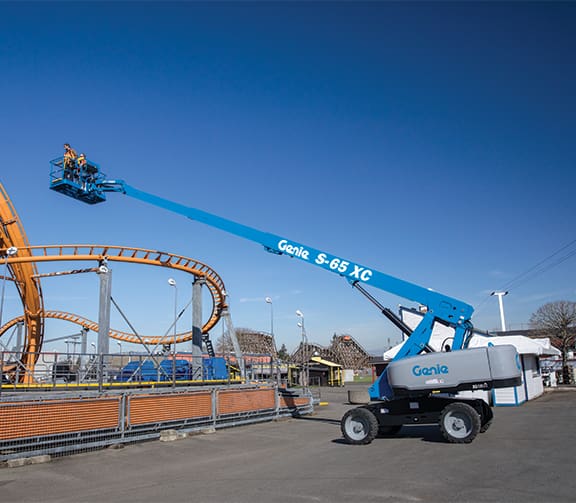

  • 54 ft. 2 in. Maximum Horizontal Reach
  • 660 Lbs. Unrestricted | 1,000 lb Restricted Platform Capacity
  • 8 ft. 5 in. Machine Width
  • 32 ft. Machine Length
Request a Quote

Documents

Product Documents

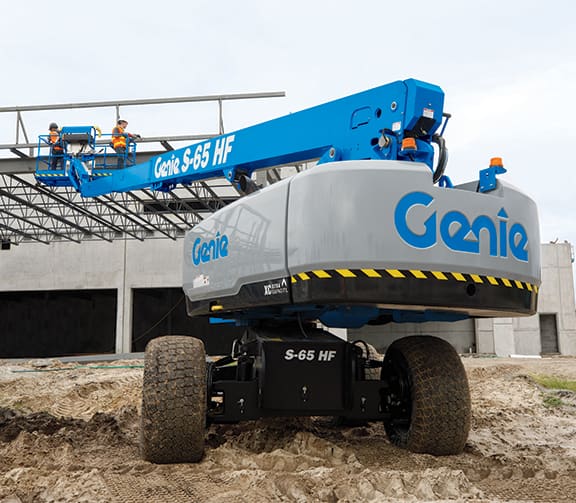

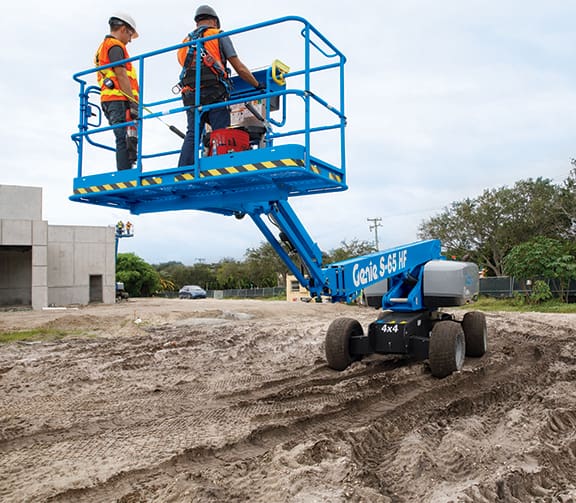

The Genie® S®-65 HF high float telescopic booms are built to handle heavy lifting on sensitive surfaces like sand or turf. Designed to “float” on soft ground, these booms prevent damage to delicate surfaces that could be harmed by the aggressive tread of typical rough terrain tires.

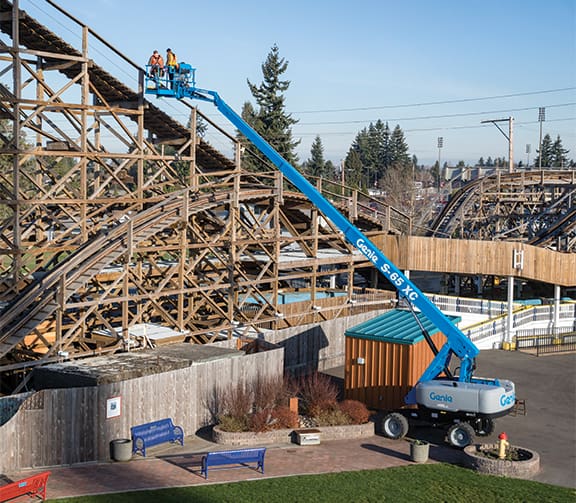

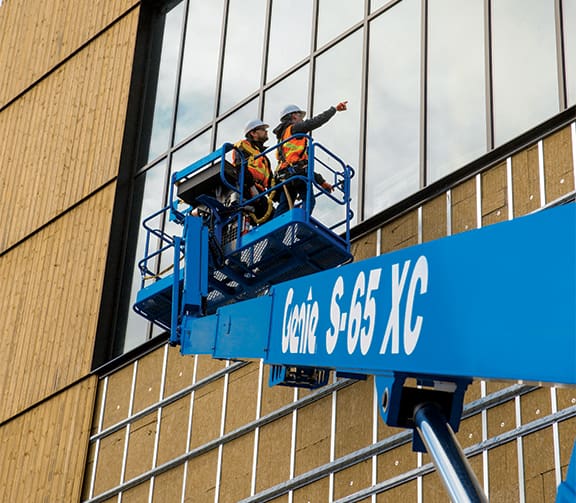

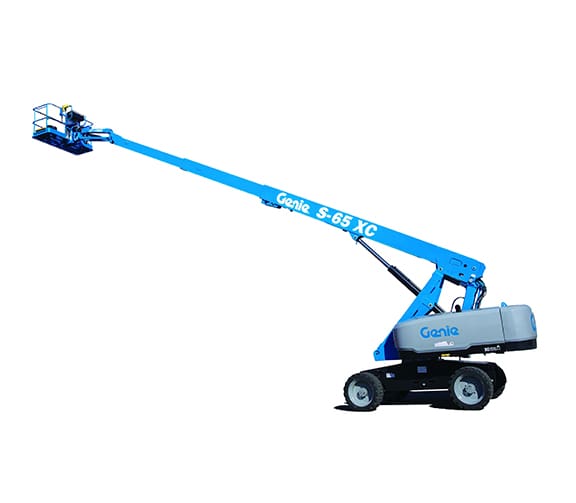

The Genie® S®-65 XC™ and S-65 TraX™ telescopic boom lifts, part of the redesigned Xtra Capacity™ series, are capable of handling a broader range of heavier tasks on construction and industrial sites. Their dual lift capacity and advanced features enhance jobsite efficiency and performance.

Model Number: S-65 HF | S-65 XC & TraX

Additional Information

Brand

Genie
Condition

New
MEWP Type

Boom Lift, Telescopic
Working Height

70 – 79 ft.
Power

Engine

HF Advantages:

  • A virtual pivot primary boom that aligns the machine’s center of gravity for lower machine weight 24,454 lb
  • 4WD and positive traction drive maintains equal power to all drive wheels
  • 45% gradeability (stowed) for driving on slopes
  • 160˚ platform rotation and 360˚ continuous rotation turntable for quick, precision positioning

XC Advantages:

  • Full-time active oscillating axle and full-time positive traction for superior terrainability
  • Chassis tilt sensor technology maximizes access to hard-to-reach work areas
  • 5 ft/1.52 m robust articulating jib
  • Dual lifting capacity of 660 lb/300 kg and 1,000 lb/454 kg to lift increased loads and up to 3 operators
  • Automatic envelope control technology for a smooth operating envelope

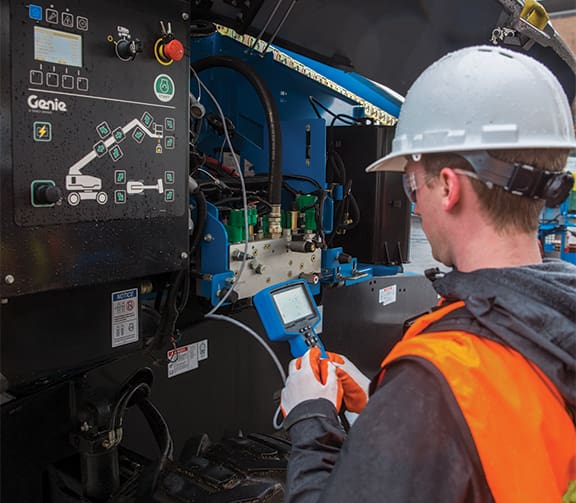

  • Zero-load field calibration and onboard diagnostics maximize serviceability

TraX Advantages:

  • Same features as above
  • The patented track design features 4 independent tracks, swiveling vertically up to 20° for a smooth drive on rough ground conditions
  • 30° steer angle for easy maneuvering

HF Standard Features:

  • Control box covers
  • Light Package: drive and work lights
  • Lift Connect Telematics

XC & TraX Standard Features:

  • 660lb/300kg & 1000lb/454kg dual load capacity with automatic envelope control
  • Rough terrain, foam-filled tires
  • Positive traction drive

Both HF and XC/TraX Standard Features:

  • 49 hp, 37 kW, Deutz D2.9L, Diesel, T4f
  • Anti-restart engine protection
  • Auto engine fault shutdown
  • In cylinder glow plug (diesel only)

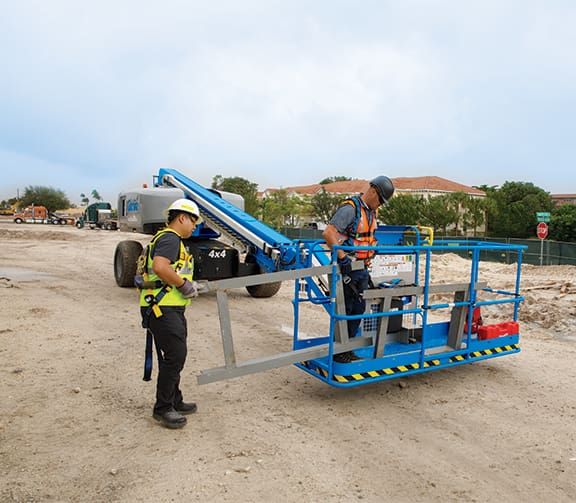

  • 8ft/2.44m tri-entry platform with side swing gate
  • Dual axis joystick steering
  • Drive enable system
  • Horn
  • Lift Guard Contact Alarm
  • Lift Tools Work Tray
  • Platform load sense system
  • Proportional controls
  • Self-leveling platform
  • Telematics-ready
  • 2 speed wheel motors
  • Active oscillating axle
  • Alarm package: includes flashing beacon and travel alarm
  • Chassis tilt lift and drive function cut-out
  • Descent, tilt and motion alarm
  • Dual battery system
  • Hour meter
  • Hydraulic oil cooler
  • Tech Pro Link connector

HF Popular Options:

  • Diesel air intake pre-cleaner

XC & TraX Popular Options:

  • 74 hp, 55 kW, Deutz TD2.9L, Turbo Diesel, T4f (TraX)
  • Ford engine gauge package
  • LPS Fire protection rating
  • Rough terrain, foam-filled, non-marking tires
  • TraX track drive system

Both HF and XC/TraX Popular Options:

  • 49 hp, 37 kW, Perkins 404F-E22T, Turbo Diesel, T4f
  • 60 hp, 45 kW, Ford 2.5L, Gas/LPG
  • 74 hp, 55 kW, Deutz TD2.9L, Turbo Diesel, T4f (TraX)
  • Cold weather package
  • Positive air shutdown system
  • Second battery
  • 6ft/1.83m dual-entry platform with side swing gate
  • Thumb rocker steering
  • Air line to platform
  • Control box covers
  • Lift Guard Full Mesh panels
  • Lift Guard Half Mesh panels
  • Light Package: drive and work lights
  • Platform auxiliary top rail
  • Lift Power 3kW AC Generator, 110V/60Hz
  • Lift Power 3kW AC Generator, 220V/50Hz
  • Lift Power 12kW Welder Ready
  • Lift Connect Telematics
  • Lift Connect with Access Manager upgrade
  • Biodegradable hydraulic oil
  • Cold weather hydraulic oil
  • Fire resistant hydraulic oil
  • High floatation, air-filled tires
  • Deluxe hostile environment kit
  • Hostile environment kit
  • LPG tank 33.5 lb
  • Tow package
