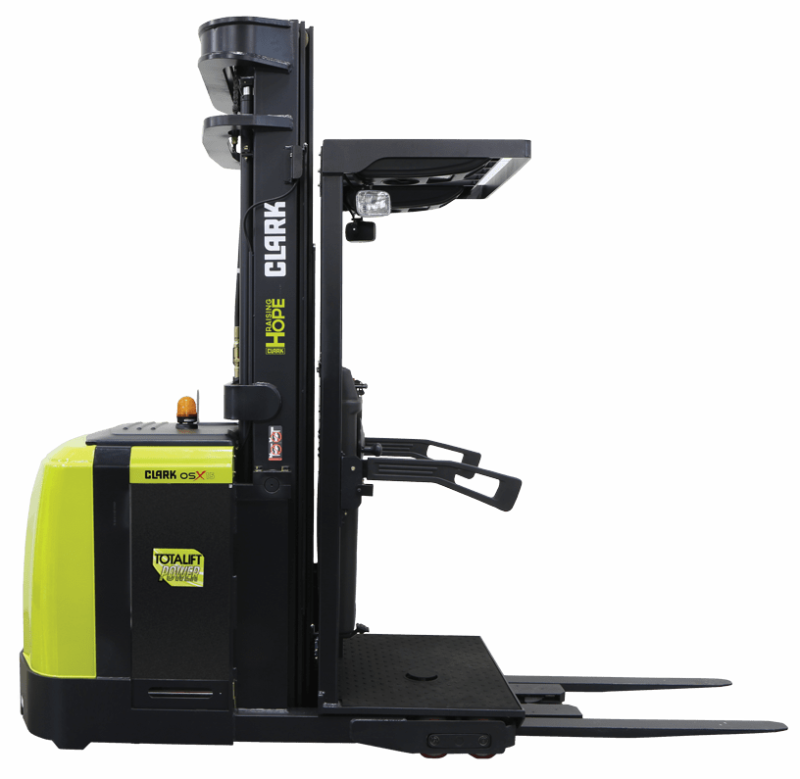

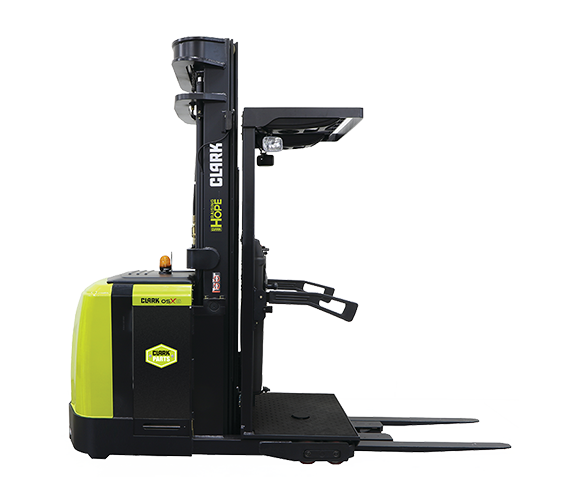

CLARK OSX15 Order Picker

  • 3,000 lb. Capacity
  • 24V or 36V Electrical System
  • 100% AC Drive and Hydraulic Motors
  • On-Board Diagnostics
  • Fully Proportional Lift & Lower
  • 4 Point Operator Stance
  • Premium Anti-Fatigue Floor Mat
Request a Quote

Documents

Product Documents

Financing Information

Forklift Information

Product Description

The CLARK OSX15 sets a new standard for order selectors, combining high performance with best-in-class operator comfort and industry-leading standard features. Designed to help increase throughput and keep your facility running smoothly, the OSX15 is the ideal choice for fast-paced operations.

Powered by your choice of a 24V or 36V lead-acid battery, the OSX15 delivers reliable performance for picking products in narrow aisles with ease. Its tight turn radius, compact footprint, and durable construction allow operators to navigate confidently and efficiently, even in the most space-constrained environments.

For operations that demand speed, precision, and reliability, the CLARK OSX15 is the ultimate solution to optimize your material handling needs.

Model Numbers: OSX 15

Equipment Details

Forklift Type

Order Pickers
Brand

CLARK
Capacity

3,000 lbs.
Condition

New
Fuel Type

Electric/Battery, 24 Volt, Electric/Battery, 36 Volt
  • High efficiency, low maintenance, and powerful 100% AC electric system
  • 24 or 36 volt for excellent performance, runtime, and responsive acceleration
  • Pallet clamp accommodates up to 5″ wide stringers for increased flexibility and convenient, efficient pallet handling
  • Articulating load wheels maintain constant contact with the floor for a smoother ride
  • Advanced on-board diagnostics facilitate troubleshooting and reduce downtime
  • 24 volt battery
  • 42″ forks
  • 40″ OAW outriggers
  • Hour meter
  • BDI with interrupt
  • Key switch
  • Single Clipboard holder
  • Electric horn
  • Hinged side gates
  • Pallet clamp 1.25″-5″
  • Operator belt and tether
  • Battery compartment rollers
  • Amber strobe
  • SB350 red connector
  • Emergency power disconnect
  • UL E construction
  • Pencil holder & tray
  • 36 volt system (with SB 350 gray connector)
  • UL EE construction
  • Sidegate disable switches
  • Siped poly drive tire
  • Battery compartment spacers
  • Clipboard holders (both sides)
  • Smart back-up alarm
  • Red or Blue strobe
  • Platform width extensions with non-skid surface (48″, 54″, 56″, 60″)
  • Wire guidance
  • Fused link to provide truck battery voltage for aux device
  • Guide rollers
  • Smart travel alarm
  • Body harness
  • Retractable tether
  • Spacious operator compartment platform with 4-point stance features handle which provides secure grab point, increasing operator confidence
  • Excellent visibility in all directions
  • Electronic power steering with auto-centering provides quiet, responsive, low-effort operation and assures the steer wheel is in the proper direction at key on
  • Premium anti-fatigue floor mat
  • 100% AC electric system
    • 24 volt system offers excellent performance and run time
    • 36 volt system can achieve quicker lift speeds and more responsive acceleration with higher Kwh batteries
    • Fewer parts and minimum wear for less downtime and higher ROI
    • One motor for both steering & hydraulics
    • Enclosed and brushless with smart lift lockout
    • Thermal protection for cooler operation
    • Stall protection
  • Wheels
    • Articulating load wheels maintain constant contact with the floor even when traveling over cracks, expansion joints or uneven floors
    • Wheels provide smoother ride for operator and truck components when operating under these conditions
  • Upright
    • Lift cylinders, hoses and chains are mounted within the rail profile for maximum visibility
    • Hydraulic cushioning valve allows for silent staging and reduces shock and vibration
    • Carriage has 8 shimmable, sealed, and canted rollers and 4 side thrust rollers to maximize load distribution and reduce free play
  • Functionality
    • Infinitely variable lift/lower allows the operator to easily position the operator platform both when lifting and lowering gives the operator excellent control and promotes optimum productivity
    • Wide range pallet clamp will handle stringers up to 5″ wide for increased flexibility and convenient, efficient pallet handling
  • Maintenance-free AC motors
  • Fewer parts and minimum wear = less downtime = higher ROI
  • Plug-in encoder is externally mounted on the drive and pump motors to allow them to be serviced without removing motors from the truck
  • Load wheels fitted with simple snap ring for quick and easy removal/replacement when necessary
  • Advanced on-board LCD diagnostic display with drive wheel direction indicator utilizes the latest technology, is bright and easy to read, and is sealed to keep out dust and contaminants
  • Fully adjustable/programmable to allow for complete customization of parameters to Operator’s Preference such as acceleration rate and travel speeds (separate forward and reverse)
  • 4-point operator stance with grab handle for maximized safety
  • Excellent visibility in all directions
  • Manufacturing
  • Warehousing
