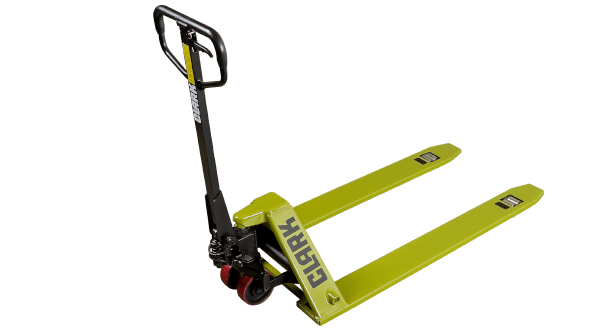

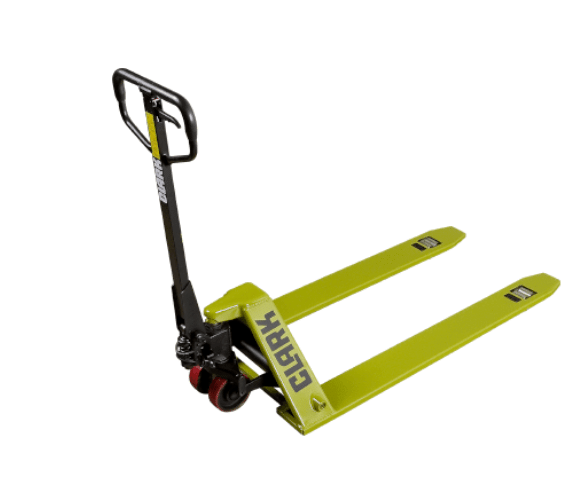

CLARK Hand Pallet Jack

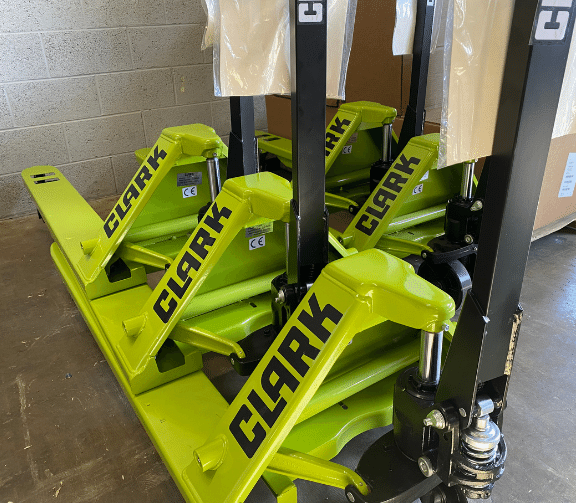

CLARK Hand Pallet Jack Application 1

CLARK Hand Pallet Jack

  • Up to 5,500 lb. Capacity
  • Various Fork Sizes
  • Heavy-Duty Frame Made of One-Piece Formed Channel Steel
  • Clean-Room and Cold-Room Models Available
Request a Quote

Documents

Product Documents

Financing Information

Product Description

Durable, versatile and easy to use the CLARK hand pallet jacks feature an ergonomic design that reduces operator fatigue and downtime. Designed to provide exceptional maneuverability in compact areas and comes with standard polyurethane wheels and rollers for rolling ease.

Model Numbers: CJ22SL | CJ33L | CJ33M4 | CJ55 | CJ55C | CJ55T | CJ55A | CJ55S | CJ55G | CJ55Q

Equipment Details

Forklift Type

Electric Pallet Jacks & Stackers
Brand

CLARK
Capacity

2,200 lbs., 3,300 lbs., 5,500 lbs.
Condition

New
  • Standard trucks require 10 strokes to raise forks to maximum lift. The Heavy Duty Jack requires 13 and the Quick lift which when in “quick lift” mode, only requires 5
  • Quality design pumps complete with a special lowering valve allow controlled rate of descent, and an overload bypass valve. Galvanized Jacks have Galvanized pumps and Stainless Steel Jacks have Stainless pumps
  • The Heavy Duty Jack pump is leak proof with overload capacity
  • New additional foot release pedal provides operation versatility
  • Featuring a reinforced base, the spring-a-matic handle returns to the upright position automatically
  • Control handles have three position (raise/neutral/ lower) fingertip controls which are ergonomically designed and free of pinch points
  • The Heavy Duty Jack is designed for left or right hand operators
  • 200 degree pivot action allows greater maneuverability with 7” polyurethane wheels, sealed bearings and “ball-thrust” steering
  • The Low Profile Jacks have 6” wheels and the Heavy Duty Jacks have an articulating axle which allows for level transport of loads on uneven floors
  • Adjustable push rods allow for individual adjustment capability of either fork height
  • Four additional helper rollers for easy exit and entry of pallets on all but Low Profile and 4 Way Jacks
  • The maintenance free pump features a hard chrome plated lift cylinder & piston, quality polyurethane seals & wipers, and an easy to remove cartridge design
  • A unique Pump Piston Dust Cover prevents damage to the top seal from dust and debris
  • There are grease fittings and bushings at all pivot points for easy maintenance
  • The Heavy Duty Jacks utilize self lubricating high impact bushings and lubrication fittings at all pivot points for improved maintenance capabilities
  • Rugged heavy duty frames of steel, galvanized steel or stainless steel are constructed of one-piece formed channel, offer light weight and strength
  • Heavy Duty Jacks feature reinforced gussets and reinforced bulkhead headers which provide increased strengthened piston seat
  • Reinforced forks provide added strength with tapered ends for easy pallet entry
  • Heavy Duty Jacks feature one piece forks and solid tapered ends for increased strength
  • General Manufacturing
  • Retail
  • General Warehousing
