Product Description
HWXE…The foundation of the CLARK Powrworker® line continues to set the standard for rugged dependability since its introduction as the industry’s first hydraulically powered low-lift in 1920.
Model Numbers: HWXE 30 | HWXE 40

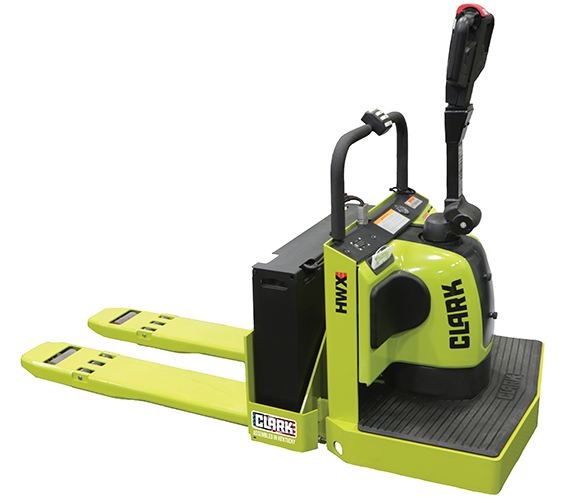

CLARK End-Controlled Rider Pallet Jack
- 6,000 – 8,000 lb. Capacity
- 48”x 27” Forks
- Brushless AC Drive/Control Motor
- Heavy-duty Undercarriage
- Diagnostic Dash Display
Documents
Product Documents
Financing Information
Equipment Details
| Forklift Type | Electric Pallet Jacks & Stackers |
|---|---|
| Brand | CLARK |
| Capacity | 6,000 lbs., 8,000 lbs. |
| Condition | New |
| Fuel Type | Electric/Battery, 24 Volt |
- AC drive motor/control with brushless, sealed design for low maintenance and protection against dust and debris
- Three forms of regenerative braking: Change of direction, accelerator release, tiller up or down
- Rugged frame and forks fabricated from formed steel
- Operator control handles available in twist grip or thumb operated control
- Ample foot room on rider platform with top mounted handle
- Operator control handles are available with either twist grip or thumb operated control
- Toggle switch allows the operator to choose low or high speed range based on the application
- Ample foot room on rider platform with top mounted handle
- AC drive motor and control
- Routine brush changes are eliminated
- No need to pull the motor to turn and undercut the commutator
- Fully enclosed to keep out dust and contaminants
- Wet environments are not an issue
- Better suited for food processing
- Much less likely to burn-out motor during a stall
- Advanced thermal protection prevents heat damage to the motor and control
- Quiet, low maintenance drive unit features spiral bevel gears immersed in an oil bath and sealed in a heavy-duty case
- Hydraulics
- Single assembly system
- Integral pump, motor and reservoir assembly does not require a breather cap eliminating a potential leak site and point where dirt can enter the system
- Brakes
- 3 forms of regenerative braking: Change of direction, accelerator release, tiller up or down
- Frame and Lifting Mechanism
- Adjustable pull rods to maintain proper fork height over the life of the unit
- Constructed from steel bar stock for maximum strength and durability
- Extreme-duty bronze bushings are used at lift linkage pivot points
- Spring-loaded stability casters maintain contact on uneven surfaces
- Three-lug elevation bracket design reduces binding and promotes longer pin and bushing life
- All pivot points are greaseable and feature steel backed bushings
- Frame is fabricated from formed steel plate and bar steel reinforcements for optimum strength and rigidity
- Forks also incorporate formed steel toes plus entry and exit rollers for improved pallet handling
- Entry and exit rollers plus tapered slides improve pallet entry and exit
- Manufacturing
- Warehousing
- Distribution
