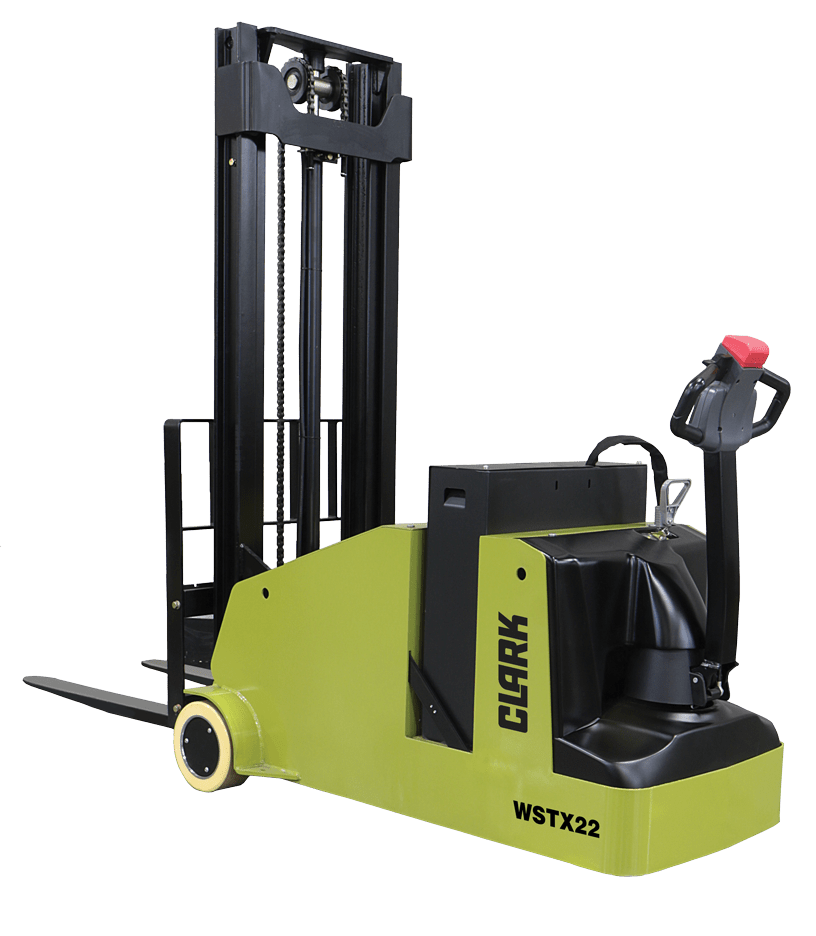

CLARK Counter-Balanced Stacker

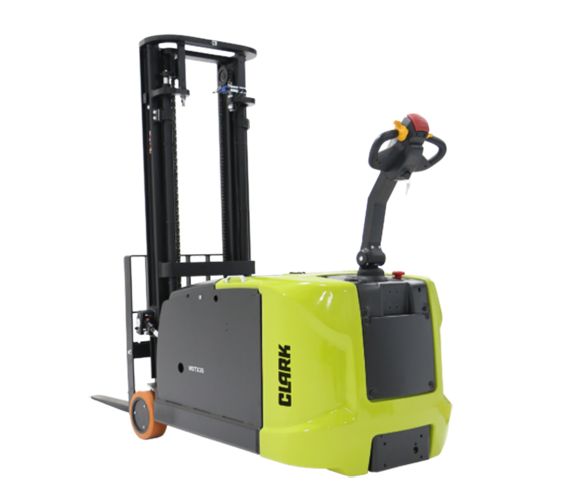

CLARK Counter-Balanced Stacker Studio 1

CLARK Counter-Balanced Stacker

  • 2,200 – 3,300 lb. Capacity
  • Up to 128 in. Lift Height
  • Regenerative Electromagnetic Brake
  • 24-Volt Motor
  • 33 fpm Lift Speed
Request a Quote

Documents

Product Documents

Financing Information

Product Description

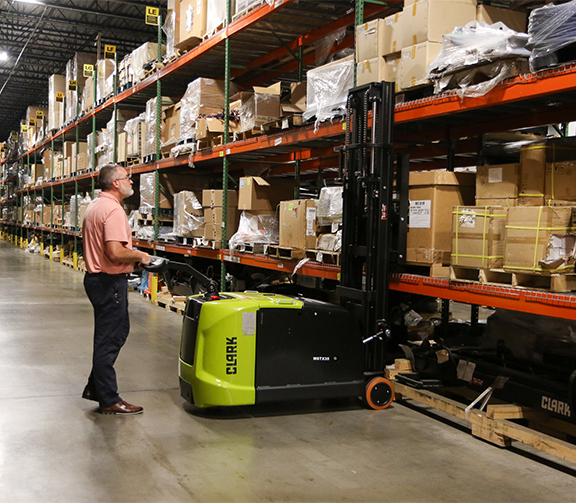

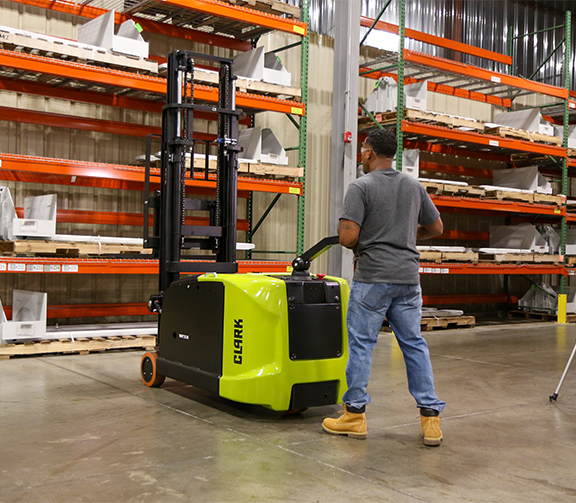

Are your aisles too tight for stacking with a sit-down forklift? Then a CLARK WSTX Counter-Balanced Stacker is just what you need. Featuring a low-maintenance 24 volt AC motor, high visibility mast, and narrow 35.8″ width, these stackers are made for tight spaces – without skimping on power and ease-of-use.

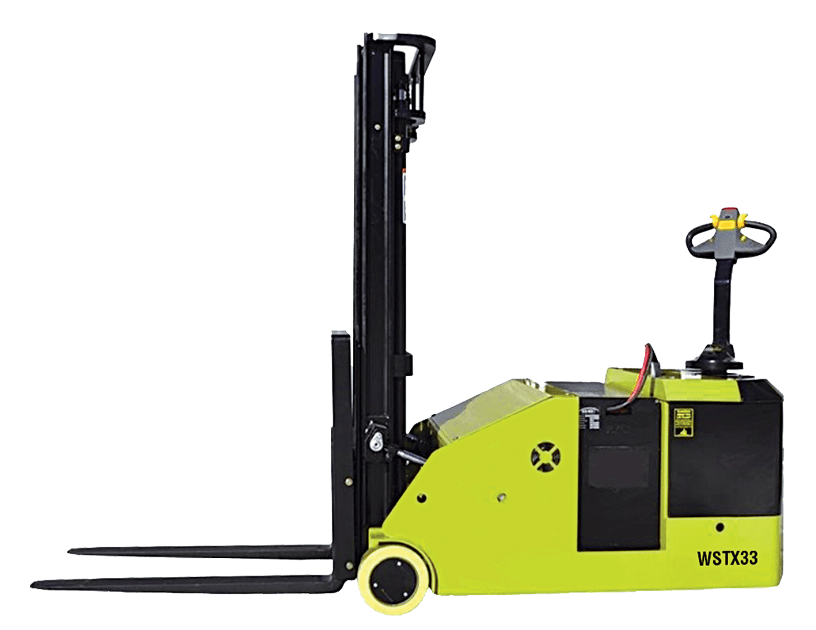

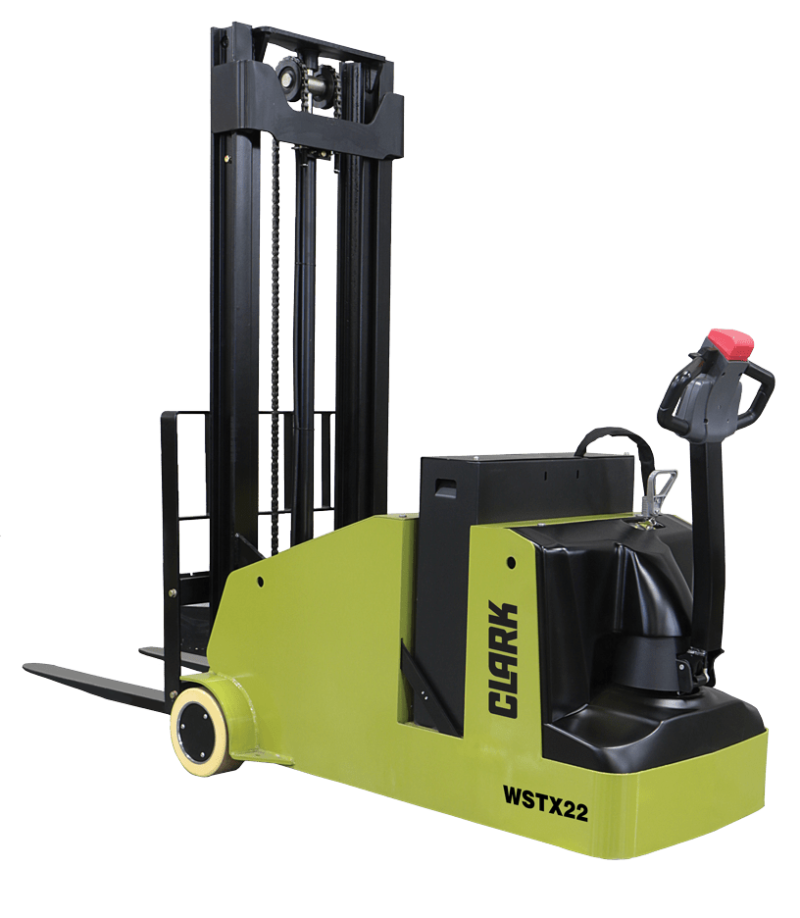

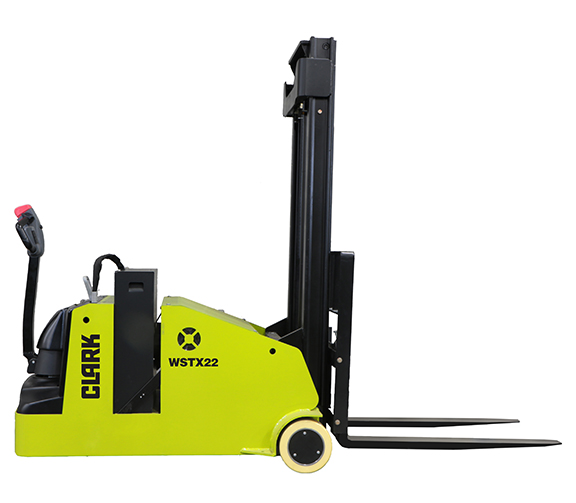

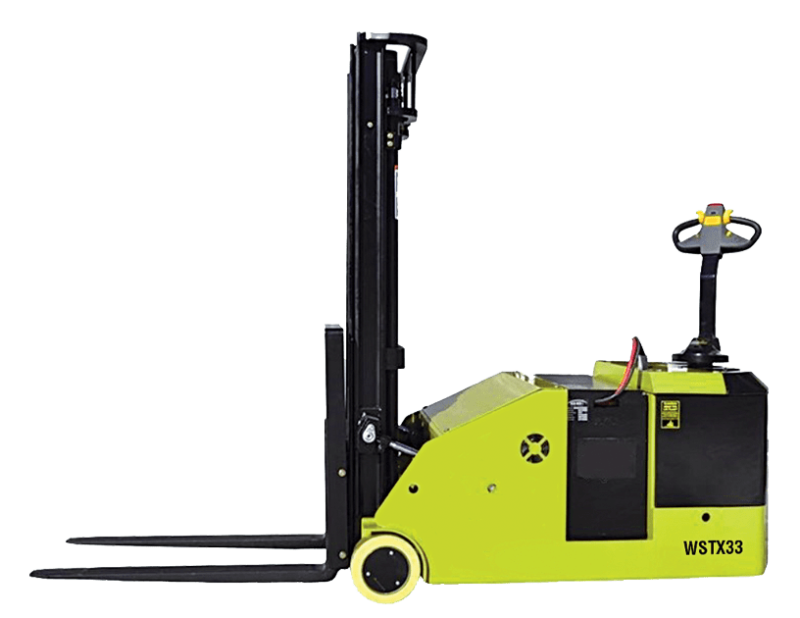

Model Numbers: WSTX22 | WSTX33

Equipment Details

Forklift Type

Electric Pallet Jacks & Stackers
Brand

CLARK
Capacity

2,200 lbs., 3,300 lbs.
Condition

New
Fuel Type

Electric/Battery, 24 Volt
  • AC travel controller and AC drive motor provides high torque throughout the entire drive range
  • Regenerative braking with top-mounted electromagnetic brake offer greater efficiency and control
  • Ergonomic control handle is designed to allow operation with either hand
  • High visibility mast with lift cylinders positioned in outer beam
  • Simple maintenance with removable two-piece power head cover
  • Travel, lift, lower and tilt functions are located in the ergonomic operator handle, designed to allow operation with either hand
  • Wrap around guard, reversing switch, thumb control, and horn are standard
  • 100% AC electric system
    • AC travel controller and AC drive motor provides high torque throughout the entire drive range
    • Travel speed remains constant relative to throttle position regardless of the load on truck
    • Automatic resetting circuit breaker and one-piece micro switch design complete the system
  • Hydraulics
    • Lift cylinder is hard chrome for greater longevity
    • Pump unit includes motor, gear pump, and solenoid
    • Pressure compensated lowering valves regulates lowering speeds
  • Wheels and Brakes
    • Regenerative braking improves efficiency and reduces power consumption
    • Electromagnetic brake is mounted on motor armature shaft multiplying the braking power through the ZF GK20 transmission
    • Brake is applied when control arm is in the vertical or horizontal handle position
    • Travel speed is reduced when forks are above 12” fork height
    • Neutral braking resists roll back on ramps
    • Tapered roller bearings sealed in oil bath
    • Sealed ball bearings in load wheels
  • Transmission
    • Vertically mounted drive motor is direct mounted to gear housing
    • Oil bathed ZF GK10 hypoid bevel gear drive-train transfers power to axle
    • State of the art optimized gear technology supplies advantages such as minimal envelope circle, zero maintenance, low noise level, high efficiency and high performance
  • Frame and Mast
    • Bolt-on high visibility I-beam construction, lift cylinders are positioned in outer I-beam for good operator visibility through mast
    • Dual lifting chains
    • Class two ITA fork carriage with 36” tall load back rest

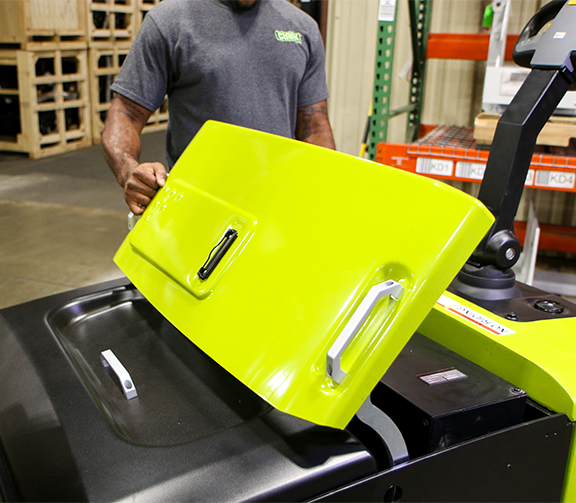

  • Removal of two piece power head cover exposes major components for inspection and maintenance
  • Drive wheel is removed with one nut
