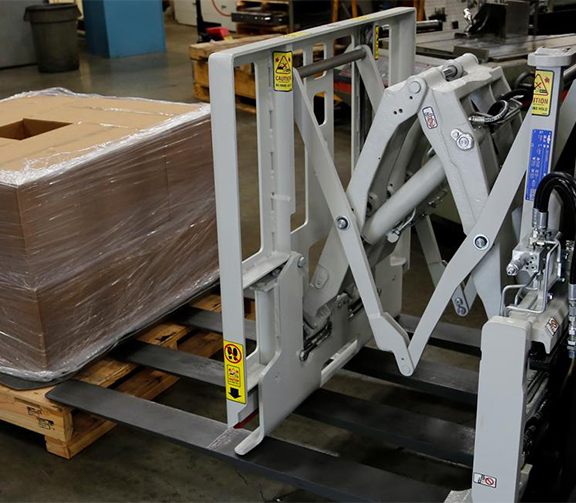

PushPull_Mark55-App1

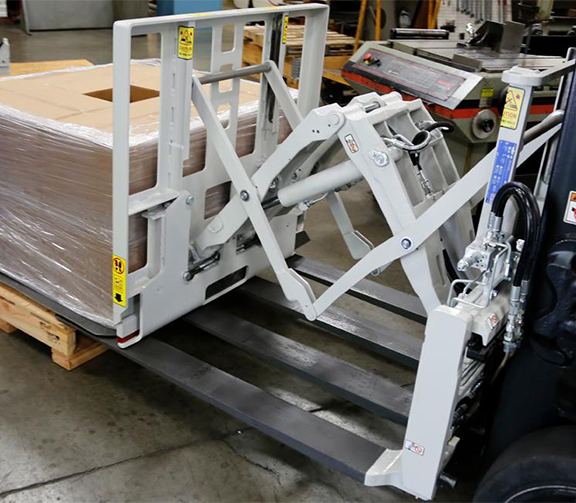

PushPull_Mark55-App2

Cascade Mark 55 Push/Pull

  • 3,500 – 4,500 lb. Capacity
  • II Bolt-On & II Q.D. Mounting Class
  • 28 – 40 in. Outside Platen Spacing
  • 1,145 – 1,205 lb. Attachment Weight
Request a Quote

Documents

Product Documents

Videos

Designed for high-cycle slip sheet applications, the Cascade 35E and 45E Push/Pull attachments deliver rugged, heavy-duty performance. Built to maximize productivity while minimizing maintenance, these attachments are ideal for demanding operations. With a reputation for durability and efficiency, the 35E and 45E models stand out as the top-performing push/pull solutions in the industry.

Model Number: 35E-PHS-A012 | 35E-PHS-A013 | 35E-PHS-Q012 | 35E-PHS-Q013 | 45E-PHS-A012 | 45E-PHS-A013 | 45E-PHS-Q012 | 45E-PHS-Q013 | 35E-PHS-A011 | 35E-PHS-Q011

  • Your choice of either Hydraulic Sequence Valve or Electronic Solenoid Valve configuration for platen adjust
  • Hydraulically adjustable outer platens easily configures Push/Pull for handling both pallets and slipsheets
  • Sideshifting capability standard for precise positioning and increased productivity
  • High visibility pantograph, gripper jaw and faceplate
  • 4° tilting faceplate to easily grab slipsheet tabs when the mast is tilted forward
  • Protected hydraulics ensure maximum longevity of the attachment
  • Your choice of bolt-on or quick disconnect lower hook mounting
  • Equipped with a hydraulic Sequence Valve which eliminates the need to hose reels, solenoid buttons, power cords or cable reels
  • A four-way hydraulic valve with 3rd and 4th function hydraulic hosing is required on the truck
  • The Sideshift and Push/Pull functions are actuated directly by the truck’s 3rd and 4th hydraulic hand levers
  • Sideshifting Push/Pulls sideshift 4″ either side of center.
  • Quick-change hydraulic couplers
  • Hydraulic flow control valve
  • Optional faceplate sizes
  • Optional platen sizes
  • Optional platen positions
  • Faceplate stop group
  • Truck-mounted solenoid adaption group
  • Hydraulic load cushion
  • Class III mounting (45E only)
  • Food & Beverage
  • Consumer Goods
  • Warehousing & Logistics
  • Agriculture
  • Manufacturing
