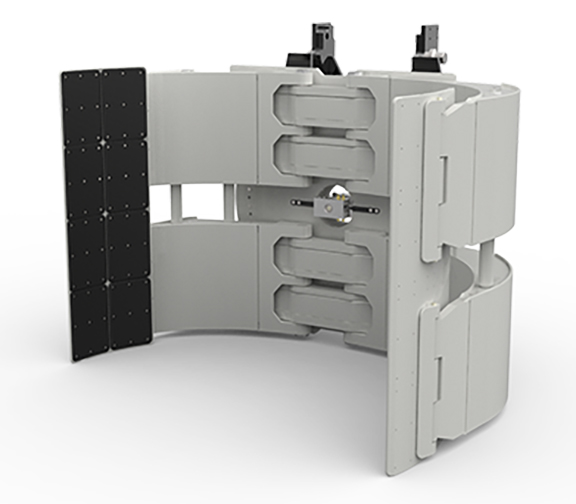

Cascade 70H-120H Paper Roll Clamps

  • 19,000 – 26,400 lb. Capacity
  • ITA, Class V, Pin type, Integral, Modified bolt-on/integral Mounting
  • 33 – 105 in. Roll Range
  • Fixed Short Arm and Positioned Short Arm
Request a Quote

Documents

Product Documents

Videos

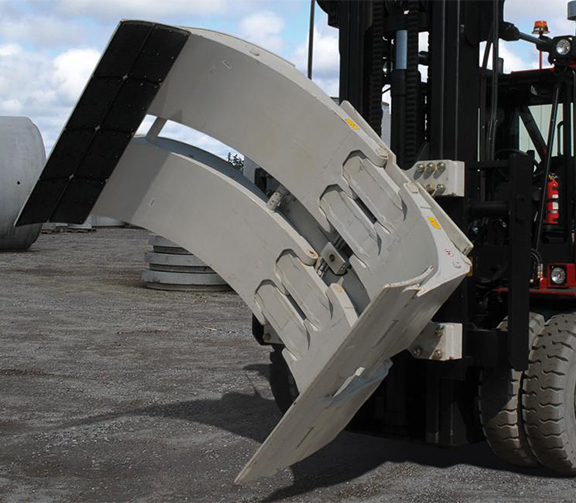

The Cascade 70H-120H Paper Roll Clamps are engineered for the most demanding applications, including concrete pipe handling and heavy paper roll operations. With a robust design capable of lifting extremely heavy loads, these clamps provide a metric rating of 7 to 12 tons, replacing the previous imperial F model numbers.

Built for strength and durability, the 70H-120H Pivot Arm Roll Clamps deliver reliable performance in high-intensity environments, ensuring safe and efficient handling of massive loads.

Model Number: 120H-RCF-01H | 120H-RCF-01C | 120H-RCF-03H | 120H-RCF-03C | 120H-RCP-01H | 120H-RCP-01C | 120H-RCP-03H | 120H-RCP-03C

  • Heavy duty arm & frame structure modeled after proven roll clamp design
  • Dual rotator drive boxes
  • Heavy duty 220D & 400D rotators depending on model
  • Thin-frame profile increases truck capacity
  • Protected hydraulics
  • Easy to service cylinders in standard sizes
  • Continuous 360° rotation
  • AFC (Adaptive Force Control) for automatic control of clamping pressure that changes as load weight changes (includes Load Cushion™)
  • Tilt Control automatically controls the angle of the mast and pad, aligning the pad with the roll and eliminating expensive product damage
  • 180° hydraulic stop group
  • Load Cushion™—hoist system accumulator that absorbs shocks, reducing the clamp force required to handle the load
  • Electrical Pressure relief system allowing driver to change pressure relief settings electronically from the cab
  • Paper Mills
  • Warehousing
  • Printing & Publishing
  • Converters
  • Packaging
