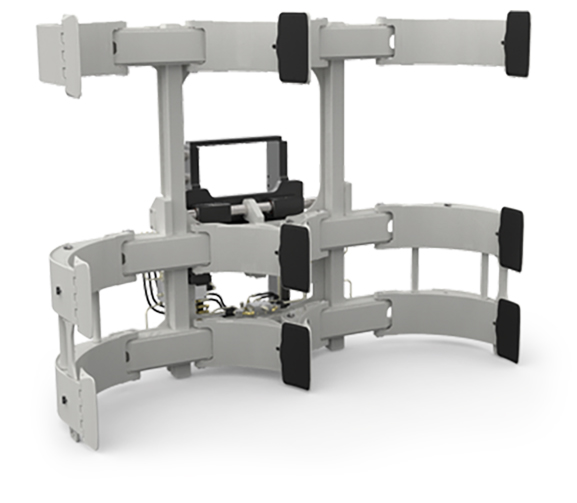

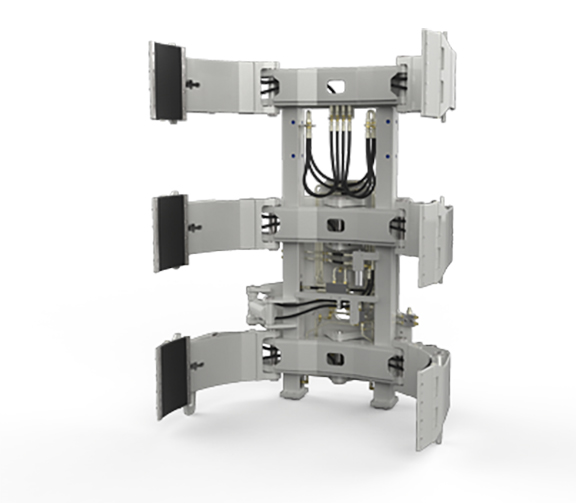

Cascade 1 & 2 Stack Tower Clamps

  • 9,900 – 26,400 lb. Capacity
  • IV, V and Pin Mounting Class
  • 32 – 71 in. Roll Range
  • 30 – 43.5 in. Arm Length
Request a Quote

Documents

Product Documents

Videos

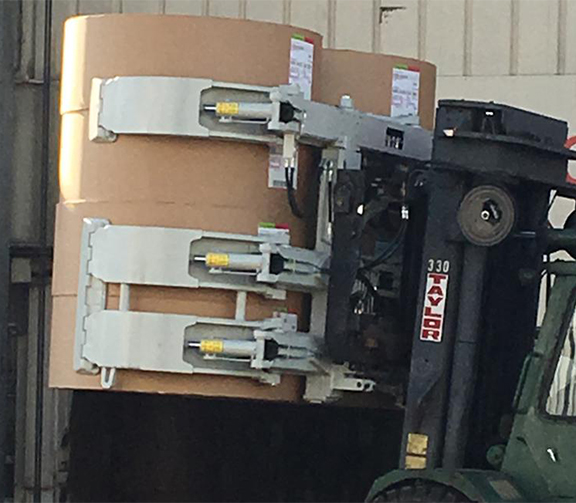

Cascade’s Single & Double Tower Clamps are purpose-built for high-cycle operations in mills and stevedoring environments where handling multiple paper rolls boosts productivity. Engineered for demanding applications, these versatile clamps can manage between two and eight rolls, ensuring efficiency and reliability. Application-rated and field-proven, they deliver exceptional performance in heavy-duty paper handling tasks, making them a trusted choice for improving workflow and operational efficiency.

Model Number: 100F-TCS-05 | 110F-TCS-06 | 130F-TCS-07 | 190F-TCD-05 | 220F-TCD-06 | 260F-TCD-07

  • High-strength tubular frame construction
  • Hoses routed inside for maximum protection
  • Vertical mounting frames located in front of mast rails for unparalleled visibility
  • High-grip contact pad surfaces for reduced clamp force requirements
  • Split arms for variations of roll diameters
  • Lube-free pivot bushings provide longer service life
  • Articulating center arm eliminates nip point damage
  • Check valves and cylinders can be serviced without clamp disassembly
  • Tilt Control: Automatically controls the angle of the most and attachment, aligning pad with the load
  • Load Cushion: Hoist System Accumulator that absorbs shock and reduces the clamp force required to handle the load. Available in one-pint and one quart sizes
  • Automatic Force Control Products: Computer-based clamping systems that automatically control the clamp force in proportion to the load weight
  • Clamp Open Guard: Automatically prevents the roll from being unclamped while it’s lifted. Only when the roll has been set down on the ground of another roll does Clamp Open Guard allow the roll to be unclamped
  • Various contact pad surfaces and sizes
  • Pad protectors
  • Leg stands
  • Integral mounting
  • Integral sideshifting
  • Independent arm control
  • Various frame heights and pad gaps

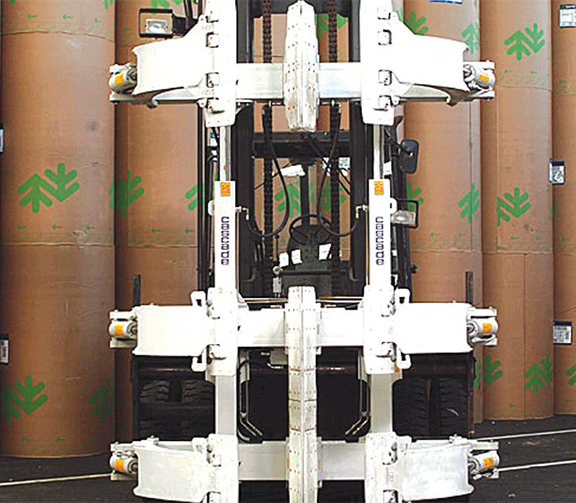

  • Pulp & Paper

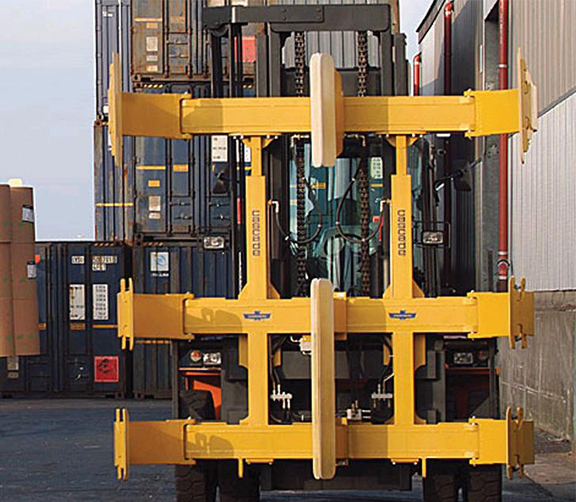

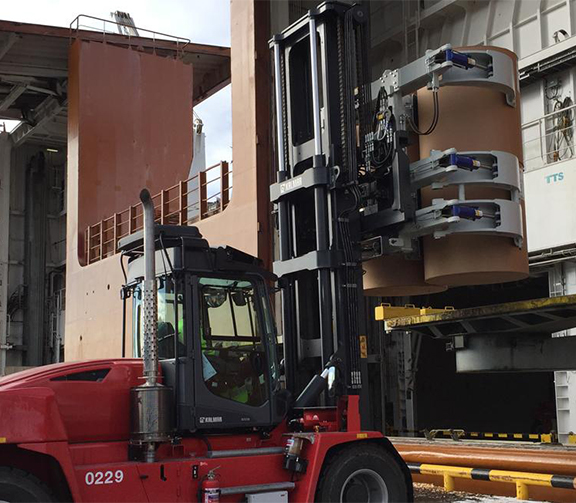

  • Port & Harbor
