Looking for a list of all CLARK forklift models?
Then you’re in the right place.
Because we’ve put together the complete list – over 80 CLARK forklift models (including old models)!
Besides the actual models, you’ll also learn key information about each, like:
- Lifting capacities
- Fuel types
- Applications
- Key features, advantages, and benefits
Let’s dive in!
All 84 CLARK Forklift Models
| Make | Model | Description | Capacity (lbs) | Fuel Type | Tire Type |
|---|---|---|---|---|---|
| CLARK | C15 | Sit-down counterbalance | 3,000 | LPG | Pneumatic |
| CLARK | C15C | Sit-down counterbalance | 3,000 | LPG | Cushion |
| CLARK | C18 | Sit-down counterbalance | 3,500 | LPG | Pneumatic |
| CLARK | C18C | Sit-down counterbalance | 3,500 | LPG | Cushion |
| CLARK | C20s | Sit-down counterbalance | 4,000 | LPG | Pneumatic |
| CLARK | C20sC | Sit-down counterbalance | 4,000 | LPG | Cushion |
| CLARK | C500-25 | Sit-down counterbalance | 5,000 | Internal Combustion | Cushion |
| CLARK | C500-30 | Sit-down counterbalance | 3,000 | Internal Combustion | Cushion |
| CLARK | C500-45 | Sit-down counterbalance | 4,500 | Internal Combustion | Cushion |
| CLARK | GTS20 | Sit-down counterbalance (4-wheel) | 4,000 | LPG | Pneumatic |
| CLARK | S20 | Sit-down counterbalance | 4,000 | LPG or diesel | Pneumatic |
| CLARK | GTS25 | Sit-down counterbalance (4-wheel) | 5,000 | LPG | Pneumatic |
| CLARK | S25 | Sit-down counterbalance | 5,000 | LPG or diesel | Pneumatic |
| CLARK | CGC25 | Sit-down counterbalance | 5,000 | Internal Combustion | Cushion |
| CLARK | CGC40 | Sit-down counterbalance | 8,000 | LPG | Cushion |
| CLARK | CGC50 | Sit-down counterbalance | 10,000 | LPG | Cushion |
| CLARK | CGC55 | Sit-down counterbalance | 11,000 | LPG | Cushion |
| CLARK | CGC60 | Sit-down counterbalance | 13,500 | LPG | Cushion |
| CLARK | CGC70 | Sit-down counterbalance | 15,500 | LPG | Cushion |
| CLARK | ECX20 | Stand-up rider | 4,000 | Electric (36 or 48-volt) | Cushion |
| CLARK | ECX25 | Stand-up rider | 5,000 | Electric (36 or 48-volt) | Cushion |

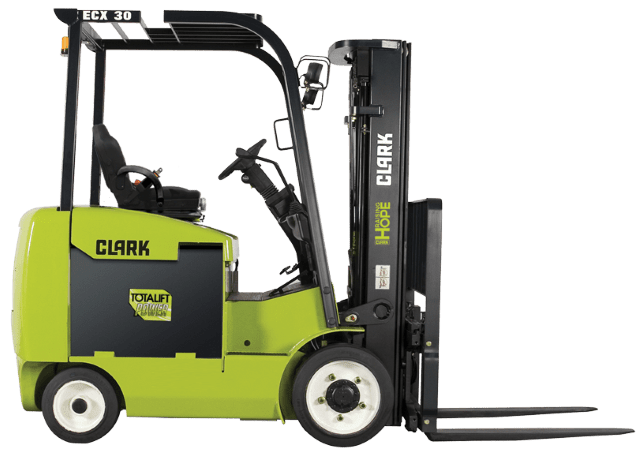

| CLARK | ECX30 | Stand-up rider | 6,000 | Electric (36 or 48-volt) | Cushion |
| CLARK | ECX32 | Stand-up rider | 6,500 | Electric (36 or 48-volt) | Cushion |
| CLARK | ESX12 | Stand-up rider | 2,500 | Electric (36 or 48-volt) | Cushion/pneumatic |
| CLARK | ESX15 | Stand-up rider | 3,000 | Electric (36 or 48-volt) | Cushion/pneumatic |
| CLARK | ESX15s | Stand-up rider | 3,000 | Electric (36 or 48-volt) | Cushion/pneumatic |
| CLARK | ESX17 | Stand-up rider | 3,500 | Electric (36 or 48-volt) | Cushion/pneumatic |
| CLARK | ESX20 | Stand-up rider | 4,000 | Electric (36 or 48-volt) | Cushion/pneumatic |
| CLARK | ESX22 | Stand-up rider | 4,500 | Electric (36 or 48-volt) | Cushion |

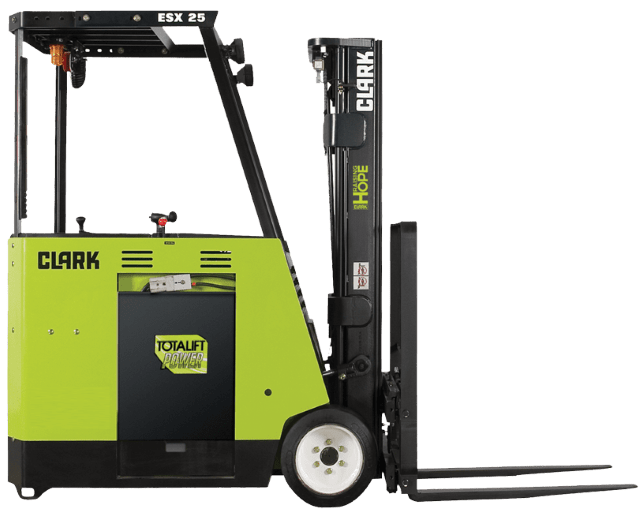

| CLARK | ESX25 | Stand-up rider | 5,000 | Electric (36 or 48-volt) | Cushion |
| CLARK | GCS15 | Sit-down counterbalance | 3,000 | Internal Combustion | Cushion |

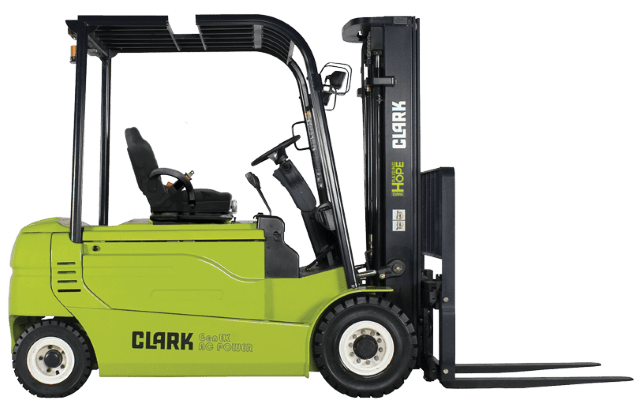

| CLARK | GEX20 | Sit-down counterbalance (4-wheel) | 4,000 | Electric (80-volt) | Solid Pneumatic |
| CLARK | GEX25 | Sit-down counterbalance (4-wheel) | 5,000 | Electric (80-volt) | Solid Pneumatic |
| CLARK | GEX30 | Sit-down counterbalance (4-wheel) | 6,000 | Electric (80-volt) | Solid Pneumatic |
| CLARK | GEX30s | Sit-down counterbalance (4-wheel) | 6,000 | Electric (80-volt) | Solid Pneumatic |
| CLARK | GEX32 | Sit-down counterbalance (4-wheel) | 6,500 | Electric (80-volt) | Solid Pneumatic |

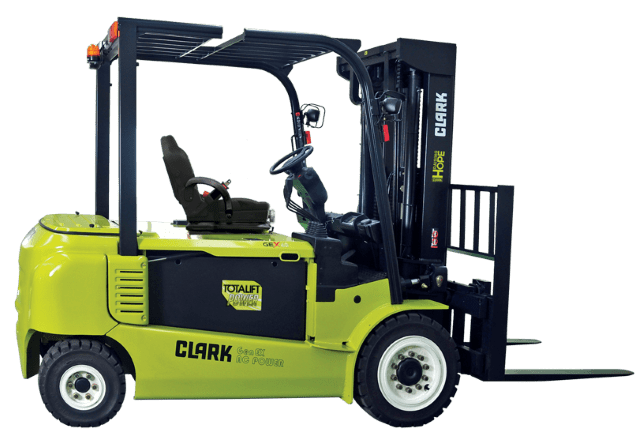

| CLARK | GEX40 | Sit-down counterbalance (4-wheel) | 8,000 | Electric (80-volt) | Solid Pneumatic |
| CLARK | GEX45 | Sit-down counterbalance (4-wheel) | 9,000 | Electric (80-volt) | Solid Pneumatic |
| CLARK | GEX50 | Sit-down counterbalance (4-wheel) | 10,000 | Electric (80-volt) | Solid Pneumatic |

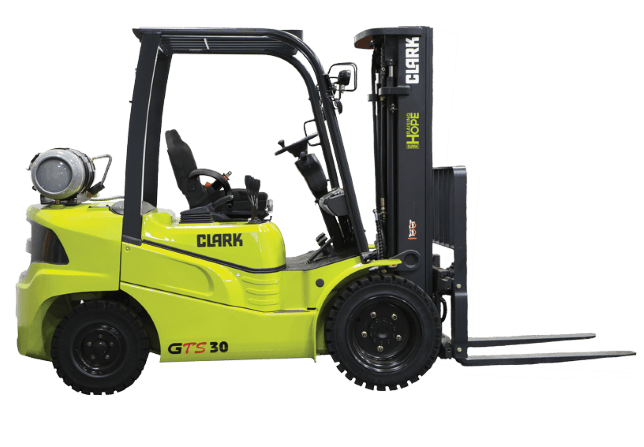

| CLARK | GTS30 | Sit-down counterbalance (4-wheel) | 6,000 | LPG | Pneumatic |
| CLARK | S30 | Sit-down counterbalance | 6,000 | LPG or diesel | Pneumatic |
| CLARK | GTS33 | Sit-down counterbalance (4-wheel) | 6,600 | LPG | Pneumatic |
| CLARK | S35 | Sit-down counterbalance | 7,000 | LPG or diesel | Pneumatic |

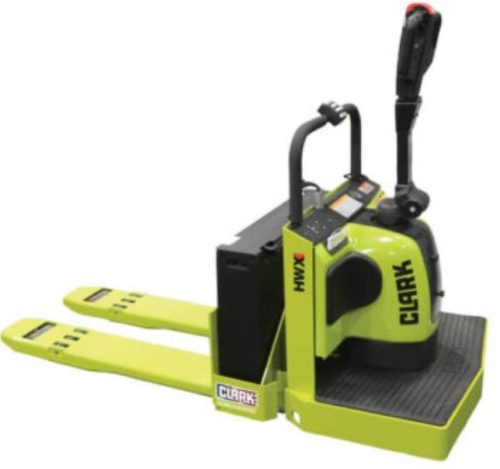

| CLARK | HWXE30 | Walkie/rider pallet truck | 6,000 | Electric (24-volt) | Rubber/urethane |
| CLARK | HWXE40 | Walkie/rider pallet truck | 8,000 | Electric (24-volt) | Rubber/urethane |
| CLARK | NPX15D | Reach truck | 3,000 | Electric (24 or 36-volt) | Solid |
| CLARK | NPX17 | Reach truck | 3,500 | Electric (24 or 36-volt) | Solid |

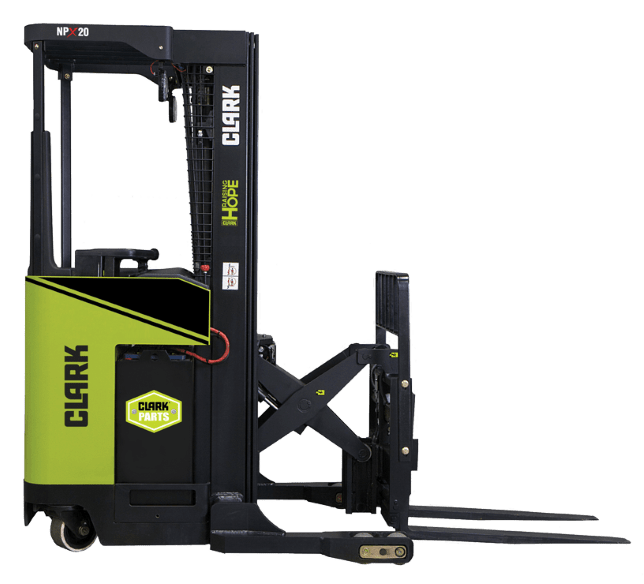

| CLARK | NPX20 | Reach truck | 4,000 | Electric (24 or 36-volt) | Solid |
| CLARK | NPX22 | Reach truck | 4,500 | Electric (24 or 36-volt) | Solid |

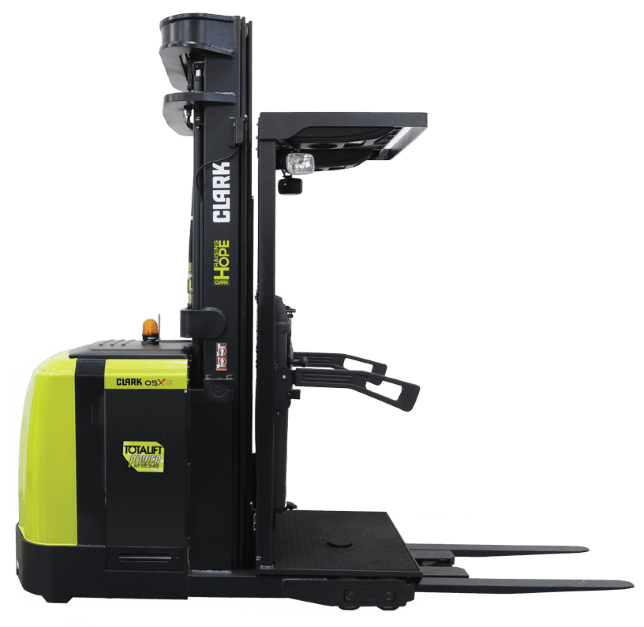

| CLARK | OSX15 | Order picker | 3,000 | Electric (24 or 36-volt) | Polyurethane |

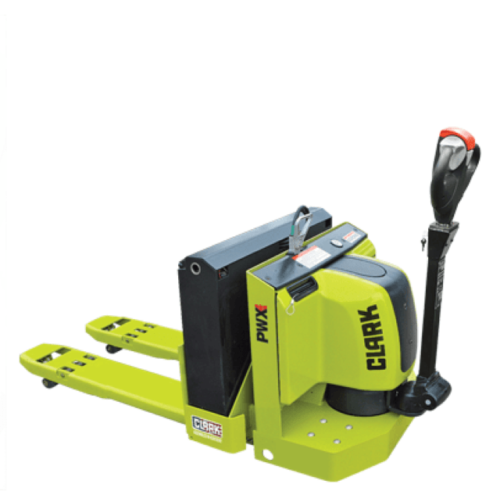

| CLARK | PWXE30 | Walkie pallet truck | 6,000 | Electric (24-volt) | Rubber/urethane |
| CLARK | PWXE40 | Walkie pallet truck | 8,000 | Electric (24-volt) | Rubber/urethane |
| CLARK | S40 | Sit-down counterbalance | 8,000 | LPG or diesel | Pneumatic |
| CLARK | S20C | Sit-down counterbalance | 4,000 | LPG | Cushion |
| CLARK | S45 | Sit-down counterbalance | 9,000 | LPG or diesel | Pneumatic |
| CLARK | S25C | Sit-down counterbalance | 5,000 | LPG | Cushion |
| CLARK | S50 | Sit-down counterbalance | 10,000 | LPG or diesel | Pneumatic |
| CLARK | S30C | Sit-down counterbalance | 6,000 | LPG | Cushion |
| CLARK | S32C | Sit-down counterbalance | 7,000 | LPG | Cushion |
| CLARK | S55 | Sit-down counterbalance | 11,000 | LPG or diesel | Pneumatic |
| CLARK | S60 | Sit-down counterbalance | 12,000 | LPG or diesel | Pneumatic |

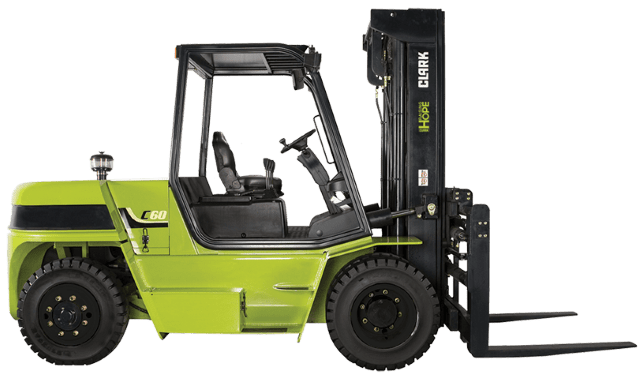

| CLARK | C60 | Sit-down counterbalance | 13,500 | LPG or diesel | Pneumatic |
| CLARK | C70 | Sit-down counterbalance | 15,500 | LPG or diesel | Pneumatic |
| CLARK | C75 | Sit-down counterbalance | 16,500 | LPG or diesel | Pneumatic |
| CLARK | C80 | Sit-down counterbalance | 18,000 | LPG or diesel | Pneumatic |
| CLARK | SE15T | Sit-down counterbalance (3-wheel) | 3,000 | Electric (36 or 48-volt) | Superelastic |
| CLARK | SE17T | Sit-down counterbalance (3-wheel) | 3,500 | Electric (36 or 48-volt) | Superelastic |

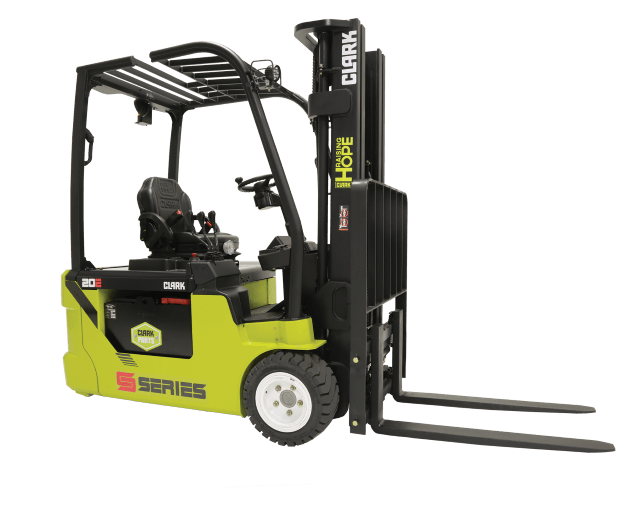

| CLARK | SE20T | Sit-down counterbalance (3-wheel) | 4,000 | Electric (36 or 48-volt) | Superelastic |
| CLARK | SE25T | Sit-down counterbalance (3-wheel) | 5,000 | Electric (36 or 48-volt) | Cushion |
| CLARK | SSX12 | Walkie stacker | 2,500 | Electric (24-volt) | Poly/urethane |
| CLARK | SSX16 | Walkie stacker | 3,500 | Electric (24-volt) | Poly/urethane |

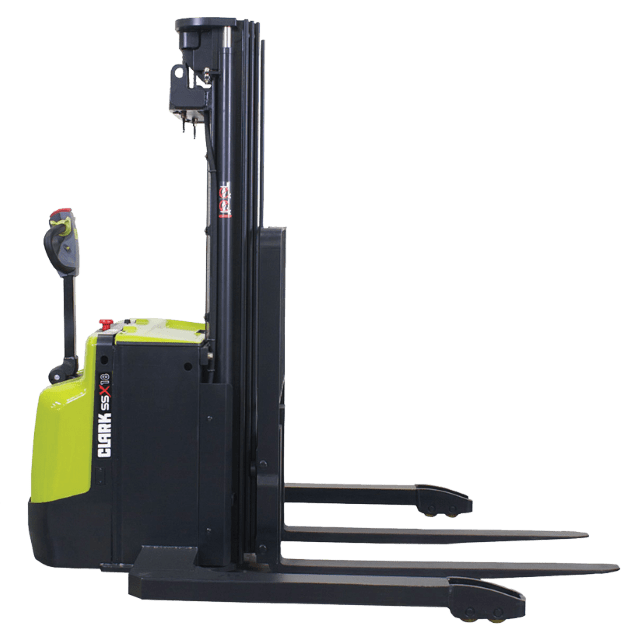

| CLARK | SSX18 | Walkie stacker | 4,000 | Electric (24-volt) | Poly/urethane |
| CLARK | TMX15S | Sit-down counterbalance (3-wheel) | 3,000 | Electric (36 or 48-volt) | Cushion |
| CLARK | TMX20 | Sit-down counterbalance (3-wheel) | 4,000 | Electric (36 or 48-volt) | Cushion |

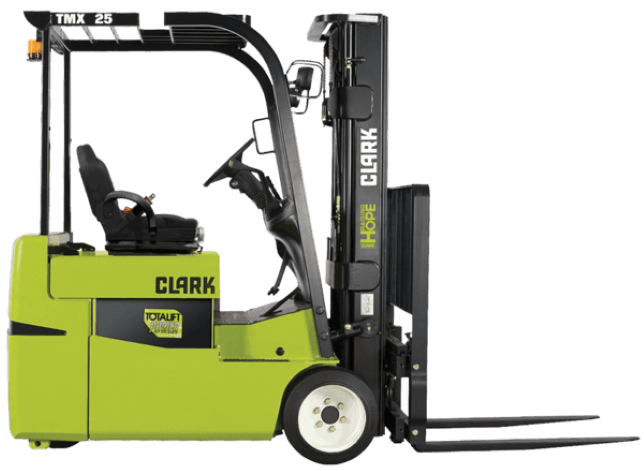

| CLARK | TMX25 | Sit-down counterbalance (3-wheel) | 5,000 | Electric (36 or 48-volt) | Cushion |

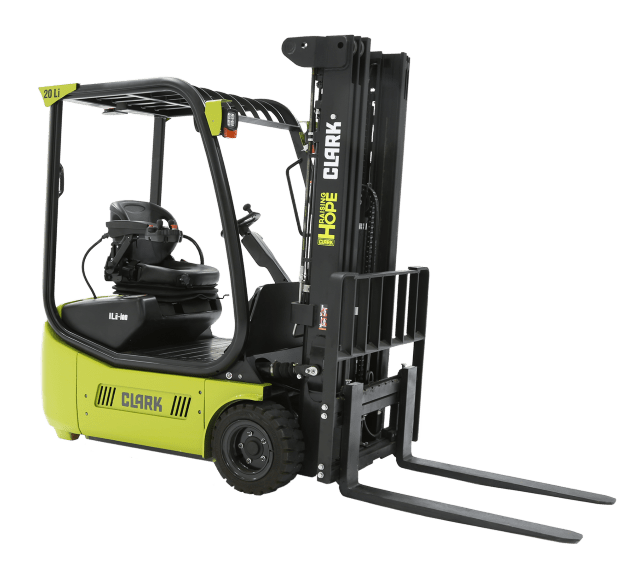

| CLARK | TWLi20 | Sit-down counterbalance (3-wheel) | 4,000 | Electric (48-volt) | Superelastic |

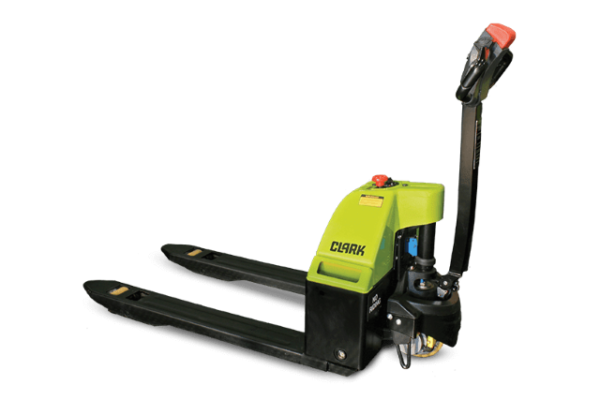

| CLARK | WP30 | Walkie pallet truck | 3,000 | Electric (24-volt) | Polyurethane |

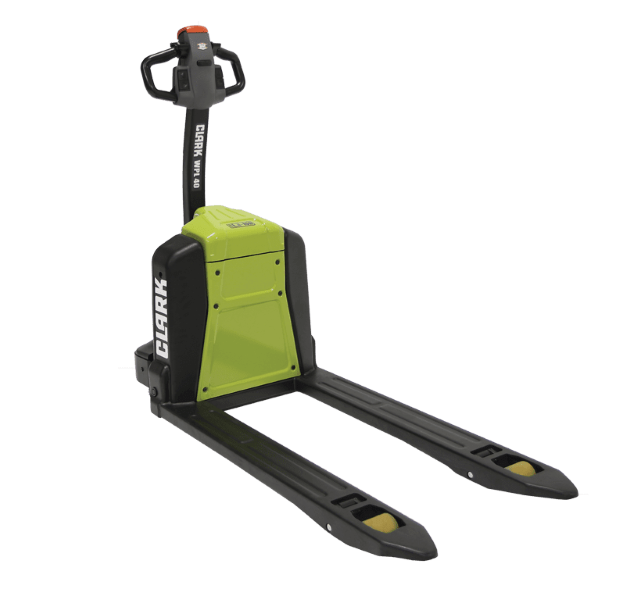

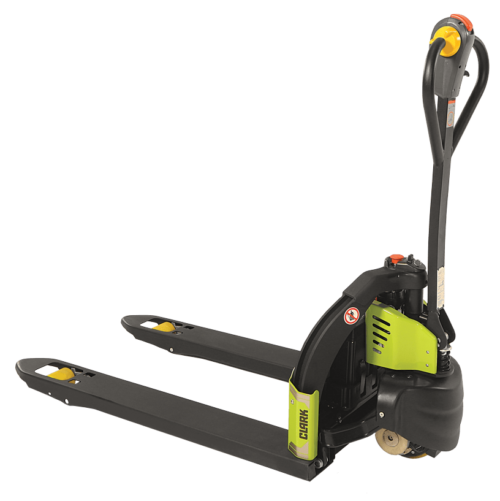

| CLARK | WPL25 | Walkie pallet truck | 2,500 | Electric (24-volt) | Polyurethane |
| CLARK | WPL40 | Walkie pallet truck | 4,000 | Electric (24-volt) | Polyurethane |

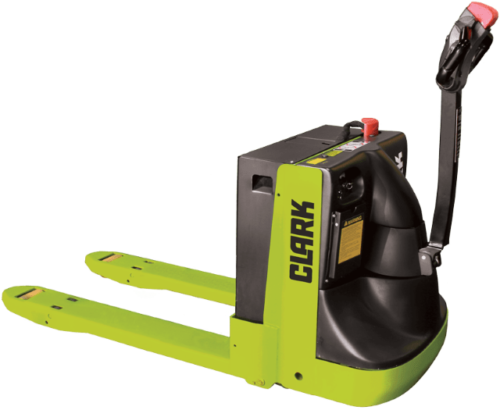

| CLARK | WPX45 | Walkie pallet truck | 4,500 | Electric (24-volt) | Polyurethane |

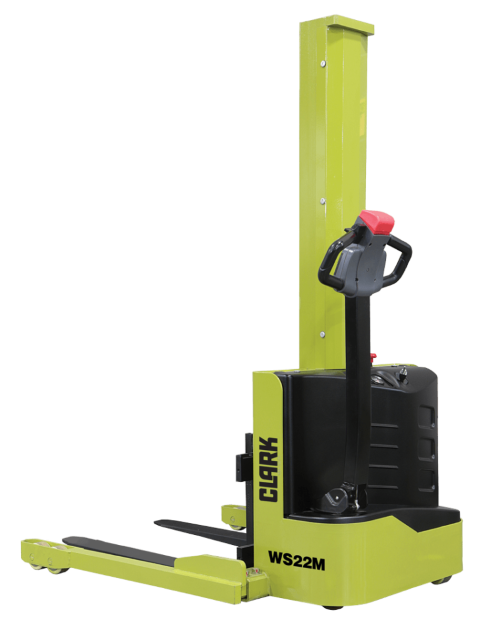

| CLARK | WS22M | Walkie stacker | 2,200 | Electric (24-volt) | Polyurethane |

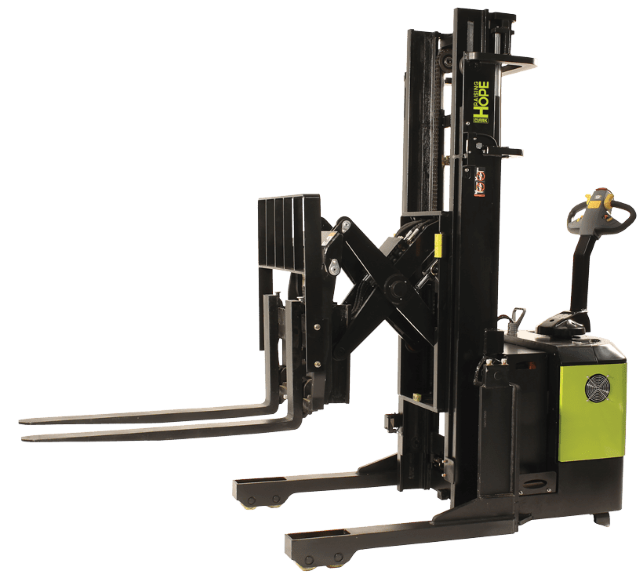

| CLARK | WSRX30 | Walkie reach stacker | 3,000 | Electric (24-volt) | Poly/urethane |

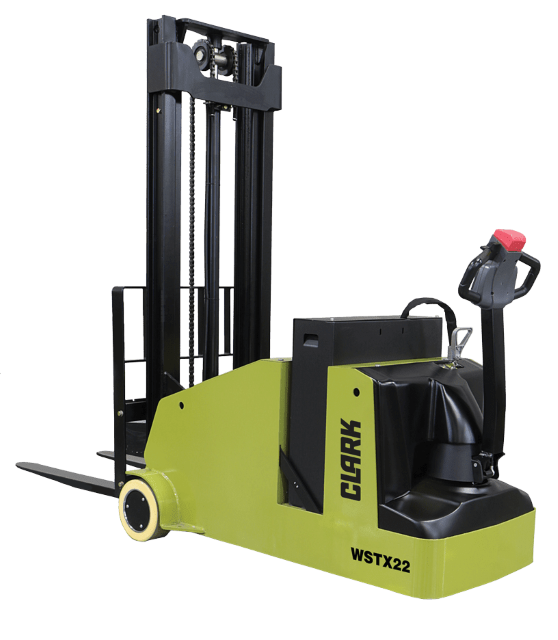

| CLARK | WSTX22 | Walkie stacker (counterbalance) | 2,200 | Electric (24-volt) | Polyurethane |
| CLARK | WSTX33 | Walkie stacker (counterbalance) | 3,300 | Electric (24-volt) | Polyurethane |
CLARK Forklift Models: Internal Combustion (Cushion Tire)
CLARK C-Series Forklift Models [Small-Capacity]
The CLARK C-Series forklifts include models C15C/C18C/C20sC. These internal combustion, cushion-tire lift trucks have the following specifications:
Lifting Capacities
- CLARK C15C: 3,000 lbs. (1,500 kg)
- CLARK C18C: 3,500 lbs. (1,800 kg)
- CLARK C20sC: 4,000 lbs. (2,000 kg)
Applications
- Manufacturing
- Warehousing
- Beverage/bottling
- Trucking
- Recycling
Key Features
- EPA-compliant PSI Tier-4 2.0L liquified petroleum gas (LPG) engine with single-speed Power Shift transmission
- Small footprint for use in tight spaces
- High-capacity cooling system for longer, cooler operation

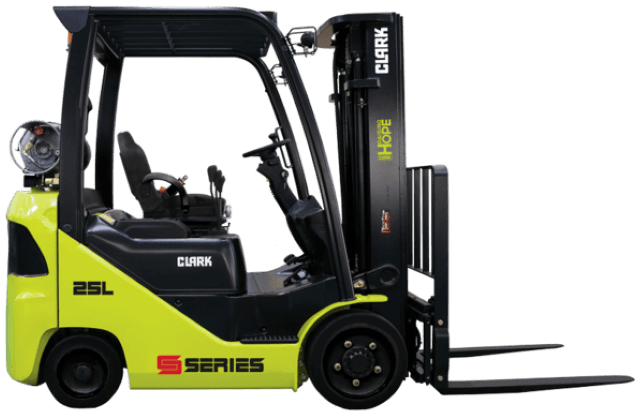

CLARK S-Series Forklift Models [Small Capacity]
The CLARK S-Series forklifts include models S20, S25, S30, and S32C. These internal combustion, cushion-tire lift trucks (which are assembled in Kentucky) have the following specifications:
Lifting Capacities
- CLARK S20C: 4,000 lbs. (2,000kg)
- CLARK S25C: 5,000 lbs. (2,500 kg)
- CLARK S30C: 6,000 lbs. (3,000 kg)
- CLARKS 32C: 6,500 lbs. (3,200 kg)
Applications
- Warehousing
- Manufacturing
- Building materials handling
Key Features
- EPA-compliant Ford 2.5L liquified petroleum gas (LPG) balanced engine
- Standard, triple, hi-lo, and quad uprights
- Two-pedal inch-brake system with force-cooled wet disc brakes and an automatically-applied parking brake
- Single-speed transmission and speed limiter
CLARK CGC-Series Forklift Models [Medium-Capacity]
The CLARK CGC-Series forklifts include models CGC40, CGC50, and CGC55. These internal combustion, cushion-tire lift trucks have the following specifications:
Lifting Capacities
- CLARK CGC40: 8,000 lbs. (4,000 kg)
- CLARK CGC50: 10,000 lbs. (4,500 kg)
- CLARK CGC55: 12,000 lbs. (5,500 kg)
Applications
- General warehousing and distribution
- Manufacturing
- Processing mills
- Machinery movers
- Paper roll handling
Key Features
- 4.3L PSI: 4X liquified petroleum gas (LPG) engine built for quiet operation (with an auto shut-down feature)
- Load-sensing flow control valve for steering reduces heat build-up for more reliable braking
- Steering axle with a “Double Shear” can withstand impacts without loosening or breaking
- Fully adjustable, full suspension seat is contoured for support with a non-cinching, retractable seat

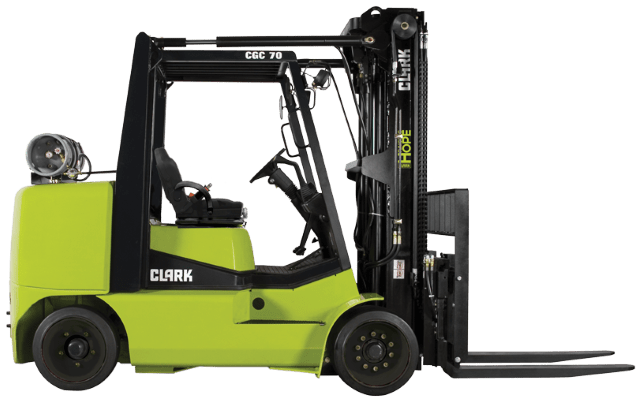

CLARK CGC-Series Forklift Models [High-Capacity]
The high-capacity CLARK CGC-Series forklifts include models CGC60 and CGC70. These internal combustion, cushion-tire lift trucks have the following specifications:
Lifting Capacities
- CLARK CGC60: 13,500 lbs. (6,000 kg)
- CLARK CGC70: 15,500 lbs. (7,000 kg)
Applications
- General warehousing
- Manufacturing
- Processing mills
- Machinery movers
- Paper roll handling
Key Features
- 4.3L V6 GM liquified petroleum gas (LPG) engine features simple diagnosis using automotive-style malfunction lights and fault codes
- One-piece frame, with tilt cylinders anchored to the frame and heavy-duty, welded & formed steel plates that protect from impact damage and extend the life of the truck.
- Fully adjustable, full suspension seat with non-cinching, retractable seat belt: tilt steering column adjusts to suit operator
- High-visibility nested I-channel mast allows space for cylinders, hoses, and chains
CLARK Forklift Models: Internal Combustion (Pneumatic Tire)
CLARK C-Series Forklift Models [Small Capacity]

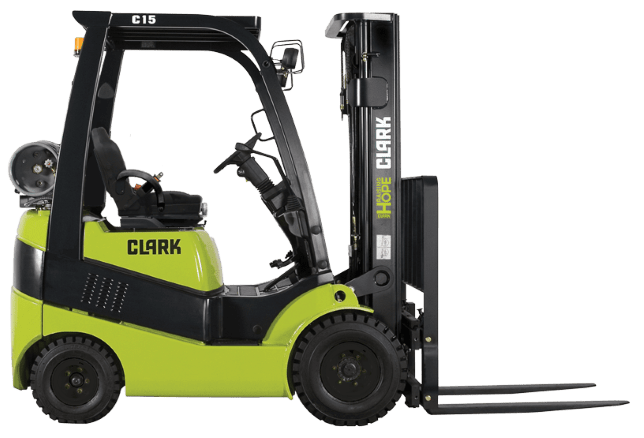

CLARK’s C-Series forklifts include models C15, C18, and C20s. These internal combustion, pneumatic-tire lift trucks have the following specifications:
Lifting Capacities
- CLARK C15 GEN2: 3,000 lbs. (1,500 kg)
- CLARK C18 GEN2: 3,500 lbs. (1,800 kg)
- CLARK C20s GEN2: 4,000 lbs. (2,000 kg)
Applications
- Warehousing
- Manufacturing
- Recycling
- Beverage/bottling
- Trucking
Key Features
- Hyundai theta liquified petroleum gas (LPG) engine with 52 HP and 114 ft. lbs. of torque @ 1,500 rpm, for superior performance
- Error-proof braking system: The foot-applied brake can be released by hand or foot, and the horn sounds if the brake is not set after 3 seconds.
- Provides optimum performance of attachments by enabling the valve to incorporate adjustable flow controls for tilt and auxiliary functions.
- Integral hydraulic sump with a remote breather provides cooling for the truck’s hydraulics in tough applications.
CLARK S-Series Forklift Models [Small Capacity]

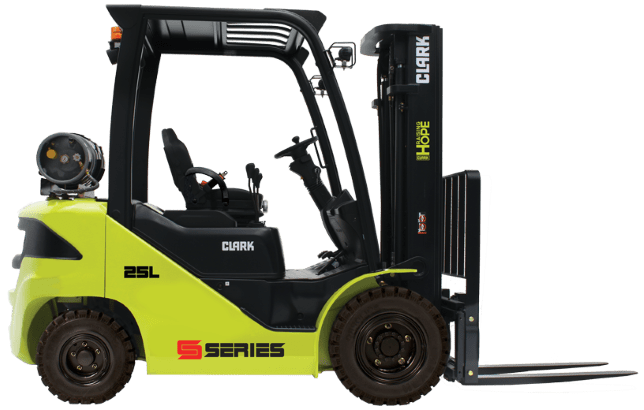

CLARK’s S-series forklifts include models S20, S25, S30, and S35. These internal combustion, pneumatic-tire lift trucks (which are assembled in Kentucky) have the following specifications:
Lifting Capacities
- CLARK S20: 4,000 lbs. (1,814 kg)
- CLARK S25: 5,000 lbs. (2,267 kg)
- CLARK S30: 6,000 lbs. (2,721 kg)
- CLARK S35: 7,000 lbs. (3,175 kg)
Applications
- Warehousing
- Manufacturing
- Building materials handling
Key Features
- Ford 2.5L LPG Tier-4 balanced engine, 4-cylinder dual overhead cam design, or ISUZU 4LE2X 2.2L diesel Tier-4 turbo-charged engines available
- Liquified petroleum gas (LPG), dual fuel (gasoline/LPG), or diesel fuel sources
- Built-in reporting of truck and operator performance via optional telemetry.
- Safety features: increased visibility, automatically applied parking brake, high-visibility orange seat belt, speed limit control, and an optional rear-view camera.
CLARK S-Series Forklift Models [Medium-Capacity]

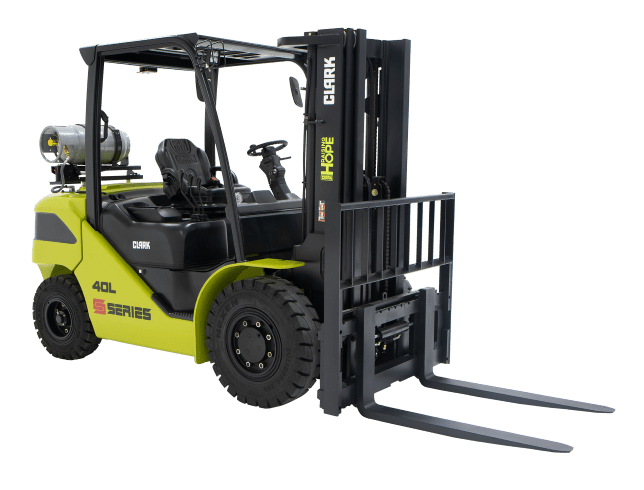

CLARK’s S-series forklifts include models S40, S45, S50, S55, and S60. These internal combustion, pneumatic-tire lift trucks have the following specifications:
Lifting Capacities
- CLARK S40: 8,000 lbs. (3,628 kg)
- CLARK S45: 9,000 lbs. (4,082 kg)
- CLARK S50: 10,000 lbs. (4,535 kg)
- CLARK S55: 11,000 lbs. (4,989 kg)
- CLARK S60: 12,000 lbs. (5,543 kg)
Applications
- Building materials handling
- Manufacturing
- Warehousing
Key Features
- Kubota WG3800 liquified petroleum gas (LPG) or Tier-4 Final/Kubota V3800 diesel engines available
- Two selectable performance modes on the LPG engine give operators greater flexibility to optimize the truck’s performance.
- Smart interactive dash provides audible and visual warnings to operators, and is password-protected, allowing only authorized users to change truck settings.
- On-board diagnostics allow operators to quickly and efficiently address any issues.
CLARK GTS-Series Forklift Models [High-Capacity]
CLARK’s high-capacity GTS-series forklifts include models GTS20, GTS25, GTS30, and GTS33. These internal combustion, pneumatic-tire lift trucks have the following specifications:
Lifting Capacities
- CLARK GTS20: 13,500 lbs. (6,000 kg)
- CLARK GTS25: 15,500 lbs. (7,000 kg)
- CLARK GTS30: 16,500 lbs. (7,500kg)
- CLARK GTS33: 18,000 lbs. (8,000 kg)
Applications
- Warehousing
- Distribution
- Manufacturing
Key Features
- EPA-compliant PSI 2.4L liquified petroleum gas (LPG) engine with split transmission comes standard
- Standard wet disc brakes ensure high-performance stopping.
- Standard, Triple, and Hi-Lo Uprights are available
CLARK C-Series Forklift Models [High-Capacity]
CLARK’s high-capacity C-Series forklifts include models C60, C70, C75, and C80. These internal combustion, pneumatic-tire lift trucks have the following specifications:
Lifting Capacities
- CLARK C60: 13,500 lbs. (6,000 kg)
- CLARK C70: 15,500 lbs. (7,000 kg)
- CLARK C75: 16,500 lbs. (7,500kg)
- CLARK C80: 18,000 lbs. (8,000 kg)
Applications
- Yard applications
- Heavy manufacturing
- Building materials handling
- Stevedoring
- Warehousing
Key Features
- 4.3L V6 GM liquified petroleum gas (LPG) or 4.5L turbo-charged 100 HP Iveco diesel engine (both EPA-compliant), the latter featuring a cold start system, vertical exhaust, a pre-cleaner, and auto-shut-down.
- Cowl-mounted hydraulic controls, located and sized for optimal ease of use.
- Optional operator cab with unique overhead guard (OHG) design minimizes vision obstruction of door pillars for maximum visibility.
- Fully automatic 3-speed powershift transmission, standard on LPG and diesel models, with upshifting and downshifting.
CLARK Forklift Models: Electric Sit-Down Rider Forklifts
CLARK TMX-Series Forklift Models [Small Capacity]
CLARK’s TMX-series forklifts include models TMX12, TMX15S, TMX15, TMX17, TMX20, and TMX25. These electric, sit-down rider lift trucks have the following specifications:
Lifting Capacities
- CLARK TMX12: 2,500 lbs. (1,250 kg)
- CLARK TMX15S: 3,000 lbs. (1,500 kg)
- CLARK TMX15: 3,000 lbs. (1,500 kg)
- CLARK TMX17: 3,500 lbs. (1,750 kg)
- CLARK TMX20: 4,000 lbs. (1,815 kg)
- CLARK TMX25: 5,000 lbs. (2,270 kg)
Applications
- Warehousing
- Beverage/bottling
- Shipping/receiving
- Manufacturing
Key Features
- 100% AC system (36 or 48-volt) with advanced thermal protection for all motors and controls
- Compact maneuverability allows a tight turning radius for use in narrow aisles and confined areas
- Solid pneumatic tires (for indoor/outdoor operation)
- A variety of lights, alarms, and other options are available
CLARK S-Series Forklift Models [Small Capacity]
CLARK’s S-series forklifts include models SE15T, SE17T, SE20T, and SE25T. These electric, sit-down rider lift trucks have the following specifications:
Lifting Capacities
- CLARK SE15T: 3,000 lbs. (1,360 kg)
- CLARK SE17T: 3,500 lbs. (1,588 kg)
- CLARK SE20T: 4,000 lbs. (1,814 kg)
- CLARK SE25T: 5,000 lbs. (2,268 kg)
Applications
- Manufacturing
- Warehousing
- Beverage/bottling
- Shipping/receiving
Key Features
- 100% AC electric (36 or 48-volt) systems offer high output and efficiency.
- New generation Zap ACE-2 controllers allow operators to have greater insight into life cycles.
- Advanced electric steering minimizes operator fatigue and increases efficiency.
- Integral side-shifting carriage retains all of its capacity to 188 inches lift height
- Solid pneumatic tires (for indoor/outdoor operation)
CLARK TWLi20 Model Forklift [Small Capacity]
CLARK’s model TWLi20 3-wheel electric lift truck has the following specifications:
Lifting Capacities
- CLARK TWLi20: 4,000 lbs. (1,814 kg)
Applications
- Narrow aisles
- Docks
- Manufacturing
- Warehousing (small to large)
- Food and beverage
Key Features
- Fully integrated Li-Ion battery requires no maintenance, no watering, and no change-outs – while providing up to 50% more energy than lead-acid batteries
- Supports opportunity charging for charges in as little as 10 minutes
- Lasts over 1,000 cycles longer than a typical lead-acid battery
- Solid pneumatic tires (for indoor/outdoor operation)
CLARK ECX-Series Forklift Models [Small Capacity]
CLARK’s ECX-series forklifts include models ECX20, ECX25, ECX30, and ECX32. These electric, sit-down rider lift trucks have the following specifications:
Lifting Capacities
- CLARK ECX20: 4,000 lbs. (2,000 kg)
- CLARK ECX25: 5,000 lbs. (2,500 kg)
- CLARK ECX30: 6,000 lbs. (3,000 kg)
- CLARK ECX32: 6,500 lbs. (3,000 kg)
Applications
- Manufacturing
- Warehousing
- Beverage/bottling
- Shipping/receiving
Key Features
- 100% AC electric (36 or 48-volt) power system with enclosed motors and advanced thermal protection
- Hydraulic cushioning minimizes jarring and reduces instability when handling loads
- Large instrument dash display for clear visibility
- Variety of lights, alarms, and other safety options are available
CLARK GEX-Series Forklift Models [Small Capacity]
CLARK’s small-capacity GEX-series forklifts include models GEX20, GEX25, GEX30, GEX30s, and GEX32. These electric, sit-down rider lift trucks have the following specifications:
Lifting Capacities
- CLARK GEX20: 4,000 lbs. (2,000 kg)
- CLARK GEX25: 5,000 lbs. (2,500 kg)
- CLARK GEX30: 6,000 lbs. (3,000 kg)
- CLARK GEX30s: 6,000 lbs. (3,000 kg)
- CLARK GEX32: 6,500 lbs. (3,200kg)
Applications
- Warehousing
- Manufacturing
- Shipping/receiving
Key Features
- 100% AC, 80-volt electrical system with enclosed motors. The GEX20/25 models can accommodate batteries up to 54 kWh. The GEX30/32 models can handle batteries up to 60 kWh
- Solid pneumatic tires (for indoor/outdoor operation) with wet disc brakes and a zero-turn steer axle
- Rugged upright and carriage
CLARK GEX-Series Forklift Models [Medium Capacity]
CLARK’s medium-capacity GEX-series forklifts include models GEX40, GEX45, and GEX50. These electric, sit-down rider lift trucks have the following specifications:
Lifting Capacities
- CLARK GEX40: 8,000 lbs. (4,000 kg)
- CLARK GEX45: 9,000 lbs. (4,500 kg)
- CLARK GEX50: 10,000 lbs. (5,000 kg)
Applications
- Manufacturing
- Warehousing
- Shipping/receiving
Key Features
- 100% AC motors with 80-volt drive and lift systems
- Solid pneumatic tires (for indoor/outdoor operation)
- Programmable dash display
CLARK Forklift Models: Electric Stand-Up Rider Forklifts
CLARK ESX-Series Forklift Models [Small Capacity]
CLARK’s ESX-series forklifts include models ESX12, ESX15, ESX15S, ESX17, ESX20, ESX22, and ESX25. These electric, stand-up rider lift trucks have the following specifications:
Lifting Capacities
- CLARK ESX12: 2,500 lbs. (1250 kg)
- CLARK ESX15: 3,000 lbs. (1,500 kg)
- CLARK ESX15S: 3,000 lbs. (1,500 kg)
- CLARK ESX17: 3,500 lbs. (1,750 kg)
- CLARK ESX20: 4,000 lbs. (1,815 kg)
- CLARK ESX22: 4,500 lbs. (2,050 kg)
- CLARK ESX25: 5,000 lbs. (2,270 kg)
Applications
- Manufacturing
- Warehousing
- Shipping/receiving
Key Features
- 36 or 48-volt electric power system
- 3-function control handle with integrated mini-thumbstick allows simultaneous operation of all functions (travel, lift/lower, and auxiliary)
- Anti-rollaway and ramp hold feature increases controllability and enhances safety
- Two-way fork leveling levels backward and forward, reducing broken pallets and bent racks
CLARK NPX-Series Forklift Models [Small Capacity]
CLARK’s NPX-series forklifts include models NPX15D, NPX17, NPX20, and NPX22. These electric reach trucks have the following specifications:
Lifting Capacities
- CLARK NPX15D: 3,000 lbs. (1,350 kg)
- CLARK NPX17: 3,500 lbs. (1,600 kg)
- CLARK NPX20: 4,000 lbs. (1,800 kg)
- CLARK NPX22: 4,500 lbs. (2,000 kg)
Applications
- Grocery
- Distribution
- Manufacturing
- Warehousing
Key Features
- Long-lasting AC motors and controllers
- 24 or 36-volt power system
- Reliable electro-mechanical brakes
- Electronic, speed-sensitive power steering for less operator strain
- High-efficiency hydraulic system
CLARK OSX15 Narrow Aisle Order Selector [Small Capacity]
CLARK’s model OSX15 electric order selector has the following specifications:
Lifting Capacities
- CLARK OSX15: 3,000 lbs. (1,360 kg)
Applications
- Manufacturing
- Warehousing
- Narrow aisles
Key Features
- 100% AC electric drive and hydraulic motors (24 or 36-volt systems available)
- 4-point operator stance for better safety
- Premium anti-fatigue floor mat
CLARK Forklift Models: Electric Pallet Jacks
CLARK WPL25 Electric Pallet Jack [Small Capacity]
CLARK’s model WPL25 electric pallet jack has the following specifications:
Lifting Capacities
- CLARK WPL25: 2,500 lbs. (1,130 kg)
Applications
- Warehouse
- Manufacturing
- Narrow aisle
Key Features
- A 24-volt electric system powered by an exchangeable lithium-ion battery lasts for up to 3 hours of operation and can be fully charged within 2.5 hours.
- Electromechanical brakes for superior stopping power.
- Permanent magnet DC hydraulic pump motor and chrome-plated cylinder for smooth and efficient lifting.
- Water-resistant connectors and shrouded wiring
CLARK WP30 Electric Pallet Jack [Small Capacity]
CLARK’s model WP30 electric pallet jack has the following specifications:
Lifting Capacities
- CLARK WP30: 3,000 lbs. (1,360 kg)
Applications
- Light manufacturing
- Grocery
- Delivery trucks
Key Features
- 24-volt permanent magnet DC drive motor with onboard charger featuring a standard 110-volt, 3-prong outlet plug.
- 70 Ah absorbed glass mat (AGM) battery pack with run times of up to 4.5 hours.
- Automatically-applied parking brake engages when the truck stops and the handle is released
CLARK WPL40 Electric Pallet Jack [Small Capacity]
CLARK’s model WPL40 electric pallet jack has the following specifications:
Lifting Capacities
- CLARK WPL40: 4,000 lbs. (1,800 kg)
Applications
- Warehousing
- Manufacturing
Key Features
- 48-volt electric system powered by a lithium-ion battery delivers up to 3 hours of operation and can be fully charged within 2.5 hours
- With its handle in a fully upright position, the WPL40 can “pinwheel” in and out of tight spaces thanks to a smaller, tighter turn-radius
- Fork designs with tapered tips for easier pallet entry
CLARK WPX45 Electric Pallet Jack [Small Capacity]
CLARK’s model WPX45 electric pallet jack has the following specifications:
Lifting Capacities
- CLARK WPX45: 4,500 lbs. (2,411 kg)
Applications
- Manufacturing
- Warehousing
Key Features
- 24-volt electrical power system
- Solid steel tubing g arm and handle to outlast cast aluminum or plastic designs.
- Crawl speed function and electromagnetic brake
CLARK PWXE-Series Walkie/Rider Pallet Truck [Small Capacity]
CLARK’s PWXE-series forklifts include models PWXE30 and PWXE40. These electric pallet trucks (which are assembled in Kentucky) have the following specifications:
Lifting Capacities
- CLARK PWXE30: 6,000 lbs. (2,720 kg)
- CLARK PWXE40: 8,000 lbs. (3,630 kg)
Applications
- Manufacturing
- Warehousing
- Distribution
Key Features
- 24-volt electric fully enclosed traction motor and control
- 48 in. x 27 in. forks
- Spiral bevel gears immersed in an oil bath and sealed in a heavy-duty case reduce maintenance needs and offer quieter operation
- Heavy-duty undercarriage with entry/exit rollers for less damage during pallet handling
CLARK HWXE-Series Walkie/Rider Pallet Truck [Small Capacity]
CLARK’s HWXE-series forklifts include models HWXE30 and HWXE40. These electric pallet trucks (which are assembled in Kentucky) have the following specifications:
Lifting Capacities
- CLARK HWXE30: 6,000 lbs. (2,720 kg)
- CLARK HWXE40: 8,000 lbs. (3,630 kg)
Applications
- Manufacturing
- Warehousing
- Distribution
Key Features
- 24-volt fully enclosed traction motor and control
- 48 in. x 27 in. forks
- Electromagnetic brake and two forms of regenerative braking are available
CLARK Forklift Models: Electric Stacker Forklifts
CLARK WS22M Stacker Forklift [Small Capacity]
CLARK’s model WS22M electric stacker forklift has the following specifications:
Lifting Capacities
- CLARK WS22M: 2,200 lbs. (998 kg)
Applications
- Manufacturing
- Warehousing
- Cold storage
- Truck loading/unloading
Key Features
- 24-volt electric permanent magnet DC drive motor
- Electromagnetic disc brake provides reliable stopping under all conditions
- Up to 62 in. lift height
- All steel construction with welded rigid steel chassis is designed for durability
CLARK WSTX-Series Stacker Forklifts [Small Capacity]
CLARK’s WSTX-series forklifts include models WSTX22 and WSTX33. These electric stacker forklift models have the following specifications:
Lifting Capacities
- CLARK WSTX22: 2,200 lbs. (998 kg)
- CLARK WSTX33: 3,300 lbs. (1,497 kg)
Applications
- Manufacturing
- Warehousing
Key Features
- 24-volt, brushless AC travel controller and drive motor deliver high torque with reduced maintenance needs
- Travel speed is reduced when forks are above 12 in. fork height to reduce instability and neutral braking resists rollback on ramps
- All controls (travel, lift/lower, tilt) are located in the operator handle, which is designed to allow operation with either hand
- Polyurethane drive and load wheels for indoor use on smooth surfaces
CLARK SSX-Series Stacker Forklifts [Small Capacity]
CLARK’s SSX-series stacker forklifts include models SSX12, SSX16, and SSX18. These electric stacker forklift models have the following specifications:
Lifting Capacities
- CLARK SSX 12: 2,500 lbs. (1,200 kg)
- CLARK SSX16: 3,500 lbs. (1,600 kg)
- CLARK SSX18: 4,000 lbs. (1,800 kg)
Applications
- Warehousing
- Manufacturing
Key Features
- 24-volt, 100% AC electric drive motors are fully enclosed and have no brushes to change
- Adjustable outriggers and load backrest provide stable load handling
- Battery discharge indicator provides an instant charge level readout
CLARK WSRX30 Stacker Forklift [Small Capacity]
CLARK’s model WSRX30 electric walkie stacker forklift includes the following specifications:
Lifting Capacities
- CLARK WSRX30: 3,000 lbs. (1,361 kg)
Applications
- Narrow aisles
- Manufacturing
- Warehouse
Key Features
- 24-volt ZAPI Combi-ACx, travel control with matching drive motor
- Choice of 34 in. or 42 in. fixed straddle legs
- Up to 189 in. lift height
Common CLARK Forklift Model Questions
What Year Did CLARK Start Making Forklifts?
CLARK is credited with having invented the world’s first truck with a hydraulic lifting mechanism in 1920, the “Truclift.” This was an internal combustion-powered platform lift truck and the forerunner to modern forklift trucks. CLARK then began to produce its Tructractors and Truclifts at its new plant in Battle Creek, Michigan.
Who Bought CLARK Forklift?
In 1995, CLARK was acquired by Ingersoll Rand. In 2003, Young An Hat Company Ltd. of Korea acquired CLARK Material Handling Company and CLARK Material Handling Asia.
Who Owns CLARK Forklift?
The CLARK Equipment Company owns CLARK Forklift. CLARK Equipment Company is a subsidiary of Young An Hat Co. Ltd.
Who Manufactures CLARK forklifts?
CLARK forklifts are manufactured by CLARK Material Handling Company. CLARK has a wide array of forklift products that cater to different industries, such as warehousing, construction, manufacturing, storage, and logistics.
Does CLARK Still Make Forklifts?
CLARK continues to make forklifts in 2023. It’s one of the best forklift manufacturing companies in the world. CLARK Forklifts are a world leader in manufacturing and supplying forklift trucks. The CLARK range of forklift trucks includes liquified petroleum gas (LPG) forklifts, diesel forklifts, and electric forklifts ranging from 1.5 to 8-tonne capacities.
Is CLARK a Good Forklift?
CLARK makes excellent forklifts. CLARK was the inventor of the 1st forklift (the “Truclift”) in 1917 and has over 100 years in operation and produced over 1 million forklifts.
Today, over 250,000 CLARK trucks are operating in North America and 350,000 worldwide. CLARK forklifts are recognized for being strong, smart, and safe, built with high-quality components.
What Engine Is in a CLARK Forklift?
CLARK forklift engines vary by model and type.
For instance, the CLARK S20/25/30/35 IC-PNEUMATIC forklifts have either a high-performance Ford 2.5-liter, 4-cylinder engine or an Isuzu 2.2-liter turbocharged diesel engine with a high-pressure multi-stage injection. CLARK forklift engines are designed for commercial use in warehousing and manufacturing.
Who Makes CLARK Forklift Engines?
CLARK forklifts mostly use engines manufactured by Ford, Isuzu, Iveco, or Hyundai theta Liquified petroleum gas (LPG) engines, and more. For example, CLARK used the FORD 2.5L Liquified petroleum gas (LPG) 4-cylinder engine across the GEN2 CLARK’s C20C/C32C and C20/C35 product lines.
How Many Hours Does a CLARK Forklift Last?
Normally, the average lifespan of a forklift engine is 10,000 hours, but some can last up to 12,000 hours (about 10 to 12 years). You may even see a forklift last more than 20,000 hours (about 20 years) from higher-quality brands such as Toyota and CLARK.
How Do I Identify My CLARK Forklift?
You identify your CLARK forklift by the model and serial numbers. The model can tell you key information about the truck, like the lifting capacity.
Check the data tag/data plate to find both of these items. Data plates are usually located in the operator’s compartment on the hood or the instrument panel. If the serial number plate is missing or illegible, you may be able to find the serial number stamped into the frame.
Where Is the Model Number on a CLARK Forklift?
Your CLARK forklift’s model number is on the data plate. The data plate is usually located in the operator’s compartment, on the hood, or on the instrument panel.
Where Can I Find My Closest CLARK Forklift Dealership?
Contact your local CLARK dealer by clicking here and searching by state and county.
What Is My CLARK Forklift Model’s Vintage?
Some people refer to the age/year of manufacture as the “vintage.” To age your CLARK forklift, get your model and serial number and then contact your local dealer.
How Can I Look Up CLARK Forklift Model Parts by Serial Number?
Currently, there’s no way to directly look up your CLARK model parts by serial number. Instead, your best bet is to contact your local CLARK Forklift dealership. Be sure to have your model and serial number ready!
Where Can I Find a CLARK Forklift Parts Catalog?
The best way to find a CLARK forklift parts catalog is to contact your nearest CLARK-authorized dealership. The deal will give you the parts’ pricing and availability to help you perform the necessary maintenance.
Where Can I Get CLARK Internal Combustion Forklift Truck Parts?
CLARK manuals and service parts, including IC Forklift truck parts, are available from CLARK lift truck dealers. Contact your local dealer to get your CLARK lift truck parts, including vintage CLARK forklift parts.
Where Can I Find Replacement Parts for Early Model CLARK Forklifts?
Getting the replacement parts for an early model or old CLARK forklift models can be challenging. You’ll have the greatest chance of success by contacting your local CLARK dealer. They can help locate either original equipment manufacturer (OEM) or aftermarket replacement parts.
Conclusion
That’s it: The complete list of CLARK forklift models.
