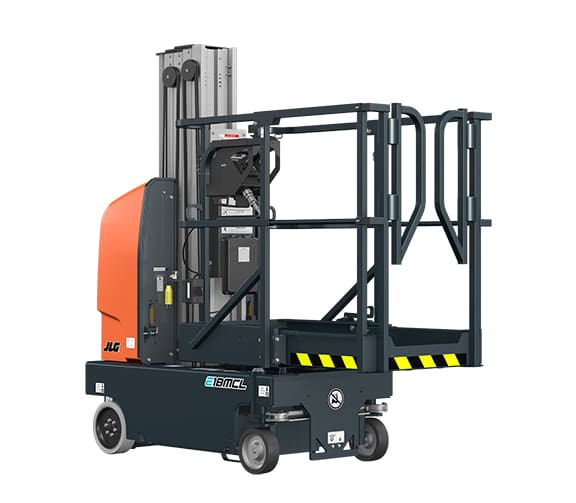

E18MCL_EXT OPT_Stowed_Front_RF

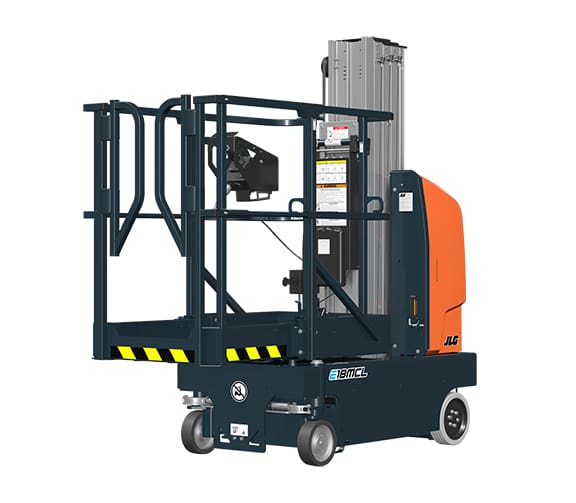

E18MCL_EXT OPT_Stowed_Front_LF

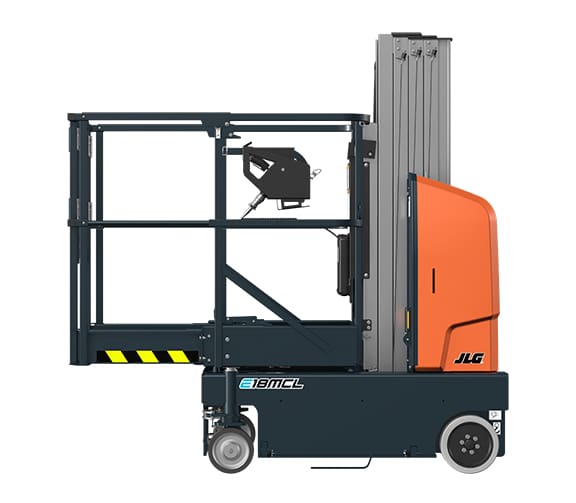

E18MCL_EXT OPT_Stowed_Side_LF

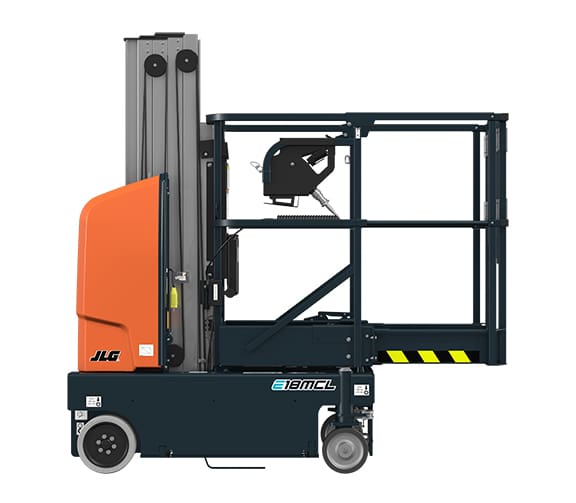

E18MCL_EXT OPT_Stowed_Side_RF

E18MCL Driveable Vertical Mast Lift

  • 24-ft indoor working height and 19-ft outdoor working height.
  • 400-lb platform capacity with 250-lb extension deck capacity.
  • 30-in machine width and zero inside turning radius for tight spaces.
  • Driveable fully elevated indoors and up to 13 ft outdoors.
  • Quick-change platform options
Request a Quote

Documents

Product Documents

The JLG E18MCL is a driveable vertical mast lift built for compact access, indoor/outdoor versatility, and straightforward operation. It provides an 18-ft indoor platform height, 13-ft outdoor platform height, and 400-lb platform capacity in a 30-in-wide machine with zero inside turning radius. Operators get familiar controls, an ergonomic joystick, easy platform entry and exit, and the ability to drive at full indoor elevation or up to 13 ft outdoors. Multiple quick-change platform options, longer-running batteries, diagnostic support, and accessible scissor components help crews match the lift to the job while keeping service needs manageable.

Model Number: E18MCL

Additional Information

MEWP Type

Vertical Mast Lifts
Condition

New
Brand

JLG
Power

Electric
MEWP Lift Height

Up to 25ft
MEWP Capacity

Up to 500 lbs
  • 24-ft indoor working height and 19-ft outdoor working height support elevated work across indoor and wind-rated outdoor applications.
  • Compact 30-in machine width and zero inside turning radius help operators access tight work areas.
  • 1,950-lb machine weight makes the lift well suited for sensitive flooring and transport between work zones.
  • Driveable at full indoor platform height and up to 13 ft outdoors to reduce repositioning time.
  • Multiple quick-change platform options let the machine adapt to standard access, narrow areas, extension reach, or tray-supported work.
  • 18-ft indoor platform height and 13-ft outdoor platform height.
  • 400-lb standard platform capacity with 250-lb extension deck capacity.
  • 29.5 x 51-in front-entry extension platform with saloon doors.
  • Four 6V 220 AH batteries with 27 amp multi-function universal charger.
  • DC electric drive with proportional controls, dynamic braking, and electric brake release.
  • Active pothole protection system, load sensing system, tilt alarm and light, horn, and all motion alarm.
  • Movable, removable platform control with 6-ft coiled cable.
  • AC receptacle in platform, lanyard attach points, lifting and tie-down points, and forklift pockets.
  • Quick-change 30 x 26-in platform with 450-lb capacity.
  • Narrow 22 x 26-in platform with 450-lb capacity.
  • Fold-down work tray platform with 400-lb platform capacity and 100-lb tray capacity.
  • Lithium battery, Lithium+ batteries, or AGM battery options.
  • CleanGuard leak containment system for applications where floor protection matters.
  • ClearSky telematics, USB charger and phone cradle, dual amber beacon, floor mat, crane hook, and anti-vandalism package.
  • Familiar controls and ergonomic joystick help operators work with a control layout similar to other JLG scissor models.
  • Front-entry platform with saloon doors supports easier platform entry and exit.
  • Interchangeable control box with other scissor models supports fleet familiarity.
  • Optional platform entry step is available for applications that benefit from easier access.
  • Active pothole protection system supports stable elevated operation on appropriate surfaces.
  • Load sensing system helps monitor platform loading.
  • Tilt alarm and light, horn, all motion alarm, and lanyard attach points are included as standard features.
  • Manual descent and electric brake release are included for controlled lowering and service situations.
  • 400-lb platform capacity and 250-lb extension deck capacity for one occupant and tools or materials within rated limits.
  • Lift/lower time is 23/23 seconds.
  • 2.5 mph lowered drive speed and 0.5 mph elevated drive speed.
  • 30% gradeability supports movement around suitable jobsites.
  • Zero inside turning radius and 55-in outside turning radius improve maneuverability in confined areas.
  • Quick access to key scissor components supports efficient service work.
  • Durable mast protection helps support uptime in demanding applications.
  • Multi-display indicator provides real-time fault code and maintenance information.
  • Analyzer port for diagnostics, hourmeter, mast maintenance prop, and greaseless kingpin joints are included.
  • Construction applications that need a compact, driveable vertical mast lift for indoor and outdoor elevated work.
  • Interior work areas where sensitive flooring, tight access, and compact machine dimensions are important.
